Docker网络
docker 是如何处理容器网络访问的？
Docker0
删除影响实验结果的容器
先删除所有容器 docker rm -f $(docker ps -aq)
查看主机网卡信息
查看网卡信息 ip addr
可以发现有一个 docker0网卡信息
给原生tomcat容器添加
iproute2组件并提交成自定义镜像ip-tomcat
原生的tomcat没有网络控制功能，因此需要自己安装iproute2、net-tools和iputils-ping，然后提交为自定义镜像tomcat容器ip-tomcat
# 运行一个原生tomcat容器
centos> docker run -it --name tomcat01 tomcat /bin/bash
# 安装iproute2
tomcat> apt update && apt install -y iproute2 && apt install -y net-tools && apt install -y iputils-ping
# ..... 安装中
tomcat> exit
# 提交为自定义镜像 ip-tomcat
centos> docker commit tomcat01 ip-tomcat
# 删除tomcat01容器
centos> docker rm -f tomcat01
使用
ip-tomcat镜像 创建容器并用ip addr查看网卡信息
tomcat01
[root@VM-8-9-centos ~]# docker exec -it tomcat01 ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
261: eth0@if262: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
valid_lft forever preferred_lft forever
主机
[root@VM-8-9-centos ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 52:54:00:f9:05:3c brd ff:ff:ff:ff:ff:ff
inet 10.0.8.9/22 brd 10.0.11.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::5054:ff:fef9:53c/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:43:1f:f2:f4 brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:43ff:fe1f:f2f4/64 scope link
valid_lft forever preferred_lft forever
262: veth7e25f43@if261: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
link/ether 1a:21:ef:cc:9b:91 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet6 fe80::1821:efff:fecc:9b91/64 scope link
valid_lft forever preferred_lft forever
可以发现tomcat01容器和主机生成了一对数字相差1的网卡
其中tomcat01中的eth0@if163是由docker分配的！
测试主机与容器间网卡是否能够ping通
[root@VM-8-9-centos ~]# ping 172.17.0.2
PING 172.17.0.2 (172.17.0.2) 56(84) bytes of data.
64 bytes from 172.17.0.2: icmp_seq=1 ttl=64 time=0.076 ms
64 bytes from 172.17.0.2: icmp_seq=2 ttl=64 time=0.060 ms
64 bytes from 172.17.0.2: icmp_seq=3 ttl=64 time=0.041 ms
发现linux主机可以ping通docker容器！
容器与容器之间也是可以相互ping通
创建新的ip-tomcat容器tomcat02尝试ping通tomcat01
[root@VM-8-9-centos ~]# docker run -d --name tomcat02 ip-tomcat
[root@VM-8-9-centos ~]# docker exec -it tomcat02 ping 172.17.0.2
PING 172.17.0.2 (172.17.0.2) 56(84) bytes of data.
64 bytes from 172.17.0.2: icmp_seq=1 ttl=64 time=0.100 ms
64 bytes from 172.17.0.2: icmp_seq=2 ttl=64 time=0.076 ms
发现是可以ping通的。
原理
每次启动一个docker容器，docker就会给docker容器分配一个ip，只要安装了docker就会有一个网卡docker0桥接模式，使用evth-pair技术！
例如上一个例子中创建tomcat01容器时除了tomcat01生成的网卡162::eth0@if163，主机也生成了一个对应的网卡163:veth7e25f43@if162，形成一个evth-pair。
evth-pair 是一堆虚拟设备接口，成对出现，一段连接协议，一段彼此相连
evth-pair 充当一个桥梁，连接各种虚拟网络设备
所有容器在不指定网络的情况下，都是由 docker0 路由的， docker 会给容器分配一个默认的可用IP
小结
Docker 使用的是 Linux 的桥接，宿主机中是一个 Docker 容器的网桥 docker0。
Docker中的所有网络接口都是虚拟的。虚拟的转发效率非常高。（内网传递数据）
若容器被暂停或删除，对应的网桥对就会消失。（仅在运行时存在，每次运行重新生成！）
–link
高可用 -> 容器ip地址更换项目仍然能够定位到指定微服务（通过唯一名字定位）
直接尝试两个容器间ping是无法ping通的
[root@VM-8-9-centos ~]# docker exec -it tomcat02 ping tomcat01
ping: tomcat01: Name or service not known
使用--link参数可以将两个容器连接，之后便可以直接通过容器名字(或容器ID)ping通
[root@VM-8-9-centos ~]# docker run -d --name tomcat03 --link tomcat02 ip-tomcat
ad53d25fe3ceaef901d7c16ea819d54c7a3bf29c211be5d9e12fb4aa3eaa8225
[root@VM-8-9-centos ~]# docker exec -it tomcat03 ping tomcat02
PING tomcat02 (172.17.0.3) 56(84) bytes of data.
64 bytes from tomcat02 (172.17.0.3): icmp_seq=1 ttl=64 time=0.111 ms
64 bytes from tomcat02 (172.17.0.3): icmp_seq=2 ttl=64 time=0.061 ms
64 bytes from tomcat02 (172.17.0.3): icmp_seq=3 ttl=64 time=0.073 ms
注意：
通过link连接的是单向ping通，不能反向ping通，两个容器都需要link才可以实现双向ping通！！！
[root@VM-8-9-centos ~]# docker exec -it tomcat02 ping tomcat03
ping: tomcat03: Name or service not known
查看docker网络信息 docker network
帮助文档
Usage: docker network COMMAND
Manage networks
Commands:
connect Connect a container to a network
create Create a network
disconnect Disconnect a container from a network
inspect Display detailed information on one or more networks
ls List networks
prune Remove all unused networks
rm Remove one or more networks
docker network ls
[root@VM-8-9-centos ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
b31f3de3e5ff bridge bridge local
93cde78e2b58 host host local
0dec21c5d6a8 none null local
docker network inspect (网络ID)
[root@VM-8-9-centos ~]# docker network inspect b31f3de3e5ff
[
{
"Name": "bridge",
"Id": "b31f3de3e5ff0549da27a9a25f0accc96d207ba28a46a37c79985e8bd1cf2da6",
"Created": "2022-03-29T23:11:54.436421179+08:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": null,
"Config": [
{
"Subnet": "172.17.0.0/16",
"Gateway": "172.17.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"25318c1306be0deedaab5ebc9b2bc0134383eb0f304af7d7cb02fe7caad06d27": {
"Name": "tomcat02",
"EndpointID": "24dcc29f5a58d960608916fc416cfb6380ea2a57e144e8a170c509ebcc981661",
"MacAddress": "02:42:ac:11:00:03",
"IPv4Address": "172.17.0.3/16",
"IPv6Address": ""
},
"aadfe9d280298887a4b4971801f360d78578eaf32337a6625d713b8dc04f95a2": {
"Name": "tomcat01",
"EndpointID": "c19611d2471c532f551d4a42cf440e678d18136465ddf53ba8c8c532fec923f6",
"MacAddress": "02:42:ac:11:00:02",
"IPv4Address": "172.17.0.2/16",
"IPv6Address": ""
},
"ad53d25fe3ceaef901d7c16ea819d54c7a3bf29c211be5d9e12fb4aa3eaa8225": {
"Name": "tomcat03",
"EndpointID": "5c398ff94f5cf5e96eb9313a3e61b472b3829f99605be21903d005d255ba4859",
"MacAddress": "02:42:ac:11:00:04",
"IPv4Address": "172.17.0.4/16",
"IPv6Address": ""
}
},
"Options": {
"com.docker.network.bridge.default_bridge": "true",
"com.docker.network.bridge.enable_icc": "true",
"com.docker.network.bridge.enable_ip_masquerade": "true",
"com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
"com.docker.network.bridge.name": "docker0",
"com.docker.network.driver.mtu": "1500"
},
"Labels": {}
}
]
原理：在本地
/etc/hosts中配置了映射关系
其实就上述tomcat03就是在本地配置了tomcat02的IP映射关系
[root@VM-8-9-centos ~]# docker exec -it tomcat03 cat /etc/hosts
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.17.0.3 tomcat02 25318c1306be
172.17.0.4 ad53d25fe3ce
本质：--link 就是在hosts配置中添加了一个 172.17.0.3 tomcat02 25318c1306be
现在不建议使用 --link ！！
一般自定义网络，不使用 docker0 ， docker0 不支持容器名连接访问！
自定义网络
Usage: docker network COMMAND
Manage networks
Commands:
connect Connect a container to a network
create Create a network
disconnect Disconnect a container from a network
inspect Display detailed information on one or more networks
ls List networks
prune Remove all unused networks
rm Remove one or more networks
网络模式
| 模式 | 解释 |
|---|---|
| bridge | 桥接 docker (默认) |
| none | 不配置网络 |
| host | 和宿主机共享网络 |
| container | 容器网络连通(用得少) |
默认带有参数 --net bridge
docker run -d --name tomcat01 ip-tomcat
docker run -d --name tomcat01 --net ip-tomcat
默认使用的 docker0，域名不能访问！可以通过 --link 连通。
创建网络
Usage: docker network create [OPTIONS] NETWORK
Create a network
Options:
--attachable Enable manual container attachment
--aux-address map Auxiliary IPv4 or IPv6 addresses used by Network driver
(default map[])
--config-from string The network from which to copy the configuration
--config-only Create a configuration only network
-d, --driver string Driver to manage the Network (default "bridge")
--gateway strings IPv4 or IPv6 Gateway for the master subnet
--ingress Create swarm routing-mesh network
--internal Restrict external access to the network
--ip-range strings Allocate container ip from a sub-range
--ipam-driver string IP Address Management Driver (default "default")
--ipam-opt map Set IPAM driver specific options (default map[])
--ipv6 Enable IPv6 networking
--label list Set metadata on a network
-o, --opt map Set driver specific options (default map[])
--scope string Control the network's scope
--subnet strings Subnet in CIDR format that represents a network segment
创建一个简单的网络
mynet
-- driver bridge网络模式--subnet 192.168.0.0/16子网地址 -> (192.168.0.2 ~ 192.168.255.255)--gateway 192.168.0.1网关
[root@VM-8-9-centos ~]# docker network create --driver bridge --subnet 192.168.0.0/16 --gateway 192.168.0.1 mynet
dc3360444237c65c301416861b9c8a04c500354d2a5bfa715ccf86d01a07fc32
[root@VM-8-9-centos ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
b31f3de3e5ff bridge bridge local
93cde78e2b58 host host local
dc3360444237 mynet bridge local
0dec21c5d6a8 none null local
[root@VM-8-9-centos ~]# docker network inspect mynet
[
{
"Name": "mynet",
"Id": "dc3360444237c65c301416861b9c8a04c500354d2a5bfa715ccf86d01a07fc32",
"Created": "2022-03-31T17:31:17.128610062+08:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": {},
"Config": [
{
"Subnet": "192.168.0.0/16",
"Gateway": "192.168.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {},
"Options": {},
"Labels": {}
}
]
启动一个容器，设置网络为mynet
[root@VM-8-9-centos ~]# docker network create --driver bridge --subnet 192.168.0.0/16 --gateway 192.168.0.1 mynet
dc3360444237c65c301416861b9c8a04c500354d2a5bfa715ccf86d01a07fc32
[root@VM-8-9-centos ~]# docker network inspect mynet
[
{
"Name": "mynet",
"Id": "dc3360444237c65c301416861b9c8a04c500354d2a5bfa715ccf86d01a07fc32",
"Created": "2022-03-31T17:31:17.128610062+08:00",
"Scope": "local",
"Driver": "bridge",
.....
"ConfigOnly": false,
"Containers": {
"cbc91c79cb279e4192452ea5c0cf5f37f21c77c9272bd4c0b98bf7861263e04a": {
"Name": "tomcat-net-01",
"EndpointID": "8c8ac809cd39021a82fe350a1d7c5898dcdf05dc925272fc0c7bad03b0212de0",
"MacAddress": "02:42:c0:a8:00:02",
"IPv4Address": "192.168.0.2/16",
"IPv6Address": ""
}
},
"Options": {},
"Labels": {}
}
]
使用自定义创建的网络docker，可以通过容器名或容器ID相互ping通！
所以推荐使用自定义网络！！！
[root@VM-8-9-centos ~]# docker exec -it tomcat-net-01 ping tomcat-net-02
PING tomcat-net-02 (192.168.0.3) 56(84) bytes of data.
64 bytes from tomcat-net-02.mynet (192.168.0.3): icmp_seq=1 ttl=64 time=0.108 ms
64 bytes from tomcat-net-02.mynet (192.168.0.3): icmp_seq=2 ttl=64 time=0.078 ms
64 bytes from tomcat-net-02.mynet (192.168.0.3): icmp_seq=3 ttl=64 time=0.071 ms
[root@VM-8-9-centos ~]# docker exec -it tomcat-net-02 ping tomcat-net-01
PING tomcat-net-01 (192.168.0.2) 56(84) bytes of data.
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=1 ttl=64 time=0.063 ms
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=2 ttl=64 time=0.076 ms
好处：不同的集群使用不同的网络，保证集群是安全和健康的。
网络连通 docker network connect
不同网络中容器无法通过名字连通
开启一个docker0网络的镜像tomcat01 和 一个 mynet 网络的镜像 tomcat-net-01
尝试相互ping，发现都无法ping通~
[root@VM-8-9-centos ~]# docker exec -it tomcat01 ping tomcat-net-01
ping: tomcat-net-01: Name or service not known
[root@VM-8-9-centos ~]# docker exec -it tomcat-net-01 ping tomcat01
ping: tomcat01: Name or service not known
docker network connect 将一个容器连接到一个网络中
Usage: docker network connect [OPTIONS] NETWORK CONTAINER
Connect a container to a network
Options:
--alias strings Add network-scoped alias for the container
--driver-opt strings driver options for the network
--ip string IPv4 address (e.g., 172.30.100.104)
--ip6 string IPv6 address (e.g., 2001:db8::33)
--link list Add link to another container
--link-local-ip strings Add a link-local address for the container
测试
[root@VM-8-9-centos ~]# docker network connect mynet tomcat01

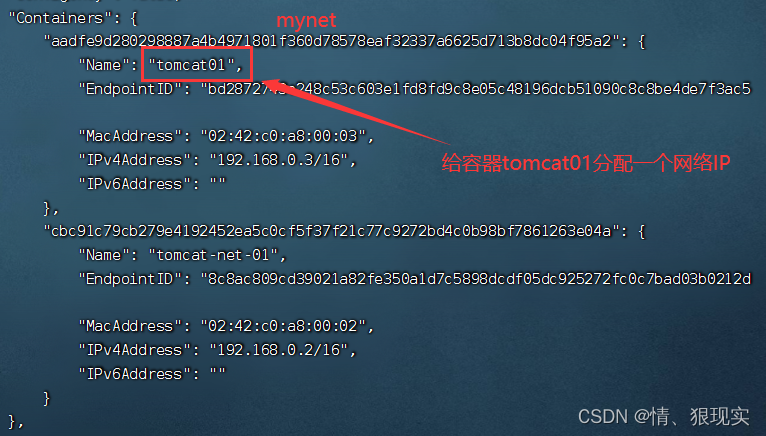

输入docker network inspect mynet 可以发现mynet下也有tomcat01容器了，原理是给它再分配了一个网络IP

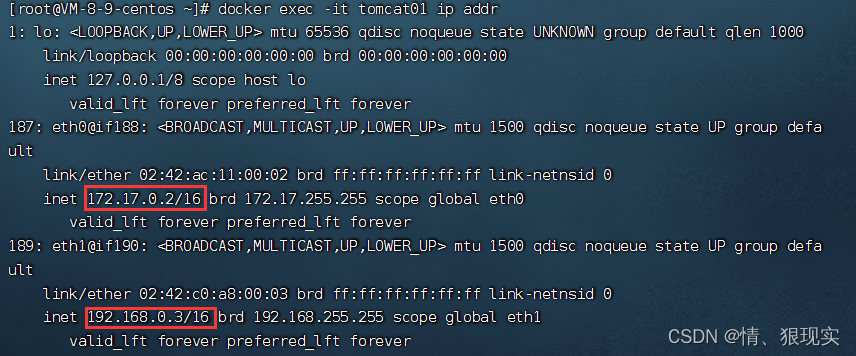

输入docker exec -it tomcat01 ip addr 可以发现多了一个192.168.0.3IP，这就是由mynet分配的网络IP
尝试相互ping，发现都可以ping通了。 而且此时tomcat01是和整个mynet网络所有容器都连通了！！
[root@VM-8-9-centos ~]# docker exec -it tomcat01 ping tomcat-net-01
PING tomcat-net-01 (192.168.0.2) 56(84) bytes of data.
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=1 ttl=64 time=0.081 ms
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=2 ttl=64 time=0.073 ms
[root@VM-8-9-centos ~]# docker exec -it tomcat01 ping tomcat-net-01
PING tomcat-net-01 (192.168.0.2) 56(84) bytes of data.
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=1 ttl=64 time=0.084 ms
64 bytes from tomcat-net-01.mynet (192.168.0.2): icmp_seq=2 ttl=64 time=0.084 ms
实战部署 Redis集群
创建一个
redis专用网络
docker network create redis --subnet 172.38.0.0/16
创建6个redis容器并挂载数据卷
for id in $(seq 1 6); \
do \
docker run --name redis-${id} \
-v /root/data/redis/node-${id}/data/:/data/ \
-v /root/data/redis/node-${id}/conf/:/etc/redis/conf \
-d --net redis --ip 172.38.0.1${id} redis
done
创建6个redis配置
for id in $(seq 1 6); \
do \
mkdir -p /root/data/redis/node-${id}/conf
touch /root/data/redis/node-${id}/conf/redis.conf
cat << EOF >/root/data/redis/node-${id}/conf/redis.conf
port 6379
bind 0.0.0.0
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
cluster-announce-ip 172.38.0.1${id}
cluster-announce-port 6379
cluster-announce-bus-port 16379
appendonly yes
EOF
done
启动6个redis服务
for id in $(seq 1 6); \
do \
docker run --name redis-${id} \
-v /root/data/redis/node-${id}/data/:/data/ \
-v /root/data/redis/node-${id}/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 172.38.0.1${id} redis redis-server /etc/redis/redis.conf;
done
搭建集群
docker exec -it redis-1 \
redis-cli --cluster create \
172.38.0.11:6379 \
172.38.0.12:6379 \
172.38.0.13:6379 \
172.38.0.14:6379 \
172.38.0.15:6379 \
172.38.0.16:6379 \
--cluster-replicas 1
[root@VM-8-9-centos data]# docker exec -it redis-1 redis-cli --cluster create 172.38.0.11:6379 172.38.0.12:6379 172.38.0.13:6379 172.38.0.14:6379 172.38.0.15:6379 172.38.0.16:6379 --cluster-replicas 1
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 172.38.0.15:6379 to 172.38.0.11:6379
Adding replica 172.38.0.16:6379 to 172.38.0.12:6379
Adding replica 172.38.0.14:6379 to 172.38.0.13:6379
M: 1ac333a27b8d3aecdcd3b14d90428869fde4ed98 172.38.0.11:6379
slots:[0-5460] (5461 slots) master
M: fe99d242067af86f124bcc691a682b25345e209c 172.38.0.12:6379
slots:[5461-10922] (5462 slots) master
M: 8cf43330c5eac644e5b94c608d26902097760dc1 172.38.0.13:6379
slots:[10923-16383] (5461 slots) master
S: 174b8a5fddbf7741aa517af5ae465960ee9fb7c9 172.38.0.14:6379
replicates 8cf43330c5eac644e5b94c608d26902097760dc1
S: 0015c60ff195dfd1a723a96ea327cec6f7fc0413 172.38.0.15:6379
replicates 1ac333a27b8d3aecdcd3b14d90428869fde4ed98
S: 92f2bdb68cc3ff268397e4af37ece72be11009df 172.38.0.16:6379
replicates fe99d242067af86f124bcc691a682b25345e209c
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
.
>>> Performing Cluster Check (using node 172.38.0.11:6379)
M: 1ac333a27b8d3aecdcd3b14d90428869fde4ed98 172.38.0.11:6379
slots:[0-5460] (5461 slots) master
1 additional replica(s)
S: 0015c60ff195dfd1a723a96ea327cec6f7fc0413 172.38.0.15:6379
slots: (0 slots) slave
replicates 1ac333a27b8d3aecdcd3b14d90428869fde4ed98
S: 174b8a5fddbf7741aa517af5ae465960ee9fb7c9 172.38.0.14:6379
slots: (0 slots) slave
replicates 8cf43330c5eac644e5b94c608d26902097760dc1
M: 8cf43330c5eac644e5b94c608d26902097760dc1 172.38.0.13:6379
slots:[10923-16383] (5461 slots) master
1 additional replica(s)
S: 92f2bdb68cc3ff268397e4af37ece72be11009df 172.38.0.16:6379
slots: (0 slots) slave
replicates fe99d242067af86f124bcc691a682b25345e209c
M: fe99d242067af86f124bcc691a682b25345e209c 172.38.0.12:6379
slots:[5461-10922] (5462 slots) master
1 additional replica(s)
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.
查看集群信息 cluster info
root@7593134c0dcb:/data# redis-cli -c
127.0.0.1:6379> cluster info
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:279
cluster_stats_messages_pong_sent:287
cluster_stats_messages_sent:566
cluster_stats_messages_ping_received:282
cluster_stats_messages_pong_received:279
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:566
执行一次操作，设置一个值 （工作被集群分配）
127.0.0.1:6379> set a b
-> Redirected to slot [15495] located at 172.38.0.13:6379
OK
# 在redis-1上操作，redis集群分配给redis-3来做
关闭redis-3，在redis-1上尝试获取刚刚设置的键值对
[root@VM-8-9-centos ~]# docker stop redis-3
发现可以获取到值，是从redis-4上获取的
127.0.0.1:6379> get a
-> Redirected to slot [15495] located at 172.38.0.14:6379
"b"
扫一扫
9529
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
