配置路由：
sy
system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip add
[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.1 24
Dec 12 2020 13:04:35-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int
[Huawei]interface g
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1] ip ad
[Huawei-GigabitEthernet0/0/1]ip address 192.168.2.1 24
Dec 12 2020 13:05:06-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol
IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
p up(s)
[Huawei]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[Huawei]ip pool
[Huawei]ip pool J1
Info: It’s successful to create an IP address pool.
[Huawei-ip-pool-J1]net
[Huawei-ip-pool-J1]netbios-type
[Huawei-ip-pool-J1]network 192.168.1.0 mask 24
[Huawei-ip-pool-J1]ga
[Huawei-ip-pool-J1]gateway-list 192.168.1.1
[Huawei-ip-pool-J1]dns
[Huawei-ip-pool-J1]dns-list 114.114.114.114 8.8.8.8
[Huawei-ip-pool-J1]q
[Huawei]ip poo
[Huawei]ip pool b
Info: It’s successful to create an IP address pool.
[Huawei-ip-pool-b]enet
[Huawei-ip-pool-b]net
[Huawei-ip-pool-b]netbios-type
[Huawei-ip-pool-b]network 192.168.2.0 mask 24
[Huawei-ip-pool-b]g
[Huawei-ip-pool-b]gateway-list 192.168.2.1
[Huawei-ip-pool-b]dns
[Huawei-ip-pool-b]dns-list 114.114.114.114 8.8.8.8
[Huawei-ip-pool-b]nt
[Huawei-ip-pool-b]ntint
[Huawei-ip-pool-b]int
[Huawei-ip-pool-b]int
[Huawei-ip-pool-b]
[Huawei-ip-pool-b]q
[Huawei]int
[Huawei]interface int
[Huawei]interface g
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]dhcp selectg
[Huawei-GigabitEthernet0/0/0]dhcp select g
[Huawei-GigabitEthernet0/0/0]dhcp select global
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]dhcp
[Huawei-GigabitEthernet0/0/1]dhcp se
[Huawei-GigabitEthernet0/0/1]dhcp select gl
[Huawei-GigabitEthernet0/0/1]dhcp select global

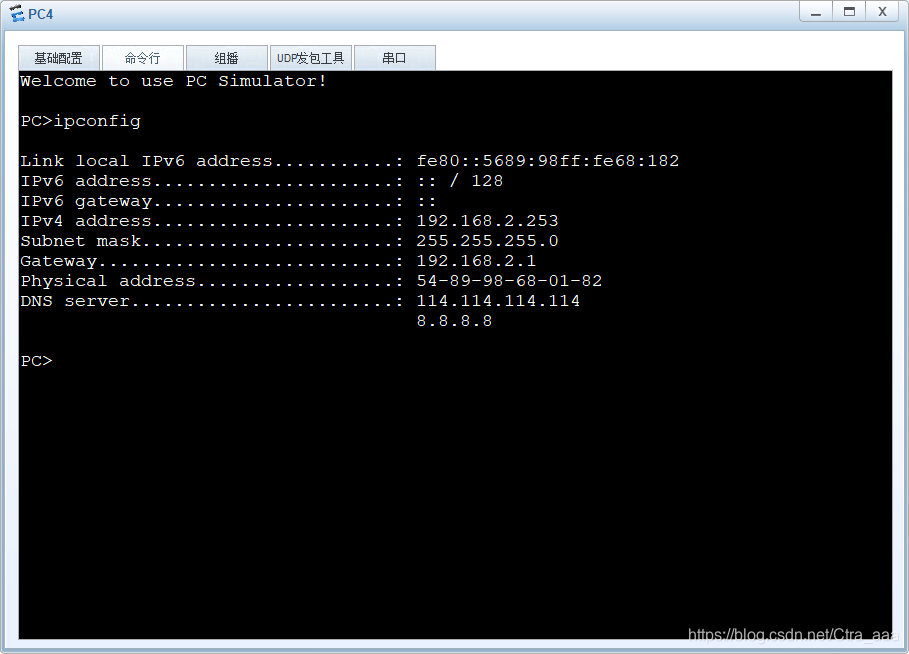

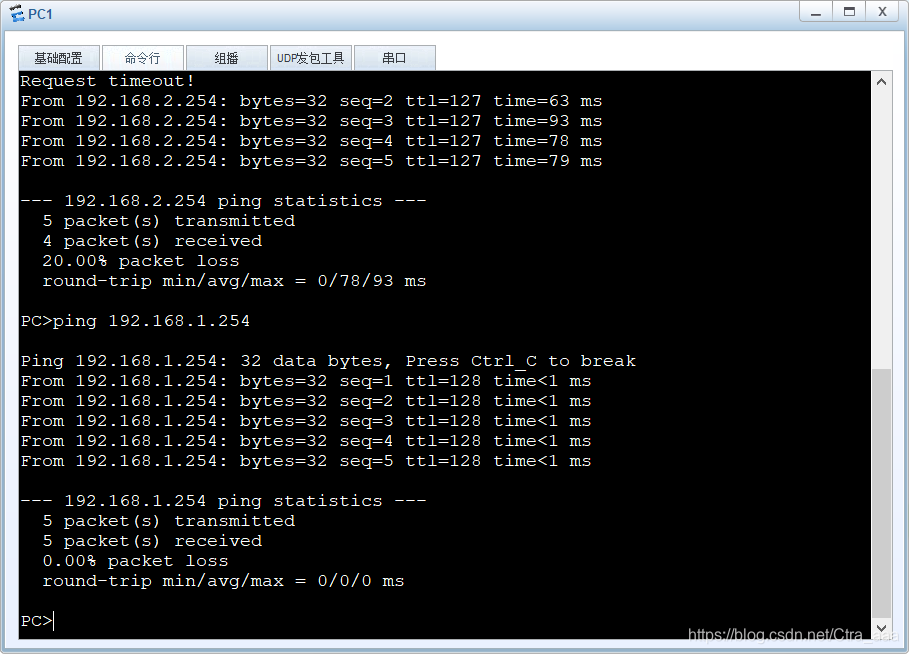

运行结果如图：
