SpringBoot 3.x @RestController 实现解析

一、相关核心注解

1、@RestController

• 组合注解：= @Controller + @ResponseBody

• 作用：将类标记为控制器，且所有方法的返回值直接写入 HTTP 响应体（非视图解析）

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Controller
@ResponseBody
public @interface RestController {

	/**
	 * The value may indicate a suggestion for a logical component name,
	 * to be turned into a Spring bean in case of an autodetected component.
	 * @return the suggested component name, if any (or empty String otherwise)
	 * @since 4.0.1
	 */
	@AliasFor(annotation = Controller.class)
	String value() default "";

}

其实Controller 也是Component 的一中.

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component
public @interface Controller {

    /**
     * Alias for {@link Component#value}.
     */
    @AliasFor(annotation = Component.class)
    String value() default "";

}

2、 @GetMapping

• 组合注解：= @RequestMapping(method = RequestMethod.GET)

• 作用：将 HTTP GET 请求映射到特定方法。

@RequestMapping(method = RequestMethod.GET)
public @interface GetMapping {
}

二、相关图解

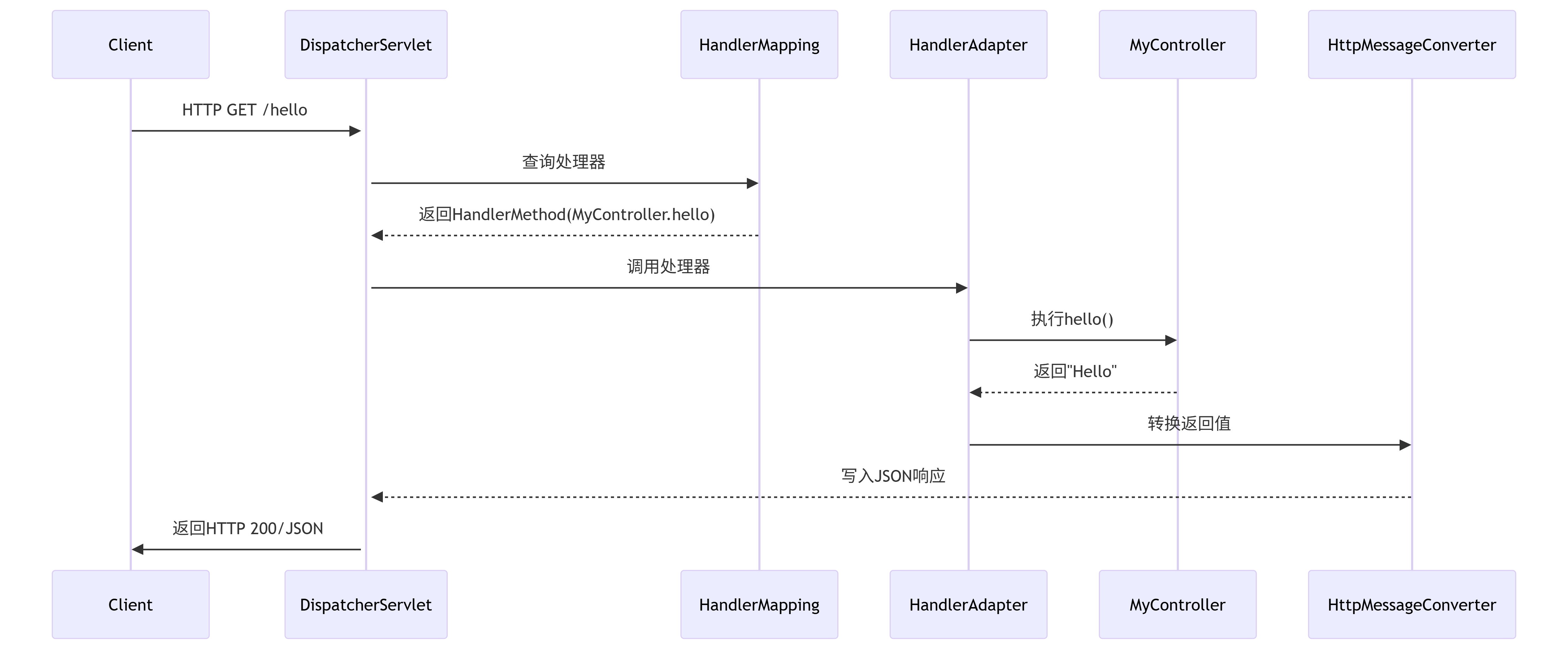

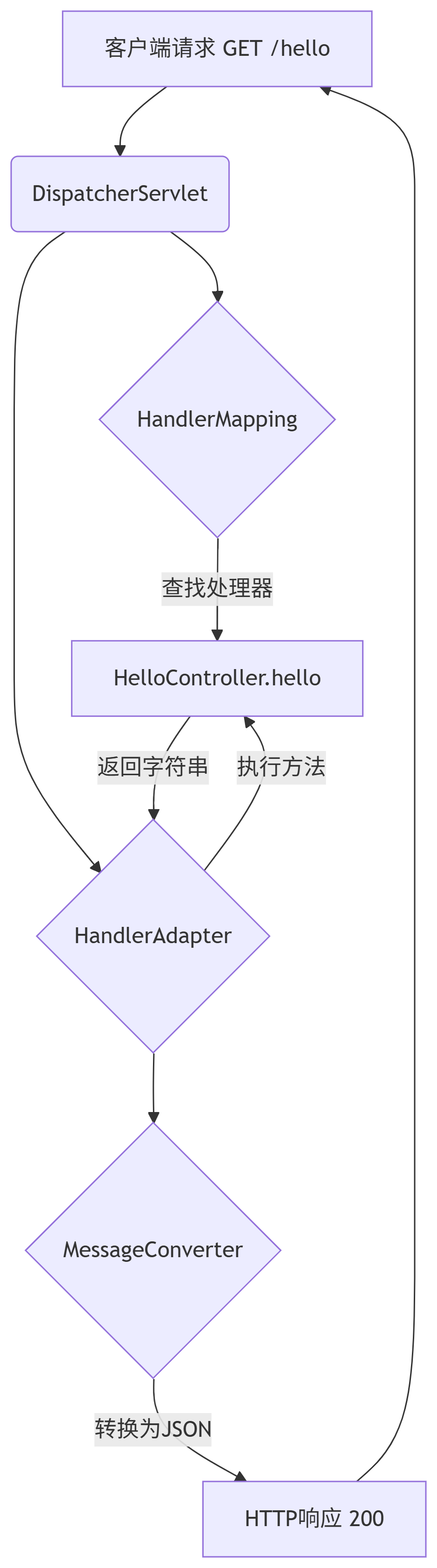

1、流程图解

2、代码解析

2.1 DispatcherServlet（总控制器）

处理所有的请求入口:



public class DispatcherServlet extends FrameworkServlet {

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
                // 1. 通过HandlerMapping查找处理器
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
                // 2. 获取HandlerAdapter  (适配器模式)
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = HttpMethod.GET.matches(method);
				if (isGet || HttpMethod.HEAD.matches(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
                // 3. 执行处理器方法
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new ServletException("Handler dispatch failed: " + err, err);
			}
            // 4. 处理结果（渲染视图或写入响应）
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new ServletException("Handler processing failed: " + err, err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
				asyncManager.setMultipartRequestParsed(multipartRequestParsed);
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed || asyncManager.isMultipartRequestParsed()) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}
}

2.2 RequestMappingHandlerMapping

扫描 @RestController 和 @RequestMapping

public class RequestMappingHandlerMapping extends RequestMappingInfoHandlerMapping
		implements MatchableHandlerMapping, EmbeddedValueResolverAware {


		protected RequestMappingInfo createRequestMappingInfo(
			RequestMapping requestMapping, @Nullable RequestCondition<?> customCondition) {

		RequestMappingInfo.Builder builder = RequestMappingInfo
                // 解析@RequestMapping注解生成路由元数据
				.paths(resolveEmbeddedValuesInPatterns(requestMapping.path()))
				.methods(requestMapping.method())
				.params(requestMapping.params())
				.headers(requestMapping.headers())
				.consumes(requestMapping.consumes())
				.produces(requestMapping.produces())
				.mappingName(requestMapping.name());

		if (customCondition != null) {
			builder.customCondition(customCondition);
		}

		return builder.options(this.config).build();
	}
}

2.3 RequestMappingHandlerAdapter

 调用控制器方法

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
		AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
		asyncWebRequest.setTimeout(this.asyncRequestTimeout);

		asyncManager.setTaskExecutor(this.taskExecutor);
		asyncManager.setAsyncWebRequest(asyncWebRequest);
		asyncManager.registerCallableInterceptors(this.callableInterceptors);
		asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

		// Obtain wrapped response to enforce lifecycle rule from Servlet spec, section 2.3.3.4
		response = asyncWebRequest.getNativeResponse(HttpServletResponse.class);

		ServletWebRequest webRequest = (asyncWebRequest instanceof ServletWebRequest ?
				(ServletWebRequest) asyncWebRequest : new ServletWebRequest(request, response));

		WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
		ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

		ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
		if (this.argumentResolvers != null) {
			invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
		}
		if (this.returnValueHandlers != null) {
			invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
		}
		invocableMethod.setDataBinderFactory(binderFactory);
		invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
		invocableMethod.setMethodValidator(this.methodValidator);

		ModelAndViewContainer mavContainer = new ModelAndViewContainer();
		mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
		modelFactory.initModel(webRequest, mavContainer, invocableMethod);
		mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

		if (asyncManager.hasConcurrentResult()) {
			Object result = asyncManager.getConcurrentResult();
			Object[] resultContext = asyncManager.getConcurrentResultContext();
			Assert.state(resultContext != null && resultContext.length > 0, "Missing result context");
			mavContainer = (ModelAndViewContainer) resultContext[0];
			asyncManager.clearConcurrentResult();
			LogFormatUtils.traceDebug(logger, traceOn -> {
				String formatted = LogFormatUtils.formatValue(result, !traceOn);
				return "Resume with async result [" + formatted + "]";
			});
			invocableMethod = invocableMethod.wrapConcurrentResult(result);
		}


		invocableMethod.invokeAndHandle(webRequest, mavContainer);
		if (asyncManager.isConcurrentHandlingStarted()) {
			return null;
		}

		return getModelAndView(mavContainer, modelFactory, webRequest);
	}

	public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {

        // 通过反射执行目标方法
		Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
		setResponseStatus(webRequest);

		if (returnValue == null) {
			if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
				disableContentCachingIfNecessary(webRequest);
				mavContainer.setRequestHandled(true);
				return;
			}
		}
		else if (StringUtils.hasText(getResponseStatusReason())) {
			mavContainer.setRequestHandled(true);
			return;
		}

		mavContainer.setRequestHandled(false);
		Assert.state(this.returnValueHandlers != null, "No return value handlers");
		try {
            // 处理@ResponseBody返回值
			this.returnValueHandlers.handleReturnValue(
					returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
		}
		catch (Exception ex) {
			if (logger.isTraceEnabled()) {
				logger.trace(formatErrorForReturnValue(returnValue), ex);
			}
			throw ex;
		}
	}

}

2.4 HttpMessageConverter

处理返回值转换（JSON 序列化）

public abstract class AbstractMessageConverterMethodProcessor extends AbstractMessageConverterMethodArgumentResolver
		implements HandlerMethodReturnValueHandler {

protected <T> void writeWithMessageConverters(@Nullable T value, MethodParameter returnType,
			ServletServerHttpRequest inputMessage, ServletServerHttpResponse outputMessage)
			throws IOException, HttpMediaTypeNotAcceptableException, HttpMessageNotWritableException {

		Object body;
		Class<?> valueType;
		Type targetType;

		if (value instanceof CharSequence) {
			body = value.toString();
			valueType = String.class;
			targetType = String.class;
		}
		else {
			body = value;
			valueType = getReturnValueType(body, returnType);
			targetType = GenericTypeResolver.resolveType(getGenericType(returnType), returnType.getContainingClass());
		}

		if (isResourceType(value, returnType)) {
			outputMessage.getHeaders().set(HttpHeaders.ACCEPT_RANGES, "bytes");
			if (value != null && inputMessage.getHeaders().getFirst(HttpHeaders.RANGE) != null &&
					outputMessage.getServletResponse().getStatus() == 200) {
				Resource resource = (Resource) value;
				try {
					List<HttpRange> httpRanges = inputMessage.getHeaders().getRange();
					outputMessage.getServletResponse().setStatus(HttpStatus.PARTIAL_CONTENT.value());
					body = HttpRange.toResourceRegions(httpRanges, resource);
					valueType = body.getClass();
					targetType = RESOURCE_REGION_LIST_TYPE;
				}
				catch (IllegalArgumentException ex) {
					outputMessage.getHeaders().set(HttpHeaders.CONTENT_RANGE, "bytes */" + resource.contentLength());
					outputMessage.getServletResponse().setStatus(HttpStatus.REQUESTED_RANGE_NOT_SATISFIABLE.value());
				}
			}
		}

		MediaType selectedMediaType = null;
		MediaType contentType = outputMessage.getHeaders().getContentType();
		boolean isContentTypePreset = contentType != null && contentType.isConcrete();
		if (isContentTypePreset) {
			if (logger.isDebugEnabled()) {
				logger.debug("Found 'Content-Type:" + contentType + "' in response");
			}
			selectedMediaType = contentType;
		}
		else {
			HttpServletRequest request = inputMessage.getServletRequest();
			List<MediaType> acceptableTypes;
			try {
				acceptableTypes = getAcceptableMediaTypes(request);
			}
			catch (HttpMediaTypeNotAcceptableException ex) {
				int series = outputMessage.getServletResponse().getStatus() / 100;
				if (body == null || series == 4 || series == 5) {
					if (logger.isDebugEnabled()) {
						logger.debug("Ignoring error response content (if any). " + ex);
					}
					return;
				}
				throw ex;
			}

			List<MediaType> producibleTypes = getProducibleMediaTypes(request, valueType, targetType);
			if (body != null && producibleTypes.isEmpty()) {
				throw new HttpMessageNotWritableException(
						"No converter found for return value of type: " + valueType);
			}

			List<MediaType> compatibleMediaTypes = new ArrayList<>();
			determineCompatibleMediaTypes(acceptableTypes, producibleTypes, compatibleMediaTypes);

			// For ProblemDetail, fall back on RFC 9457 format
			if (compatibleMediaTypes.isEmpty() && ProblemDetail.class.isAssignableFrom(valueType)) {
				determineCompatibleMediaTypes(this.problemMediaTypes, producibleTypes, compatibleMediaTypes);
			}

			if (compatibleMediaTypes.isEmpty()) {
				if (logger.isDebugEnabled()) {
					logger.debug("No match for " + acceptableTypes + ", supported: " + producibleTypes);
				}
				if (body != null) {
					throw new HttpMediaTypeNotAcceptableException(producibleTypes);
				}
				return;
			}

			MimeTypeUtils.sortBySpecificity(compatibleMediaTypes);

			for (MediaType mediaType : compatibleMediaTypes) {
				if (mediaType.isConcrete()) {
					selectedMediaType = mediaType;
					break;
				}
				else if (mediaType.isPresentIn(ALL_APPLICATION_MEDIA_TYPES)) {
					selectedMediaType = MediaType.APPLICATION_OCTET_STREAM;
					break;
				}
			}

			if (logger.isDebugEnabled()) {
				logger.debug("Using '" + selectedMediaType + "', given " +
						acceptableTypes + " and supported " + producibleTypes);
			}
		}

		if (selectedMediaType != null) {
			selectedMediaType = selectedMediaType.removeQualityValue();

			ResolvableType targetResolvableType = null;
            // 选择匹配的Converter（如MappingJackson2HttpMessageConverter）
			for (HttpMessageConverter converter : this.messageConverters) {
				ConverterType converterTypeToUse = null;
				if (converter instanceof GenericHttpMessageConverter genericConverter) {
					if (genericConverter.canWrite(targetType, valueType, selectedMediaType)) {
						converterTypeToUse = ConverterType.GENERIC;
					}
				}
				else if (converter instanceof SmartHttpMessageConverter smartConverter) {
					targetResolvableType = getNestedTypeIfNeeded(ResolvableType.forMethodParameter(returnType));
					if (smartConverter.canWrite(targetResolvableType, valueType, selectedMediaType)) {
						converterTypeToUse = ConverterType.SMART;
					}
				}
				else if (converter.canWrite(valueType, selectedMediaType)){
					converterTypeToUse = ConverterType.BASE;
				}
				if (converterTypeToUse != null) {
					body = getAdvice().beforeBodyWrite(body, returnType, selectedMediaType,
							(Class<? extends HttpMessageConverter<?>>) converter.getClass(), inputMessage, outputMessage);
					if (body != null) {
						Object theBody = body;
						LogFormatUtils.traceDebug(logger, traceOn ->
								"Writing [" + LogFormatUtils.formatValue(theBody, !traceOn) + "]");
						addContentDispositionHeader(inputMessage, outputMessage);
						switch (converterTypeToUse) {
							case BASE -> converter.write(body, selectedMediaType, outputMessage);
							case GENERIC -> ((GenericHttpMessageConverter) converter).write(body, targetType, selectedMediaType, outputMessage);
							case SMART -> ((SmartHttpMessageConverter) converter).write(body, targetResolvableType, selectedMediaType, outputMessage, null);
						}
					}
					else {
						if (logger.isDebugEnabled()) {
							logger.debug("Nothing to write: null body");
						}
					}
					return;
				}
			}
		}

		if (body != null) {
			Set<MediaType> producibleMediaTypes =
					(Set<MediaType>) inputMessage.getServletRequest()
							.getAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);

			if (isContentTypePreset || !CollectionUtils.isEmpty(producibleMediaTypes)) {
				throw new HttpMessageNotWritableException(
						"No converter for [" + valueType + "] with preset Content-Type '" + contentType + "'");
			}
			throw new HttpMediaTypeNotAcceptableException(getSupportedMediaTypes(body.getClass()));
		}
	}
}

三、实例代码分享

1. controller 部分

@RestController //组合注解：@Controller + @ResponseBody
public class HelloController {

    @Autowired
    private User user;

    @Autowired
    private Article article;

    @Value("${dynamic.property:default}")
    private String dynamicProperty;


    @GetMapping(value = "/hello")  // 路径match
    public String hello() {
        System.out.println(article);
        System.out.println(user);
        return String.format("1.0.0 config: %s",  dynamicProperty) ;
    }
}

2. Spring Boot 自动配置关键点

• WebMvcAutoConfiguration
  自动配置 RequestMappingHandlerMapping、RequestMappingHandlerAdapter 等组件。

• JacksonAutoConfiguration
  配置Jackson2ObjectMapperBuilder

• HttpMessageConvertersAutoConfiguration

  自动配置 JSON 转换器 MappingJackson2HttpMessageConverter

    WebMvcConfigurationSupport#addDefaultHttpMessageConverters

		if (jackson2Present) {
			Jackson2ObjectMapperBuilder builder = Jackson2ObjectMapperBuilder.json();
			if (this.applicationContext != null) {
				builder.applicationContext(this.applicationContext);
			}
             // 默认转换器
			messageConverters.add(new MappingJackson2HttpMessageConverter(builder.build()));
		}

3、图解



四、总结思考

1. 路由注册
   Spring 启动时扫描 @RestController，解析 @GetMapping 生成路由映射表。

2. 请求分发
   DispatcherServlet 根据 URL 查找匹配的 HandlerMethod。

3. 方法执行
   RequestMappingHandlerAdapter 通过反射调用目标方法。

4. 响应处理
   返回值通过 HttpMessageConverter 序列化为 JSON 并写入响应

 说明:

spingboot 3.5.0,  springweb 6.2.7
