前言
参考博客：https://blog.youkuaiyun.com/qq_41632602/article/details/115366909
参考博客：
https://blog.youkuaiyun.com/mshxuyi/article/details/108425487
借鉴两篇文章，根据自身的环境和需要进行了一系列的更改
集群规划
- 整体规划
| 主机名 | IP地址 | 角色 |
|---|---|---|
| master | 192.168.56.3 | master |
| node 1 | 192.168.56.4 | node 1 |
| node 2 | 192.168.56.5 | node 2 |
-
使用组件：docker、kubelet、kubeadm、kubectl
-
注意：IP地址需要根据自身虚拟机IP地址进行更改
kubernetes的安装
设置主机名（本文用的是root用户，非root用户可加入sudo命令）
三台主机都需要做
hostnamectl set-hostname master
hostnamectl set-hostname node1
hostnamectl set-hostname node2
修改 /etc/hostname文件，添加主机名和IP的对应关系
vi /etc/hosts
192.168.56.3 matser
192.168.56.4 node1
192.168.56.5 node2
关闭防火墙
systemctl stop firewalld
systemctl disable firewalld
忽略swap分区并防止开机自启动
如果开启了swap分区，kebelet会启动失败，所以每台机器都要关闭swap分区
swapoff -a
sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab
关闭SELinux并修改配置文件永久生效
否则后续 K8S 挂载目录时可能报错 Permission denied ：
setenforce 0
vi /etc/selinux/config （修改SELINUX=disabled）
配置内核参数
cat > /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system
安装docker
移除原有docker
yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine
删除成功或者没有文件则代表成功
安装一些必要系统工具
yum install -y yum-utils device-mapper-persistent-data lvm2
添加软件源信息
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
更新并安装Docker-CE
yum makecache fast
开始安装docker
yum -y install docker-ce
启动docker
yum -y install docker-ce
查看dockers状态
systemctl status docker
如果active:active(running)说明docker在正常运行.
如果出现问题，输入journalctl -xe或者查看系统日志（vim /var/log/message）查看原因
使用加速器
mkdir -p /etc/docker
tee /etc/docker/daemon.json <<- 'EOF'
{
"registry-mirrors: ["https://s2q9fn53.mirror.aliyuncs.com"]
}
EOF
systemctl daemon-reload && sudo systemctl restart docker
添加kubernetes阿里云源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
安装kubelet kubeadmn kubectl
yum install -y kubectl-1.22.9 && yum install -y kubelet-1.22.9 && yum install -y kubeadm-1.22.9
systemctl enable kubelet && systemctl start kubelet
初始化k8s集群
kubeadm init --kubernetes-version=1.22.9 --apiserver-advertise-address=192.168.56.3 --image-repository registry.aliyuncs.com/google_containers --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
如果初始化报错，查看kubelet状态
systemctl status kubelet
如果是失败,解决办法如下：
执行命令查看docker的Cgroup：
docker info |grep Cgroup
修改docker的daemon.json配置
vi /etc/docker/daemon.json
{
"registry-mirrors": ["https://lhx5mss7.mirror.aliyuncs.com"],
"exec-opts": ["native.cgroupdriver=systemd"],
"log-driver": "json-file",
"log-opts": {
"max-size": "100m"
},
"storage-driver": "overlay2",
"storage-opts": [
"overlay2.override_kernel_check=true"
]
}
更新安装systemd
yum update systemd
重新启动docker
systemctl daemon-reload&&systemctl restart docker
重置kubeadm
kubeadm reset -f
重新进行初始化
kubeadm init --kubernetes-version=1.22.9 --apiserver-advertise-address=192.168.56.3 --image-repository registry.aliyuncs.com/google_containers --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
出现：Your Kubernetes control-plane has initialized successfully! 代表安装成功
另外：查看如下的内容，后面要用
kubeadm join 192.168.137.3:6443 --token ys4kum.voz9oqs2048ljfdp --discovery-token-ca-cert-hash sha256:35d21aef13298edef1bcade1202da8b3871ac41e325becdba200ecc48b5a97b0
接着按照弹出的提示执行如下命令：
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config
按照上述步骤，将另外两个节点的kube也做好之后，在另个2个节点输入如下命令：
vi /etc/docker/daemon.json #输入如下内容：
{
"registry-mirrors": ["https://lhx5mss7.mirror.aliyuncs.com"],
"exec-opts": ["native.cgroupdriver=systemd"],
"log-driver": "json-file",
"log-opts": {
"max-size": "100m"
},
"storage-driver": "overlay2",
"storage-opts": [
"overlay2.override_kernel_check=true"
]
}
执行如下命令
yum update systemd
systemctl daemon-reload
systemctl restart docker
kubeadm reset -f
之后可以加入集群：
kubeadm reset
kubeadm join 192.168.137.3:6443 --token ys4kum.voz9oqs2048ljfdp --discovery-token-ca-cert-hash sha256:35d21aef13298edef1bcade1202da8b3871ac41e325becdba200ecc48b5a97b0
另外两个节点，加入集群成功后，可以看到如下：
This node has joined the cluster:
- Certificate signing request was sent to apiserver and a response was received.
- The Kubelet was informed of the new secure connection details.
Run ‘kubectl get nodes’ on the control-plane to see this node join the cluster.
查看token的命令：【下述命令都是在主节点master上执行】
kubeadm token list
如果今后token过期，可以创建新的永久token：
kubeadm token create --ttl 0
# 获取ca证书sha256编码hash值
openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | openssl dgst -sha256 -hex | sed 's/^.* //'
得到如下值：
35d21aef13298edef1bcade1202da8b3871ac41e325becdba200ecc48b5a97b0
节点退出集群（剔除），【下述命令都是在主节点master上执行】
kubectl cordon node1
kubectl cordon node2
之后驱逐调节点上的pod
kubectl drain node1
kubectl drain node2
如果是节点出了问题，执行不了指令，可以采取强制驱逐的方式，删除某个运行的pod，例如：
kubectl delete pods -n kube-system nginx-6qz6s
主要是执行这个：将节点从集群中剔除或退出
kubectl delete node node1
kubectl delete node node2
node 节点重新加入集群时使用，【下述命令都是在节点slave1和slave2上执行】
kubeadm reset
kubeadm join 192.168.137.3:6443 --token d4offl.d3mufkukeb0b6y27 --discovery-token-ca-cert-hash sha256:35d21aef13298edef1bcade1202da8b3871ac41e325becdba200ecc48b5a97b0
查看节点是否加入【下述命令都是在主节点master上执行】
kubectl get nodes
NAME STATUS ROLES AGE VERSION
master NotReady control-plane,master 56m v1.22.9
node1 NotReady <none> 62s v1.22.9
node2 NotReady <none> 20s v1.22.9
安装网络插件：-flannel
到如下地址获取flannel的yml文件内容：
https://github.com/flannel-io/flannel/blob/master/Documentation/kube-flannel.yml
将内容另外存储到当前root用户家目录~下的kube-flannel.yml文件中
kubectl apply -f kube-flannel.yml
稍等一下 再查看如下命令：
kubectl get pods -n kube-system
得到结果：
NAME READY STATUS RESTARTS AGE
coredns-7f6cbbb7b8-jcgsx 1/1 Running 0 17m
coredns-7f6cbbb7b8-wgknx 1/1 Running 0 17m
etcd-master 1/1 Running 3 18m
kube-apiserver-master 1/1 Running 0 18m
kube-controller-manager-master 1/1 Running 0 18m
kube-flannel-ds-kmkqx 1/1 Running 0 3m26s
kube-flannel-ds-qp48p 1/1 Running 0 3m26s
kube-flannel-ds-zp2zl 1/1 Running 0 3m26s
kube-proxy-2ftbn 1/1 Running 0 17m
kube-proxy-btckv 1/1 Running 0 11m
kube-proxy-sz9cf 1/1 Running 0 11m
kube-scheduler-master 1/1 Running 3 18m
给其他节点加个roles角色标签
kubectl label node node1 node-role.kubernetes.io/slave=
kubectl label node node2 node-role.kubernetes.io/slave=
如上可知kube-flannel的pod已经运行，重新执行查看节点命令：
kubectl get nodes
得到如下：
master Ready control-plane,master 36m v1.22.9
node1 Ready slave 30m v1.22.9
node2 Ready slave 29m v1.22.9
k8s的搭建到此就已经完成。
dash board可视化UI的安装
查看具体对应版本
https://github.com/kubernetes/dashboard/releases
用vpn打开
https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-rc5/aio/deploy/recommended.yaml
将页面信息复制
cd /home
vi recommended.yaml
#将复制的页面信息写入
#创建pod
kubectl apply -f recommended.yaml
查看，成功创建
[root@master1 ~]# kubectl get pods --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
default nginx-5578584966-ch9x4 1/1 Running 1 8h
kube-system coredns-9d85f5447-qghnb 1/1 Running 38 6d13h
kube-system coredns-9d85f5447-xqsl2 1/1 Running 37 6d13h
kube-system etcd-master1 1/1 Running 8 6d13h
kube-system kube-apiserver-master1 1/1 Running 9 6d13h
kube-system kube-controller-manager-master1 1/1 Running 8 6d13h
kube-system kube-flannel-ds-amd64-h2f4w 1/1 Running 5 6d10h
kube-system kube-flannel-ds-amd64-z57qk 1/1 Running 1 10h
kube-system kube-proxy-4j8pj 1/1 Running 1 10h
kube-system kube-proxy-xk7gq 1/1 Running 7 6d13h
kube-system kube-scheduler-master1 1/1 Running 9 6d13h
kubernetes-dashboard dashboard-metrics-scraper-7b8b58dc8b-5r22j 1/1 Running 0 15m
kubernetes-dashboard kubernetes-dashboard-866f987876-gv2qw 1/1 Running 0 15m
删除现有的dashboard服务，dashboard 服务的 namespace 是 kubernetes-dashboard，但是该服务的类型是ClusterIP，不便于我们通过浏览器访问，因此需要改成NodePort型的
# 查看 现有的服务
[root@master1 ~]# kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 6d13h
default nginx NodePort 10.102.220.172 <none> 80:31863/TCP 8h
kube-system kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 6d13h
kubernetes-dashboard dashboard-metrics-scraper ClusterIP 10.100.246.255 <none> 8000/TCP 61s
kubernetes-dashboard kubernetes-dashboard ClusterIP 10.109.210.35 <none> 443/TCP 61s
删除
kubectl delete service kubernetes-dashboard --namespace=kubernetes-dashboard
创建配置文件
vi dashboard-svc.yaml
#内容
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
执行
kubectl apply -f dashboard-svc.yaml
再次查看服务，成功
kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 6d13h
default nginx NodePort 10.102.220.172 <none> 80:31863/TCP 8h
kube-system kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 6d13h
kubernetes-dashboard dashboard-metrics-scraper ClusterIP 10.100.246.255 <none> 8000/TCP 4m32s
kubernetes-dashboard kubernetes-dashboard NodePort 10.110.91.255 <none> 443:30432/TCP 10s
想要访问dashboard服务，就要有访问权限，创建kubernetes-dashboard管理员角色
vi dashboard-svc-account.yaml
# 结果
apiVersion: v1
kind: ServiceAccount
metadata:
name: dashboard-admin
namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: dashboard-admin
subjects:
- kind: ServiceAccount
name: dashboard-admin
namespace: kube-system
roleRef:
kind: ClusterRole
name: cluster-admin
apiGroup: rbac.authorization.k8s.io
# 执行
kubectl apply -f dashboard-svc-account.yaml
获取 token
kubectl get secret -n kube-system |grep admin|awk '{print $1}'
dashboard-admin-token-bwgjv
#会产生一个串，复制这个串下面用到
kubectl describe secret dashboard-admin-token-bwgjv -n kube-system|grep '^token'|awk '{print $2}'
eyJhbGciOiJSUzI1NiIsImtpZCI6IkJOVUhyRElPQzJzU2t6VDNVdWpTdzhNZmZPZjV0U2s1UXBFTzctNE9uOFEifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tYndnanYiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiOTE5NGY5YWYtZDZlNC00ZDFmLTg4OWEtMDY4ODIyMDFlOGNmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.kEK3XvUXJGzQlBI4LIOp-puYzBBhhXSkD20vFp9ET-rGErxmMHjUuCqWxg0iawbuOndMARrpeGJKNTlD2vL81bXMaPpKb4Y2qoB6bH5ETQPUU0HPpWYmfoHl4krEXy7S95h0mWehiHLcFkrUhyKGa39cEBq0B0HRo49tjM5QzkE6PNJ5nmEYHIJMb4U62E8wKeqY9vt60AlRa_Re7IDAO9qfb5_dGEmUaIdr3tu22sa3POBsm2bhr-R3aC8vQzNuafM35s3ed8KofOTQFk8fXu4p7lquJnji4yfC77yS3yo5Jo3VPyHi3p5np_9AuSNYfI8fo1EpSeMsXOBH45hu2w

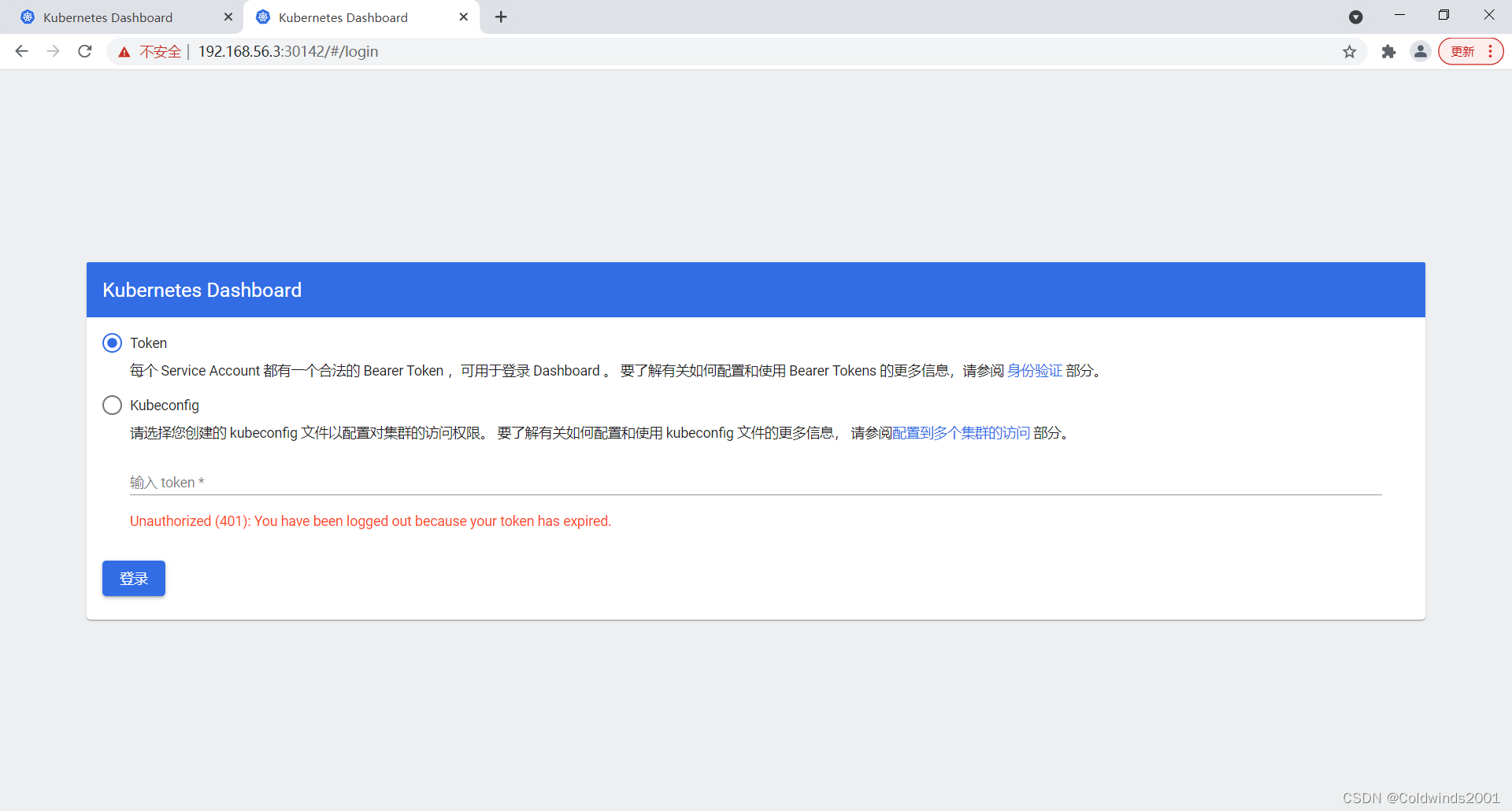

访问页面，虚拟机ip为masterIP
端口为kubectl get svc --all-namespaces查看的端口
http://192.168.56.3：30142

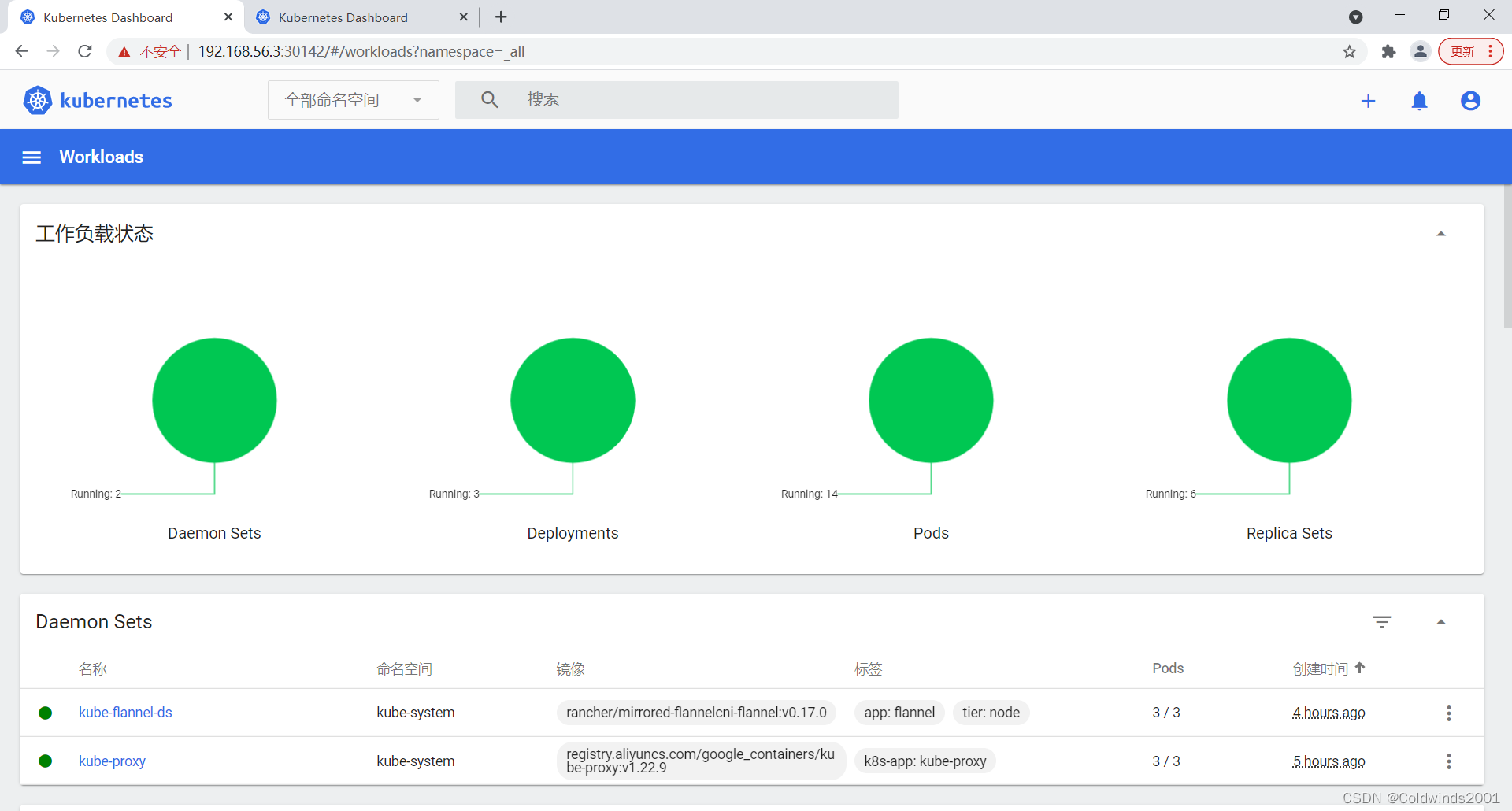

把上面的 token 粘贴到令牌,完成后进入页面
