Spring AI 源码深度分析

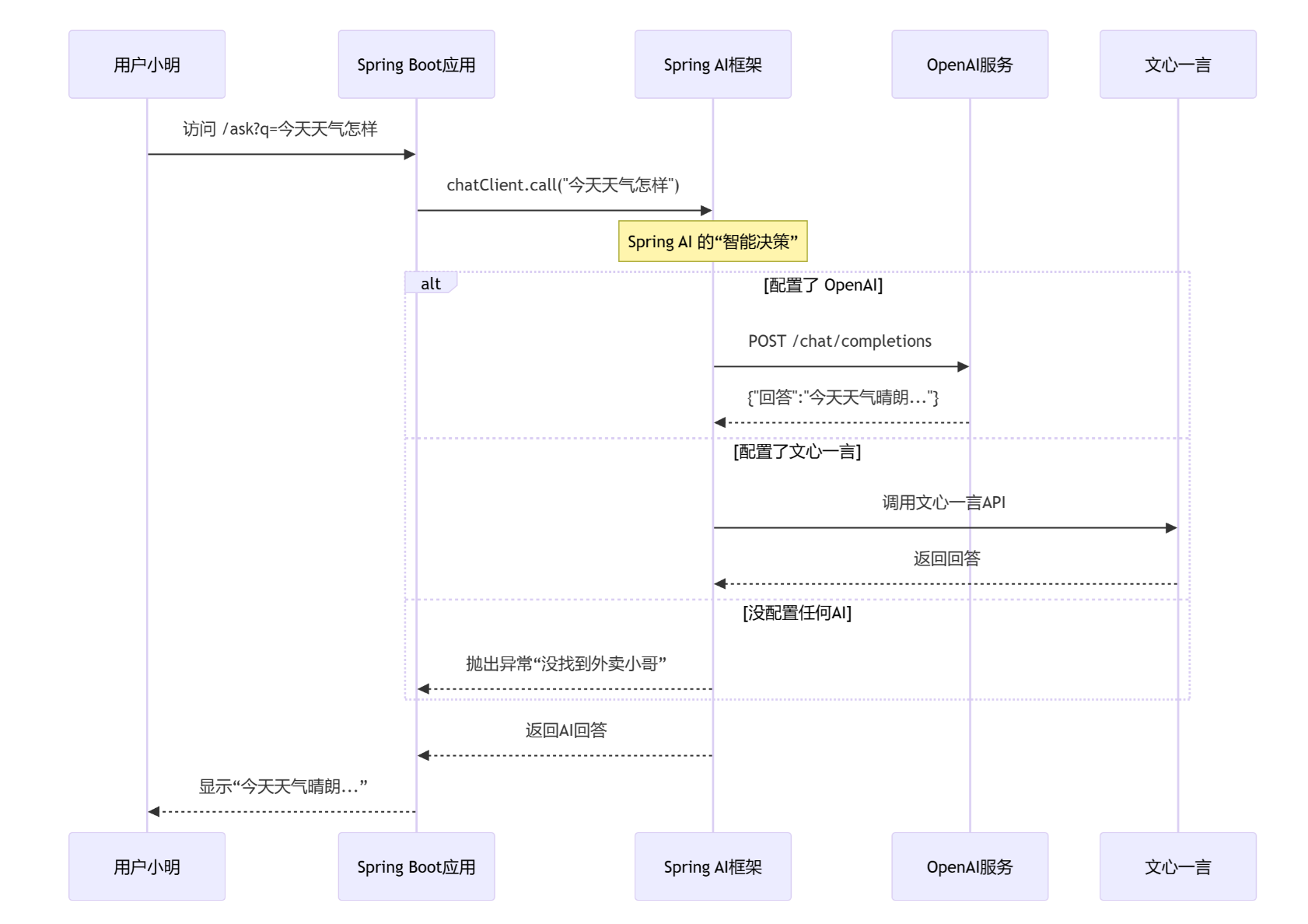

先接地气了解下
在这里插入图片描述

🎯 一、Spring AI 源码架构概览

1. 源码仓库结构

spring-ai/
├── spring-ai-core/                    # 核心模块
│   ├── src/main/java/org/springframework/ai/
│   │   ├── client/                    # 客户端接口
│   │   ├── model/                     # 模型定义
│   │   ├── prompt/                    # 提示词
│   │   ├── vectorstore/               # 向量存储
│   │   └── util/                      # 工具类
├── spring-ai-openai/                  # OpenAI 适配器
├── spring-ai-azure-openai/           # Azure OpenAI 适配器
├── spring-ai-transformers/           # 本地模型
├── spring-ai-huggingface/            # Hugging Face
├── spring-ai-bom/                    # 依赖管理
└── spring-ai-test/                   # 测试支持

2. 核心类图关系

🔧 二、核心流程源码分析

1. 自动配置机制

1.1 自动配置类

// spring-ai-openai/src/main/java/org/springframework/ai/openai/autoconfigure/OpenAiAutoConfiguration.java
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(OpenAiApi.class)
@EnableConfigurationProperties(OpenAiProperties.class)
@Import({ OpenAiConnectionDetails.class, OpenAiRestClientConfiguration.class })
public class OpenAiAutoConfiguration {

    @Bean
    @ConditionalOnMissingBean
    public OpenAiChatClient openAiChatClient(
            OpenAiConnectionDetails connectionDetails,
            OpenAiProperties openAiProperties,
            List<RequestResponsePostProcessor> postProcessors,
            RestClient.Builder restClientBuilder) {

        // 创建 OpenAiApi
        OpenAiApi openAiApi = new OpenAiApi(
            connectionDetails.getBaseUrl(),
            openAiProperties.getApiKey(),
            restClientBuilder
        );

        // 创建 ChatClient
        OpenAiChatClient openAiChatClient = new OpenAiChatClient(
            openAiApi,
            openAiProperties.getOptions(),
            postProcessors
        );

        // 配置重试机制
        if (openAiProperties.getRetry() != null) {
            openAiChatClient.setRetryTemplate(createRetryTemplate(openAiProperties.getRetry()));
        }

        return openAiChatClient;
    }

    @Bean
    @ConditionalOnMissingBean
    public OpenAiEmbeddingClient openAiEmbeddingClient(
            OpenAiConnectionDetails connectionDetails,
            OpenAiProperties openAiProperties,
            RestClient.Builder restClientBuilder) {

        OpenAiApi openAiApi = new OpenAiApi(
            connectionDetails.getBaseUrl(),
            openAiProperties.getApiKey(),
            restClientBuilder
        );

        return new OpenAiEmbeddingClient(openAiApi, openAiProperties.getEmbedding().getOptions());
    }
}

1.2 属性配置类

// spring-ai-openai/src/main/java/org/springframework/ai/openai/autoconfigure/OpenAiProperties.java
@ConfigurationProperties(prefix = OpenAiProperties.CONFIG_PREFIX)
public class OpenAiProperties {

    public static final String CONFIG_PREFIX = "spring.ai.openai";

    private String baseUrl = "https://api.openai.com/v1";
    private String apiKey;

    private ChatOptions chat = new ChatOptions();
    private EmbeddingOptions embedding = new EmbeddingOptions();
    private ImageOptions image = new ImageOptions();

    @DurationUnit(ChronoUnit.SECONDS)
    private Duration timeout = Duration.ofSeconds(60);

    private RetryOptions retry;

    @Data
    public static class ChatOptions {
        private String model = "gpt-3.5-turbo";
        private Double temperature = 0.7;
        private Double topP = 1.0;
        private Integer maxTokens = null;
        private List<String> stop = null;
        private Double presencePenalty = 0.0;
        private Double frequencyPenalty = 0.0;
    }
}

2. 核心接口设计

2.1 ChatClient 接口

// spring-ai-core/src/main/java/org/springframework/ai/client/ChatClient.java
public interface ChatClient {

    /**
     * 同步调用聊天接口
     */
    default String call(String message) {
        Prompt prompt = new Prompt(new UserMessage(message));
        ChatResponse response = call(prompt);
        return response.getResult().getOutput().getContent();
    }

    /**
     * 核心聊天方法
     */
    ChatResponse call(Prompt prompt);

    /**
     * 流式聊天
     */
    default Flux<ChatResponse> stream(Prompt prompt) {
        throw new UnsupportedOperationException("Streaming not supported");
    }

    /**
     * 带选项的聊天
     */
    default ChatResponse call(ChatOptions options) {
        Prompt prompt = new Prompt(new UserMessage(""), options);
        return call(prompt);
    }
}

2.2 EmbeddingClient 接口

// spring-ai-core/src/main/java/org/springframework/ai/embedding/EmbeddingClient.java
public interface EmbeddingClient {

    /**
     * 单文本向量化
     */
    default List<Double> embed(String text) {
        EmbeddingResponse response = call(new EmbeddingRequest(List.of(text), null));
        return response.getResults().get(0).getOutput();
    }

    /**
     * 批量向量化
     */
    default List<List<Double>> embed(List<String> texts) {
        EmbeddingResponse response = call(new EmbeddingRequest(texts, null));
        return response.getResults().stream()
            .map(Embedding::getOutput)
            .collect(Collectors.toList());
    }

    /**
     * 核心向量化方法
     */
    EmbeddingResponse call(EmbeddingRequest request);

    /**
     * 获取向量维度
     */
    default int dimensions() {
        return embed("test").size();
    }
}

3. OpenAI 适配器实现

3.1 OpenAiChatClient 实现

// spring-ai-openai/src/main/java/org/springframework/ai/openai/client/OpenAiChatClient.java
public class OpenAiChatClient implements ChatClient, ChatOptionsCapable, Retryable {

    private final OpenAiApi openAiApi;
    private final OpenAiChatOptions defaultOptions;
    private final List<RequestResponsePostProcessor> postProcessors;
    private RetryTemplate retryTemplate = new RetryTemplate();

    public OpenAiChatClient(OpenAiApi openAiApi,
                           OpenAiChatOptions options,
                           List<RequestResponsePostProcessor> postProcessors) {
        this.openAiApi = openAiApi;
        this.defaultOptions = options;
        this.postProcessors = postProcessors != null ? postProcessors : List.of();
    }

    @Override
    public ChatResponse call(Prompt prompt) {
        return retryTemplate.execute(context -> {
            // 1. 构建请求
            ChatCompletionRequest request = createRequest(prompt);

            // 2. 执行请求
            ChatCompletion completion = openAiApi.chatCompletion(request);

            // 3. 构建响应
            ChatResponse response = convertCompletionToResponse(completion, prompt);

            // 4. 后处理
            return postProcessResponse(response, prompt);
        });
    }

    @Override
    public Flux<ChatResponse> stream(Prompt prompt) {
        return Flux.create(sink -> {
            try {
                // 1. 构建流式请求
                ChatCompletionRequest request = createRequest(prompt);
                request.setStream(true);

                // 2. 执行流式请求
                Flux<ChatCompletionChunk> flux = openAiApi.chatCompletionStream(request);

                // 3. 处理流式响应
                flux.subscribe(
                    chunk -> {
                        ChatResponse response = convertChunkToResponse(chunk, prompt);
                        sink.next(response);
                    },
                    sink::error,
                    sink::complete
                );
            } catch (Exception e) {
                sink.error(e);
            }
        });
    }

    private ChatCompletionRequest createRequest(Prompt prompt) {
        // 合并默认选项和提示词选项
        OpenAiChatOptions mergedOptions = mergeOptions(prompt);

        // 转换消息格式
        List<ChatCompletionMessage> messages = convertMessages(prompt.getMessages());

        return ChatCompletionRequest.builder()
            .model(mergedOptions.getModel())
            .messages(messages)
            .temperature(mergedOptions.getTemperature())
            .topP(mergedOptions.getTopP())
            .maxTokens(mergedOptions.getMaxTokens())
            .stop(mergedOptions.getStop())
            .presencePenalty(mergedOptions.getPresencePenalty())
            .frequencyPenalty(mergedOptions.getFrequencyPenalty())
            .build();
    }

    private ChatResponse convertCompletionToResponse(ChatCompletion completion, Prompt prompt) {
        List<Generation> generations = completion.getChoices().stream()
            .map(choice -> new Generation(choice.getMessage().getContent(), extractMetadata(choice)))
            .collect(Collectors.toList());

        Map<String, Object> metadata = new HashMap<>();
        metadata.put("id", completion.getId());
        metadata.put("model", completion.getModel());
        metadata.put("created", completion.getCreated());

        if (completion.getUsage() != null) {
            metadata.put("usage", completion.getUsage());
        }

        return new ChatResponse(generations, metadata);
    }

    private ChatResponse postProcessResponse(ChatResponse response, Prompt prompt) {
        ChatResponse processed = response;
        for (RequestResponsePostProcessor processor : postProcessors) {
            processed = processor.postProcess(processed, prompt);
        }
        return processed;
    }
}

3.2 OpenAiApi HTTP 客户端

// spring-ai-openai/src/main/java/org/springframework/ai/openai/api/OpenAiApi.java
public class OpenAiApi {

    private final RestClient restClient;
    private final String baseUrl;

    public OpenAiApi(String baseUrl, String apiKey, RestClient.Builder restClientBuilder) {
        this.baseUrl = baseUrl;

        this.restClient = restClientBuilder
            .baseUrl(baseUrl)
            .defaultHeader("Authorization", "Bearer " + apiKey)
            .defaultHeader("Content-Type", "application/json")
            .requestInterceptor(new RetryRequestInterceptor())
            .build();
    }

    public ChatCompletion chatCompletion(ChatCompletionRequest request) {
        return restClient.post()
            .uri("/chat/completions")
            .body(request)
            .retrieve()
            .onStatus(status -> status.is4xxClientError() || status.is5xxServerError(),
                (req, res) -> handleError(req, res, request))
            .body(ChatCompletion.class);
    }

    public Flux<ChatCompletionChunk> chatCompletionStream(ChatCompletionRequest request) {
        return restClient.post()
            .uri("/chat/completions")
            .body(request)
            .retrieve()
            .body(FluxTokenExtractor.class)
            .flatMap(this::parseChunk);
    }

    private Mono<ChatCompletionChunk> parseChunk(String chunk) {
        if (chunk.startsWith("data: ")) {
            String data = chunk.substring(6);
            if ("[DONE]".equals(data)) {
                return Mono.empty();
            }
            try {
                ChatCompletionChunk completion = objectMapper.readValue(data, ChatCompletionChunk.class);
                return Mono.just(completion);
            } catch (JsonProcessingException e) {
                return Mono.error(e);
            }
        }
        return Mono.empty();
    }

    private void handleError(ClientHttpRequest request,
                            ClientHttpResponse response,
                            ChatCompletionRequest originalRequest) {
        // 解析错误响应
        try {
            String body = new String(response.getBody().readAllBytes(), StandardCharsets.UTF_8);
            OpenAiError error = objectMapper.readValue(body, OpenAiError.class);
            throw new OpenAiHttpException(error, response.getStatusCode());
        } catch (IOException e) {
            throw new RuntimeException("Failed to parse error response", e);
        }
    }
}

4. 请求/响应模型

4.1 请求模型

// spring-ai-openai/src/main/java/org/springframework/ai/openai/api/ChatCompletionRequest.java
public class ChatCompletionRequest {

    private String model;
    private List<ChatCompletionMessage> messages;
    private Double temperature;
    private Double topP;
    private Integer n = 1;
    private Boolean stream = false;
    private List<String> stop;
    private Integer maxTokens;
    private Double presencePenalty = 0.0;
    private Double frequencyPenalty = 0.0;
    private Map<String, Integer> logitBias;
    private String user;

    @Data
    @Builder
    public static class ChatCompletionMessage {
        private String role;  // "system", "user", "assistant"
        private String content;
        private String name;
        private List<ToolCall> toolCalls;
    }
}

4.2 响应模型

// spring-ai-openai/src/main/java/org/springframework/ai/openai/api/ChatCompletion.java
public class ChatCompletion {

    private String id;
    private String object = "chat.completion";
    private Long created;
    private String model;
    private List<Choice> choices;
    private Usage usage;

    @Data
    public static class Choice {
        private Integer index;
        private ChatCompletionMessage message;
        private String finishReason;
        private Double logprobs;
    }

    @Data
    public static class Usage {
        private Integer promptTokens;
        private Integer completionTokens;
        private Integer totalTokens;
    }
}

5. 核心调用流程

// 核心调用流程模拟
public class ChatClientInvocationProcess {

    public ChatResponse invokeChat(ChatClient chatClient, String userMessage) {
        // 1. 创建提示词
        Prompt prompt = new Prompt(new UserMessage(userMessage));

        // 2. 调用 ChatClient
        ChatResponse response = chatClient.call(prompt);

        // 3. 处理响应
        return processResponse(response);
    }

    private ChatResponse processResponse(ChatResponse response) {
        // 提取生成内容
        String content = response.getResult().getOutput().getContent();

        // 提取元数据
        Map<String, Object> metadata = response.getMetadata();

        // 处理 Token 使用
        Usage usage = (Usage) metadata.get("usage");
        if (usage != null) {
            log.info("Token usage - Prompt: {}, Completion: {}, Total: {}",
                usage.getPromptTokens(),
                usage.getCompletionTokens(),
                usage.getTotalTokens());
        }

        return response;
    }
}

6. 向量存储实现

6.1 VectorStore 接口

// spring-ai-core/src/main/java/org/springframework/ai/vectorstore/VectorStore.java
public interface VectorStore {

    /**
     * 添加文档
     */
    void add(List<Document> documents);

    /**
     * 相似度搜索
     */
    List<Document> similaritySearch(SearchRequest request);

    /**
     * 混合搜索
     */
    default List<Document> similaritySearch(String query) {
        return similaritySearch(SearchRequest.query(query));
    }

    /**
     * 带过滤的搜索
     */
    default List<Document> similaritySearch(SearchRequest request,
                                           MetadataFilter filter) {
        SearchRequest filteredRequest = SearchRequest.from(request)
            .withFilterExpression(filter.getExpression())
            .build();
        return similaritySearch(filteredRequest);
    }

    /**
     * 删除文档
     */
    default Optional<Boolean> delete(List<String> idList) {
        return Optional.empty();
    }
}

6.2 SimpleVectorStore 实现

// spring-ai-core/src/main/java/org/springframework/ai/vectorstore/SimpleVectorStore.java
public class SimpleVectorStore implements VectorStore {

    private final EmbeddingClient embeddingClient;
    private final Map<String, EmbeddingDocument> store = new ConcurrentHashMap<>();
    private final RandomAccessSearcher searcher = new RandomAccessSearcher();

    public SimpleVectorStore(EmbeddingClient embeddingClient) {
        this.embeddingClient = embeddingClient;
    }

    @Override
    public void add(List<Document> documents) {
        // 1. 向量化文档
        List<String> texts = documents.stream()
            .map(Document::getContent)
            .collect(Collectors.toList());

        List<Embedding> embeddings = embeddingClient.embed(texts);

        // 2. 存储文档和向量
        for (int i = 0; i < documents.size(); i++) {
            Document doc = documents.get(i);
            Embedding embedding = embeddings.get(i);

            EmbeddingDocument embeddingDoc = new EmbeddingDocument(doc.getId(),
                doc.getContent(),
                embedding,
                doc.getMetadata());

            store.put(doc.getId(), embeddingDoc);
            searcher.add(embeddingDoc);
        }
    }

    @Override
    public List<Document> similaritySearch(SearchRequest request) {
        // 1. 向量化查询
        Embedding queryEmbedding = embeddingClient.embed(request.getQuery());

        // 2. 搜索相似文档
        List<SearchResult> results = searcher.search(queryEmbedding,
            request.getTopK(),
            request.getSimilarityThreshold());

        // 3. 转换为 Document
        return results.stream()
            .map(result -> {
                EmbeddingDocument embeddingDoc = store.get(result.getId());
                return Document.builder()
                    .id(embeddingDoc.getId())
                    .content(embeddingDoc.getContent())
                    .metadata(embeddingDoc.getMetadata())
                    .score(result.getScore())
                    .build();
            })
            .collect(Collectors.toList());
    }
}

7. 后处理器机制

// spring-ai-core/src/main/java/org/springframework/ai/client/RequestResponsePostProcessor.java
public interface RequestResponsePostProcessor {

    /**
     * 请求预处理
     */
    default Prompt preProcess(Prompt prompt) {
        return prompt;
    }

    /**
     * 响应后处理
     */
    default ChatResponse postProcess(ChatResponse response, Prompt prompt) {
        return response;
    }
}

// 实现示例：日志后处理器
@Component
public class LoggingPostProcessor implements RequestResponsePostProcessor {

    private static final Logger log = LoggerFactory.getLogger(LoggingPostProcessor.class);

    @Override
    public Prompt preProcess(Prompt prompt) {
        log.debug("Pre-processing prompt: {}", prompt.getContents());
        return prompt;
    }

    @Override
    public ChatResponse postProcess(ChatResponse response, Prompt prompt) {
        log.debug("Post-processing response. Tokens used: {}",
            response.getMetadata().get("usage"));
        return response;
    }
}

8. 重试机制实现

// spring-ai-core/src/main/java/org/springframework/ai/retry/Retryable.java
public interface Retryable {

    void setRetryTemplate(RetryTemplate retryTemplate);

    RetryTemplate getRetryTemplate();
}

// 默认重试配置
public class DefaultRetryConfig {

    public static RetryTemplate createDefaultRetryTemplate() {
        RetryTemplate retryTemplate = new RetryTemplate();

        // 重试策略：最多3次，排除某些异常
        SimpleRetryPolicy retryPolicy = new SimpleRetryPolicy(3,
            Collections.singletonMap(TransientDataAccessException.class, true),
            false);

        // 退避策略：初始等待1秒，倍数2
        ExponentialBackOffPolicy backOffPolicy = new ExponentialBackOffPolicy();
        backOffPolicy.setInitialInterval(1000);
        backOffPolicy.setMultiplier(2.0);
        backOffPolicy.setMaxInterval(10000);

        retryTemplate.setRetryPolicy(retryPolicy);
        retryTemplate.setBackOffPolicy(backOffPolicy);

        return retryTemplate;
    }
}

🔄 三、核心流程时序图

📊 四、关键设计模式分析

1. 模板方法模式

// 抽象模板类定义标准流程
public abstract class AbstractAiClient {

    public final ChatResponse chat(ChatRequest request) {
        // 1. 预处理
        preProcess(request);

        // 2. 构建请求（由子类实现）
        Object providerRequest = toProviderRequest(request);

        // 3. 执行请求
        Object rawResponse = executeRequest(providerRequest);

        // 4. 转换响应（由子类实现）
        ChatResponse response = toChatResponse(rawResponse);

        // 5. 后处理
        return postProcess(response, request);
    }

    protected abstract Object toProviderRequest(ChatRequest request);
    protected abstract ChatResponse toChatResponse(Object response);

    // 钩子方法
    protected void preProcess(ChatRequest request) {}
    protected ChatResponse postProcess(ChatResponse response, ChatRequest request) {
        return response;
    }
}

2. 策略模式

// 策略接口
public interface AiProviderStrategy {
    String getProviderName();
    ChatResponse chat(ChatRequest request);
    boolean supports(String model);
}

// 具体策略
@Component
@ConditionalOnProperty(name = "spring.ai.openai.enabled", havingValue = "true")
public class OpenAiStrategy implements AiProviderStrategy {

    @Override
    public String getProviderName() {
        return "openai";
    }

    @Override
    public ChatResponse chat(ChatRequest request) {
        // OpenAI 特定的实现
        return null;
    }
}

3. 工厂模式

@Component
public class AiClientFactory {

    private final Map<String, AiProviderStrategy> strategies;

    public AiClientFactory(List<AiProviderStrategy> strategyList) {
        this.strategies = strategyList.stream()
            .collect(Collectors.toMap(
                AiProviderStrategy::getProviderName,
                Function.identity()
            ));
    }

    public AiClient createClient(String provider, String model) {
        AiProviderStrategy strategy = strategies.get(provider);
        if (strategy == null) {
            throw new IllegalArgumentException("Unsupported provider: " + provider);
        }

        return new AiClientAdapter(strategy, model);
    }
}

🎯 五、性能优化实现

1. 连接池管理

@Configuration
public class ConnectionPoolConfig {

    @Bean
    public RestClient.Builder aiRestClientBuilder() {
        HttpClientConnectionManager connectionManager = new PoolingHttpClientConnectionManager();
        ((PoolingHttpClientConnectionManager) connectionManager)
            .setMaxTotal(100);
        ((PoolingHttpClientConnectionManager) connectionManager)
            .setDefaultMaxPerRoute(20);

        HttpClient httpClient = HttpClients.custom()
            .setConnectionManager(connectionManager)
            .setKeepAliveStrategy((response, context) -> 30 * 1000)
            .build();

        return RestClient.builder()
            .requestFactory(new HttpComponentsClientHttpRequestFactory(httpClient));
    }
}

2. 响应缓存

@Component
@CacheConfig(cacheNames = "aiResponses")
public class CachingAiClient implements ChatClient {

    private final ChatClient delegate;

    public CachingAiClient(ChatClient delegate) {
        this.delegate = delegate;
    }

    @Override
    @Cacheable(key = "#prompt.hashCode()", unless = "#result == null")
    public ChatResponse call(Prompt prompt) {
        return delegate.call(prompt);
    }

    @CacheEvict(allEntries = true)
    public void clearCache() {
        // 清理缓存
    }
}

🔍 六、调试和监控

1. 日志配置

logging:
  level:
    org.springframework.ai: DEBUG
    org.springframework.ai.openai: INFO
    org.apache.http: WARN

2. 监控端点

@RestControllerEndpoint(id = "ai")
public class AiMetricsEndpoint {

    private final MeterRegistry meterRegistry;

    public AiMetricsEndpoint(MeterRegistry meterRegistry) {
        this.meterRegistry = meterRegistry;
    }

    @ReadOperation
    public Map<String, Object> metrics() {
        Map<String, Object> metrics = new HashMap<>();

        // 收集所有 AI 相关的指标
        meterRegistry.find("ai.client.requests").meters()
            .forEach(meter -> {
                metrics.put(meter.getId().getName(), meter.measure());
            });

        return metrics;
    }
}

📈 七、源码学习建议

1. 学习路径

从接口开始：先理解 ChatClient、EmbeddingClient 等核心接口
查看自动配置：学习 OpenAiAutoConfiguration 等配置类
跟踪实现：选择一个具体实现（如 OpenAiChatClient）深入理解
研究设计模式：注意模板方法、策略、工厂等模式的应用
调试运行：实际运行示例代码，打断点跟踪执行流程

2. 关键调试技巧

// 启用详细日志
@SpringBootApplication
@Slf4j
public class Application {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }

    @Bean
    public RequestResponsePostProcessor debugProcessor() {
        return new RequestResponsePostProcessor() {
            @Override
            public Prompt preProcess(Prompt prompt) {
                log.debug(">>> Request: {}", prompt.getContents());
                return prompt;
            }

            @Override
            public ChatResponse postProcess(ChatResponse response, Prompt prompt) {
                log.debug("<<< Response: {}", response.getResult().getOutput().getContent());
                return response;
            }
        };
    }
}
