[Video and Audio Data Processing] YUV420P 图像加边框

最新推荐文章于 2022-09-22 21:36:12 发布

原创最新推荐文章于 2022-09-22 21:36:12 发布 · 494 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#ffmpeg

视音频数据处理专栏收录该内容

22 篇文章

订阅专栏

本文介绍了一个使用C语言实现的简单程序，该程序读取YUV420P格式的视频帧，并对图像边界进行特定值填充处理。通过修改边界像素值为0或255，可以观察到不同的视觉效果。

1. 正文

extern "C"
{
#ifdef __cplusplus
#define __STDC_CONSTANT_MACROS

#endif

}
extern "C" {

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h>
}


/**
 * Split Y, U, V planes in YUV444P file.
 * @param url  Location of Input YUV file.
 * @param w    Width of Input YUV file.
 * @param h    Height of Input YUV file.
 * @param num  Number of frames to process.
 *
 */
 /**
  * Convert YUV420P file to gray picture
  * @param url     Location of Input YUV file.
  * @param w       Width of Input YUV file.
  * @param h       Height of Input YUV file.
  * @param num     Number of frames to process.
  */
int simplest_yuv420_border(const char* url, int w, int h, int border, int num) {
	FILE* fp = fopen(url, "rb+");
	FILE* fp1 = fopen("output_border.yuv", "wb+");

	unsigned char* pic = (unsigned char*)malloc(w * h * 3 / 2);

	for (int i = 0; i < num; i++) {
		fread(pic, 1, w * h * 3 / 2, fp);
		//Y
		for (int j = 0; j < h; j++) {
			for (int k = 0; k < w; k++) {
				if (k<border || k>(w - border) || j<border || j>(h - border)) {
					pic[j * w + k] = 0; //边界值
					//pic[j*w+k]=0;
				}
			}
		}
		fwrite(pic, 1, w * h * 3 / 2, fp1);
	}

	free(pic);
	fclose(fp);
	fclose(fp1);

	return 0;
}




int main()
{
	simplest_yuv420_border("lena_256x256_yuv420p.yuv", 256, 256, 20, 1);
    return 0;
}

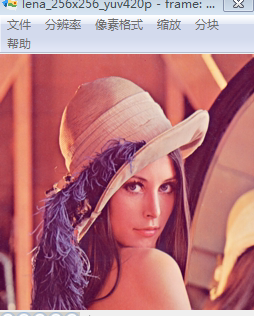

原图：

在这里插入图片描述

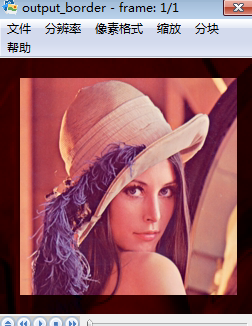

效果如下：
在这里插入图片描述

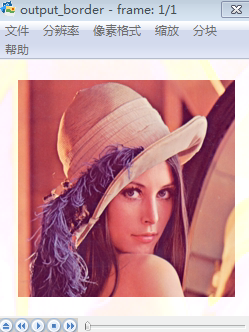

2. 若边界值修改为255

extern "C"
{
#ifdef __cplusplus
#define __STDC_CONSTANT_MACROS

#endif

}
extern "C" {

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h>
}


/**
 * Split Y, U, V planes in YUV444P file.
 * @param url  Location of Input YUV file.
 * @param w    Width of Input YUV file.
 * @param h    Height of Input YUV file.
 * @param num  Number of frames to process.
 *
 */
 /**
  * Convert YUV420P file to gray picture
  * @param url     Location of Input YUV file.
  * @param w       Width of Input YUV file.
  * @param h       Height of Input YUV file.
  * @param num     Number of frames to process.
  */
int simplest_yuv420_border(const char* url, int w, int h, int border, int num) {
	FILE* fp = fopen(url, "rb+");
	FILE* fp1 = fopen("output_border.yuv", "wb+");

	unsigned char* pic = (unsigned char*)malloc(w * h * 3 / 2);

	for (int i = 0; i < num; i++) {
		fread(pic, 1, w * h * 3 / 2, fp);
		//Y
		for (int j = 0; j < h; j++) {
			for (int k = 0; k < w; k++) {
				if (k<border || k>(w - border) || j<border || j>(h - border)) {
					pic[j * w + k] = 255;
					//pic[j*w+k]=0;
				}
			}
		}
		fwrite(pic, 1, w * h * 3 / 2, fp1);
	}

	free(pic);
	fclose(fp);
	fclose(fp1);

	return 0;
}




int main()
{
	simplest_yuv420_border("lena_256x256_yuv420p.yuv", 256, 256, 20, 1);
    return 0;
}
