SpringMVC 执行流程
SpringMVC 常用组件
-
DispatcherServlet：前端控制器，不需要工程师开发，由框架提供。作用：统一处理请求和响应，整个流程控制的中心，由它调用其它组件处理用户的请求
-
HandlerMapping：处理器映射器，不需要工程师开发，由框架提供。作用：根据请求的 url、method 等信息查找 Handler，即控制器方法
-
Handler：处理器，需要工程师开发作用：在 DispatcherServlet 的控制下 Handler 对具体的用户请求进行处理
-
HandlerAdapter：处理器适配器，不需要工程师开发，由框架提供作用：通过 HandlerAdapter 对处理器（控制器方法）进行执行
-
ViewResolver：视图解析器，不需要工程师开发，由框架提供作用：进行视图解析，得到相应的视图，例如：ThymeleafView、InternalResourceView、RedirectView
-
View：视图作用：将模型数据通过页面展示给用户
SpringMVC 初始化过程

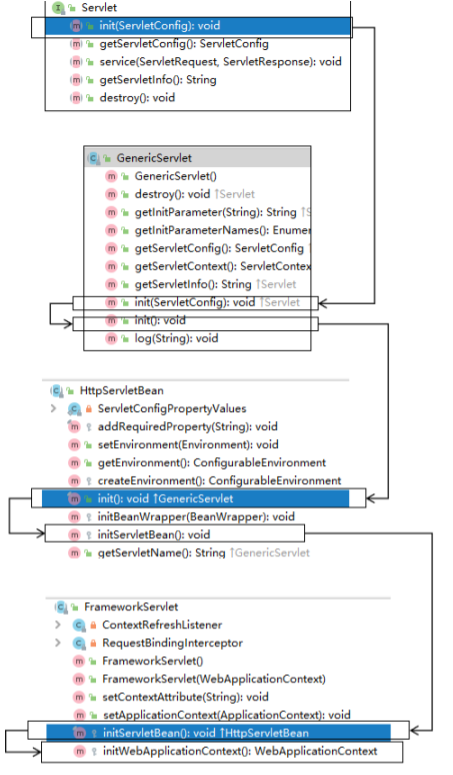

- DispatcherServlet 本质上是一个 Servlet，所以天然的遵循 Servlet 的生命周期。所以宏观上是 Servlet 生命周期来进行调度。
初始化 WebApplicationContext（容器初始化）
-
所在类：
org.springframework.web.servlet.FrameworkServlet -
部分源码：
public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware { @Override protected final void initServletBean() throws ServletException { getServletContext().log("Initializing Spring " + getClass().getSimpleName() + " '" + getServletName() + "'"); if (logger.isInfoEnabled()) { logger.info("Initializing Servlet '" + getServletName() + "'"); } long startTime = System.currentTimeMillis(); try { // 创建 WebApplicationContext（对SpringMvc容器进行初始化） this.webApplicationContext = initWebApplicationContext(); initFrameworkServlet(); } catch (ServletException | RuntimeException ex) { logger.error("Context initialization failed", ex); throw ex; } if (logger.isDebugEnabled()) { String value = this.enableLoggingRequestDetails ? "shown which may lead to unsafe logging of potentially sensitive data" : "masked to prevent unsafe logging of potentially sensitive data"; logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails + "': request parameters and headers will be " + value); } if (logger.isInfoEnabled()) { logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms"); } } }
创建 WebApplicationContext（创建容器）
-
所在类：
org.springframework.web.servlet.FrameworkServlet -
部分源码：
public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware { protected WebApplicationContext initWebApplicationContext() { // 通过WebApplicationContextUtils工具类获取当前的WebApplicationContext WebApplicationContext rootContext = WebApplicationContextUtils.getWebApplicationContext(getServletContext()); WebApplicationContext wac = null; // 第一次执行的时候 webApplicationContext 肯定是等于空的！ if (this.webApplicationContext != null) { // A context instance was injected at construction time -> use it wac = this.webApplicationContext; if (wac instanceof ConfigurableWebApplicationContext) { ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac; if (!cwac.isActive()) { // The context has not yet been refreshed -> provide services such as // setting the parent context, setting the application context id, etc if (cwac.getParent() == null) { // The context instance was injected without an explicit parent -> set // the root application context (if any; may be null) as the parent cwac.setParent(rootContext); } configureAndRefreshWebApplicationContext(cwac); } } } // 如果等于空，则先去查找一遍 if (wac == null) { // No context instance was injected at construction time -> see if one // has been registered in the servlet context. If one exists, it is assumed // that the parent context (if any) has already been set and that the // user has performed any initialization such as setting the context id wac = findWebApplicationContext(); } // 如果找不到，则会创建 WebApplicationContext if (wac == null) { // 创建 WebApplicationContext wac = createWebApplicationContext(rootContext); } if (!this.refreshEventReceived) { // Either the context is not a ConfigurableApplicationContext with refresh // support or the context injected at construction time had already been // refreshed -> trigger initial onRefresh manually here. synchronized (this.onRefreshMonitor) { // 刷新事件，刷新 WebApplicationContext onRefresh(wac); } } if (this.publishContext) { // 获取 ServletContext 的属性名 String attrName = getServletContextAttributeName(); /* getServletContext：获取 ServletContext 对象 setAttribute：共享数据 将 IOC 容器共享在应用域中 */ getServletContext().setAttribute(attrName, wac); } return wac; } // 创建 WebApplicationContext protected WebApplicationContext createWebApplicationContext(@Nullable WebApplicationContext parent) { return createWebApplicationContext((ApplicationContext) parent); } protected WebApplicationContext createWebApplicationContext(@Nullable ApplicationContext parent) { Class<?> contextClass = getContextClass(); if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) { throw new ApplicationContextException( "Fatal initialization error in servlet with name '" + getServletName() + "': custom WebApplicationContext class [" + contextClass.getName() + "] is not of type ConfigurableWebApplicationContext"); } // 通过反射创建 SpringMVC 的 IOC 容器对象 ConfigurableWebApplicationContext wac = (ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass); wac.setEnvironment(getEnvironment()); // 将 Spring 的IOC容器设置为 SpringMVC 的父容器 wac.setParent(parent); String configLocation = getContextConfigLocation(); if (configLocation != null) { wac.setConfigLocation(configLocation); } configureAndRefreshWebApplicationContext(wac); return wac; } // 刷新 WebApplicationContext protected void onRefresh(ApplicationContext context) { // 让子类（DispatcherServlet）进行操作 } // 获取 ServletContext 的属性名 public static final String SERVLET_CONTEXT_PREFIX = FrameworkServlet.class.getName() + ".CONTEXT."; public String getServletContextAttributeName() { return SERVLET_CONTEXT_PREFIX + getServletName(); } }
DispatcherServlet 初始化策略
-
所在类：
org.springframework.web.servlet.DispatcherServlet -
FrameworkServlet 创建 WebApplicationContext 后，刷新容器，调用 onRefresh(wac)，此方法在 DispatcherServlet 中进行了重写，调用了
initStrategies(context)方法，初始化策略，即初始化 DispatcherServlet 的各个组件。 -
部分源码：
public class DispatcherServlet extends FrameworkServlet { @Override protected void onRefresh(ApplicationContext context) { // 初始化策略 initStrategies(context); } /** * Initialize the strategy objects that this servlet uses. * <p>May be overridden in subclasses in order to initialize further strategy objects. */ protected void initStrategies(ApplicationContext context) { // 初始化文件上传解析器 initMultipartResolver(context); initLocaleResolver(context); initThemeResolver(context); // 初始化处理器映射器（通过它可以将请求和控制器方法创建映射关系） initHandlerMappings(context); // 初始化处理器适配器（通过它来根据请求调用对应的控制器方法） initHandlerAdapters(context); // 初始化异常处理器 initHandlerExceptionResolvers(context); initRequestToViewNameTranslator(context); // 初始化视图解析器 initViewResolvers(context); initFlashMapManager(context); } }
DispatcherServlet 调用组件处理请求
如果图看不懂的话可结合下面的源码一起理解，最好是自己打开代码看一下

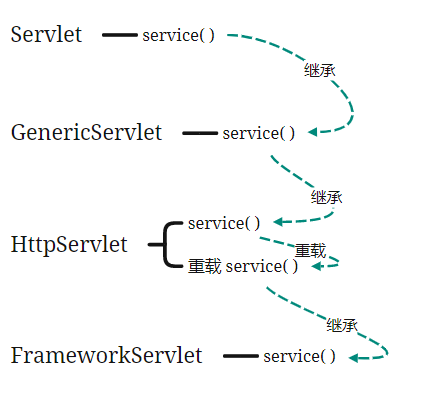

HttpServlet 部分源码
- 该类将
service方法进行了重载，把ServletRequest转换成了HttpServletRequest，然后对不同的请求方式进行了不同的处理。 - 在

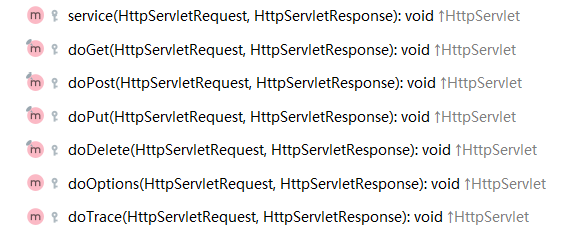

FrameworkServlet类中重写了所有处理各种请求方式的方法：doXxx
public abstract class HttpServlet extends GenericServlet {
@Override
public void service(ServletRequest req, ServletResponse res)
throws ServletException, IOException
{
HttpServletRequest request;
HttpServletResponse response;
if (!(req instanceof HttpServletRequest &&
res instanceof HttpServletResponse)) {
throw new ServletException("non-HTTP request or response");
}
// 将 ServletRequest 转换为 HttpServletRequest
request = (HttpServletRequest) req;
// 将 ServletResponse 转换为 HttpServletResponse
response = (HttpServletResponse) res;
service(request, response);
}
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// 获取请求方式
String method = req.getMethod();
// 判断请求方式
if (method.equals(METHOD_GET)) {
long lastModified = getLastModified(req);
if (lastModified == -1) {
// servlet doesn't support if-modified-since, no reason
// to go through further expensive logic
doGet(req, resp);
} else {
long ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
if (ifModifiedSince < lastModified) {
// If the servlet mod time is later, call doGet()
// Round down to the nearest second for a proper compare
// A ifModifiedSince of -1 will always be less
maybeSetLastModified(resp, lastModified);
doGet(req, resp);
} else {
resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
}
}
} else if (method.equals(METHOD_HEAD)) {
long lastModified = getLastModified(req);
maybeSetLastModified(resp, lastModified);
doHead(req, resp);
} else if (method.equals(METHOD_POST)) {
doPost(req, resp);
} else if (method.equals(METHOD_PUT)) {
doPut(req, resp);
} else if (method.equals(METHOD_DELETE)) {
doDelete(req, resp);
} else if (method.equals(METHOD_OPTIONS)) {
doOptions(req,resp);
} else if (method.equals(METHOD_TRACE)) {
doTrace(req,resp);
} else {
//
// Note that this means NO servlet supports whatever
// method was requested, anywhere on this server.
//
String errMsg = lStrings.getString("http.method_not_implemented");
Object[] errArgs = new Object[1];
errArgs[0] = method;
errMsg = MessageFormat.format(errMsg, errArgs);
resp.sendError(HttpServletResponse.SC_NOT_IMPLEMENTED, errMsg);
}
}
}
processRequest()
-
FrameworkServlet 重写 HttpServlet 中的 service() 和 doXxx()，这些方法中调用了
processRequest(request, response)
-
所在类：
org.springframework.web.servlet.FrameworkServlet -
部分源码：
public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware { @Override protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // 获取请求方式 HttpMethod httpMethod = HttpMethod.resolve(request.getMethod()); // 如果请求方式为 PATCH 或 为空 if (httpMethod == HttpMethod.PATCH || httpMethod == null) { processRequest(request, response); } else { // 虽然这里调用的父类的 service() 方法，但是在当前类中对请求处理进行了重写，所以最后使用的还是当前类中的方法进行处理的 super.service(request, response); } } // 处理 GET 请求 @Override protected final void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { processRequest(request, response); } // 处理 Post 请求 @Override protected final void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { processRequest(request, response); } // 处理 Put 请求 @Override protected final void doPut(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { processRequest(request, response); } // 处理 Delete 请求 @Override protected final void doDelete(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { processRequest(request, response); } protected final void processRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { long startTime = System.currentTimeMillis(); Throwable failureCause = null; LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext(); LocaleContext localeContext = buildLocaleContext(request); RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes(); ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes); WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request); asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor()); initContextHolders(request, localeContext, requestAttributes); try { // 执行服务，doService()是一个抽象方法，在 DispatcherServlet 中进行了重写 doService(request, response); } catch (ServletException | IOException ex) { failureCause = ex; throw ex; } catch (Throwable ex) { failureCause = ex; throw new NestedServletException("Request processing failed", ex); } finally { resetContextHolders(request, previousLocaleContext, previousAttributes); if (requestAttributes != null) { requestAttributes.requestCompleted(); } logResult(request, response, failureCause, asyncManager); publishRequestHandledEvent(request, response, startTime, failureCause); } } // 该方法是一个抽象方法，所以要看它的子类实现 protected abstract void doService(HttpServletRequest request, HttpServletResponse response) throws Exception; }
doService()
所在类：org.springframework.web.servlet.DispatcherServlet
public class DispatcherServlet extends FrameworkServlet {
@Override
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
logRequest(request);
// Keep a snapshot of the request attributes in case of an include,
// to be able to restore the original attributes after the include.
Map<String, Object> attributesSnapshot = null;
if (WebUtils.isIncludeRequest(request)) {
attributesSnapshot = new HashMap<>();
Enumeration<?> attrNames = request.getAttributeNames();
while (attrNames.hasMoreElements()) {
String attrName = (String) attrNames.nextElement();
if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
attributesSnapshot.put(attrName, request.getAttribute(attrName));
}
}
}
// Make framework objects available to handlers and view objects.
request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());
if (this.flashMapManager != null) {
FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
if (inputFlashMap != null) {
request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
}
request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
}
RequestPath requestPath = null;
if (this.parseRequestPath && !ServletRequestPathUtils.hasParsedRequestPath(request)) {
requestPath = ServletRequestPathUtils.parseAndCache(request);
}
try {
// 处理请求和响应
doDispatch(request, response);
}
finally {
if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Restore the original attribute snapshot, in case of an include.
if (attributesSnapshot != null) {
restoreAttributesAfterInclude(request, attributesSnapshot);
}
}
if (requestPath != null) {
ServletRequestPathUtils.clearParsedRequestPath(request);
}
}
}
}
doDispatch()
所在类：org.springframework.web.servlet.DispatcherServlet
public class DispatcherServlet extends FrameworkServlet {
// 处理请求和响应
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
/*
调用链，包含：
浏览器发送的请求所匹配到的控制器方法（handler）
处理器控制器的所有拦截器集合（interceptorList）
拦截器索引（interceptorIndex）
*/
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// 初始化 mappedHandler
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// 通过控制器方法创建处理器适配器，然后调用对应的控制器方法
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
// 调用拦截器的 preHandle() 方法（感兴趣可点进去看一下applyPreHandle()方法的细节）
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// 执行处理器适配器调用的控制器方法，最终得到一个 ModelAndView 对象
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
applyDefaultViewName(processedRequest, mv);
// 调用拦截器的 postHandle() 方法（感兴趣可点进去看一下applyPostHandle()方法的细节）
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
// 处理 ModelAndView（解析模型数据和渲染视图）
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
}
这个方法是一个比较关键的方法
processDispatchResult()
- 所在类：
org.springframework.web.servlet.DispatcherServlet
public class DispatcherServlet extends FrameworkServlet {
// 解析模型数据和渲染视图
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
boolean errorView = false;
// 如果出现异常，就会进行相应的处理
if (exception != null) {
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
}
else {
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
mv = processHandlerException(request, response, handler, exception);
errorView = (mv != null);
}
}
// Did the handler return a view to render?
if (mv != null && !mv.wasCleared()) {
// 处理模型数据和渲染视图
render(mv, request, response);
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("No view rendering, null ModelAndView returned.");
}
}
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
if (mappedHandler != null) {
// 调用拦截器的 afterCompletion() 方法（感兴趣可点进去看一下triggerAfterCompletion()方法的细节）
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
}
SpringMVC 的执行流程
-
用户向服务器发送请求，请求被 SpringMVC 前端控制器 DispatcherServlet 捕获。
-
DispatcherServlet 对请求 URL 进行解析，得到请求资源标识符（URI），判断请求 URI 对应的映射是否存在
-
如果不存在
- 再判断是否配置了
mvc:default-servlet-handler（开放对静态资源的访问） - 如果没配置，则控制台报映射查找不到，客户端展示 404 错误
- 如果有配置，则访问目标资源（一般为静态资源，如：JS、CSS、HTML），找不到客户端也会展示 404 错误
- 再判断是否配置了
-
存在则执行下面的流程
-
根据该 URI，调用 HandlerMapping 获得该 Handler 配置的所有相关的对象（包括 Handler 对象以及 Handler 对象对应的拦截器），最后以 HandlerExecutionChain （调用链，可看源码）执行链对象的形式返回。
Handler 指的就是控制器方法
-
DispatcherServlet 根据获得的 Handler，选择一个合适的 HandlerAdapter（处理器适配器）。
-
如果成功获得 HandlerAdapter，此时将开始执行拦截器的 preHandler(…) 方法（
正向执行） -
提取 Request 中的模型数据，填充 Handler 入参，开始执行 Handler（Controller) 方法，处理请求。 在填充 Handler 的入参过程中，根据你的配置，Spring 将帮你做一些额外的工作：
HttpMessageConveter： 将请求消息（如 Json、xml 等数据）转换成一个对象，将对象转换为指定的响应信息数据转换：对请求消息进行数据转换。如 String 转换成 Integer、Double 等数据格式化：对请求消息进行数据格式化。如将字符串转换成格式化数字或格式化日期等数据验证： 验证数据的有效性（长度、格式等），验证结果存储到 BindingResult 或 Error 中
-
Handler 执行完成后，向 DispatcherServlet 返回一个 ModelAndView 对象。
-
此时将开始执行拦截器的 postHandle(…) 方法（
逆向执行）。 -
根据返回的 ModelAndView（此时会判断是否存在异常：如果存在异常，则执行 HandlerExceptionResolver 进行异常处理）选择一个适合的 ViewResolver 进行视图解析，根据 Model 和 View 来渲染视图。
-
渲染视图完毕执行拦截器的 afterCompletion(…) 方法（
逆向执行）。 -
将渲染结果返回给客户端。
-
