[Error] _lv_inv_area: detected modifying dirty areas in render (in lv_refr.c line #212)

在使用LVGL库频繁修改标签时遇到错误,问题源于修改脏区域时的并发冲突。解决方法是在调用lv_task_handler前后使用互斥锁(mutex),确保在多任务环境中LVGL函数的调用安全,防止同时访问导致的错误。通过正确使用互斥锁,可以在实际的多任务环境中顺利运行LVGL。

使用lvgl库频繁修改标签时出现错误

[Error] (2.470, +2470)   _lv_inv_area: detected modifying dirty areas in render         (in lv_refr.c line #212)

 如果需要使用实际的任务或线程,则需要一个互斥锁,该互斥锁应在调用 lv_task_handler 之前被调用,并在其之后释放。同样,必须在与每个LVGL(lv _...)相关的函数调用和代码周围的其他任务和线程中使用相同的互斥锁。这样,就可以在真正的多任务环境中使用LVGL。只需使用互斥锁(mutex)即可避免同时调用 LVGL 函数。

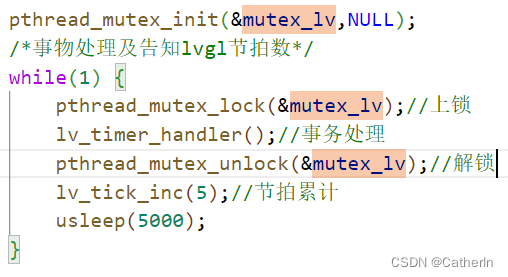

例如如下 上锁、解锁 操作
