前言
最近使用了阿里的ARouter框架，现在来讲解一下自己关于ARouter源码的理解
一、ARouter 简介
1. 什么是ARouter
ARouter是由alibaba开源的一个帮助Android App进行组件化路由改造的路由框架。(Github地址)
2. ARouter框架的作用
- 路由：实现页面之间的跳转，包括外部URL跳转到内部页面，module之间页面跳转，可以监听跳转过程同时可以指定拦截器
- 通信：跳转时可以传递参数
- 解耦：跳转不再依赖具体的目标类，各个module之间耦合度降低
二、ARouter原理概述
ARouter功能的实现主要包含三个部分：1.配置和使用 2. 编译期 3. 运行时
1. 配置和使用
关于ARouter的使用方式，其实在GitHub中已经有很明确的介绍，我就不再赘述了。
2. 编译期原理分析
ARouter框架使用时主要用的三个编译期注解为@Route、@Interceptor、@Autowired，在代码的编译期间，利用APT(Annotation Processing Tool)工具生成路由表，对应的注解处理器分别为 RouteProcessor，InterceptorProcessor，AutowiredProcessor，都在arouter-compiler包中。他们都继承自BaseProcessor类，而BaseProcessor继承自AbstractProcessor类，利用Google的@AutoService(Processor.class)注解自动生成服务，当处于编译期间时，编译器会检测继承自AbstractProcessor的子类，调用子类的process()方法，并将包含注解的元素传递进来，然后经过分析后，使用JavaPoet生成java文件。
我们先看一下BaseProcessor类的关键方法，
BaseProcessor.java
//初始化方法，只会执行一次
@Override
public synchronized void init(ProcessingEnvironment processingEnv) {
super.init(processingEnv);
//用于生成.java文件
mFiler = processingEnv.getFiler();
//类型校验
types = processingEnv.getTypeUtils();
//元素校验
elementUtils = processingEnv.getElementUtils();
//类型工具类
typeUtils = new TypeUtils(types, elementUtils);
//封装了日志
logger = new Logger(processingEnv.getMessager());
// Attempt to get user configuration [moduleName]
Map<String, String> options = processingEnv.getOptions();
//读取我们在build.gradle中配置的信息
if (MapUtils.isNotEmpty(options)) {
moduleName = options.get(KEY_MODULE_NAME);
generateDoc = VALUE_ENABLE.equals(options.get(KEY_GENERATE_DOC_NAME));
}
if (StringUtils.isNotEmpty(moduleName)) {
moduleName = moduleName.replaceAll("[^0-9a-zA-Z_]+", "");
logger.info("The user has configuration the module name, it was [" + moduleName + "]");
} else {
//如果没配置会报出异常
logger.error(NO_MODULE_NAME_TIPS);
throw new RuntimeException("ARouter::Compiler >>> No module name, for more information, look at gradle log.");
}
}
@Override
public Set<String> getSupportedOptions() {
//添加Option参数，在build.gradle中配置
return new HashSet<String>() {{
this.add(KEY_MODULE_NAME);
this.add(KEY_GENERATE_DOC_NAME);
}};
}
BaseProcessor中定义了一些基本的方法，下面我们通过RouteProcessor分析ARouter如何生成路由文件的。
RouteProcessor.java
@Override
public synchronized void init(ProcessingEnvironment processingEnv) {
super.init(processingEnv);
//如果需要生成文档，初始化JavaFile对象，在build.gradle中配置
if (generateDoc) {
try {
docWriter = mFiler.createResource(
StandardLocation.SOURCE_OUTPUT,
PACKAGE_OF_GENERATE_DOCS,
"arouter-map-of-" + moduleName + ".json"
).openWriter();
} catch (IOException e) {
logger.error("Create doc writer failed, because " + e.getMessage());
}
}
......
}
//会自动被编译器调用
@Override
public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {
if (CollectionUtils.isNotEmpty(annotations)) {
//获取带有Route注解的元素集合
Set<? extends Element> routeElements = roundEnv.getElementsAnnotatedWith(Route.class);
try {
logger.info(">>> Found routes, start... <<<");
//解析路由
this.parseRoutes(routeElements);
} catch (Exception e) {
logger.error(e);
}
return true;
}
return false;
}
//解析数据，组合rootMap、groupMap，生成ARouter$$Group$$xxx,ARouter$$Providers$$xxx,ARouter$$Root$$xxx文件
private void parseRoutes(Set<? extends Element> routeElements) throws IOException {
if (CollectionUtils.isNotEmpty(routeElements)) {
rootMap.clear();
TypeMirror type_Activity = elementUtils.getTypeElement(ACTIVITY).asType();
TypeMirror type_Service = elementUtils.getTypeElement(SERVICE).asType();
TypeMirror fragmentTm = elementUtils.getTypeElement(FRAGMENT).asType();
TypeMirror fragmentTmV4 = elementUtils.getTypeElement(Consts.FRAGMENT_V4).asType();
// Interface of ARouter
TypeElement type_IRouteGroup = elementUtils.getTypeElement(IROUTE_GROUP);
TypeElement type_IProviderGroup = elementUtils.getTypeElement(IPROVIDER_GROUP);
ClassName routeMetaCn = ClassName.get(RouteMeta.class);
ClassName routeTypeCn = ClassName.get(RouteType.class);
//构建 Map<String, Class<? extends IRouteGroup>> 参数类型
ParameterizedTypeName inputMapTypeOfRoot = ParameterizedTypeName.get(
ClassName.get(Map.class),
ClassName.get(String.class),
ParameterizedTypeName.get(
ClassName.get(Class.class),
WildcardTypeName.subtypeOf(ClassName.get(type_IRouteGroup))
)
);
//构建 Map<String, RouteMeta> 参数类型
ParameterizedTypeName inputMapTypeOfGroup = ParameterizedTypeName.get(
ClassName.get(Map.class),
ClassName.get(String.class),
ClassName.get(RouteMeta.class)
);
//构建com.alibaba.android.arouter.routes包下的
//ARouter$$Group$$xxx,ARouter$$Providers$$xxx,ARouter$$Root$$xxx,三个文件的方法入参
ParameterSpec rootParamSpec = ParameterSpec.builder(inputMapTypeOfRoot, "routes").build();
ParameterSpec groupParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "atlas").build();
ParameterSpec providerParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "providers").build(); 、
//构建ARouter$$Root$$xxx的loadInto方法
MethodSpec.Builder loadIntoMethodOfRootBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(rootParamSpec);
//for循环解析各种元素，生成不同的RouteMeta
for (Element element : routeElements) {
TypeMirror tm = element.asType();
Route route = element.getAnnotation(Route.class);
RouteMeta routeMeta;
// Activity or Fragment
if (types.isSubtype(tm, type_Activity) || types.isSubtype(tm, fragmentTm) || types.isSubtype(tm, fragmentTmV4)) {
// Get all fields annotation by @Autowired
Map<String, Integer> paramsType = new HashMap<>();
Map<String, Autowired> injectConfig = new HashMap<>();
injectParamCollector(element, paramsType, injectConfig);
if (types.isSubtype(tm, type_Activity)) {
// Activity
routeMeta = new RouteMeta(route, element, RouteType.ACTIVITY, paramsType);
} else {
// Fragment
routeMeta = new RouteMeta(route, element, RouteType.parse(FRAGMENT), paramsType);
}
routeMeta.setInjectConfig(injectConfig);
} else if (types.isSubtype(tm, iProvider)) { // IProvider
routeMeta = new RouteMeta(route, element, RouteType.PROVIDER, null);
} else if (types.isSubtype(tm, type_Service)) { // Service
routeMeta = new RouteMeta(route, element, RouteType.parse(SERVICE), null);
} else {
throw new RuntimeException("The @Route is marked on unsupported class, look at [" + tm.toString() + "].");
}
//处理RouteMeta类型
categories(routeMeta);
}
//ARouter$$Providers$$xxx文件的loadInto方法
MethodSpec.Builder loadIntoMethodOfProviderBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(providerParamSpec);
Map<String, List<RouteDoc>> docSource = new HashMap<>();
for (Map.Entry<String, Set<RouteMeta>> entry : groupMap.entrySet()) {
String groupName = entry.getKey();
//构建各个ARouter$$Group$$xxx文件的loadInto()
MethodSpec.Builder loadIntoMethodOfGroupBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)
.addAnnotation(Override.class)
.addModifiers(PUBLIC)
.addParameter(groupParamSpec);
List<RouteDoc> routeDocList = new ArrayList<>();
// Build group method body
Set<RouteMeta> groupData = entry.getValue();
for (RouteMeta routeMeta : groupData) {
RouteDoc routeDoc = extractDocInfo(routeMeta);
ClassName className = ClassName.get((TypeElement) routeMeta.getRawType());
switch (routeMeta.getType()) {
case PROVIDER: // Need cache provider's super class
List<? extends TypeMirror> interfaces = ((TypeElement) routeMeta.getRawType()).getInterfaces();
for (TypeMirror tm : interfaces) {
routeDoc.addPrototype(tm.toString());
if (types.isSameType(tm, iProvider)) {
// This interface extend the IProvider, so it can be used for mark provider
loadIntoMethodOfProviderBuilder.addStatement(
"providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
(routeMeta.getRawType()).toString(),
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath(),
routeMeta.getGroup());
} else if (types.isSubtype(tm, iProvider)) {
// This interface extend the IProvider, so it can be used for mark provider
loadIntoMethodOfProviderBuilder.addStatement(
"providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
tm.toString(), // So stupid, will duplicate only save class name.
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath(),
routeMeta.getGroup());
}
}
break;
default:
break;
}
// Make map body for paramsType
StringBuilder mapBodyBuilder = new StringBuilder();
Map<String, Integer> paramsType = routeMeta.getParamsType();
Map<String, Autowired> injectConfigs = routeMeta.getInjectConfig();
if (MapUtils.isNotEmpty(paramsType)) {
List<RouteDoc.Param> paramList = new ArrayList<>();
for (Map.Entry<String, Integer> types : paramsType.entrySet()) {
mapBodyBuilder.append("put(\"").append(types.getKey()).append("\", ").append(types.getValue()).append("); ");
RouteDoc.Param param = new RouteDoc.Param();
Autowired injectConfig = injectConfigs.get(types.getKey());
param.setKey(types.getKey());
param.setType(TypeKind.values()[types.getValue()].name().toLowerCase());
param.setDescription(injectConfig.desc());
param.setRequired(injectConfig.required());
paramList.add(param);
}
routeDoc.setParams(paramList);
}
String mapBody = mapBodyBuilder.toString();
//构建ARouter$$Group$$xxx组文件loadInto()的方法体
loadIntoMethodOfGroupBuilder.addStatement(
"atlas.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, " + (StringUtils.isEmpty(mapBody) ? null : ("new java.util.HashMap<String, Integer>(){{" + mapBodyBuilder.toString() + "}}")) + ", " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",
routeMeta.getPath(),
routeMetaCn,
routeTypeCn,
className,
routeMeta.getPath().toLowerCase(),
routeMeta.getGroup().toLowerCase());
routeDoc.setClassName(className.toString());
routeDocList.add(routeDoc);
}
//生成各个ARouter$$Group$$xxx组文件
String groupFileName = NAME_OF_GROUP + groupName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(groupFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(type_IRouteGroup))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfGroupBuilder.build())
.build()
).build().writeTo(mFiler);
rootMap.put(groupName, groupFileName);
docSource.put(groupName, routeDocList);
}
//构建ARouter$$Root$$xxx文件，loadInto()的方法体
if (MapUtils.isNotEmpty(rootMap)) {
for (Map.Entry<String, String> entry : rootMap.entrySet()) {
loadIntoMethodOfRootBuilder.addStatement("routes.put($S, $T.class)", entry.getKey(), ClassName.get(PACKAGE_OF_GENERATE_FILE, entry.getValue()));
}
}
//生成Doc文件
if (generateDoc) {
docWriter.append(JSON.toJSONString(docSource, SerializerFeature.PrettyFormat));
docWriter.flush();
docWriter.close();
}
//生成ARouter$$Providers$$xxx文件
String providerMapFileName = NAME_OF_PROVIDER + SEPARATOR + moduleName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(providerMapFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(type_IProviderGroup))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfProviderBuilder.build())
.build()
).build().writeTo(mFiler);
//生成ARouter$$Root$$xxx文件
String rootFileName = NAME_OF_ROOT + SEPARATOR + moduleName;
JavaFile.builder(PACKAGE_OF_GENERATE_FILE,
TypeSpec.classBuilder(rootFileName)
.addJavadoc(WARNING_TIPS)
.addSuperinterface(ClassName.get(elementUtils.getTypeElement(ITROUTE_ROOT)))
.addModifiers(PUBLIC)
.addMethod(loadIntoMethodOfRootBuilder.build())
.build()
).build().writeTo(mFiler);
}
}
//区分类型，组装groupMap
private void categories(RouteMeta routeMete) {
if (routeVerify(routeMete)) {
Set<RouteMeta> routeMetas = groupMap.get(routeMete.getGroup());
if (CollectionUtils.isEmpty(routeMetas)) {
Set<RouteMeta> routeMetaSet = new TreeSet<>(new Comparator<RouteMeta>() {
@Override
public int compare(RouteMeta r1, RouteMeta r2) {
try {
return r1.getPath().compareTo(r2.getPath());
} catch (NullPointerException npe) {
logger.error(npe.getMessage());
return 0;
}
}
});
routeMetaSet.add(routeMete);
//处理同一Group的数据
groupMap.put(routeMete.getGroup(), routeMetaSet);
} else {
routeMetas.add(routeMete);
}
} else {
logger.warning(">>> Route meta verify error, group is " + routeMete.getGroup() + " <<<");
}
}
同理，InterceptorProcessor 和 AutowiredProcessor 也是同样的原理生成对应的文件，我就不再重复解释了。
3. 运行时原理分析
当我们了解了编译期Arouter干了些什么之后，让我们来看看运行时的原理又是怎么样的。
1) 初始化流程
Application.java
if (BuildConfig.DEBUG) {
ARouter.openLog();
ARouter.openDebug();
}
ARouter.init(this);
ARouter.java
public static void init(Application application) {
if (!hasInit) {
logger = _ARouter.logger;
_ARouter.logger.info(Consts.TAG, "ARouter init start.");
//转移给_ARouter类去初始化
hasInit = _ARouter.init(application);
if (hasInit) {
_ARouter.afterInit();
}
_ARouter.logger.info(Consts.TAG, "ARouter init over.");
}
}
_ARouter.java
protected static synchronized boolean init(Application application) {
mContext = application;
//转给LogisticsCenter去初始化
LogisticsCenter.init(mContext, executor);
logger.info(Consts.TAG, "ARouter init success!");
hasInit = true;
mHandler = new Handler(Looper.getMainLooper());
return true;
}
LogisticsCenter.java
/**
* LogisticsCenter init, load all metas in memory. Demand initialization
*/
public synchronized static void init(Context context, ThreadPoolExecutor tpe) throws HandlerException {
mContext = context;
executor = tpe;
try {
long startInit = System.currentTimeMillis();
//load by plugin first
loadRouterMap();
if (registerByPlugin) {
logger.info(TAG, "Load router map by arouter-auto-register plugin.");
} else {
Set<String> routerMap;
// It will rebuild router map every times when debuggable.
if (ARouter.debuggable() || PackageUtils.isNewVersion(context)) {
logger.info(TAG, "Run with debug mode or new install, rebuild router map.");
// These class was generated by arouter-compiler.
// 根据包名"com.alibaba.android.arouter.routes"去所有的dex文件中获取符合要求的.class文件集合
routerMap = ClassUtils.getFileNameByPackageName(mContext, ROUTE_ROOT_PAKCAGE);
if (!routerMap.isEmpty()) {
context.getSharedPreferences(AROUTER_SP_CACHE_KEY, Context.MODE_PRIVATE).edit().putStringSet(AROUTER_SP_KEY_MAP, routerMap).apply();
}
PackageUtils.updateVersion(context); // Save new version name when router map update finishes.
} else {
logger.info(TAG, "Load router map from cache.");
// 非debug模式走缓存
routerMap = new HashSet<>(context.getSharedPreferences(AROUTER_SP_CACHE_KEY, Context.MODE_PRIVATE).getStringSet(AROUTER_SP_KEY_MAP, new HashSet<String>()));
}
logger.info(TAG, "Find router map finished, map size = " + routerMap.size() + ", cost " + (System.currentTimeMillis() - startInit) + " ms.");
startInit = System.currentTimeMillis();
// 区分是Rout类型、Interceptor类型还是Provider类型，然后实例化类，调用loadInfo方法，将数据缓存到Warehouse的静态集合对象中
for (String className : routerMap) {
if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_ROOT)) {
// This one of root elements, load root.
((IRouteRoot) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.groupsIndex);
} else if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_INTERCEPTORS)) {
// Load interceptorMeta
((IInterceptorGroup) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.interceptorsIndex);
} else if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_PROVIDERS)) {
// Load providerIndex
((IProviderGroup) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.providersIndex);
}
}
}
......
} catch (Exception e) {
throw new HandlerException(TAG + "ARouter init logistics center exception! [" + e.getMessage() + "]");
}
}
我们进入init方法中会发现实际的初始化操作交给了_ARouter类来操作，这么做的目的是为了让用户用起来更加方便，只对用户暴露他们实际需要用的API即可。在_ARouter中又将init转到了LogisticsCenter类中，通过源码我们可以发现LogisticsCenter的init的作用如下
- 扫描所有dex文件下com.alibaba.android.arouter.routes目录
- 加载所有模块下管理路由组Root文件
- 加载所有模块下管理服务的providers文件
- 加载所有模块下管理拦截器的intercepter文件
- 将加载的文件内容缓存到Warehouse类中，注意：此时并没有加载各个路由组、服务和拦截器文件，只是将组的信息加载到内容中，当真正需要用到路由、服务、拦截器的时候，按需加载
2) 路由执行流程
拿以下代码为例
ARouter.getInstance()
.build("/demo/banner") //路径信息
.withInt("count", 2) //参数信息
.greenChannel() //绿色通道，可以跳过拦截器
.navigation(); //导航
首先，调用build方法，会发现又是转交给_ARouter类去操作了，最后生成一个Postcard对象
_ARouter.java
/**
* Build postcard by path and default group
*/
protected Postcard build(String path) {
if (TextUtils.isEmpty(path)) {
throw new HandlerException(Consts.TAG + "Parameter is invalid!");
} else {
// 如果我们实现了PathReplaceService接口，可以替换url，默认是null，这是ARouter提供给我们的第一个拦截处理路由的方式
PathReplaceService pService = ARouter.getInstance().navigation(PathReplaceService.class);
if (null != pService) {
path = pService.forString(path);
}
// 调用build()方法，extractGroup是用来获取组名
return build(path, extractGroup(path), true);
}
}
/**
* Build postcard by path and group
*/
protected Postcard build(String path, String group, Boolean afterReplace) {
if (TextUtils.isEmpty(path) || TextUtils.isEmpty(group)) {
throw new HandlerException(Consts.TAG + "Parameter is invalid!");
} else {
if (!afterReplace) {
// 再次判断是否需要替换url路径
PathReplaceService pService = ARouter.getInstance().navigation(PathReplaceService.class);
if (null != pService) {
path = pService.forString(path);
}
}
//生成对应的Postcard对象
return new Postcard(path, group);
}
}
Postcard是RouteMeta的子类，除了路由信息外，还包含了其他操作信息
Postcard.java
// Base
private Uri uri;
private Object tag; // A tag prepare for some thing wrong. inner params, DO NOT USE!
private Bundle mBundle; // Data to transform
private int flags = 0; // Flags of route
private int timeout = 300; // Navigation timeout, TimeUnit.Second
private IProvider provider; // It will be set value, if this postcard was provider.
private boolean greenChannel;
private SerializationService serializationService;
private Context context; // May application or activity, check instance type before use it.
private String action;
// Animation
private Bundle optionsCompat; // The transition animation of activity
private int enterAnim = -1;
private int exitAnim = -1;
当我们通过各种方法设置完参数之后，调用navigation()方法去实现跳转，最终发现还是调用的_ARouter的navigation方法来实现，如下：
_ARouter.java
/**
* Use router navigation.
*
* @param context Activity or null.
* @param postcard Route metas
* @param requestCode RequestCode
* @param callback cb
*/
protected Object navigation(final Context context, final Postcard postcard, final int requestCode, final NavigationCallback callback) {
//首先判断我们是否实现了PretreatmentService接口，在这里我们可以在navigation前执行一些自己的代码
PretreatmentService pretreatmentService = ARouter.getInstance().navigation(PretreatmentService.class);
if (null != pretreatmentService && !pretreatmentService.onPretreatment(context, postcard)) {
// Pretreatment failed, navigation canceled.
return null;
}
// Set context to postcard.
postcard.setContext(null == context ? mContext : context);
try {
//调用LogisticsCenter的completion方法，去实例化需要用到路由组，并完善Postcard的信息
LogisticsCenter.completion(postcard);
} catch (NoRouteFoundException ex) {
logger.warning(Consts.TAG, ex.getMessage());
if (null != callback) {
callback.onLost(postcard);
} else {
// No callback for this invoke, then we use the global degrade service.
// 如果没有回调，如果我们实现了DegradeService降级策略，会执行我们的降级代码
DegradeService degradeService = ARouter.getInstance().navigation(DegradeService.class);
if (null != degradeService) {
degradeService.onLost(context, postcard);
}
}
return null;
}
if (null != callback) {
callback.onFound(postcard);
}
if (!postcard.isGreenChannel()) { // It must be run in async thread, maybe interceptor cost too mush time made ANR.
//如果不是绿色通道，需要执行拦截器操作
interceptorService.doInterceptions(postcard, new InterceptorCallback() {
/**
* Continue process
*
* @param postcard route meta
*/
// 未拦截，继续执行_navigation()
@Override
public void onContinue(Postcard postcard) {
_navigation(postcard, requestCode, callback);
}
/**
* Interrupt process, pipeline will be destory when this method called.
*
* @param exception Reson of interrupt.
*/
// 跳转被拦截
@Override
public void onInterrupt(Throwable exception) {
if (null != callback) {
callback.onInterrupt(postcard);
}
logger.info(Consts.TAG, "Navigation failed, termination by interceptor : " + exception.getMessage());
}
});
} else {
// 绿色通道直接执行_navigation
return _navigation(postcard, requestCode, callback);
}
return null;
}
// navigation操作
private Object _navigation(final Postcard postcard, final int requestCode, final NavigationCallback callback) {
final Context currentContext = postcard.getContext();
// 判断Postcard的type类型
switch (postcard.getType()) {
//如果是Activity类型，组装Intent对象，实现跳转
case ACTIVITY:
// Build intent
final Intent intent = new Intent(currentContext, postcard.getDestination());
intent.putExtras(postcard.getExtras());
// Set flags.
int flags = postcard.getFlags();
if (0 != flags) {
intent.setFlags(flags);
}
// Non activity, need FLAG_ACTIVITY_NEW_TASK
if (!(currentContext instanceof Activity)) {
intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
}
// Set Actions
String action = postcard.getAction();
if (!TextUtils.isEmpty(action)) {
intent.setAction(action);
}
// Navigation in main looper.
runInMainThread(new Runnable() {
@Override
public void run() {
startActivity(requestCode, currentContext, intent, postcard, callback);
}
});
break;
//如果是服务类型，返回服务对象
case PROVIDER:
return postcard.getProvider();
//如果是广播、内容提供器、Fragment类型，实例化对象并返回
case BOARDCAST:
case CONTENT_PROVIDER:
case FRAGMENT:
Class<?> fragmentMeta = postcard.getDestination();
try {
Object instance = fragmentMeta.getConstructor().newInstance();
if (instance instanceof Fragment) {
((Fragment) instance).setArguments(postcard.getExtras());
} else if (instance instanceof android.support.v4.app.Fragment) {
((android.support.v4.app.Fragment) instance).setArguments(postcard.getExtras());
}
return instance;
} catch (Exception ex) {
logger.error(Consts.TAG, "Fetch fragment instance error, " + TextUtils.formatStackTrace(ex.getStackTrace()));
}
case METHOD:
case SERVICE:
default:
return null;
}
return null;
}
看一下路由组是如何实例化的
LogicticsCenter.java
/**
* Completion the postcard by route metas
*
* @param postcard Incomplete postcard, should complete by this method.
*/
// 完善Postcard的信息
public synchronized static void completion(Postcard postcard) {
if (null == postcard) {
throw new NoRouteFoundException(TAG + "No postcard!");
}
//根据路径获取路由实例对象
RouteMeta routeMeta = Warehouse.routes.get(postcard.getPath());
//如果没有实例化时
if (null == routeMeta) {
// Maybe its does't exist, or didn't load.
// 如果匹配不到信息，则报错
if (!Warehouse.groupsIndex.containsKey(postcard.getGroup())) {
throw new NoRouteFoundException(TAG + "There is no route match the path [" + postcard.getPath() + "], in group [" + postcard.getGroup() + "]");
} else {
// Load route and cache it into memory, then delete from metas.
try {
......
//实例化路由组并缓存到Warehouse.routes中，并从Warehouse.groupsIndex移除该组
addRouteGroupDynamic(postcard.getGroup(), null);
......
} catch (Exception e) {
throw new HandlerException(TAG + "Fatal exception when loading group meta. [" + e.getMessage() + "]");
}
// 重复调用，此时路由组已实例化
completion(postcard); // Reload
}
} else {
//配置Postcard信息
postcard.setDestination(routeMeta.getDestination());
postcard.setType(routeMeta.getType());
postcard.setPriority(routeMeta.getPriority());
postcard.setExtra(routeMeta.getExtra());
Uri rawUri = postcard.getUri();
if (null != rawUri) { // Try to set params into bundle.
Map<String, String> resultMap = TextUtils.splitQueryParameters(rawUri);
Map<String, Integer> paramsType = routeMeta.getParamsType();
if (MapUtils.isNotEmpty(paramsType)) {
// Set value by its type, just for params which annotation by @Param
for (Map.Entry<String, Integer> params : paramsType.entrySet()) {
setValue(postcard,
params.getValue(),
params.getKey(),
resultMap.get(params.getKey()));
}
// Save params name which need auto inject.
postcard.getExtras().putStringArray(ARouter.AUTO_INJECT, paramsType.keySet().toArray(new String[]{}));
}
// Save raw uri
postcard.withString(ARouter.RAW_URI, rawUri.toString());
}
switch (routeMeta.getType()) {
//如果是服务类型，实例化Provider并设置绿色通道
case PROVIDER: // if the route is provider, should find its instance
// Its provider, so it must implement IProvider
Class<? extends IProvider> providerMeta = (Class<? extends IProvider>) routeMeta.getDestination();
IProvider instance = Warehouse.providers.get(providerMeta);
if (null == instance) { // There's no instance of this provider
IProvider provider;
try {
provider = providerMeta.getConstructor().newInstance();
provider.init(mContext);
Warehouse.providers.put(providerMeta, provider);
instance = provider;
} catch (Exception e) {
logger.error(TAG, "Init provider failed!", e);
throw new HandlerException("Init provider failed!");
}
}
postcard.setProvider(instance);
postcard.greenChannel(); // Provider should skip all of interceptors
break;
//如果是Fragment类型，设置绿色通道
case FRAGMENT:
postcard.greenChannel(); // Fragment needn't interceptors
default:
break;
}
}
}

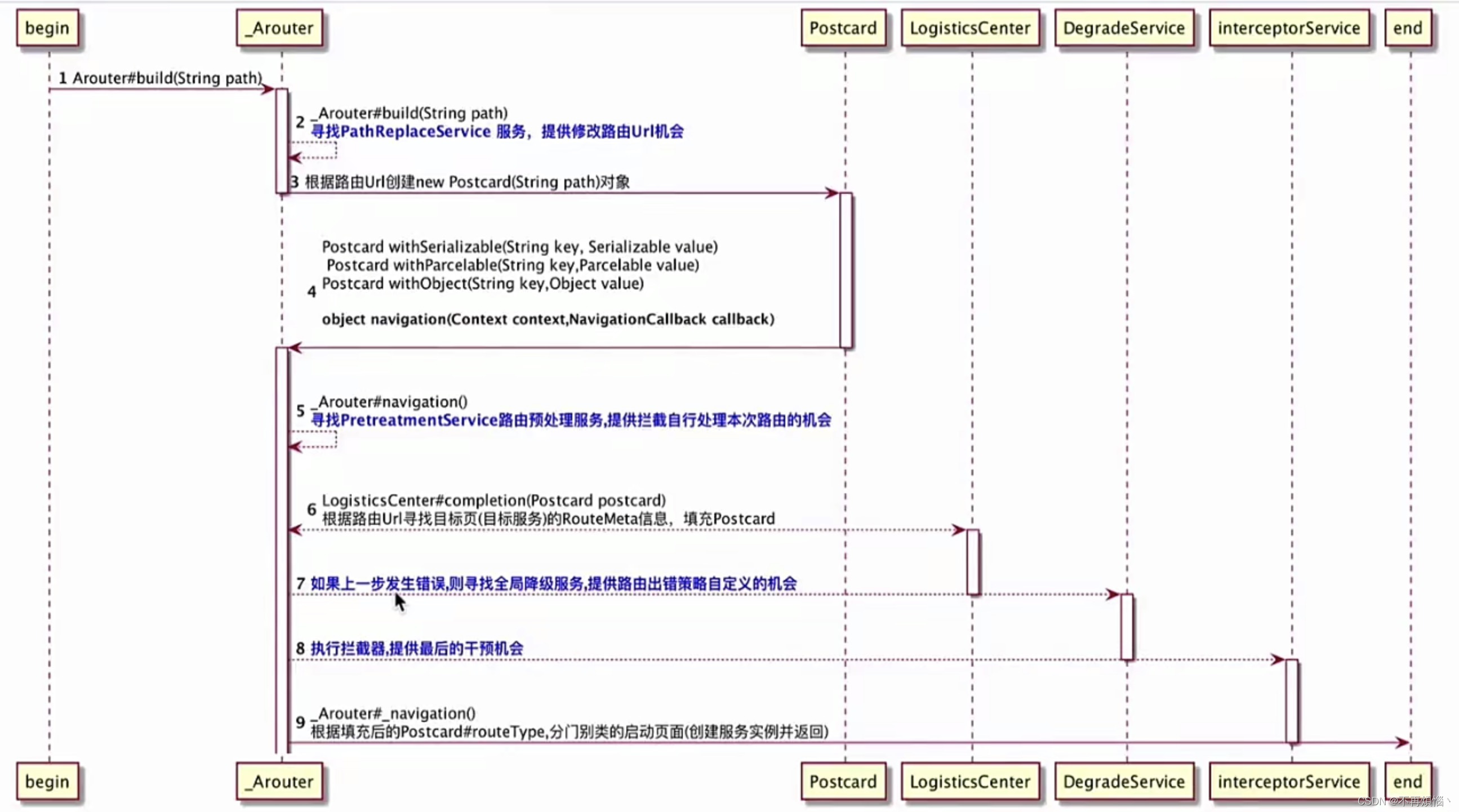

以上就是对路由过程的解析，我们可以大体按照下图来总结一下
个人理解，如有问题，请指正
扫一扫
1170
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
