lvs配置方法

  • nat模式配置
ip类型ip地址
VIP仅主机模式192.168.96.134
DIP192.168.149.143
host1IP192.168.149.140
host2IP192.168.149.137

host1配置

[root@host1 ~]# systemctl stop firewalld.service
[root@host1 ~]# setenforce 0
[root@host1 ~]# yum -y install httpd
[root@host1 ~]# systemctl start httpd
[root@host1 ~]# echo "1" > /var/www/html/index.html

生成httpds
[root@host1 ~]# mkdir /etc/pki/CA
[root@host1 ~]# cd /etc/pki/CA
[root@host1 CA]# mkdir private
[root@host1 CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
.....................................................................................................+++++
.......+++++
e is 65537 (0x010001)
[root@host1 CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 365
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:xkq
Organizational Unit Name (eg, section) []:xkq
Common Name (eg, your name or your server's hostname) []:xkq.com
Email Address []:1@1.com
[root@host1 CA]# mkdir certs newcerts crl
[root@host1 CA]# touch index.txt && echo 01 > serial
[root@host1 CA]# (umask 077;openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
......+++++
...........................................+++++
e is 65537 (0x010001)
[root@host1 CA]# openssl req -new -key httpd.key -days 365 -out httpd.csr
Ignoring -days; not generating a certificate
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:xkq
Organizational Unit Name (eg, section) []:xkq
Common Name (eg, your name or your server's hostname) []:xkq.com
Email Address []:1@1.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
[root@host1 CA]# openssl ca -in httpd.csr -out httpd.crt -days 365
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Jun 14 12:04:15 2021 GMT
            Not After : Jun 14 12:04:15 2022 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = HB
            organizationName          = xkq
            organizationalUnitName    = xkq
            commonName                = xkq.com
            emailAddress              = 1@1.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                1E:D6:51:6F:21:A7:7D:A7:FF:06:D4:6D:13:85:11:50:6C:FD:D5:8C
            X509v3 Authority Key Identifier:
                keyid:2B:BA:85:7C:6B:8E:0C:74:24:B2:E0:CF:83:43:9D:21:C3:8D:DF:95

Certificate is to be certified until Jun 14 12:04:15 2022 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

安装ssl模板
[root@host1 ~]# dnf -y install mod_ssl
[root@host1 CA]#  mv httpd.key httpd.crt /etc/httpd/
[root@host1 CA]# cd /etc/httpd/conf.d/
[root@host1 conf.d]# vim ssl.conf
修改路径
......
SSLCertificateFile /etc/httpd/httpd.crt

SSLCertificateKeyFile /etc/httpd/httpd.key
......
重启httpd
[root@host1 conf.d]# systemctl restart httpd

[root@host1 CA]#  mv httpd.key httpd.crt /etc/httpd/
[root@host1 CA]# scp /etc/httpd/httpd.crt 192.168.149.137:/etc/httpd/
root@192.168.149.137's password:
httpd.crt                                                                        100% 4495     2.5MB/s   00:00
[root@host1 CA]# scp /etc/httpd/httpd.key 192.168.149.137:/etc/httpd/
root@192.168.149.137's password:
httpd.key                                                                        100% 1675     1.6MB/s   00:00

将网关改为调度器的ip
[root@host1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
OTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.149.140
PREFIX=24
GATEWAY=192.168.149.143
DNS1=114.114.114.114
[root@host1 ~]# ifdown ens160;ifup ens160

host2配置

[root@host2 ~]# systemctl stop firewalld
[root@host2 ~]# setenforce 0
[root@host2 ~]# yum -y install httpd
[root@host2 ~]# systemctl start httpd
[root@host1 ~]# echo "2" > /var/www/html/index.html

[root@host2 ~]# dnf -y install mod_ssl
[root@host2 ~]# cd /etc/httpd/conf.d/
[root@host2 conf.d]# vim ssl.conf
修改路径
......
SSLCertificateFile /etc/httpd/httpd.crt

SSLCertificateKeyFile /etc/httpd/httpd.key
......
重启httpd
[root@host2 conf.d]# systemctl restart httpd

将网关改为调度器的ip
[root@host2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
OTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.149.137
PREFIX=24
GATEWAY=192.168.149.143
DNS1=114.114.114.114
[root@host2 ~]# ifdown ens160;ifup ens160

调度器配置

[root@lb ~]# systemctl stop firewalld
[root@lb ~]# setenforce 0
[root@lb ~]# yum -y install ipvsadm

开启 IP转发 功能
[root@lb ~]# echo 'net.ipv4.ip_forward = 1' > /etc/sysctl.conf
[root@lb ~]# sysctl -p
net.ipv4.ip_forward = 1

添加并保持规则
[root@lb ~]# ipvsadm -A -t 192.168.96.132:443 -s rr
[root@lb ~]# ipvsadm -a -t 192.168.96.132:443 -r 192.168.149.137:443 -m
[root@lb ~]# ipvsadm -a -t 192.168.96.132:443 -r 192.168.149.140:443 -m
[root@lb ~]# ipvsadm -A -t 192.168.96.132:80 -s rr
[root@lb ~]# ipvsadm -a -t 192.168.96.132:80 -r 192.168.149.140:80 -m
[root@lb ~]# ipvsadm -a -t 192.168.96.132:80 -r 192.168.149.137:80 -m
[root@lb ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lb ~]# cat /etc/sysconfig/ipvsadm
-A -t 192.168.96.134:80 -s rr
-a -t 192.168.96.134:80 -r 192.168.149.137:80 -m -w 1
-a -t 192.168.96.134:80 -r 192.168.149.140:80 -m -w 1
-A -t 192.168.96.134:443 -s rr
-a -t 192.168.96.134:443 -r 192.168.149.137:443 -m -w 1
-a -t 192.168.96.134:443 -r 192.168.149.140:443 -m -w 1

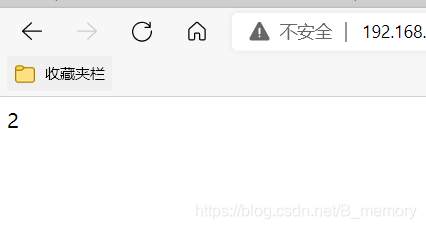

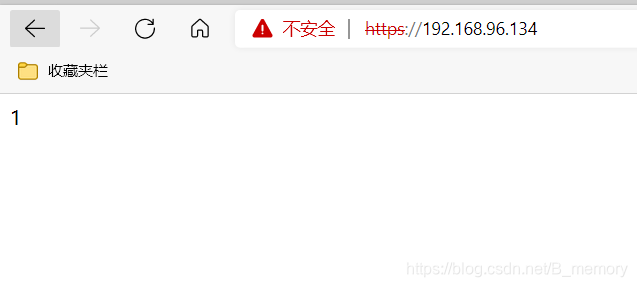

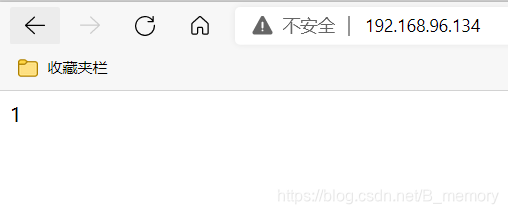

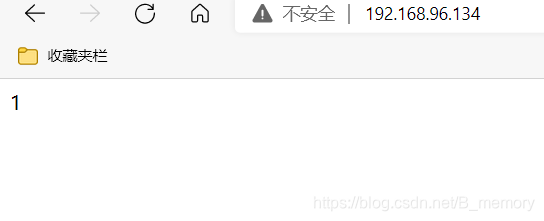

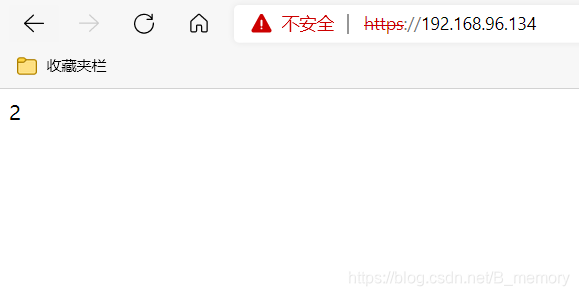

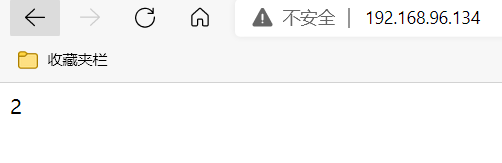

测试
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

dr模式

ip类型ip地址
VIP虚拟的192.168.149.144
DIP192.168.149.143
host1IP192.168.149.140
host2IP192.168.149.137

host1配置

[root@host1 ~]# systemctl stop firewalld.service
[root@host1 ~]# setenforce 0
[root@host1 ~]# yum -y install httpd
[root@host1 ~]# systemctl start httpd
[root@host1 ~]# echo "1" > /var/www/html/index.html

生成httpds
[root@host1 ~]# mkdir /etc/pki/CA
[root@host1 ~]# cd /etc/pki/CA
[root@host1 CA]# mkdir private
[root@host1 CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
.....................................................................................................+++++
.......+++++
e is 65537 (0x010001)
[root@host1 CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 365
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:xkq
Organizational Unit Name (eg, section) []:xkq
Common Name (eg, your name or your server's hostname) []:xkq.com
Email Address []:1@1.com
[root@host1 CA]# mkdir certs newcerts crl
[root@host1 CA]# touch index.txt && echo 01 > serial
[root@host1 CA]# (umask 077;openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
......+++++
...........................................+++++
e is 65537 (0x010001)
[root@host1 CA]# openssl req -new -key httpd.key -days 365 -out httpd.csr
Ignoring -days; not generating a certificate
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:xkq
Organizational Unit Name (eg, section) []:xkq
Common Name (eg, your name or your server's hostname) []:xkq.com
Email Address []:1@1.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
[root@host1 CA]# openssl ca -in httpd.csr -out httpd.crt -days 365
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Jun 14 12:04:15 2021 GMT
            Not After : Jun 14 12:04:15 2022 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = HB
            organizationName          = xkq
            organizationalUnitName    = xkq
            commonName                = xkq.com
            emailAddress              = 1@1.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                1E:D6:51:6F:21:A7:7D:A7:FF:06:D4:6D:13:85:11:50:6C:FD:D5:8C
            X509v3 Authority Key Identifier:
                keyid:2B:BA:85:7C:6B:8E:0C:74:24:B2:E0:CF:83:43:9D:21:C3:8D:DF:95

Certificate is to be certified until Jun 14 12:04:15 2022 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

安装ssl模板
[root@host1 ~]# dnf -y install mod_ssl
[root@host1 CA]#  mv httpd.key httpd.crt /etc/httpd/
[root@host1 CA]# cd /etc/httpd/conf.d/
[root@host1 conf.d]# vim ssl.conf
修改路径
......
SSLCertificateFile /etc/httpd/httpd.crt

SSLCertificateKeyFile /etc/httpd/httpd.key
......
重启httpd
[root@host1 conf.d]# systemctl restart httpd

将证书传给host2
[root@host1 CA]# scp /etc/httpd/httpd.crt 192.168.149.137:/etc/httpd/
root@192.168.149.137's password:
httpd.crt                                                                        100% 4495     2.5MB/s   00:00
[root@host1 CA]# scp /etc/httpd/httpd.key 192.168.149.137:/etc/httpd/
root@192.168.149.137's password:
httpd.key                                                                        100% 1675     1.6MB/s   00:00

[root@host1 httpd]# ifconfig lo:0 192.168.149.144/32 broadcast 192.168.149.144 up
[root@host1 httpd]# route add -host 192.168.149.144 dev lo:0
[root@host1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
OTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.149.140
PREFIX=24
GATEWAY=192.168.149.2
DNS1=114.114.114.114

[root@host1 ~]# cd /etc/httpd/
[root@host1 httpd]# cat >> /etc/sysctl.conf <<EOF
> net.ipv4.conf.all.arp_ignore=1
> net.ipv4.conf.all.arp_announce=2
> EOF
[root@host1 httpd]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
[root@host1 ~]# ifdown ens160;ifup ens160

host2配置

[root@host2 ~]# systemctl stop firewalld
[root@host2 ~]# setenforce 0
[root@host2 ~]# yum -y install httpd
[root@host2 ~]# systemctl start httpd
[root@host1 ~]# echo "2" > /var/www/html/index.html
[root@host2 ~]# dnf -y install mod_ssl
[root@host2 ~]# cd /etc/httpd/conf.d/
[root@host2 conf.d]# vim ssl.conf
修改路径
......
SSLCertificateFile /etc/httpd/httpd.crt

SSLCertificateKeyFile /etc/httpd/httpd.key
......
重启httpd
[root@host2 conf.d]# systemctl restart httpd

[root@host2 ~]# ifconfig lo:0 192.168.149.144/32 broadcast 192.168.149.144 up
[root@host2 ~]# route add -host 192.168.149.144 dev lo:0
[root@host2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
OTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR=192.168.149.137
PREFIX=24
GATEWAY=192.168.149.2
DNS1=114.114.114.114

[root@host2 ~]# ifdown ens160;ifup ens160

[root@host2 ~]# cat >> /etc/sysctl.conf <<EOF
> net.ipv4.conf.all.arp_ignore=1
> net.ipv4.conf.all.arp_announce=2
> EOF
[root@host2 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2

调度器配置

[root@lb ~]# systemctl stop firewalld
[root@lb ~]# setenforce 0
[root@lb ~]# yum -y install ipvsadm

[root@lb ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=Ethernet
BOOTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR0=192.168.149.143
PREFIX0=24
IPADDR1=192.168.149.144
PREFIX1=24
GATEWAY=192.168.149.2
DNS1=114.114.114.114

[root@lb ~]# ifdown ens160;ifup ens160

添加规则
[root@lb ~]# ipvsadm -A -t 192.168.149.144:80 -s rr
[root@lb ~]# ipvsadm -a -t 192.168.149.144:80 -r 192.168.149.140:80 -g
[root@lb ~]# ipvsadm -a -t 192.168.149.144:80 -r 192.168.149.137:80 -g
[root@lb ~]# ipvsadm -A -t 192.168.149.144:443 -s rr
[root@lb ~]# ipvsadm -a -t 192.168.149.144:443 -r 192.168.149.137:443 -g
[root@lb ~]# ipvsadm -a -t 192.168.149.144:443 -r 192.168.149.140:443 -g
[root@lb ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.149.144:80 rr
  -> 192.168.149.137:80           Route   1      0          0
  -> 192.168.149.140:80           Route   1      0          0
TCP  192.168.149.144:443 rr
  -> 192.168.149.137:443          Route   1      0          0
  -> 192.168.149.140:443          Route   1      0          0

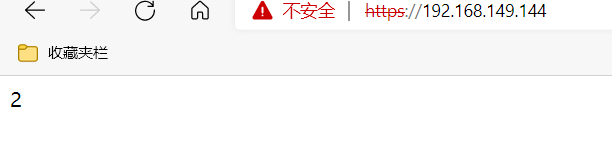

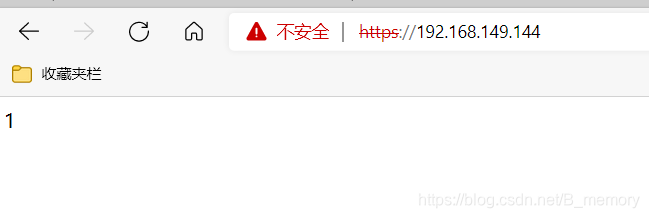

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

haproxy配置

[root@lb ~]# yum -y install make gcc pcre-devel bzip2-devel openssl-devel systemd-devel
[root@lb ~]# useradd -r -M -s /sbin/nologin haproxy
[root@lb ~]# useradd -r -M -s /sbin/nologin haproxy
[root@lb ~]# tar xf haproxy-v2.3.0.tar.gz
[root@lb ~]#  cd haproxy-2.3.0/
[root@lb haproxy-2.3.0]# make clean
[root@lb haproxy-2.3.0]# make -j $(grep 'processor' /proc/cpuinfo |wc -l)  \
> TARGET=linux-glibc  \
> USE_OPENSSL=1  \
> USE_ZLIB=1  \
> USE_PCRE=1  \
> USE_SYSTEMD=1
[root@lb haproxy-2.3.0]# make install PREFIX=/usr/local/haproxy
[root@lb haproxy-2.3.0]#  echo "export PATH=/usr/local/haproxy/sbin:$PATH">/etc/profile.d/haproxy.sh
[root@lb haproxy-2.3.0]# . /etc/profile.d/haproxy.sh
[root@lb haproxy-2.3.0]# which haproxy
/usr/local/haproxy/sbin/haproxy
[root@lb haproxy-2.3.0]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>  /etc/sysctl.conf
[root@lb haproxy-2.3.0]# echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
[root@lb haproxy-2.3.0]# sysctl  -p
net.ipv4.ip_forward = 1
net.ipv4.ip_nonlocal_bind = 1
[root@lb haproxy-2.3.0]# mkdir /etc/haproxy
[root@lb haproxy-2.3.0]# cat > /etc/haproxy/haproxy.cfg <<EOF
> #--------------全局配置----------------
> global
>     log 127.0.0.1 local0  info
>     #log loghost local0 info
>     maxconn 20480
> #chroot /usr/local/haproxy
>     pidfile /var/run/haproxy.pid
>     #maxconn 4000
>     user haproxy
>     group haproxy
>     daemon
> #---------------------------------------------------------------------
> #common defaults that all the 'listen' and 'backend' sections will
> #use if not designated in their block
> #---------------------------------------------------------------------
> defaults
>     mode http
>     log global
>     option dontlognull
>     option httpclose
>     option httplog
>     #option forwardfor
>     option redispatch
>     balance roundrobin
>     timeout connect 10s
>     timeout client 10s
>     timeout server 10s
>     timeout check 10s
>     maxconn 60000
>     retries 3
> #--------------统计页面配置------------------
> listen admin_stats
>     bind 0.0.0.0:8189
>     stats enable
>     mode http
>     log global
>     stats uri /haproxy_stats
>     stats realm Haproxy\ Statistics
>     stats auth admin:admin
>     #stats hide-version
>     stats admin if TRUE
>     stats refresh 30s
> #---------------web设置-----------------------
> listen webcluster
>     bind 0.0.0.0:80
>     mode http
>     #option httpchk GET /index.html
>     log global
>     maxconn 3000
>     balance roundrobin
>     cookie SESSION_COOKIE insert indirect nocache
>     server web01 192.168.149.140:80 check inter 2000 fall 5
>     server web02 192.168.149.137:80 check inter 2000 fall 5
> EOF
  • haproxy.service文件编写
[root@lb haproxy-2.3.0]# cat > /usr/lib/systemd/system/haproxy.service <<EOF
> [Unit]
> Description=HAProxy Load Balancer
> After=syslog.target network.target
>
> [Service]
> ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
> ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
> ExecReload=/bin/kill -USR2 $MAINPID
>
> [Install]
> WantedBy=multi-user.target
> EOF

[root@lb haproxy-2.3.0]# systemctl daemon-reload
  • 启用日志
[root@lb haproxy-2.3.0]# vim /etc/rsyslog.conf
local0.*                                                /var/log/boot.log
[root@lb haproxy-2.3.0]# systemctl restart rsyslog
  • 重启服务
[root@lb haproxy-2.3.0]# systemctl restart haproxy
[root@lb haproxy-2.3.0]# ss -antl
State        Recv-Q       Send-Q             Local Address:Port              Peer Address:Port       Process
LISTEN       0            128                      0.0.0.0:80                     0.0.0.0:*
LISTEN       0            128                      0.0.0.0:22                     0.0.0.0:*
LISTEN       0            128                      0.0.0.0:8189                   0.0.0.0:*
LISTEN       0            128                         [::]:22                        [::]:*

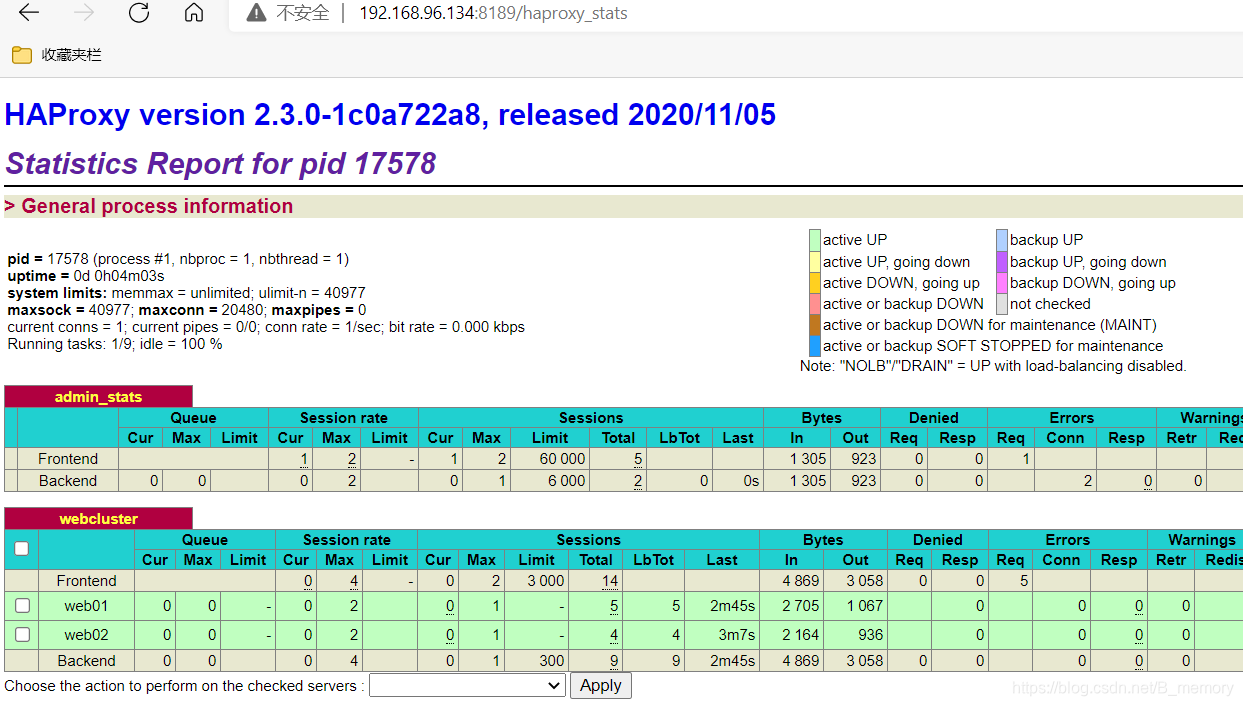

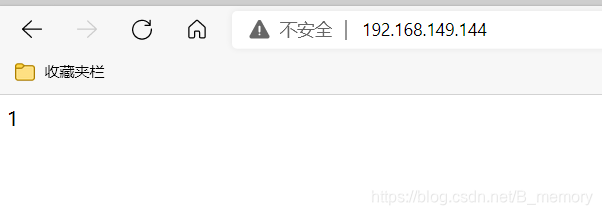

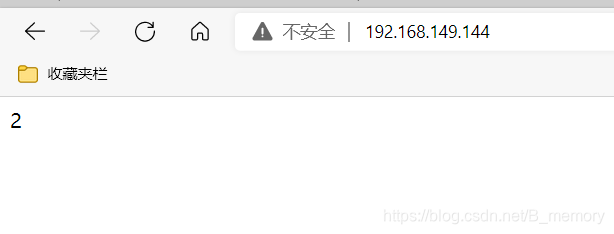

测试
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

B_memory
关注
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
