RY9143 16V 4A 500KHz ECOT PWM Sync Step-Down Regulator

1、Features

Wide 4.5V to 16V Operating Input Range                     55mΩ/36mΩ Low RpsoN) Internal Power
4A Continuous Output Current                                      MOSFETS
500KHz Switching Frequency                                      Output Adjustable from 0.765V
ECOT Mode Control with Fast Transient                      Short Protection with Hiccup-Mode
Response                                                                     Integrated internal compensation
Built-in Over Current Limit                                           Thermal Shutdown
Built-in Over Voltage Protection                                   Available in SOT23-6 Package
Force-PWM Mode                                                       -40°C to +85°C Temperature Range
Internal Soft-Start

2、Applications

Digital Set-top Box (STB)                                        Digital Video Recorder (DVR)
Tablet Personal Computer (Pad)                             Portable Media Player (PMP)
Flat-Panel Television and Monitor                           Cable Modem / XDSL
Wi-FiRouter/AP                                                       General Purposes

3、General Description

    The RY9143 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
    MOSFE'Ts. It offers a very compaet solution to provide a 4A continuous output current over a wide input supply
   range, with excellent load and line regulation. ECOT force-PWM control operation provides very fast transient
   response and easy loop design as well as very tight output regulation.
  The RY9143 requires a minimal number ofreadily available, external components and is available in a space saving
  SOT23-6 package.

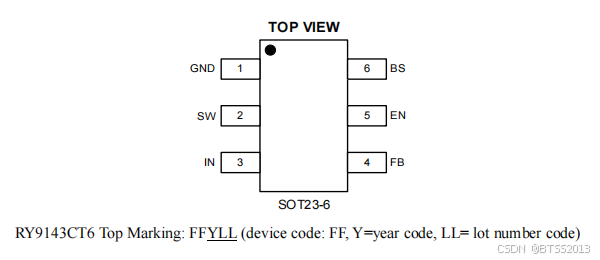

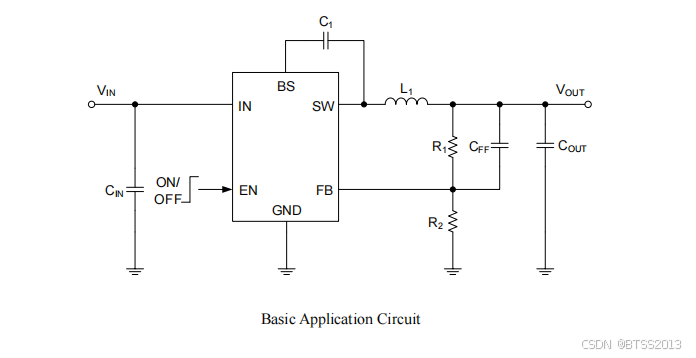

4、Typical Application Circuit
