Introduction

OVERVIEW

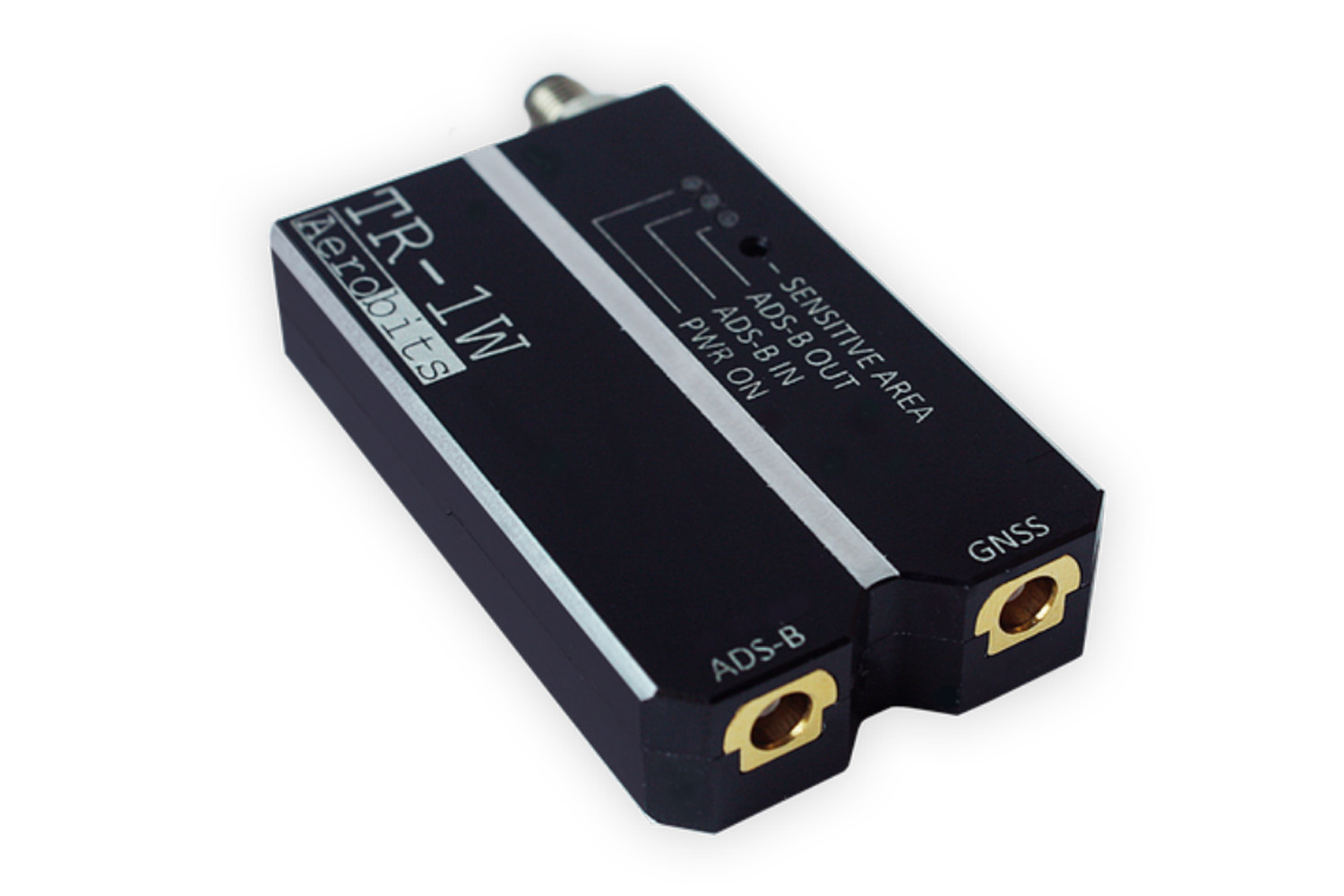

TR­1W belongs to the class of the smallest ADS­B transceivers on market and has been developed for civil and commercial Unmanned Aircraft Systems. The device operates on 1090 MHz and allows to receive and transmit ADS­B data with 1 Watt output power. The transceiver does not require external devices to operate. It is equipped with a high quality multi­GNSS receiver and a pressure sensor. The aluminium housing and ESD protection guarantee high resistance of the device to work in difficult conditions. TR­1W opens the way to the implementation of the Detect and Avoid algorithms, supporting the integration of UAS into the airspace.

Plug and Play ADS-B Transceiver TR-1W for UAV and Drones

BASIC FEATURES
• Real­time aircraft tracking on 1090 MHz
• Patented FPGA­In­The­LoopTM technology with the capability of receiving thousands of frames per second
• Integrated GNSS source and pressure sensor
• 1 Watt RF output power
• Implemented MAVLink and AEROTM protocol
• Low­power consumption and low weight design
• Simple plug&play integration
• Programming via AT commands
• Designed to meet MOPS DO­260B (except the output power)
• Dimension: 45.5 x 28.0 x 10.0 mm

TECHNICAL PARAMETERS

Parameter

Value

Frequency1090 MHz
 Input voltage 5 V
 Current consumption 130 mA
 Sensitivity ­80 dBm
 RF Output power +30 dBm
 ESD protection All lines
 MAVLink (baud) 115200 bps
 AERO (baud) 115200 bps (AT commands)
 Main connector PXMBNI05RPM04APC
 Antenna connector 2 x MCX
 Dimension 45.5 x 28.0 x 10.0 mm
 Weight (without cables and antennas) 30 grams

ELECTRICAL SPECIFICATION

Plug and Play ADS-B Transceiver TR-1W for UAV and Drones

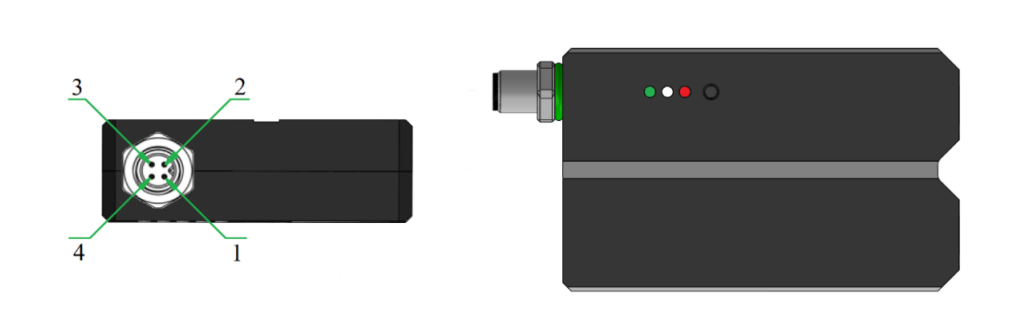

PIN DEFINITION

Pin

Wire colour

Name

Function

1

Red

+5 V

Power supply (5 V/ 130 mA)

2

Green

TX

Data from device to host

3

White

RX

Data from host to device

4

Black

GND

Ground

 LED INDICATORS

LED

Function

Green

Power supply indicator

White

Frame detection / receive indicator

Red

ADS­B OUT indicator 1. OFF – Disabled 2. Blink – Wait for FIX 3. ON – Active

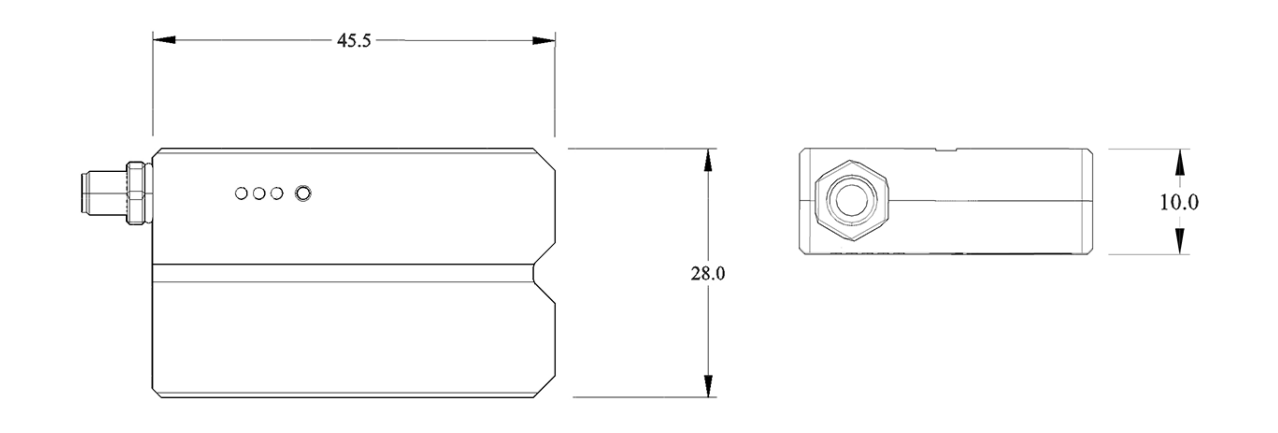

MECHANICAL SPECIFICATION

 All dimensions in mm (tolerances ±0.1 mm)

Plug and Play ADS-B Transceiver TR-1W for UAV and Drones

Connector

Type

Example

Main

Installed on board

BULGIN, PXMBNI05RPM04APC

 Mating connector

BULGIN, PXPPVC05FBF04ACL010PVC

 Antenna  Installed on board

MCX, 73415 ­1061

 Mating connector

MOLEX, 73366­0010

Reference: https://www.avionix-tech.com
