Introduction

For airport surface movement surveillance, vehicle is sometimes a risk for aircraft, when ground vehicle incursions into critical safety and movement areas on airport surfaces. ADSBVT is an Automatic Dependent Surveillance – Broadcast (ADS-B) transmitter used on airport vehicles, broadcast surface vehicle movement in real-time to nearby aircraft, other operations vehicles, ATC, and airport management for enhanced situational awareness to your airfield and prevent vehicle runway incursions.

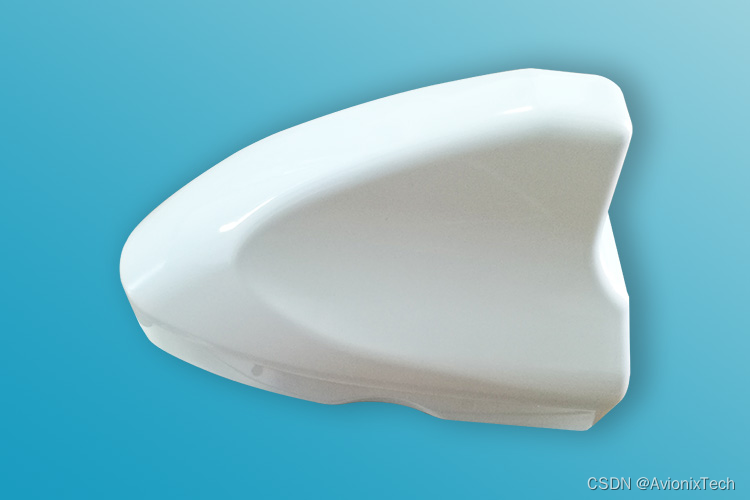

The ADSBVT ADS-B transmitter can be permanently or magnetically mounted to all airside vehicles, including utility, emergency, snow removal, and maintenance equipment. Each vehicle is clearly and uniquely identified. The design of ADSBVT ensures easy integration and interoperability with ADS-B receiver, MLAT and Advanced Surface Movement Guidance and Control System (A-SMGCS) surveillance solutions for airport surface monitor, control and situational awareness. The all in-one design includes a 20W 1090MHz ADS-B transmitter, internal Global Positioning System (GPS) and integrated antennas.

Specification

Transmit frequency	1090MHZ
Comply with	D0-260B
Transmit power	20W
Transmit message format	DF18
GNSS update rate	5Hz
Voltage	DC 10V～40V
Storage temperature	-20℃～＋70℃
Working temperature	-10℃～＋50℃
