windows-exporter

https://github.com/prometheus-community/windows_exporter

windows-exporter安装部署

1.安装包下载

windows_exporter-0.22.0-amd64.msi

2。直接双击运行该msi程序即可正常安装

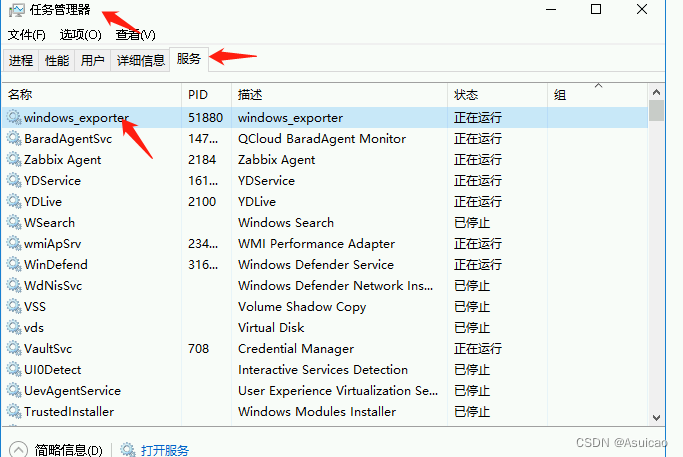

安装完成后，打开任务管理器，会看到里面有个windows-exporter的服务

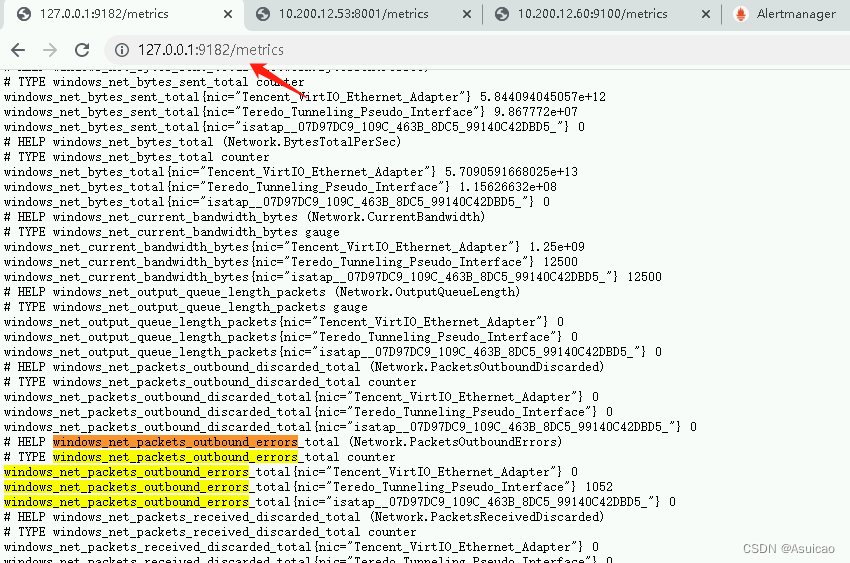

3.使用127.0.0.1:9182端口，可看到对应的metrics

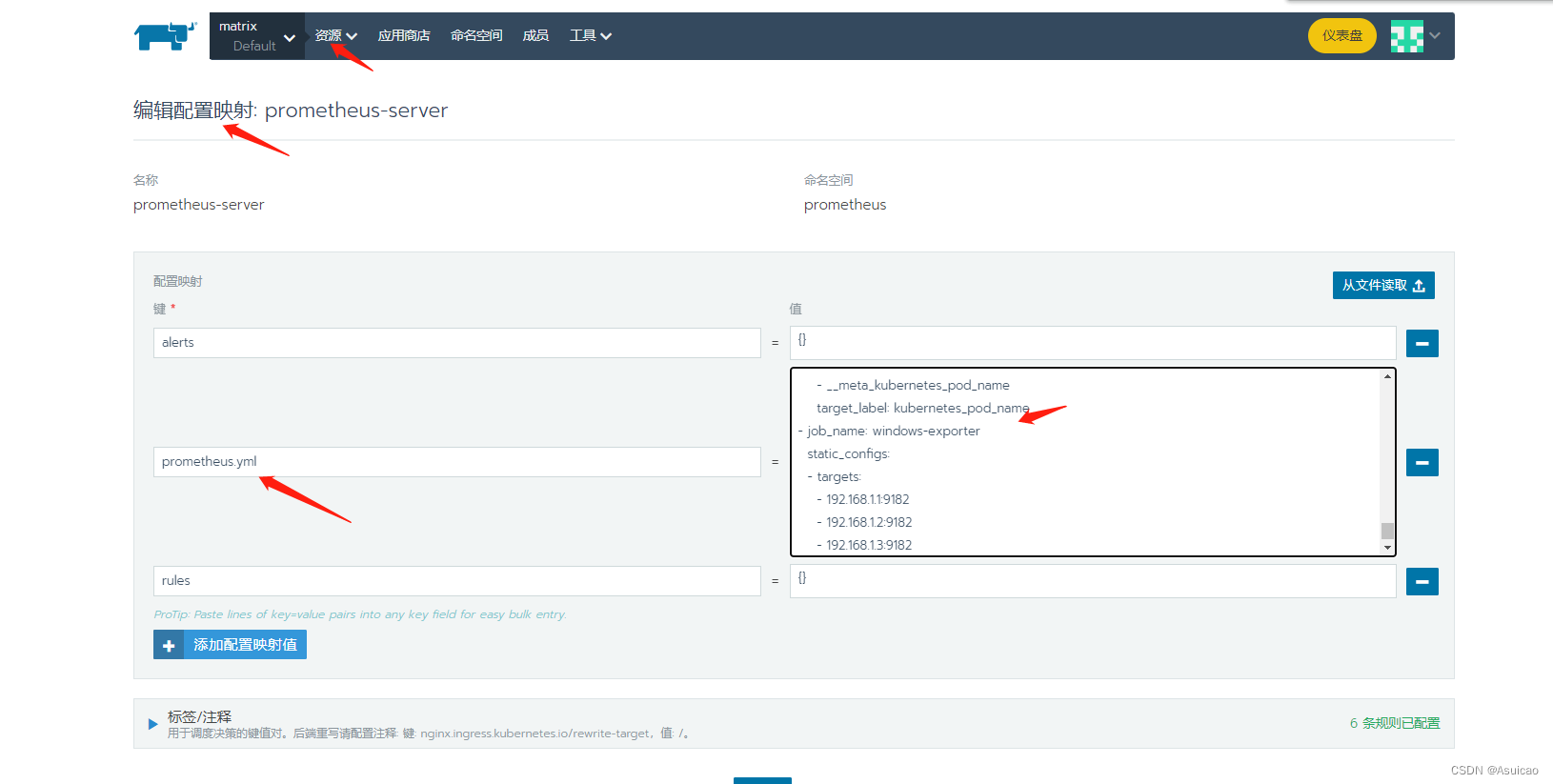

配置Prometheus，接入windows的metrics

配置映射里Prometheus.yaml新加一个job

- job_name: windows-exporter
  static_configs:
  - targets:
    - 192.168.1.1:9182
    - 192.168.1.2:9182
    - 192.168.1.3:9182
    - x.x.x.x:9182

将windows的ip加入到Prometheus配置文件里

注意

默认收集只收集了cpu，cs，logical_disk，net，os,service,system,textfile相关的指标，若要开启其他的，需配置—collectors.enabled

1.新增C:\Program Files\windows_exporter\config.yml文件

collectors:
  enabled: "[defaults],process,cpu_info,memory,remote_fx,tcp"
collector:
  service:
    services-where: "Name='windows_exporter'"
log:
  level: warn

2.修改windows启动参数

sc config   windows_exporter  binPath= "\"C:\Program Files\windows_exporter\windows_exporter.exe\" --config.file=\"C:\Program Files\windows_exporter\config.yml\" "

3.重启`windows_exporter`服务

sc stop windows_exporter
sc start windows_exporter

二、powershell脚本一键安装windows_exporter，`windows_exporter.ps1`

Set-Location -Path $Env:TEMP
(New-Object Net.WebClient).DownloadFile('http://foreman.chinamcloud.com:8080/source/windows_exporter-0.23.1-amd64.msi', $ExecutionContext.SessionState.Path.GetUnresolvedProviderPathFromPSPath('./windows_exporter-0.23.1-amd64.msi'))
Start-Process  ./windows_exporter-0.23.1-amd64.msi
Add-Content "C:\Program Files\windows_exporter\config.yml" "collectors:"
Add-Content "C:\Program Files\windows_exporter\config.yml" "  enabled: ""[defaults],process,cpu_info,memory,remote_fx,tcp"" "
Add-Content "C:\Program Files\windows_exporter\config.yml" "collector:"
Add-Content "C:\Program Files\windows_exporter\config.yml" "  service:"
Add-Content "C:\Program Files\windows_exporter\config.yml" "    services-where: ""Name='windows_exporter'"""
Add-Content "C:\Program Files\windows_exporter\config.yml" "log:"
Add-Content "C:\Program Files\windows_exporter\config.yml" "  level: warn"
sleep 30
sc.exe config "windows_exporter" binpath= """""""C:\Program Files\windows_exporter\windows_exporter.exe"""""" --config.file=""""""C:\Program Files\windows_exporter\config.yml"""""""
sc.exe config "windows_exporter" binpath= """""""C:\Program Files\windows_exporter\windows_exporter.exe"""""" --config.file=""""""C:\Program Files\windows_exporter\config.yml"""""""
sc.exe stop windows_exporter
sc.exe start  windows_exporter
sleep 10

常用指标

主机CPU使用率
100 - avg(irate(windows_cpu_time_total{job=~"$job",instance=~"$instance",mode="idle"}[5m]))*100

主机内存使用率
100 - 100 * (windows_os_physical_memory_free_bytes{job=~"$job"} / windows_cs_physical_memory_bytes{job=~"$job"})

主机磁盘使用率
100-(windows_logical_disk_free_bytes/windows_logical_disk_size_bytes)*100

主机mpc相关进程句柄数
主机mpc相关进程句柄数
windows_process_handles{environment=~"$environment",job="windows-exporter",process=~'MPC.*|cloudia.*|APPBaseInTT.*|AppBaseInTT.*'}

node-exporter安装部署

未在k8s集群内的linux机器监控

https://github.com/prometheus/node_exporter

node_exporter：用于监控Linux系统的指标采集器。

常用指标：
•CPU
• 内存
• 硬盘
• 网络流量
• 文件描述符
• 系统负载
• 系统服务
数据接口：http://IP:9100/metrics

第一种：linux主机安装

#x86_64主机下载此客户端
wget --no-check-certificate http://foreman.chinamcloud.com:8080/source/node_exporter-1.6.1.linux-amd64.tar.gz
#安装
useradd prometheus -s /sbin/nologin
#x86_64主机
tar zxvf node_exporter-1.6.1.linux-amd64.tar.gz -C /tmp/
#x86_64主机
mv /tmp/node_exporter-1.6.1.linux-amd64 /usr/local/node_exporter
#目录授权
chown prometheus:prometheus -R /usr/local/node_exporter
#封装service
tee /etc/systemd/system/node-exporter.service <<-'EOF'
[Unit]
Description=Prometheus Node Exporter
After=network.target
[Service]
ExecStart=/usr/local/node_exporter/node_exporter
User=prometheus
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable node-exporter
systemctl start node-exporter

验证监控，访问http://ip:9100/metrics

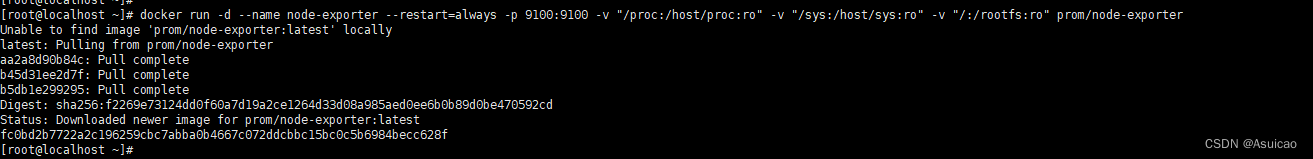

第二种，docker容器启动

docker run -d --name node-exporter --restart=always -p 9100:9100 -v "/proc:/host/proc:ro" -v "/sys:/host/sys:ro" -v "/:/rootfs:ro" prom/node-exporter

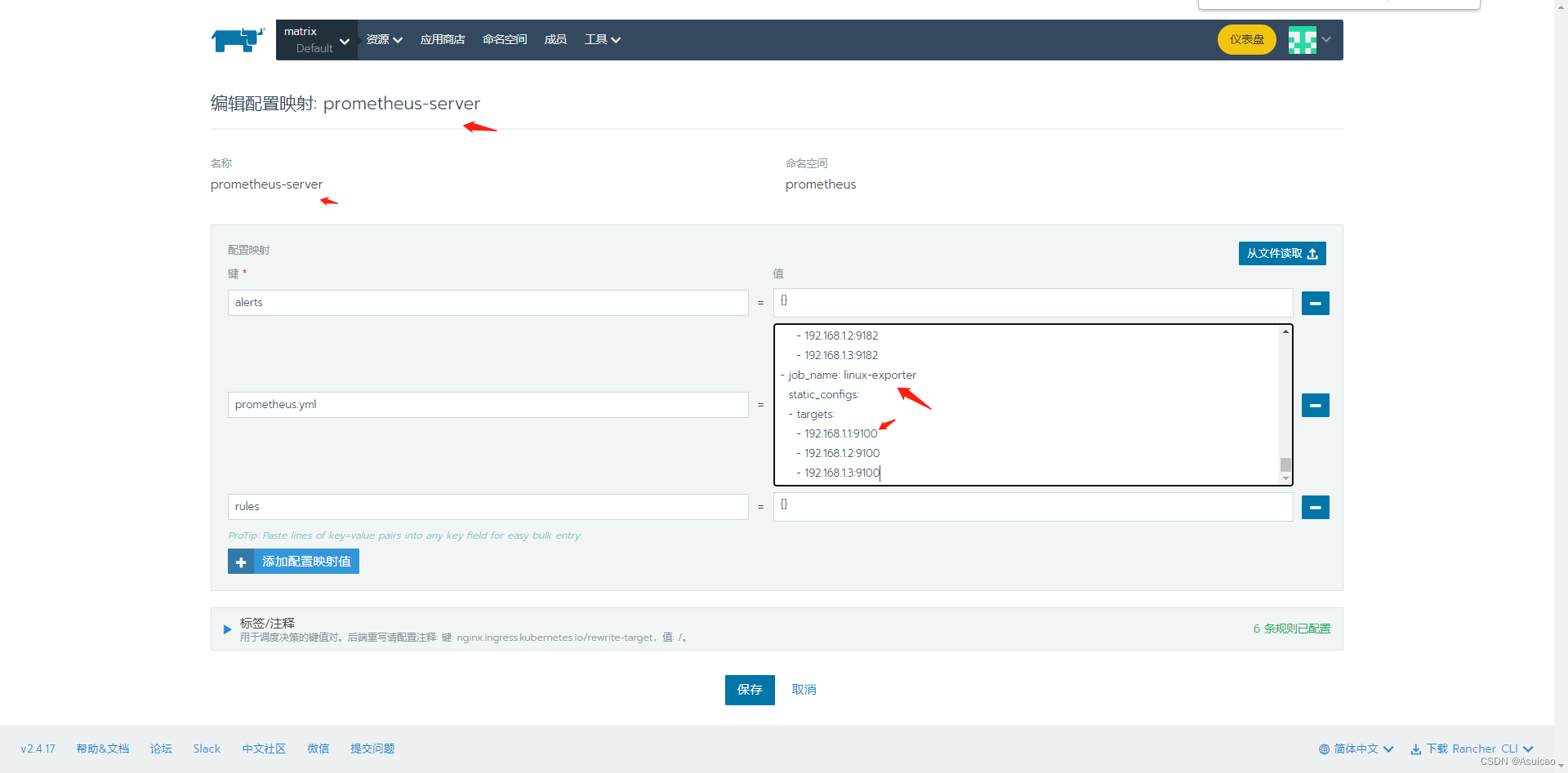

配置Prometheus，接入Prometheus的metrics

配置映射里Prometheus.yaml新加一个job

- job_name: linux-exporter
  static_configs:
  - targets:
    - 192.168.1.1:9100
    - 192.168.1.2:9100
    - 192.168.1.3:9100
    - x.x.x.x:9100

将linux的ip加入到配置文件里

常用指标

主机内存使用率 > 90%

(1 - (node_memory_MemAvailable_bytes{environment=~"项目标志"} / (node_memory_MemTotal_bytes{environment=~"项目标志"})))* 100  >90

主机 CPU 使用率> 90%

(1 - avg(rate(node_cpu_seconds_total{environment=~"项目标志",mode="idle"})) by (instance))*100 >90

主机NTP时间差[5m] > 5s

node_timex_tai_offset_seconds{environment=~"项目标志"}>3

主机磁盘使用率>80%

(node_filesystem_size_bytes{environment=~"项目标志",fstype=~"ext.*|xfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{environment=~"项目标志",fstype=~"ext.*|xfs",mountpoint !~".*pod.*"}) *100/(node_filesystem_avail_bytes {environment=~"项目标志",fstype=~"ext.*|xfs",mountpoint !~".*pod.*"}+(node_filesystem_size_bytes{environment=~"项目标志",fstype=~"ext.*|xfs",mountpoint !~".*pod.*"}-node_filesystem_free_bytes{environment=~"项目标志",fstype=~"ext.*|xfs",mountpoint !~".*pod.*"})) >80

主机Inode 使用率[5m] > 80%

(1-node_filesystem_files_free{environment=~"项目标志",fstype=~"ext.?|xfs"} / node_filesystem_files{environment=~"项目标志",fstype=~"ext.?|xfs"})*100 >80

blackbox-exporter安装部署

https://github.com/prometheus/blackbox_exporter

Blackbox Exporter是Prometheus社区提供的官方黑盒监控解决方案，其允许用户通过：HTTP、HTTPS、DNS、TCP以及ICMP的方式对网络进行探测。

应用场景

HTTP 测试
定义 Request Header 信息判断 Http status Http Respones Header Http Body 内容
TCP 测试
业务组件端口状态监听应用层协议定义与监听
ICMP 测试
主机探活机制
POST 测试
接口联通性
SSL 证书过期时间
运行Blackbox Exporter时，需要用户提供探针的配置信息，这些配置信息可能是一些自定义的HTTP头信息，也可能是探测时需要的一些TSL配置，也可能是探针本身的验证行为。在Blackbox Exporter每一个探针配置称为一个module，并且以YAML配置文件的形式提供给Blackbox Exporter。每一个module主要包含以下配置内容，包括探针类型（prober）、验证访问超时时间（timeout）、以及当前探针的具体配置项：
探针类型：http、 tcp、 dns、 icmp.
prober: <prober_string>
超时时间
[ timeout: <duration> ]
探针的详细配置，最多只能配置其中的一个
[ http: <http_probe> ]
[ tcp: <tcp_probe> ]
[ dns: <dns_probe> ]
[ icmp: <icmp_probe> ]

安装部署blackbox-exporter

1.rancher内导入下面的blackbox-exporter.yml文件到Prometheus

apiVersion: apps/v1
kind: Deployment
metadata:
  generation: 1
  labels:
    cattle.io/creator: norman
    workload.user.cattle.io/workloadselector: deployment-prometheus-blackbox-exporter
  name: blackbox-exporter
  namespace: prometheus
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      workload.user.cattle.io/workloadselector: deployment-prometheus-blackbox-exporter
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
        field.cattle.io/ports: '[[{"containerPort":9115,"dnsName":"blackbox-exporter","hostPort":0,"kind":"ClusterIP","name":"blackbox-port","protocol":"TCP","sourcePort":0}]]'
      creationTimestamp: null
      labels:
        app.kubernetes.io/name: blackbox
        workload.user.cattle.io/workloadselector: deployment-prometheus-blackbox-exporter
    spec:
      containers:
      - args:
        - --config.file=/etc/blackbox_exporter/blackbox.yml
        - --log.level=info
        - --web.listen-address=:9115
        image: prom/blackbox-exporter:v0.16.0
        imagePullPolicy: Always
        livenessProbe:
          failureThreshold: 3
          initialDelaySeconds: 10
          periodSeconds: 2
          successThreshold: 1
          tcpSocket:
            port: 9115
          timeoutSeconds: 2
        name: blackbox-exporter
        ports:
        - containerPort: 9115
          name: blackbox-port
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          initialDelaySeconds: 10
          periodSeconds: 2
          successThreshold: 2
          tcpSocket:
            port: 9115
          timeoutSeconds: 2
        resources: {}
        securityContext:
          allowPrivilegeEscalation: false
          capabilities: {}
          privileged: false
          readOnlyRootFilesystem: false
          runAsNonRoot: false
        stdin: true
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        tty: true
        volumeMounts:
        - mountPath: /etc/blackbox_exporter
          name: vol1
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
      volumes:
      - configMap:
          defaultMode: 420
          name: blackbox-exporter
          optional: false
        name: vol1

2.rancher内导入下面yml，新增服务发现blackbox-exporter

apiVersion: v1
kind: Service
metadata:
  annotations:
  labels:
    app.kubernetes.io/name: blackbox
  name: blackbox-exporter
  namespace: prometheus
  selfLink: /api/v1/namespaces/prometheus/services/blackbox-exporter
spec:
  ports:
  - name: balckbox
    port: 9115
    protocol: TCP
    targetPort: 9115
  selector:
    app.kubernetes.io/name: blackbox
  sessionAffinity: None
  type: ClusterIP

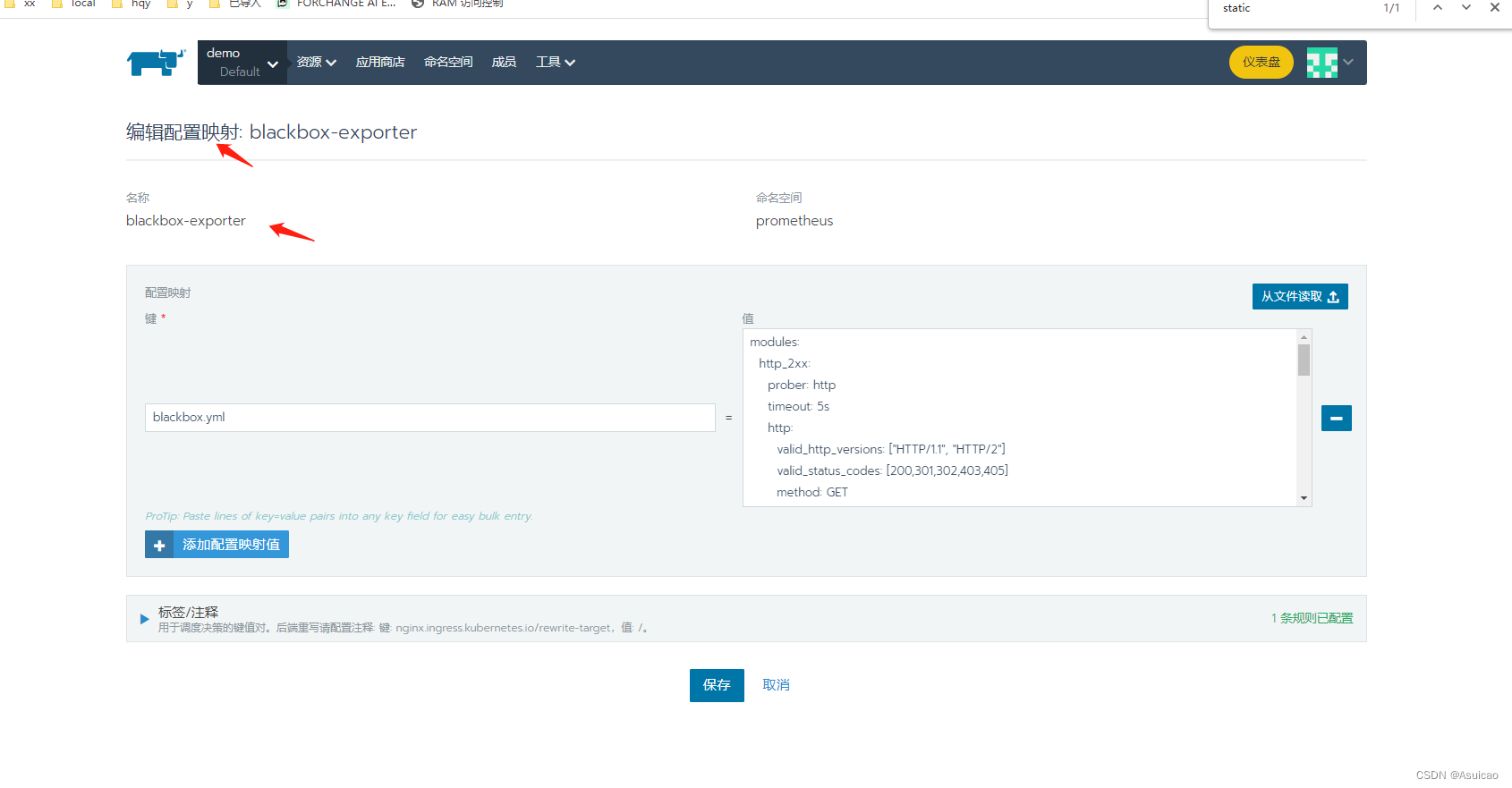

Prometheus下配置映射新增blackbox-exporter
blackbox.yml

modules:
  http_2xx:
    prober: http
    timeout: 5s
    http:
      valid_http_versions: ["HTTP/1.1", "HTTP/2"]
      valid_status_codes: [200,301,302,403,405]
      method: GET
      preferred_ip_protocol: "ipv4"
  https_2xx:
    prober: https
    timeout: 5s
    http:
      valid_http_versions: ["HTTP/1.1", "HTTP/2"]
      valid_status_codes: [200,301,302,403,405]
      method: POST
      preferred_ip_protocol: "ipv4"
  tcp_connect:
    prober: tcp
    timeout: 2s
  http_403:
    prober: http
    timeout: 2s
    http:
      valid_http_versions: ["HTTP/1.1", "HTTP/2"]
      valid_status_codes: [403,405]
      method: GET
      preferred_ip_protocol: "ipv4"
  https_403:
    prober: https
    timeout: 2s
    http:
      valid_http_versions: ["HTTP/1.1", "HTTP/2"]
      valid_status_codes: [403,405]
      method: GET
      preferred_ip_protocol: "ipv4"
  icmp:
    prober: icmp/etc/blackbox_exporter

prometheus配置映射内新增job

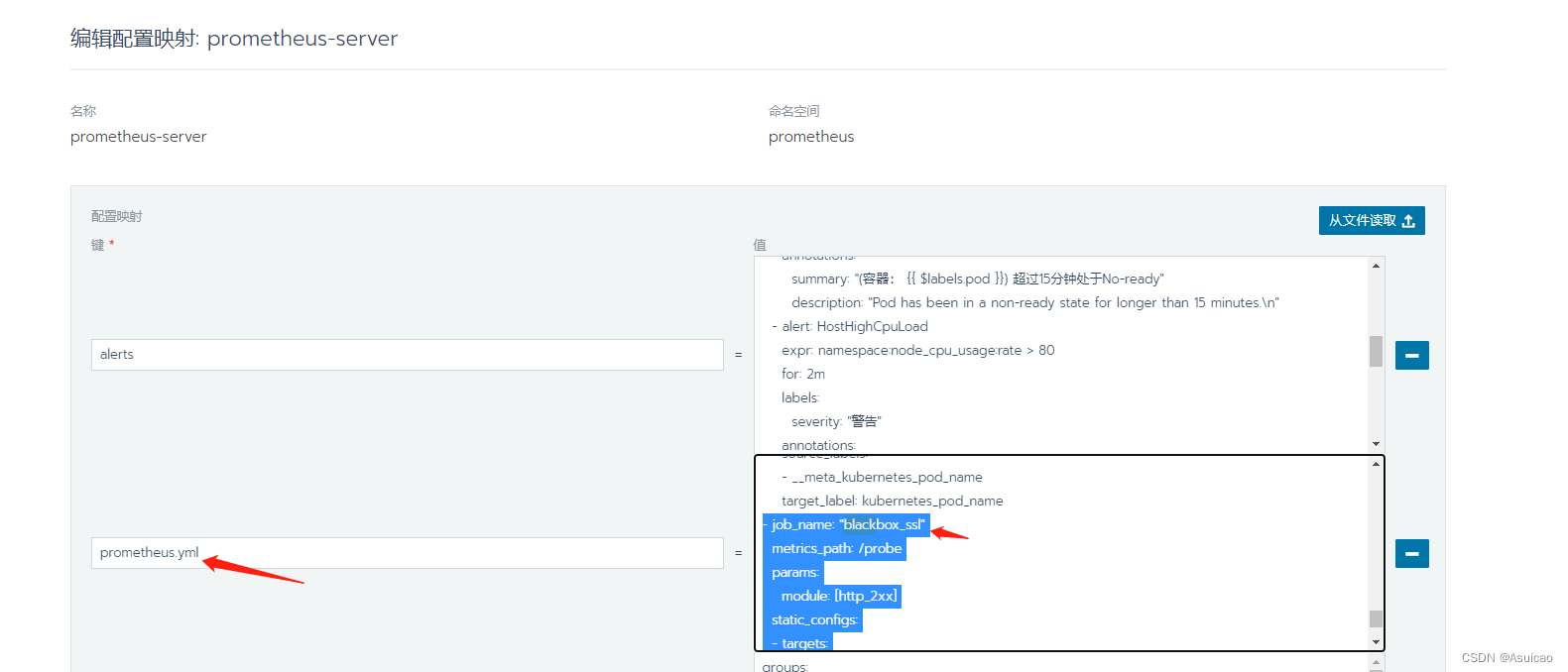

如配置证书的监控，修改Prometheus内配置映射的prometheus.yml

- job_name: "blackbox_ssl"
  metrics_path: /probe
  params:
    module: [http_2xx]
  static_configs:
  - targets:
    - https://login.demo.chinamcloud.cn
  relabel_configs:
  - source_labels: [__address__]
    target_label: instance
  - source_labels: [__address__]
    target_label: __param_target
  - target_label: __address__
    replacement: blackbox-exporter:9115

如配置TCP端口检测，修改Prometheus内配置映射的prometheus.yml

- job_name: "tcp-port-check"
  scrape_interval: 30s
  metrics_path: /probe
  params:
    module: [tcp_connect]
  static_configs:
  - targets:
    - mpc.server:8088
    - mysql.server:3306
    - redis.server:6379
    - kafka.kafka:9092
    labels:
      server: 'tcp-port-check'
  relabel_configs:
  - source_labels: [__address__]
    target_label: instance
  - source_labels: [__address__]
    target_label: __param_target
  - target_label: __address__
    replacement: blackbox-exporter:9115

POST 测试，监听业务接口地址，用来判断接口是否在线

- job_name: 'blackbox_http_2xx_post'
  scrape_interval: 10s
  metrics_path: /probe
  params:
    module: [http_post_2xx_query]
  static_configs:
  - targets:
    - https://xx.xxx.com/api/xx/xx/xx/query.action
    labels:
      group: 'Interface monitoring'
  relabel_configs:
  - source_labels: [__address__]
    target_label: __param_target
  - source_labels: [__param_target]
    target_label: instance
  - target_label: __address__
    replacement: blackbox-exporter:9115

常用指标

probe_success == 0 ##联通性异常
probe_success == 1 ##联通性正常

证书过期时间低于30天
(probe_ssl_earliest_cert_expiry-time()) / 86400 <30

http状态码
probe_http_status_code

请求耗时
probe_duration_seconds{job=~"blackbox_ssl"}
http请求耗时
probe_http_duration_seconds
