k8s集群部署elk

一、前言

     本次部署elk所有的服务都部署在k8s集群中，服务包含filebeat、logstash、elasticsearch、kibana，其中elasticsearch使用集群的方式部署，所有服务都是用7.17.10版本

二、部署

 部署elasticsearch集群

部署elasticsearch集群需要先优化宿主机(所有k8s节点都要优化,不优化会部署失败)

vi /etc/sysctl.conf

vm.max_map_count=262144

重载生效配置

sysctl -p

以下操作在k8s集群的任意master执行即可

创建yaml文件存放目录

mkdir /opt/elk && cd /opt/elk

这里使用无头服务部署es集群，需要用到pv存储es集群数据，service服务提供访问，setafuset服务部署es集群

创建svc的无头服务和对外访问的yaml配置文件

vi es-service.yaml

kind: Service
metadata:
  name: elasticsearch
  namespace: elk
  labels:
    app: elasticsearch
spec:
  selector:
    app: elasticsearch
  clusterIP: None
  ports:
    - port: 9200
      name: db
    - port: 9300
      name: inter

vi es-service-nodeport.yaml

apiVersion: v1
kind: Service
metadata:
  name: elasticsearch-nodeport
  namespace: elk
  labels:
    app: elasticsearch
spec:
  selector:
    app: elasticsearch
  type: NodePort
  ports:
    - port: 9200
      name: db
      nodePort: 30017
    - port: 9300
      name: inter
      nodePort: 30018

创建pv的yaml配置文件(这里使用nfs共享存储方式)

vi es-pv.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: es-pv1
spec:
  storageClassName: es-pv    #定义了存储类型
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /volume2/k8s-data/es/es-pv1
    server: 10.1.13.99
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: es-pv2
spec:
  storageClassName: es-pv    #定义了存储类型
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /volume2/k8s-data/es/es-pv2
    server: 10.1.13.99
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: es-pv3
spec:
  storageClassName: es-pv    #定义了存储类型
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /volume2/k8s-data/es/es-pv3
    server: 10.1.13.99

创建setafulset的yaml配置文件

vi es-setafulset.yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: elasticsearch
  namespace: elk
  labels:
    app: elasticsearch
spec:
  podManagementPolicy: Parallel
  serviceName: elasticsearch
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      tolerations:          #此配置是容忍污点可以使pod部署到master节点，可以去掉
      - key: "node-role.kubernetes.io/control-plane"
        operator: "Exists"
        effect: NoSchedule
      containers:
      - image: elasticsearch:7.17.10
        name: elasticsearch
        lifecycle:      #配置目录为es用户权限,不然启动会报错无权限编写该目录
          postStart:
            exec:
              command: ["chown","elasticsearch:elasticsearch","/usr/share/elasticsearch/data"]
        resources:
          limits:
            cpu: 1
            memory: 2Gi
          requests:
            cpu: 0.5
            memory: 500Mi
        env:
          - name: network.host
            value: "_site_"
          - name: node.name
            value: "${HOSTNAME}"
          - name: discovery.zen.minimum_master_nodes
            value: "2"
          - name: discovery.seed_hosts   #该参数用于告诉新加入集群的节点去哪里发现其他节点，它应该包含集群中已经在运行的一部分节点的主机名或IP地址，这里我使用无头服务的地址
            value: "elasticsearch-0.elasticsearch.elk.svc.cluster.local,elasticsearch-1.elasticsearch.elk.svc.cluster.local,elasticsearch-2.elasticsearch.elk.svc.cluster.local"
          - name: cluster.initial_master_nodes   #这个参数用于指定初始主节点。当一个新的集群启动时，它会从这个列表中选择一个节点作为初始主节点，然后根据集群的情况选举其他的主节点
            value: "elasticsearch-0,elasticsearch-1,elasticsearch-2"
          - name: cluster.name
            value: "es-cluster"
          - name: ES_JAVA_OPTS
            value: "-Xms512m -Xmx512m"
        ports:
        - containerPort: 9200
          name: db
          protocol: TCP
        - name: inter
          containerPort: 9300
        volumeMounts:
        - name: elasticsearch-data
          mountPath: /usr/share/elasticsearch/data
  volumeClaimTemplates:
  - metadata:
      name: elasticsearch-data
    spec:
      storageClassName: "es-pv"
      accessModes: [ "ReadWriteMany" ]
      resources:
        requests:
          storage: 30Gi

创建elk服务的命名空间

kubectl create namespace elk

创建yaml文件的服务

kubectl create -f es-pv.yaml
kubectl create -f es-service-nodeport.yaml
kubectl create -f es-service.yaml
kubectl create -f es-setafulset.yaml

查看es服务是否正常启动

kubectl get pod -n elk

检查elasticsearch集群是否正常

http://10.1.60.119:30017/_cluster/state/master_node,nodes?pretty

可以看到集群中能正确识别到三个es节点

elasticsearch集群部署完成

部署kibana服务

这里使用deployment控制器部署kibana服务，使用service服务对外提供访问

创建deployment的yaml配置文件

vi kibana-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  namespace: elk
  labels:
    app: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      tolerations:
      - key: "node-role.kubernetes.io/control-plane"
        operator: "Exists"
        effect: NoSchedule
      containers:
      - name: kibana
        image: kibana:7.17.10
        resources:
          limits:
            cpu: 1
            memory: 1G
          requests:
            cpu: 0.5
            memory: 500Mi
        env:
          - name: ELASTICSEARCH_HOSTS
            value: http://elasticsearch:9200
        ports:
        - containerPort: 5601
          protocol: TCP

创建service的yaml配置文件

vi kibana-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: kibana
  namespace: elk
spec:
  ports:
  - port: 5601
    protocol: TCP
    targetPort: 5601
    nodePort: 30019
  type: NodePort
  selector:
    app: kibana

创建yaml文件的服务

kubectl create -f kibana-service.yaml
kubectl create -f kibana-deployment.yaml

查看kibana是否正常

kubectl get pod -n elk

部署logstash服务

logstash服务也是通过deployment控制器部署，需要使用到configmap存储logstash配置，还有service提供对外访问服务

编辑configmap的yaml配置文件

vi logstash-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: logstash-configmap
  namespace: elk
  labels:
    app: logstash
data:
  logstash.conf: |
      input {
        beats {
            port => 5044      #设置日志收集端口
         #   codec => "json"
        }
      }
      filter {
      }
      output {
       # stdout {                #该被注释的配置项用于将收集的日志输出到logstash的日志中，主要用于测试看收集的日志中包含哪些内容
       #   codec => rubydebug
       # }
        elasticsearch {
            hosts => "elasticsearch:9200"
            index => "nginx-%{+YYYY.MM.dd}"
        }
      }

编辑deployment的yaml配置文件

vi logstash-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: logstash
  namespace: elk
spec:
  replicas: 1
  selector:
    matchLabels:
      app: logstash
  template:
    metadata:
      labels:
        app: logstash
    spec:
      containers:
      - name: logstash
        image: logstash:7.17.10
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 5044
        volumeMounts:
          - name: config-volume
            mountPath: /usr/share/logstash/pipeline/
      volumes:
      - name: config-volume
        configMap:
          name: logstash-configmap
          items:
            - key: logstash.conf
              path: logstash.conf

编辑service的yaml配置文件(我这里是收集k8s内部署的服务日志，所以没开放对外访问)

vi logstash-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: logstash
  namespace: elk
spec:
  ports:
  - port: 5044
    targetPort: 5044
    protocol: TCP
  selector:
    app: logstash
  type: ClusterIP

创建yaml文件的服务

kubectl create -f logstash-configmap.yaml
kubectl create -f logstash-service.yaml
kubectl create -f logstash-deployment.yaml

查看logstash服务是否正常启动

kubectl get pod -n elk

部署filebeat服务

filebeat服务使用daemonset方式部署到k8s的所有工作节点上，用于收集容器日志，也需要使用configmap存储配置文件，还需要配置rbac赋权，因为用到了filebeat的自动收集模块，自动收集k8s集群的日志，需要对k8s集群进行访问，所以需要赋权

编辑rabc的yaml配置文件

vi filebeat-rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: filebeat
  namespace: elk
  labels:
    app: filebeat
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: filebeat
  labels:
    app: filebeat
rules:
- apiGroups: [""]
  resources: ["namespaces", "pods", "nodes"]    #赋权可以访问的服务
  verbs: ["get", "list", "watch"]            #可以使用以下命令
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: filebeat
subjects:
- kind: ServiceAccount
  name: filebeat
  namespace: elk
roleRef:
  kind: ClusterRole
  name: filebeat
  apiGroup: rbac.authorization.k8s.io

编辑configmap的yaml配置文件

vi filebeat-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  namespace: elk

data:
  filebeat.yml: |
    filebeat.autodiscover:       #使用filebeat的自动发现模块
     providers:
       - type: kubernetes     #类型选择k8s类型
         templates:          #配置需要收集的模板
           - condition:
               and:
                 - or:
                     - equals:
                         kubernetes.labels:      #通过标签筛选需要收集的pod日志
                           app: foundation
                     - equals:
                         kubernetes.labels:
                           app: api-gateway
                 - equals:                    #通过命名空间筛选需要收集的pod日志
                     kubernetes.namespace: java-service

             config:                 #配置日志路径，使用k8s的日志路径
                - type: container
                  symlinks: true
                  paths:          #配置路径时，需要使用变量去构建路径，以此来达到收集对应服务的日志
                   - /var/log/containers/${data.kubernetes.pod.name}_${data.kubernetes.namespace}_${data.kubernetes.container.name}-*.log

    output.logstash:
      hosts: ['logstash:5044']

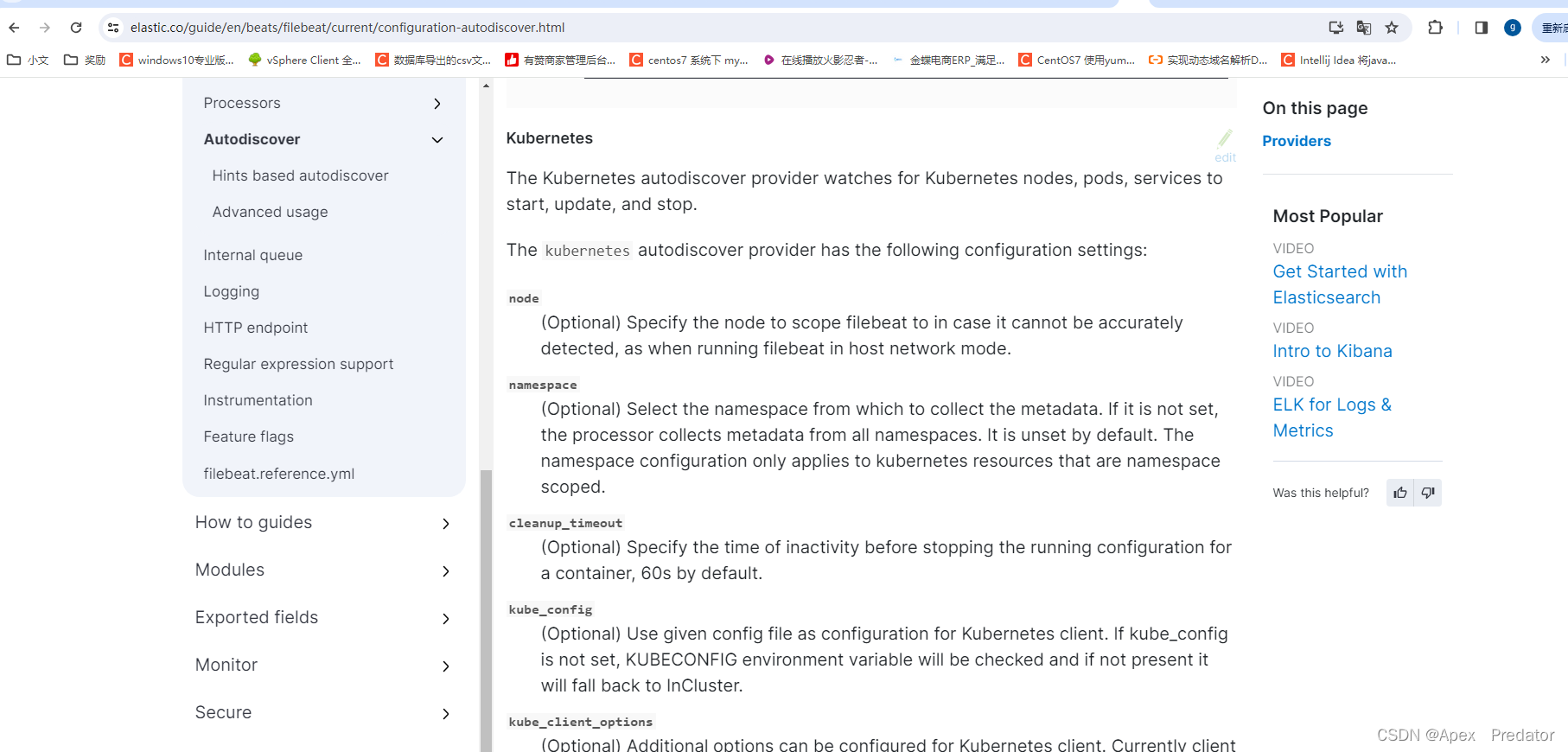

关于filebeat自动发现k8s服务的更多内容可以参考elk官网，里面还有很多的k8s参数可用

 参考：Autodiscover | Filebeat Reference [8.12] | Elastic

编辑daemonset的yaml配置文件

vi filebeat-daemonset.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: filebeat
  namespace: elk
  labels:
    app: filebeat
spec:
  selector:
    matchLabels:
      app: filebeat
  template:
    metadata:
      labels:
        app: filebeat
    spec:
      serviceAccountName: filebeat
      terminationGracePeriodSeconds: 30
      containers:
      - name: filebeat
        image: elastic/filebeat:7.17.10
        args: [
          "-c", "/etc/filebeat.yml",
          "-e",
        ]
        env:
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        securityContext:
          runAsUser: 0
        resources:
          limits:
            cpu: 200m
            memory: 200Mi
          requests:
            cpu: 100m
            memory: 100Mi
        volumeMounts:
        - name: config
          mountPath: /etc/filebeat.yml
          readOnly: true
          subPath: filebeat.yml
        - name: log            #这里挂载了三个日志路径，这是因为k8s的container路径下的日志文件都是通过软链接去链接其它目录的文件
          mountPath: /var/log/containers
          readOnly: true
        - name: pod-log           #这里是container下的日志软链接的路径，然而这个还不是真实路径，这也是个软链接
          mountPath: /var/log/pods
          readOnly: true
        - name: containers-log       #最后这里才是真实的日志路径，如果不都挂载进来是取不到日志文件的内容的
          mountPath: /var/lib/docker/containers
          readOnly: true
      volumes:
      - name: config
        configMap:
          defaultMode: 0600
          name: filebeat-config
      - name: log
        hostPath:
          path: /var/log/containers
      - name: pod-log
        hostPath:
          path: /var/log/pods
      - name: containers-log
        hostPath:
          path: /var/lib/docker/containers

创建yaml文件的服务

kubectl create -f filebeat-rbac.yaml
kubectl create -f filebeat-configmap.yaml
kubectl create -f filebeat-daemonset.yaml

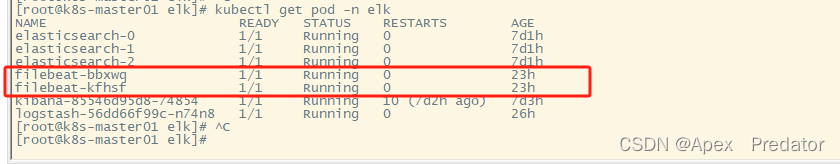

 查看filebeat服务是否正常启动

kubectl get pod -n elk

至此在k8s集群内部署elk服务完成
