spring源码解读-2.根据图纸创建bean实例

首先，找到容器刷新方法refresh();上一篇知道在执行完obtainFreshBeanFactory方法之后我们的bean定义信息已经加载出来，存在了
DefaultListableBeanFactory（它是同时也是一个BeanDefinitionRegistry）的默认实现中；

ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

今天继续开始引路，看看spring的bean是如何创建的；
spring容器会提供各种getBean方法的重载，用来给你使用，当调用的时候发现容器中没有对应的bean实例就会去创建，创建成功就会返回给你；
spring中bean可以分为单例和非单例两大类；而且默认情况下是单例的。那么我们今天就从单例bean的创建来看起；

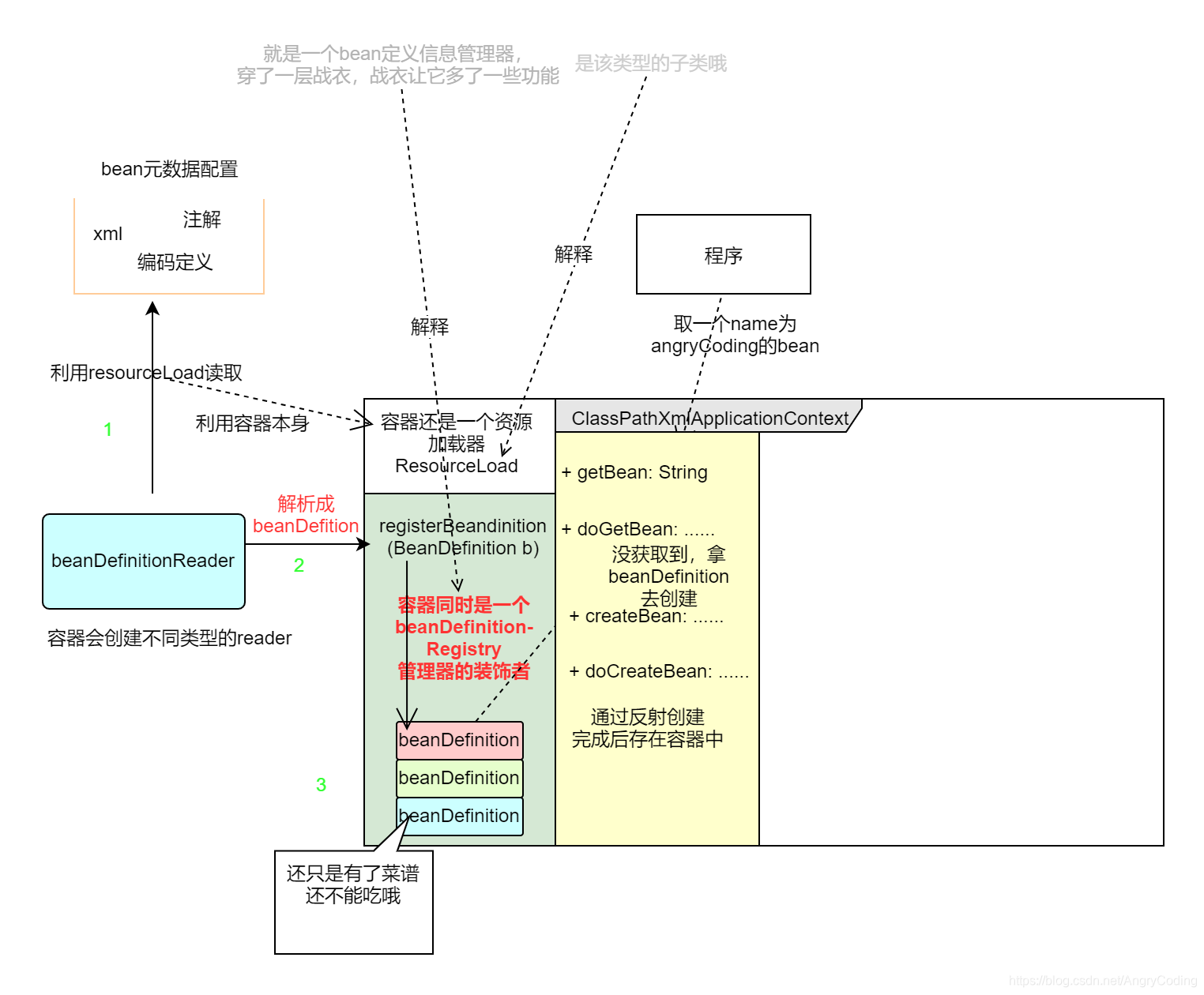

先把图补充一下：

路标1:finishBeanFactoryInitialization
这个方法就是加载单例bean的入口

// Instantiate all remaining (non-lazy-init) singletons.
				//实例化所有剩下的(非懒加载)单例bean！！！！！
	finishBeanFactoryInitialization(beanFactory);

路标2：preInstantiateSingletons
前面一大堆不管，之间找到preInstantiateSingletons，字面意思就知道是准备实例化单例bean

	protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
		// Initialize conversion service for this context.
		if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
				beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
			beanFactory.setConversionService(
					beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
		}

		// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
		String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
		for (String weaverAwareName : weaverAwareNames) {
			getBean(weaverAwareName);
		}

		// Stop using the temporary ClassLoader for type matching.
		beanFactory.setTempClassLoader(null);

		// Allow for caching all bean definition metadata, not expecting further changes.
		beanFactory.freezeConfiguration();

		// Instantiate all remaining (non-lazy-init) singletons.
		beanFactory.preInstantiateSingletons();
	}

路标4：beanDefinitionMap，getBean
beanDefinitionMap是不是似曾相识。这里面就是取出来所有beanDefinition然后遍历进行处理。挨个调用getBean方法；大概先知道这些就够了，这个方法里面其余部分先不看；跟着路标走不迷路；

	@Override
	public void preInstantiateSingletons() throws BeansException {
		if (this.logger.isDebugEnabled()) {
			this.logger.debug("Pre-instantiating singletons in " + this);
		}

		List<String> beanNames;
		synchronized (this.beanDefinitionMap) {
			// Iterate over a copy to allow for init methods which in turn register new bean definitions.
			// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
			beanNames = new ArrayList<String>(this.beanDefinitionNames);
		}

		// Trigger initialization of all non-lazy singleton beans...
		for (String beanName : beanNames) {
			RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
			if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
				if (isFactoryBean(beanName)) {
					final FactoryBean<?> factory = (FactoryBean<?>) getBean(FACTORY_BEAN_PREFIX + beanName);
					boolean isEagerInit;
					if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
						isEagerInit = AccessController.doPrivileged(new PrivilegedAction<Boolean>() {
							@Override
							public Boolean run() {
								return ((SmartFactoryBean<?>) factory).isEagerInit();
							}
						}, getAccessControlContext());
					}
					else {
						isEagerInit = (factory instanceof SmartFactoryBean &&
								((SmartFactoryBean<?>) factory).isEagerInit());
					}
					if (isEagerInit) {
						getBean(beanName);
					}
				}
				else {
					getBean(beanName);
				}
			}
		}

		// Trigger post-initialization callback for all applicable beans...
		for (String beanName : beanNames) {
			Object singletonInstance = getSingleton(beanName);
			if (singletonInstance instanceof SmartInitializingSingleton) {
				final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
				if (System.getSecurityManager() != null) {
					AccessController.doPrivileged(new PrivilegedAction<Object>() {
						@Override
						public Object run() {
							smartSingleton.afterSingletonsInstantiated();
							return null;
						}
					}, getAccessControlContext());
				}
				else {
					smartSingleton.afterSingletonsInstantiated();
				}
			}
		}
	}

路标5：getBean->doGetBean
这里往前跳两步。直接到doGetBean；进去一看是不是傻眼了，又是这么多代码。不过不怕。咱们来捋捋；跟着代码中的标号走没标的位置还是不看；

	protected <T> T doGetBean(
			final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
			throws BeansException {
		//1.先是把名字做一下转换；因为一个bean可能有别名
		final String beanName = transformedBeanName(name);
		Object bean;

		// Eagerly check singleton cache for manually registered singletons.
		//2.先试着从缓存中获取一下看看有没有
		Object sharedInstance = getSingleton(beanName);
		//有，那就完事了呗，直接调用getObjectForBeanInstance之后就返回了，咱们要看创建不管这里面的
		if (sharedInstance != null && args == null) {
			if (logger.isDebugEnabled()) {
				if (isSingletonCurrentlyInCreation(beanName)) {
					logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
							"' that is not fully initialized yet - a consequence of a circular reference");
				}
				else {
					logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
				}
			}
			bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
		}

		else {
			//3.没找到的逻辑，从这一行直接去标号4，中间先不看
			// Fail if we're already creating this bean instance:
			// We're assumably within a circular reference.
			if (isPrototypeCurrentlyInCreation(beanName)) {
				throw new BeanCurrentlyInCreationException(beanName);
			}

			// Check if bean definition exists in this factory.
			BeanFactory parentBeanFactory = getParentBeanFactory();
			if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
				// Not found -> check parent.
				String nameToLookup = originalBeanName(name);
				if (args != null) {
					// Delegation to parent with explicit args.
					return (T) parentBeanFactory.getBean(nameToLookup, args);
				}
				else {
					// No args -> delegate to standard getBean method.
					return parentBeanFactory.getBean(nameToLookup, requiredType);
				}
			}

			if (!typeCheckOnly) {
				markBeanAsCreated(beanName);
			}

			try {
				final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
				checkMergedBeanDefinition(mbd, beanName, args);

				// Guarantee initialization of beans that the current bean depends on.
				String[] dependsOn = mbd.getDependsOn();
				if (dependsOn != null) {
					for (String dependsOnBean : dependsOn) {
						if (isDependent(beanName, dependsOnBean)) {
							throw new BeanCreationException(mbd.getResourceDescription(), beanName,
									"Circular depends-on relationship between '" + beanName + "' and '" + dependsOnBean + "'");
						}
						registerDependentBean(dependsOnBean, beanName);
						getBean(dependsOnBean);
					}
				}

				// Create bean instance.
				//4.这里面有一个createBean的调用。没错就是这里了；这里就是单例bean的创建入口哈，就是下面那个createBean方法，再往下看一个5标号，这段代码就先看到这里
				if (mbd.isSingleton()) {
					sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
						@Override
						public Object getObject() throws BeansException {
							try {
								return createBean(beanName, mbd, args);
							}
							catch (BeansException ex) {
								// Explicitly remove instance from singleton cache: It might have been put there
								// eagerly by the creation process, to allow for circular reference resolution.
								// Also remove any beans that received a temporary reference to the bean.
								destroySingleton(beanName);
								throw ex;
							}
						}
					});
					//5.怎么老是调用这个方法是不是？大概描述下它是干啥的：getBean可能请求各种类型的bean，返回之前要做一些校验，或者转换。比如可能请求的是一个factoryBean（名字前缀加上&），也可能是一个常规 bean，大部分情况就是这种了，还可能期望获取一个factoryBean创建的对象
					bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
				}

				else if (mbd.isPrototype()) {
					// It's a prototype -> create a new instance.
					Object prototypeInstance = null;
					try {
						beforePrototypeCreation(beanName);
						prototypeInstance = createBean(beanName, mbd, args);
					}
					finally {
						afterPrototypeCreation(beanName);
					}
					bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
				}

				else {
					String scopeName = mbd.getScope();
					final Scope scope = this.scopes.get(scopeName);
					if (scope == null) {
						throw new IllegalStateException("No Scope registered for scope '" + scopeName + "'");
					}
					try {
						Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
							@Override
							public Object getObject() throws BeansException {
								beforePrototypeCreation(beanName);
								try {
									return createBean(beanName, mbd, args);
								}
								finally {
									afterPrototypeCreation(beanName);
								}
							}
						});
						bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
					}
					catch (IllegalStateException ex) {
						throw new BeanCreationException(beanName,
								"Scope '" + scopeName + "' is not active for the current thread; " +
								"consider defining a scoped proxy for this bean if you intend to refer to it from a singleton",
								ex);
					}
				}
			}
			catch (BeansException ex) {
				cleanupAfterBeanCreationFailure(beanName);
				throw ex;
			}
		}

		// Check if required type matches the type of the actual bean instance.
		if (requiredType != null && bean != null && !requiredType.isAssignableFrom(bean.getClass())) {
			try {
				return getTypeConverter().convertIfNecessary(bean, requiredType);
			}
			catch (TypeMismatchException ex) {
				if (logger.isDebugEnabled()) {
					logger.debug("Failed to convert bean '" + name + "' to required type [" +
							ClassUtils.getQualifiedName(requiredType) + "]", ex);
				}
				throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
			}
		}
		return (T) bean;
	}

路标6:createBean->doCreateBean
这里也是前进两步，createBean中逻辑主要是一些创建前的检查。先不去关心。直接到doCreateBean；应该感觉的到距离今天的主题实例的创建已经很近了；doCreateBean的方法同样也足够的复杂；但是咱们今天的目的只是看到实例的创建这块逻辑，其余的将在进后探索；
这里讲一个新的模型：BeanWrapper，是bean实例的一个包装。提供了对bean实例进行各种操作的api。感兴趣的自己可以去看看。你现在只需要记住bean实例就在它里面；

	protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args) {
		// Instantiate the bean.
		BeanWrapper instanceWrapper = null;
		//如果是单例的那么先删除再创建
		if (mbd.isSingleton()) {
			instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
		}
		if (instanceWrapper == null) {
		//这里就是创建bean实例的入口了
			instanceWrapper = createBeanInstance(beanName, mbd, args);
		}
		...........这里省略大部分代码后面在讲..........

		return exposedObject;
	}

路标7:instantiateBean
这个方法里面有各种实例化bean的方法；有根据工厂方法创建的，有根据构造器创建的，还有构造器中有依赖注入对象注入的（该类型代码比较复杂先别看，打击自信心）。这里咱们调最简单默认构造器注入的来看；也就是instantiateBean(beanName, mbd)

protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, Object[] args) {
		// Make sure bean class is actually resolved at this point.
		Class<?> beanClass = resolveBeanClass(mbd, beanName);

		if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
			throw new BeanCreationException(mbd.getResourceDescription(), beanName,
					"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
		}

		if (mbd.getFactoryMethodName() != null)  {
			return instantiateUsingFactoryMethod(beanName, mbd, args);
		}

		// Shortcut when re-creating the same bean...
		boolean resolved = false;
		boolean autowireNecessary = false;
		if (args == null) {
			synchronized (mbd.constructorArgumentLock) {
				if (mbd.resolvedConstructorOrFactoryMethod != null) {
					resolved = true;
					autowireNecessary = mbd.constructorArgumentsResolved;
				}
			}
		}
		if (resolved) {
			if (autowireNecessary) {
				return autowireConstructor(beanName, mbd, null, null);
			}
			else {
				return instantiateBean(beanName, mbd);
			}
		}

		// Need to determine the constructor...
		Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
		if (ctors != null ||
				mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
				mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args))  {
			return autowireConstructor(beanName, mbd, ctors, args);
		}

		// No special handling: simply use no-arg constructor.
		return instantiateBean(beanName, mbd);
	}

路标8： getInstantiationStrategy().instantiate(mbd, beanName, parent)
getInstantiationStrategy这里获取合适的实例化策略去实例化对象；这里默认是CglibSubclassingInstantiationStrategy，也就是通过cglib代理的方式来实例化一个对象；
再往下看路标9

protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
		try {
			Object beanInstance;
			final BeanFactory parent = this;
			if (System.getSecurityManager() != null) {
				beanInstance = AccessController.doPrivileged(new PrivilegedAction<Object>() {
					@Override
					public Object run() {
						return getInstantiationStrategy().instantiate(mbd, beanName, parent);
					}
				}, getAccessControlContext());
			}
			else {
				beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
			}
			BeanWrapper bw = new BeanWrapperImpl(beanInstance);
			initBeanWrapper(bw);
			return bw;
		}
		catch (Throwable ex) {
			throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
		}
	}

路标9：BeanUtils.instantiateClass(constructorToUse)
这里就是根据某种策略，找到一个合适的构造器来实例化对象。这里面BeanUtils.instantiateClass(constructorToUse)就是通过反射的方式创建一个对象实例了。到此今天的目的就达到了；

	@Override
	public Object instantiate(RootBeanDefinition beanDefinition, String beanName, BeanFactory owner) {
		// Don't override the class with CGLIB if no overrides.
		if (beanDefinition.getMethodOverrides().isEmpty()) {
			Constructor<?> constructorToUse;
			synchronized (beanDefinition.constructorArgumentLock) {
				constructorToUse = (Constructor<?>) beanDefinition.resolvedConstructorOrFactoryMethod;
				if (constructorToUse == null) {
					final Class<?> clazz = beanDefinition.getBeanClass();
					if (clazz.isInterface()) {
						throw new BeanInstantiationException(clazz, "Specified class is an interface");
					}
					try {
						if (System.getSecurityManager() != null) {
							constructorToUse = AccessController.doPrivileged(new PrivilegedExceptionAction<Constructor<?>>() {
								@Override
								public Constructor<?> run() throws Exception {
									return clazz.getDeclaredConstructor((Class[]) null);
								}
							});
						}
						else {
							constructorToUse =	clazz.getDeclaredConstructor((Class[]) null);
						}
						beanDefinition.resolvedConstructorOrFactoryMethod = constructorToUse;
					}
					catch (Exception ex) {
						throw new BeanInstantiationException(clazz, "No default constructor found", ex);
					}
				}
			}
			return BeanUtils.instantiateClass(constructorToUse);
		}
		else {
			// Must generate CGLIB subclass.
			return instantiateWithMethodInjection(beanDefinition, beanName, owner);
		}
	}

总结： 本篇通过找一个比较短的路径一步步找到了，spring是如何对bean进行实例化的。看到最底层其实还是用了基础的cglib，反射等等来帮我们实例化对象。不需要我们手动new对象；
这里注意这个bean到目前位置还是一个实例化对象，还没有经过初始化。然后spring做的事情绝对不仅仅是这些。它还提供了对bean整个生命周期的各个环节的监听和扩展方式。这些都会在后面的文章中一一呈现；
