springmvc实现数据分析，采用echarts图形分析，统计种类以及数量。

springmvc实现数据分析，采用echarts图形分析，统计种类以及数量。

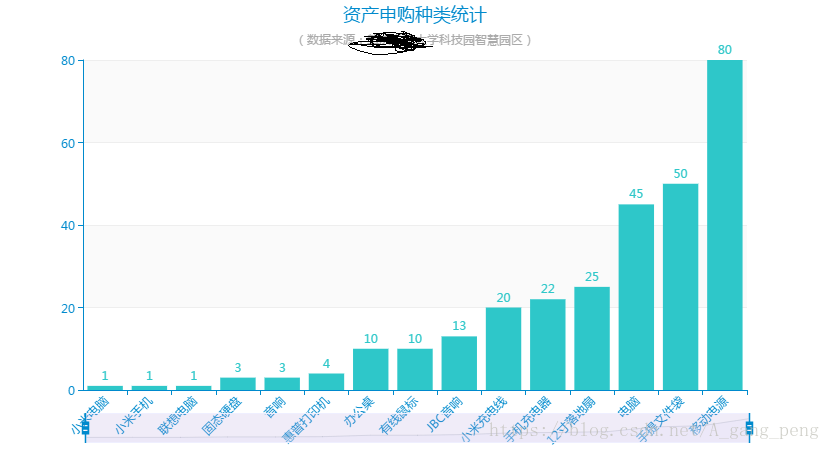

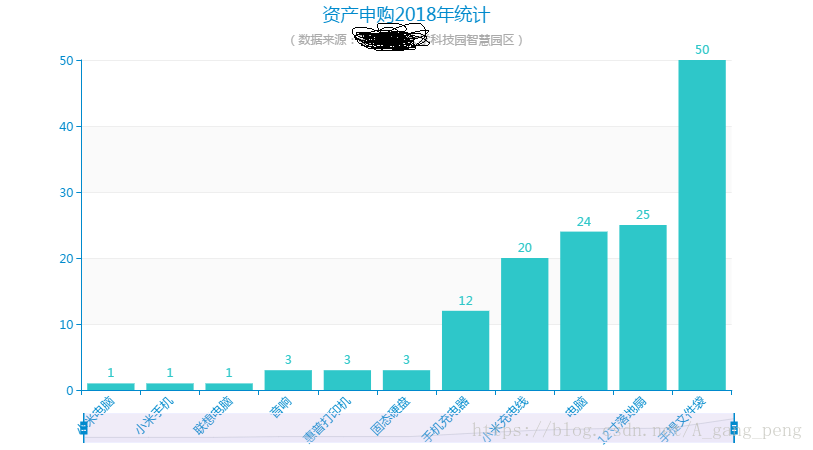

先来几张效果图片先：

• springmvc配置文件说明可参考可问度娘

---

后端代码：
实体类：（设计是为多系统设计，故软件idsyssoftid;//软件功能号IASFuncID可忽略;）

package com.hxp.model;

import java.util.Date;

/**
 * 资产申购实体
 * @author HuangXiaoPeng
 *
 */
public class AssetBuy {


     private Integer id;//id
     private Date applyTime;//申请时间
     private String bassetName;//物品名称
     private String bassetModel;//规格型号
     private Integer bassetAmount;//数量
     private Double bassetPrice;//单价
     private Double bassetSumprice;//总额
     private Integer unitId;//计量单位id
     private String unitName;//计量单位名称
     private String bassetDetail;//申购详情配置
     private String applyContent;//申请说明
     private Integer state;//状态（1待批，2作废，3待报，4待评价，5验收）
     private String REPORTER;//操作者
     private String REPORTERName;//申请者名称
     private Date updateTime;//更新时间
     private String syssoftid;//软件id
     private String IASFuncID;
    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public Date getApplyTime() {
        return applyTime;
    }
    public void setApplyTime(Date applyTime) {
        this.applyTime = applyTime;
    }
    public String getBassetName() {
        return bassetName;
    }
    public void setBassetName(String bassetName) {
        this.bassetName = bassetName;
    }
    public String getBassetModel() {
        return bassetModel;
    }
    public void setBassetModel(String bassetModel) {
        this.bassetModel = bassetModel;
    }
    public Integer getBassetAmount() {
        return bassetAmount;
    }
    public void setBassetAmount(Integer bassetAmount) {
        this.bassetAmount = bassetAmount;
    }
    public Double getBassetPrice() {
        return bassetPrice;
    }
    public void setBassetPrice(Double bassetPrice) {
        this.bassetPrice = bassetPrice;
    }
    public Double getBassetSumprice() {
        return bassetSumprice;
    }
    public void setBassetSumprice(Double bassetSumprice) {
        this.bassetSumprice = bassetSumprice;
    }
    public Integer getUnitId() {
        return unitId;
    }
    public void setUnitId(Integer unitId) {
        this.unitId = unitId;
    }
    public String getUnitName() {
        return unitName;
    }
    public void setUnitName(String unitName) {
        this.unitName = unitName;
    }
    public String getBassetDetail() {
        return bassetDetail;
    }
    public void setBassetDetail(String bassetDetail) {
        this.bassetDetail = bassetDetail;
    }
    public String getApplyContent() {
        return applyContent;
    }
    public void setApplyContent(String applyContent) {
        this.applyContent = applyContent;
    }
    public Integer getState() {
        return state;
    }
    public void setState(Integer state) {
        this.state = state;
    }
    public String getREPORTER() {
        return REPORTER;
    }
    public void setREPORTER(String rEPORTER) {
        REPORTER = rEPORTER;
    }

    public String getREPORTERName() {
        return REPORTERName;
    }
    public void setREPORTERName(String rEPORTERName) {
        REPORTERName = rEPORTERName;
    }
    public Date getUpdateTime() {
        return updateTime;
    }
    public void setUpdateTime(Date updateTime) {
        this.updateTime = updateTime;
    }
    public String getSyssoftid() {
        return syssoftid;
    }
    public void setSyssoftid(String syssoftid) {
        this.syssoftid = syssoftid;
    }
    public String getIASFuncID() {
        return IASFuncID;
    }
    public void setIASFuncID(String iASFuncID) {
        IASFuncID = iASFuncID;
    }

}

接口

package com.hxp.dao;

import java.util.List;

import com.hxp.model.AssetBuy;
import com.hxp.model.PageBean;
/**
 * 资产申购事务接口
 * @author HuangXiaoPeng
 *
 */
public interface AssetBuyDao {



    public List<AssetBuy> findDataBySoftId(String softId);//通过软件id查询申购表单的的统计数据，统计数据为种类和该种类的申购数量。状态在（4）

    public List<AssetBuy> findAllSuccessData(PageBean pageBean,String softId,AssetBuy s_assetBuy);//根据软件id查询申购列表，状态在状态在（2，4）的数据

    public List<String> findYearBySoftId(String softId);//通过软件id查询，状态为4的申购单中的年份列表

    public List<String> findBassetNameBySoftId(String softId);//通过软件id查询，状态为4的申购单中的物品名称组合

    public List<AssetBuy> findDataByYearAndSoftId(String year,String softid);//通过软件id查询，状态为4的申购单中的物品,并且返回名称和数量数据

}

接口实现

package com.hxp.dao.Impl;

import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.annotation.Resource;

import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.RowCallbackHandler;
import org.springframework.stereotype.Repository;

import com.hxp.dao.AssetBuyDao;
import com.hxp.model.AssetBuy;
import com.hxp.model.PageBean;
import com.hxp.util.DateUtil;
import com.hxp.util.StringUtil;

/**
 * 资产申购事务实现接口
 *
 * @author HuangXiaoPeng
 *
 */
@Repository("assetBuyDao")
public class AssetBuyDaoImpl implements AssetBuyDao {



    @Resource
    private JdbcTemplate jdbcTemplate;


    @Override
    public List<AssetBuy> findDataBySoftId(String softId) {
        StringBuffer sb = new StringBuffer(
                "select bassetName,sum(bassetAmount) as bassetAmount,unitName from t_assetbuy t1,t_assetunit t2 where t1.unitId=t2.id and t1.State=4 and t1.SYSSOFTID=? group by bassetName order by bassetAmount");
        final List<AssetBuy> assetBuyList = new ArrayList<AssetBuy>();
        jdbcTemplate.query(sb.toString(), new Object[] { softId },
                new RowCallbackHandler() {
                    @Override
                    public void processRow(ResultSet rs) throws SQLException {
                        AssetBuy assetBuy = new AssetBuy();
                        assetBuy.setBassetName(rs.getString("bassetName"));// 名称
                        assetBuy.setBassetAmount(rs.getInt("bassetAmount"));// 数量
                        assetBuy.setUnitName(rs.getString("unitName"));// 计量单位
                        assetBuyList.add(assetBuy);
                    }
                });
        return assetBuyList;
    }

    @Override
    public List<AssetBuy> findAllSuccessData(PageBean pageBean, String softId,
            AssetBuy s_assetBuy) {
        StringBuffer sb = new StringBuffer(
                "select * from t_assetbuy t1,t_assetunit t2 where t1.unitId=t2.id");
        if (StringUtil.isEmpty(softId)) {
            sb.append(" and t1.State=6");// 状态设置为无效
        } else {
            sb.append(" and t1.State in (2,4)");// 状态设置为无效
            sb.append(" and t1.SYSSOFTID=" + softId);
            if (s_assetBuy != null) {
                if (StringUtil.isNotEmpty(s_assetBuy.getBassetName())) {
                    sb.append(" and t1.bassetName like '%"
                            + s_assetBuy.getBassetName() + "%'");
                }
                if (StringUtil.isNotEmpty(s_assetBuy.getREPORTER())) {
                    sb.append(" and t1.REPORTER like '%"
                            + s_assetBuy.getREPORTER() + "%'");
                }
                if (StringUtil.isNotEmpty(s_assetBuy.getBassetDetail())) {
                    sb.append(" and t1.bassetDetail like '%"
                            + s_assetBuy.getBassetDetail() + "%'");
                }
            }
        }
        sb.append(" order by bassetAmount");
        if (pageBean != null) {
            sb.append(" limit " + pageBean.getStart() +
