1.项目中对应的pom文件配置：

<directory>${project.basedir}/target</directory>

<docker.image.prefix>192.168.1.230:5000/platform</docker.image.prefix>
<docker.plugin.version>1.0.0</docker.plugin.version>

<!--添加docker-maven-plugin插件-->
   <build>
      <finalName>${project.artifactId}</finalName>
      <plugins>
         <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
         </plugin>
         <plugin>
            <groupId>com.spotify</groupId>
            <artifactId>docker-maven-plugin</artifactId>
            <version>${docker.plugin.version}</version>
            <configuration>
               <imageName>${docker.image.prefix}/${project.artifactId}</imageName>
               <dockerDirectory>${project.basedir}</dockerDirectory>
               <resources>
                  <resource>
                     <targetPath>/</targetPath>
                     <directory>${project.build.directory}</directory>
                     <include>${project.build.finalName}.jar</include>
                  </resource>
               </resources>
            </configuration>
         </plugin>
      </plugins>
   </build>

2.项目中对应的yml文件配置：

---
spring:
  profiles: docker
  application:
    name: os-search
server:
  port: ${{SERVER_PORT}:9301}
eureka:
    client:
        serviceUrl:
            defaultZone: ${ADDITIONAL_EUREKA_SERVER_LIST}

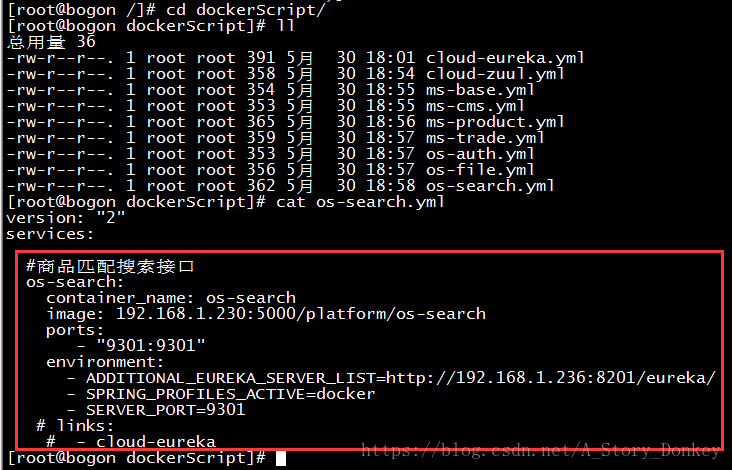

3.linux服务器中（部署docker和Jenkins的服务器）对应的配置

项目中的yml文件运行的时候会从linux服务器中的yml文件中去获取相关配置信息，

比如- SPRING_PROFILES_ACTIVE=docker
- SERVER_PORT=9301

#商品匹配搜索接口
os-search:
    container_name: os-search
    image: 192.168.1.230:5000/platform/os-search
    ports:
       - "9301:9301"
    environment:
      - ADDITIONAL_EUREKA_SERVER_LIST=http://192.168.1.236:8201/eureka/
      - SPRING_PROFILES_ACTIVE=docker
      - SERVER_PORT=9301
   # links:

# - cloud-eureka

4.项目中Dockerfile文件的配置

FROM java:8-jre-alpine
VOLUME /tmp
ADD target/*.jar app.jar
RUN sh -c 'touch /app.jar'
RUN echo $(date) > /image_built_at
ENTRYPOINT ["java","-Djava.security.egd=file:/dev/./urandom","-jar","/app.jar","--spring.profiles.active=${SPRING_PROFILES_ACTIVE}"]
