flink on yarn主要有两种运行模式。一种是内存集中管理模式（即flink yarn session模式），另一种是内存job管理模式（即single Flink job on YARN模式）。

内存集中管理模式：在Yarn中初始化一个Flink集群，开辟指定的资源，之后我们提交的Flink Jon都在这个Flink yarn-session中，也就是说不管提交多少个job，这些job都会共用开始时在yarn中申请的资源。这个Flink集群会常驻在Yarn集群中，除非手动停止。
内存Job管理模式【推荐使用】：在Yarn中，每次提交job都会创建一个新的Flink集群，任务之间相互独立，互不影响并且方便管理。任务执行完成之后创建的集群也会消失。

对于这两种模式的具体介绍可以看这篇文章。

本篇文章主要介绍第一种yarn session模式中客户端模式的集群搭建及案例测试。

提前搭建Hadoop集群环境，可以参考这篇文章。

本文章的集群环境：

机器ip服务
flink1172.21.89.128
flink2172.21.89.129
flink3172.21.89.130

安装配置flink

安装参考这篇文章

需要说明的是，Flink on yarn模式部署时，实际上不需要对Flink做任何修改配置，只需要将其解压传输到各个节点之上（但是如果有standalone模式启动的话，还是需要配置，因此最好配置）。但如果要实现高可用的方案，这个时候就需要到Flink相应的配置修改参数，具体的配置文件是FLINK_HOME/conf/flink-conf.yaml。

对于Flink on yarn模式，我们并不需要在conf配置下配置 masters和slaves。因为在指定TM的时候可以通过参数“-n”来标识需要启动几个TM;Flink on yarn启动后，如果是在分离式模式你会发现，在所有的节点只会出现一个 YarnSessionClusterEntrypoint进程；如果是客户端模式会出现2个进程一个YarnSessionClusterEntrypoint和一个FlinkYarnSessionCli进程。

yarn session模式的运行主要有两个步骤。第一步是启动yarn session，开辟资源，第二步是flink run运行job。

启动yarn session

对于yarn session来说，有两种启动方式，一种是客户端模式，一种是分离模式（通过-d参数来指定）。

默认可以直接执行bin/yarn-session.sh ，默认启动的配置是


{masterMemoryMB=1024, taskManagerMemoryMB=1024,numberTaskManagers=1, slotsPerTaskManager=1}

需要自己自定义配置的话，可以使用./bin/yarn-session.sh -help命令来查看参数：

Usage:
   Optional
     -at,--applicationType <arg>     Set a custom application type for the application on YARN
     -D <property=value>             use value for given property
     -d,--detached                   If present, runs the job in detached mode
     -h,--help                       Help for the Yarn session CLI.
     -id,--applicationId <arg>       Attach to running YARN session
     -j,--jar <arg>                  Path to Flink jar file
     -jm,--jobManagerMemory <arg>    Memory for JobManager Container with optional unit (default: MB)
     -m,--jobmanager <arg>           Address of the JobManager (master) to which to connect. Use this flag to connect to a different JobManager than the one specified in the configuration.
     -nl,--nodeLabel <arg>           Specify YARN node label for the YARN application
     -nm,--name <arg>                Set a custom name for the application on YARN
     -q,--query                      Display available YARN resources (memory, cores)
     -qu,--queue <arg>               Specify YARN queue.
     -s,--slots <arg>                Number of slots per TaskManager
     -t,--ship <arg>                 Ship files in the specified directory (t for transfer)
     -tm,--taskManagerMemory <arg>   Memory per TaskManager Container with optional unit (default: MB)
     -yd,--yarndetached              If present, runs the job in detached mode (deprecated; use non-YARN specific option instead)
     -z,--zookeeperNamespace <arg>   Namespace to create the Zookeeper sub-paths for high availability mode
yarn-session的参数介绍
  -n ： 指定TaskManager的数量；
  -d: 以分离模式运行；
  -id：指定yarn的任务ID；
  -j:Flink jar文件的路径;
  -jm：JobManager容器的内存（默认值：MB）;
  -nl：为YARN应用程序指定YARN节点标签;
  -nm:在YARN上为应用程序设置自定义名称;
  -q:显示可用的YARN资源（内存，内核）;
  -qu:指定YARN队列;
  -s:指定TaskManager中slot的数量;
  -st:以流模式启动Flink;
  -tm:每个TaskManager容器的内存（默认值：MB）;
  -z:命名空间，用于为高可用性模式创建Zookeeper子路径;

以客户端模式启动一个yarn session（分配1g的jobmanager和4g的taskmanager）

[root@flink1 flink-1.10.0]# ./bin/yarn-session.sh -jm 1024m -tm 4096m
Error: A JNI error has occurred, please check your installation and try again
Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/hadoop/yarn/exceptions/YarnException
        at java.lang.Class.getDeclaredMethods0(Native Method)
        at java.lang.Class.privateGetDeclaredMethods(Class.java:2701)
        at java.lang.Class.privateGetMethodRecursive(Class.java:3048)
        at java.lang.Class.getMethod0(Class.java:3018)
        at java.lang.Class.getMethod(Class.java:1784)
        at sun.launcher.LauncherHelper.validateMainClass(LauncherHelper.java:544)
        at sun.launcher.LauncherHelper.checkAndLoadMain(LauncherHelper.java:526)
Caused by: java.lang.ClassNotFoundException: org.apache.hadoop.yarn.exceptions.YarnException
        at java.net.URLClassLoader.findClass(URLClassLoader.java:382)
        at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
        at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:349)
        at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
        ... 7 more

发现报错，这里需要在etc/profile中额外添加一个配置：

export HADOOP_CLASSPATH=`hadoop classpath`

再次运行

[root@flink1 flink-1.10.0]# ./bin/yarn-session.sh -jm 1024m -tm 4096m
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/flink-1.10.0/lib/slf4j-log4j12-1.7.15.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.8.5/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2020-05-19 11:19:50,999 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, flink1
2020-05-19 11:19:51,001 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2020-05-19 11:19:51,001 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2020-05-19 11:19:51,001 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.memory.process.size, 1568m
2020-05-19 11:19:51,001 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 2
2020-05-19 11:19:51,001 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 2
2020-05-19 11:19:51,007 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.execution.failover-strategy, region
2020-05-19 11:19:51,008 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: io.tmp.dirs, /root/flink/tmp
2020-05-19 11:19:52,670 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020-05-19 11:19:52,893 INFO  org.apache.flink.runtime.security.modules.HadoopModule        - Hadoop user set to root (auth:SIMPLE)
2020-05-19 11:19:53,013 INFO  org.apache.flink.runtime.security.modules.JaasModule          - Jaas file will be created as /root/flink/tmp/jaas-114232065768094753.conf.
2020-05-19 11:19:53,049 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
2020-05-19 11:19:53,338 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 11:19:54,034 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=4096, slotsPerTaskManager=2}
2020-05-19 11:19:54,447 WARN  org.apache.flink.yarn.YarnClusterDescriptor                   - The file system scheme is 'file'. This indicates that the specified Hadoop configuration path is wrong and the system is using the default Hadoop configuration values.The Flink YARN client needs to store its files in a distributed file system
2020-05-19 11:19:58,746 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Submitting application master application_1589855352499_0001
2020-05-19 11:19:59,203 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1589855352499_0001
2020-05-19 11:19:59,203 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Waiting for the cluster to be allocated
2020-05-19 11:19:59,209 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deploying cluster, current state ACCEPTED
2020-05-19 11:20:00,332 ERROR org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Error while running the Flink session.
org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0001 failed 1 times (global limit =2; local limit is =1) due to Error launching appattempt_1589855352499_0001_000001. Got exception: org.apache.hadoop.yarn.exceptions.YarnException: Unauthorized request to start container.
This token is expired. current time is 1589887058435 found 1589858999379
Note: System times on machines may be out of sync. Check system time and time zones.
        at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
        at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
        at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
        at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
        at org.apache.hadoop.yarn.server.resourcemanager.amlauncher.AMLauncher.launch(AMLauncher.java:123)
        at org.apache.hadoop.yarn.server.resourcemanager.amlauncher.AMLauncher.run(AMLauncher.java:250)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0001
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more

------------------------------------------------------------
 The program finished with the following exception:

org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0001 failed 1 times (global limit =2; local limit is =1) due to Error launching appattempt_1589855352499_0001_000001. Got exception: org.apache.hadoop.yarn.exceptions.YarnException: Unauthorized request to start container.
This token is expired. current time is 1589887058435 found 1589858999379
Note: System times on machines may be out of sync. Check system time and time zones.
        at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
        at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
        at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
        at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
        at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
        at org.apache.hadoop.yarn.server.resourcemanager.amlauncher.AMLauncher.launch(AMLauncher.java:123)
        at org.apache.hadoop.yarn.server.resourcemanager.amlauncher.AMLauncher.run(AMLauncher.java:250)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0001
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more
2020-05-19 11:20:00,340 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cancelling deployment from Deployment Failure Hook
2020-05-19 11:20:00,340 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 11:20:00,340 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Killing YARN application
2020-05-19 11:20:00,366 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Killed application application_1589855352499_0001
2020-05-19 11:20:00,467 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deleting files in file:/root/.flink/application_1589855352499_0001.

从日志中可以看到是机器时间不同步导致的。查看三台机器时间：

发现flink1的时间与另外两台差别太大。那么接下来进行集群时间同步。

以flink1作为时间服务器，flink2和flink3定时同步时间。可以参考这里的方式二。

再次运行：

[root@flink1 flink-1.10.0]# ./bin/yarn-session.sh -jm 1024m -tm 4096m
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/flink-1.10.0/lib/slf4j-log4j12-1.7.15.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.8.5/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2020-05-19 11:52:58,214 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, flink1
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.memory.process.size, 1568m
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 2
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 2
2020-05-19 11:52:58,215 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.execution.failover-strategy, region
2020-05-19 11:52:58,216 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: io.tmp.dirs, /root/flink/tmp
2020-05-19 11:52:58,940 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020-05-19 11:52:59,059 INFO  org.apache.flink.runtime.security.modules.HadoopModule        - Hadoop user set to root (auth:SIMPLE)
2020-05-19 11:52:59,086 INFO  org.apache.flink.runtime.security.modules.JaasModule          - Jaas file will be created as /root/flink/tmp/jaas-1783872971714302183.conf.
2020-05-19 11:52:59,106 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
2020-05-19 11:52:59,207 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 11:52:59,549 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=4096, slotsPerTaskManager=2}
2020-05-19 11:52:59,734 WARN  org.apache.flink.yarn.YarnClusterDescriptor                   - The file system scheme is 'file'. This indicates that the specified Hadoop configuration path is wrong and the system is using the default Hadoop configuration values.The Flink YARN client needs to store its files in a distributed file system
2020-05-19 11:53:01,249 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Submitting application master application_1589855352499_0002
2020-05-19 11:53:01,578 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1589855352499_0002
2020-05-19 11:53:01,578 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Waiting for the cluster to be allocated
2020-05-19 11:53:01,597 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deploying cluster, current state ACCEPTED
2020-05-19 11:53:02,214 ERROR org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Error while running the Flink session.
org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0002 failed 1 times (global limit =2; local limit is =1) due to AM Container for appattempt_1589855352499_0002_000001 exited with  exitCode: -1000
Failing this attempt.Diagnostics: File file:/root/.flink/application_1589855352499_0002/lib/slf4j-log4j12-1.7.15.jar does not exist
java.io.FileNotFoundException: File file:/root/.flink/application_1589855352499_0002/lib/slf4j-log4j12-1.7.15.jar does not exist
        at org.apache.hadoop.fs.RawLocalFileSystem.deprecatedGetFileStatus(RawLocalFileSystem.java:635)
        at org.apache.hadoop.fs.RawLocalFileSystem.getFileLinkStatusInternal(RawLocalFileSystem.java:861)
        at org.apache.hadoop.fs.RawLocalFileSystem.getFileStatus(RawLocalFileSystem.java:625)
        at org.apache.hadoop.fs.FilterFileSystem.getFileStatus(FilterFileSystem.java:442)
        at org.apache.hadoop.yarn.util.FSDownload.copy(FSDownload.java:253)
        at org.apache.hadoop.yarn.util.FSDownload.access$000(FSDownload.java:63)
        at org.apache.hadoop.yarn.util.FSDownload$2.run(FSDownload.java:361)
        at org.apache.hadoop.yarn.util.FSDownload$2.run(FSDownload.java:359)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.hadoop.yarn.util.FSDownload.call(FSDownload.java:358)
        at org.apache.hadoop.yarn.util.FSDownload.call(FSDownload.java:62)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)

For more detailed output, check the application tracking page: http://flink1:8088/cluster/app/application_1589855352499_0002 Then click on links to logs of each attempt.
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0002
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more

------------------------------------------------------------
 The program finished with the following exception:

org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0002 failed 1 times (global limit =2; local limit is =1) due to AM Container for appattempt_1589855352499_0002_000001 exited with  exitCode: -1000
Failing this attempt.Diagnostics: File file:/root/.flink/application_1589855352499_0002/lib/slf4j-log4j12-1.7.15.jar does not exist
java.io.FileNotFoundException: File file:/root/.flink/application_1589855352499_0002/lib/slf4j-log4j12-1.7.15.jar does not exist
        at org.apache.hadoop.fs.RawLocalFileSystem.deprecatedGetFileStatus(RawLocalFileSystem.java:635)
        at org.apache.hadoop.fs.RawLocalFileSystem.getFileLinkStatusInternal(RawLocalFileSystem.java:861)
        at org.apache.hadoop.fs.RawLocalFileSystem.getFileStatus(RawLocalFileSystem.java:625)
        at org.apache.hadoop.fs.FilterFileSystem.getFileStatus(FilterFileSystem.java:442)
        at org.apache.hadoop.yarn.util.FSDownload.copy(FSDownload.java:253)
        at org.apache.hadoop.yarn.util.FSDownload.access$000(FSDownload.java:63)
        at org.apache.hadoop.yarn.util.FSDownload$2.run(FSDownload.java:361)
        at org.apache.hadoop.yarn.util.FSDownload$2.run(FSDownload.java:359)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.hadoop.yarn.util.FSDownload.call(FSDownload.java:358)
        at org.apache.hadoop.yarn.util.FSDownload.call(FSDownload.java:62)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)

For more detailed output, check the application tracking page: http://flink1:8088/cluster/app/application_1589855352499_0002 Then click on links to logs of each attempt.
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0002
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more
2020-05-19 11:53:02,222 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cancelling deployment from Deployment Failure Hook
2020-05-19 11:53:02,222 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 11:53:02,223 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Killing YARN application
2020-05-19 11:53:02,232 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Killed application application_1589855352499_0002
2020-05-19 11:53:02,333 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deleting files in file:/root/.flink/application_1589855352499_0002.

说文件找不到。去对应的目录下发现确实没有文件，但不知道为什么会出现这个问题。网上找资料，说是没有export HADOOP_HOME，可是我在profile中有这个配置。尝试几次无效，索性在cli窗口中以命令行的方式执行export HADOOP_HOME=xxx，再次运行，发现不报文件问题，但报了另一个比较熟悉的问题：

[root@flink1 flink-1.10.0]# ./bin/yarn-session.sh -jm 1024m -tm 4096m
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/flink-1.10.0/lib/slf4j-log4j12-1.7.15.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.8.5/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2020-05-19 12:06:42,684 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, flink1
2020-05-19 12:06:42,691 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2020-05-19 12:06:42,691 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2020-05-19 12:06:42,691 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.memory.process.size, 1568m
2020-05-19 12:06:42,691 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 2
2020-05-19 12:06:42,691 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 2
2020-05-19 12:06:42,692 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.execution.failover-strategy, region
2020-05-19 12:06:42,692 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: io.tmp.dirs, /root/flink/tmp
2020-05-19 12:06:43,431 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020-05-19 12:06:43,552 INFO  org.apache.flink.runtime.security.modules.HadoopModule        - Hadoop user set to root (auth:SIMPLE)
2020-05-19 12:06:43,576 INFO  org.apache.flink.runtime.security.modules.JaasModule          - Jaas file will be created as /root/flink/tmp/jaas-3503208428267147958.conf.
2020-05-19 12:06:43,591 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
2020-05-19 12:06:43,697 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 12:06:44,062 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=4096, slotsPerTaskManager=2}
2020-05-19 12:06:44,236 WARN  org.apache.flink.yarn.YarnClusterDescriptor                   - The file system scheme is 'file'. This indicates that the specified Hadoop configuration path is wrong and the system is using the default Hadoop configuration values.The Flink YARN client needs to store its files in a distributed file system
2020-05-19 12:06:44,640 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Submitting application master application_1589855352499_0003
2020-05-19 12:06:44,907 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1589855352499_0003
2020-05-19 12:06:44,907 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Waiting for the cluster to be allocated
2020-05-19 12:06:44,910 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deploying cluster, current state ACCEPTED
2020-05-19 12:06:54,455 ERROR org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Error while running the Flink session.
org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0003 failed 1 times (global limit =2; local limit is =1) due to AM Container for appattempt_1589855352499_0003_000001 exited with  exitCode: -103
Failing this attempt.Diagnostics: Container [pid=6955,containerID=container_e12_1589855352499_0003_01_000001] is running beyond virtual memory limits. Current usage: 206.6 MB of 1 GB physical memory used; 2.1 GB of 2.1 GB virtual memory used. Killing container.
Dump of the process-tree for container_e12_1589855352499_0003_01_000001 :
        |- PID PPID PGRPID SESSID CMD_NAME USER_MODE_TIME(MILLIS) SYSTEM_TIME(MILLIS) VMEM_USAGE(BYTES) RSSMEM_USAGE(PAGES) FULL_CMD_LINE
        |- 6971 6955 6955 6955 (java) 237 112 2189639680 52598 /opt/jdk1.8.0_191/bin/java -Xms424m -Xmx424m -Dlog.file=/opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.log -Dlog4j.configuration=file:log4j.properties org.apache.flink.yarn.entrypoint.YarnSessionClusterEntrypoint
        |- 6955 6954 6955 6955 (bash) 0 0 115908608 304 /bin/bash -c /opt/jdk1.8.0_191/bin/java -Xms424m -Xmx424m -Dlog.file=/opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.log -Dlog4j.configuration=file:log4j.properties org.apache.flink.yarn.entrypoint.YarnSessionClusterEntrypoint 1> /opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.out 2> /opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.err

Container killed on request. Exit code is 143
Container exited with a non-zero exit code 143
For more detailed output, check the application tracking page: http://flink1:8088/cluster/app/application_1589855352499_0003 Then click on links to logs of each attempt.
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0003
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more

------------------------------------------------------------
 The program finished with the following exception:

org.apache.flink.client.deployment.ClusterDeploymentException: Couldn't deploy Yarn session cluster
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:380)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:548)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$5(FlinkYarnSessionCli.java:785)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.security.auth.Subject.doAs(Subject.java:422)
        at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1844)
        at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
        at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:785)
Caused by: org.apache.flink.yarn.YarnClusterDescriptor$YarnDeploymentException: The YARN application unexpectedly switched to state FAILED during deployment.
Diagnostics from YARN: Application application_1589855352499_0003 failed 1 times (global limit =2; local limit is =1) due to AM Container for appattempt_1589855352499_0003_000001 exited with  exitCode: -103
Failing this attempt.Diagnostics: Container [pid=6955,containerID=container_e12_1589855352499_0003_01_000001] is running beyond virtual memory limits. Current usage: 206.6 MB of 1 GB physical memory used; 2.1 GB of 2.1 GB virtual memory used. Killing container.
Dump of the process-tree for container_e12_1589855352499_0003_01_000001 :
        |- PID PPID PGRPID SESSID CMD_NAME USER_MODE_TIME(MILLIS) SYSTEM_TIME(MILLIS) VMEM_USAGE(BYTES) RSSMEM_USAGE(PAGES) FULL_CMD_LINE
        |- 6971 6955 6955 6955 (java) 237 112 2189639680 52598 /opt/jdk1.8.0_191/bin/java -Xms424m -Xmx424m -Dlog.file=/opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.log -Dlog4j.configuration=file:log4j.properties org.apache.flink.yarn.entrypoint.YarnSessionClusterEntrypoint
        |- 6955 6954 6955 6955 (bash) 0 0 115908608 304 /bin/bash -c /opt/jdk1.8.0_191/bin/java -Xms424m -Xmx424m -Dlog.file=/opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.log -Dlog4j.configuration=file:log4j.properties org.apache.flink.yarn.entrypoint.YarnSessionClusterEntrypoint 1> /opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.out 2> /opt/hadoop/hadoop-2.8.5/logs/userlogs/application_1589855352499_0003/container_e12_1589855352499_0003_01_000001/jobmanager.err

Container killed on request. Exit code is 143
Container exited with a non-zero exit code 143
For more detailed output, check the application tracking page: http://flink1:8088/cluster/app/application_1589855352499_0003 Then click on links to logs of each attempt.
. Failing the application.
If log aggregation is enabled on your cluster, use this command to further investigate the issue:
yarn logs -applicationId application_1589855352499_0003
        at org.apache.flink.yarn.YarnClusterDescriptor.startAppMaster(YarnClusterDescriptor.java:999)
        at org.apache.flink.yarn.YarnClusterDescriptor.deployInternal(YarnClusterDescriptor.java:488)
        at org.apache.flink.yarn.YarnClusterDescriptor.deploySessionCluster(YarnClusterDescriptor.java:373)
        ... 7 more
2020-05-19 12:06:54,507 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cancelling deployment from Deployment Failure Hook
2020-05-19 12:06:54,507 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at /0.0.0.0:8032
2020-05-19 12:06:54,508 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Killing YARN application
2020-05-19 12:06:54,516 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Killed application application_1589855352499_0003
2020-05-19 12:06:54,618 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deleting files in file:/root/.flink/application_1589855352499_0003.

报错信息显示，虚拟内存不足。这个网上有两种解决方式，我采用的是这一种。另一种参考这里。

重启Hadoop集群后，再次运行：

[root@flink1 flink-1.10.0]# ./bin/yarn-session.sh -jm 1024m -tm 4096m
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/flink-1.10.0/lib/slf4j-log4j12-1.7.15.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.8.5/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2020-05-19 12:49:40,088 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, flink1
2020-05-19 12:49:40,089 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.memory.process.size, 1568m
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 2
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 2
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.execution.failover-strategy, region
2020-05-19 12:49:40,090 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: io.tmp.dirs, /root/flink/tmp
2020-05-19 12:49:40,945 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020-05-19 12:49:41,062 INFO  org.apache.flink.runtime.security.modules.HadoopModule        - Hadoop user set to root (auth:SIMPLE)
2020-05-19 12:49:41,120 INFO  org.apache.flink.runtime.security.modules.JaasModule          - Jaas file will be created as /root/flink/tmp/jaas-3327652110637179066.conf.
2020-05-19 12:49:41,126 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
2020-05-19 12:49:41,651 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=4096, slotsPerTaskManager=2}
2020-05-19 12:49:52,846 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Submitting application master application_1589863760097_0001
2020-05-19 12:49:53,165 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1589863760097_0001
2020-05-19 12:49:53,165 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Waiting for the cluster to be allocated
2020-05-19 12:49:53,224 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deploying cluster, current state ACCEPTED
2020-05-19 12:50:11,392 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - YARN application has been deployed successfully.
2020-05-19 12:50:11,393 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Found Web Interface flink1:46042 of application 'application_1589863760097_0001'.
JobManager Web Interface: http://flink1:46042

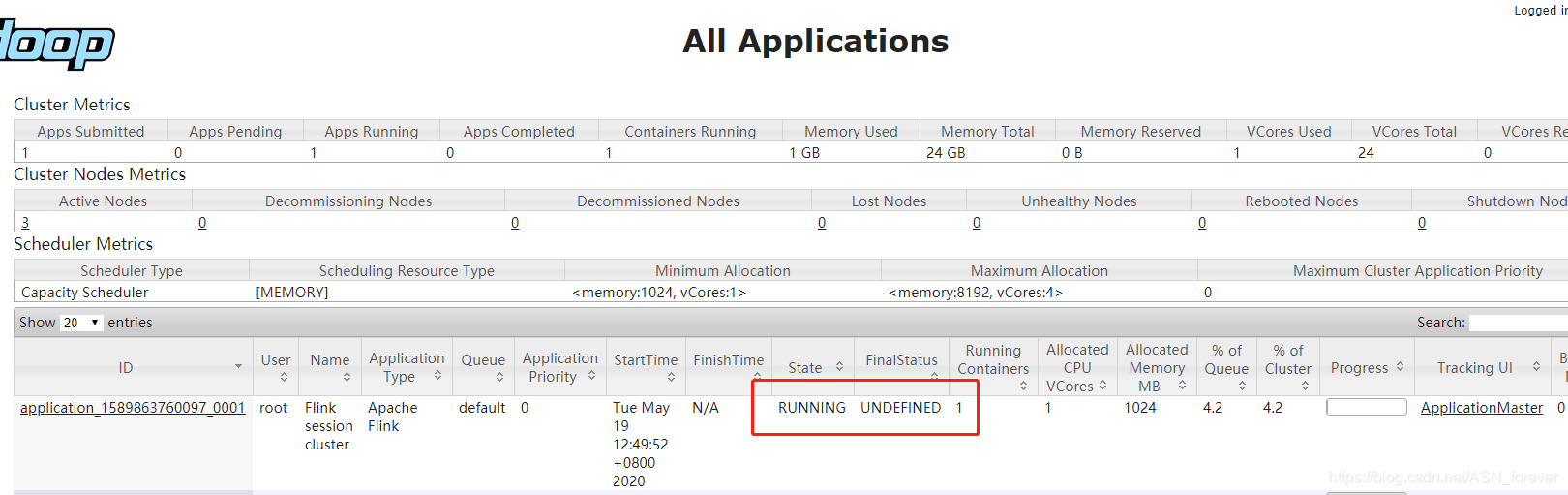

看到终于启动成功了，且jobmanager是在flink1上启动的（这个jobmanager和AM运行在同一个container，因此是不确定运行在哪个机器上的）。在flink1上jps可以看到有一个YarnSessionClusterEntrypoint进行，就是此jobmanager。对于客户端模式来说，除了YarnSessionClusterEntrypoint进程外，还会启动一个FlinkYarnSessionCli进行（在哪台机器上启动yarn session，就在哪台机器上启动此进程）。

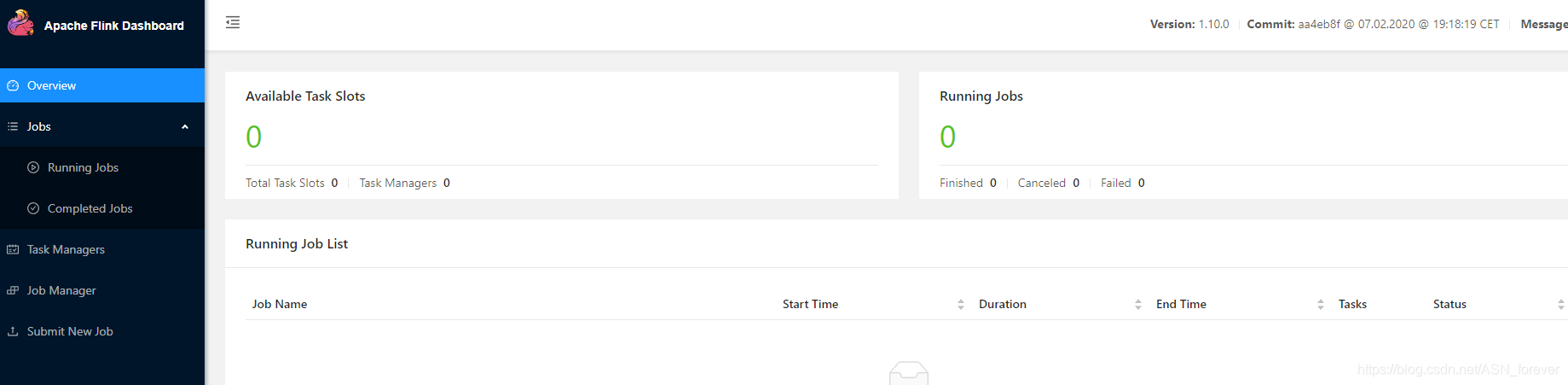

打开给出的地址http://flink1:46042：
 接下来运行官方的wordcount程序：

[root@flink1 flink-1.10.0]# ./bin/flink run -m yarn-cluster -p 4 -yjm 1024m -ytm 4096m ./examples/batch/WordCount.jar
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/flink-1.10.0/lib/slf4j-log4j12-1.7.15.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.8.5/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
2020-05-19 12:57:56,772 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Found Yarn properties file under /tmp/.yarn-properties-root.
2020-05-19 12:57:56,772 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Found Yarn properties file under /tmp/.yarn-properties-root.
2020-05-19 12:57:57,059 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
2020-05-19 12:57:57,059 WARN  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The configuration directory ('/opt/flink-1.10.0/conf') already contains a LOG4J config file.If you want to use logback, then please delete or rename the log configuration file.
Executing WordCount example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
2020-05-19 12:57:57,704 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2020-05-19 12:57:57,817 WARN  org.apache.flink.yarn.YarnClusterDescriptor                   - Neither the HADOOP_CONF_DIR nor the YARN_CONF_DIR environment variable is set. The Flink YARN Client needs one of these to be set to properly load the Hadoop configuration for accessing YARN.
2020-05-19 12:57:57,861 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=4096, slotsPerTaskManager=2}
2020-05-19 12:58:21,961 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Submitting application master application_1589863760097_0002
2020-05-19 12:58:22,048 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1589863760097_0002
2020-05-19 12:58:22,048 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Waiting for the cluster to be allocated
2020-05-19 12:58:22,051 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Deploying cluster, current state ACCEPTED
2020-05-19 12:58:45,306 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - YARN application has been deployed successfully.
2020-05-19 12:58:45,481 INFO  org.apache.flink.yarn.YarnClusterDescriptor                   - Found Web Interface flink1:39042 of application 'application_1589863760097_0002'.
Job has been submitted with JobID 599ef03e3215ab0ecf60385c3320f2e6
Program execution finished
Job with JobID 599ef03e3215ab0ecf60385c3320f2e6 has finished.
Job Runtime: 64178 ms
Accumulator Results:
- 44a96fda0ca5ea318d6da45ed1d5e503 (java.util.ArrayList) [170 elements]


(after,1)
(and,12)

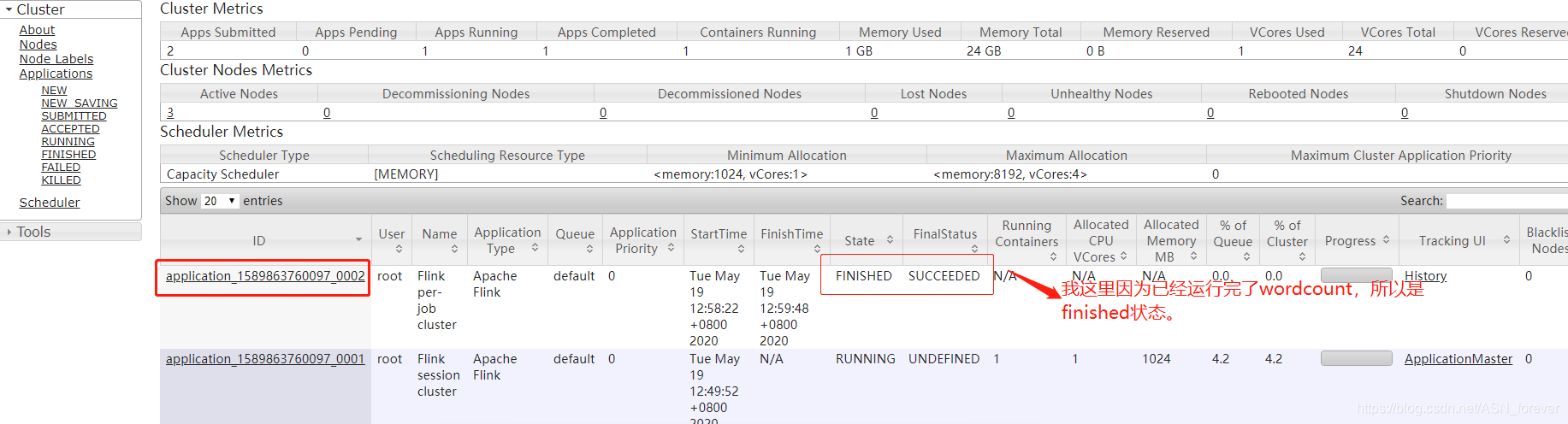

看yarn webui，可以看到多了一个Flink per-job cluster

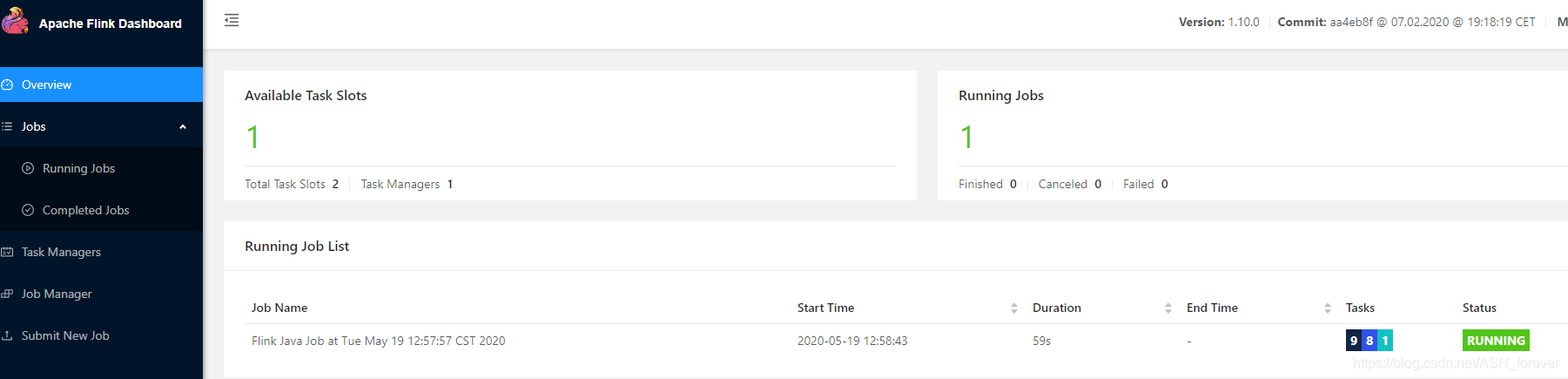

再根据上面给出的地址 flink1:39042查看flink web ui：

 看到运行成功。当运行结束后，此web也会关闭。

其实这种模式相当于是在yarn上运行flink程序，因此可以使用yarn命令来关闭应用。比如这里要关闭开辟的yarn session，可以运行以下命令：

[root@flink1 flink-1.10.0]# yarn application -kill application_1589863760097_0001
Killing application application_1589863760097_0001
20/05/20 01:48:12 INFO impl.YarnClientImpl: Killed application application_1589863760097_0001

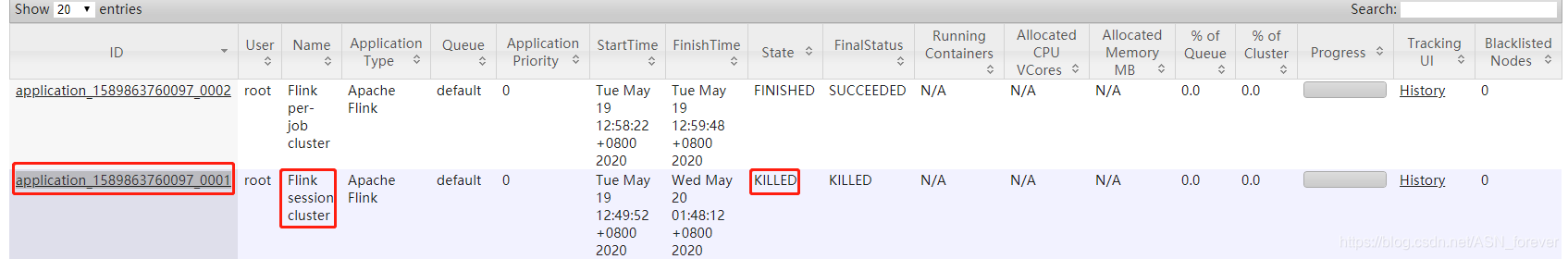

再看yarn webui，可以看到application_1589863760097_0001这个应用状态变成了killed。

关闭YarnSessionClusterEntrypoint进程之后，FlinkYarnSessionCli进程失去与YarnSessionClusterEntrypoint的链接，会自动关闭。

对于flink on yarn的介绍，可以学习一下这篇文章，很不错，其中包括分离模式的介绍。

最权威的还是官方文档：https://ci.apache.org/projects/flink/flink-docs-release-1.10/ops/deployment/yarn_setup.html

Apache Flink连载（十九）：Flink On Yarn运行-Yarn Session模式
qq_32020645的博客
12-28 1559
🏡 个人主页：IT贫道_大数据OLAP体系技术栈,Apache Doris,Clickhouse 技术-优快云博客🚩 私聊博主：加入大数据技术讨论群聊，获取更多大数据资料。🔔 博主个人B栈地址：豹哥教你大数据的个人空间-豹哥教你大数据个人主页-哔哩哔哩视频。
Flink中三种模式：YARN Session 模式、YARN Per-Job 模式和 YARN Application 模式提交任务命令
JustinMars的博客
07-30 868
在 Apache Flink 中，YARN 提供了多种模式来提交和管理作业，每种模式都有其独特的特点和适用场景。主要有以下三种模式：YARN Session 模式、YARN Per-Job 模式和 YARN Application 模式。
Flink:Yarn-Session 启动
u012566690的专栏
08-29 3014
背景： 自己搭建了flink 单机版本时，到 flink on yarn 这一步卡住了，不能正常运行执行./bin/yarn-session.sh -n 4 -jm 1024m -tm 4096m 包括 GetClusterMetricsRequestProto cannot be cast to com.google.protobuf.Message 主要原因是未指定HADOOP_CONF_DIR环境变量，下面给出整个过程 ##1. 参照文档，下载&&编译flink 源码,这个时候，s
Flink on yarn 的三种模式分别详细讲解 及区别
最新发布
weixin_50227709的博客
03-11 775
模式集群生命周期作业隔离性提交速度适用场景Session长期运行较弱，共享资源快多作业共享、资源复用要求高、提交频繁Per-Job作业独立启动和关闭强，资源独占慢（启动有延时）对作业隔离要求高、独立任务较多的场景作业独立启动和关闭强，资源独占慢（启动有延时）简化部署、一次性打包提交、利用 Yarn 应用管理Session 模式适合需要快速提交、资源共享和持续运行的场景；Per-Job 模式则适用于单个作业需要独立运行且对隔离性要求较高的情况；
1.flink的yarn-session环境
流月up的博客
10-18 608
在hadoop环境安装好之后,需要一个yarn-session环境来跑flink任务,此篇任务是在hadoop yarn环境上部署一个flink yarn-session环境,flink 1.17.1版本相关文章聚合链接。
3.Flink-On-Yarn开发使用\原理\Session会话模式\Per-Job模式
涂作权的博客
07-06 2084
本文来自：Flink1.12-2021黑马程序员贺岁视频3.Flink-On-Yarn开发使用 3.1.原理 3.2.两种模式 3.2.1.Session会话模式 3.2.2.Per-Job模式 3.3.操作 3.4.测试 3.4.1.Session会话模式 3.4.2.PerJob模式为什么使用flink on yarn ? 在实际开发中，使用Flink时，更多的使用方式是Flink On Yarn模式，原因如下：具体步骤： 准备Flink程序jar和配置 0：提交 1：上传任务/依赖jar,配置到hdf
通过Flink YARN Session来运行任务
zg_hover的专栏
10-11 5018
通过Flink YARN Session来运行任务 本文先介绍Flink YARN Session的基本概念，并介绍如何启动Flink Session，并通过它来运行任务。 简介 Apache Hadoop YARN是一个集群资源管理框架。可以在它之上运行各种分布式应用。在其他应用运行时，Flink也可以运行在其上。 在Flink YARN Session启动时会按配置或参数来申请资源，并会启动Flink的基础服务：JobManager和TaskManagers。这样，就可以向它提交Flink应用了；每个s
Flink on Yarn集群搭建（三）--- Flink集群搭建 Session Cluster模式
qq_35136754的博客
01-10 1582
flink on yarn session cluster 会话模式
Flink On Yarn模式：Yarn-session模式与Pre-Job模式的比较
TechWhiz的博客
08-15 308
在本文中，我们将重点讨论在Flink On Yarn模式下的两种常见使用模式：Yarn-session模式和Pre-Job模式，并比较它们之间的区别。Yarn-session模式是指在Flink On Yarn模式下，用户可以启动一个长期运行的Flink集群，称为Yarn会话（Yarn Session）。资源隔离：Yarn-session模式中，每个Flink任务在Yarn会话中运行在独立的容器中，而Pre-Job模式中每个作业都有自己的Yarn应用。独立性强：每个作业有自己的资源配置，相互之间不影响。
大数据flink篇之三-flink运行环境安装后续一yarn-session安装
a18852867035的博客
10-14 1189
具体的，在生产环境中，flink一般会交由yarn、k8s等资源管理平台来处理。本章主要讲解yarn模式下的session cluster模式。Hadoop 必須保证在 2.2 以上，且必須裝有 hdfs 服务。Hadoop安装后续会有相关说明。这种模式所有的job都共享一个jobmanager，启动的集群只有一个jobmanager。首先确保在/etc/profile中添加了配置项。
Flink on Yarn 部署Session-Cluster和Per-Job-Cluster
热门推荐
zhangxm_qz的博客
08-21 1万+
文章目录原理介绍Flink on Yarn模式部署启动Session-Clusterm模式Per-Job-Cluster模式 Flink on Yarn 模式的原理是依靠 YARN 来调度 Flink 任务，目前在企业中使用较多。这种模式的好处是可以充分利用集群资源，提高集群机器的利用率，并且只需要 1 套 Hadoop集群，就可以执行 MapReduce 、Spark和Flink 任务，操作非常方便，运维方面也很轻松。Flink on Yarn 模式需要依赖 Hadoop 集群，并且Hadoop 的版本需
flink on yarn启动session 指定队列
weixin_31437187的博客
06-28 345
配置相关视频讲解：C语言程序设计入门之环境安装Flink on Yarn启动Session指定队列教程 一、整体流程 下面是启动Flink on Yarn Session并指定队列的步骤： 步骤 描述 1 准备Flink程序jar包和配置文件 2 启动Yarn集群 3 提交Flink on Yarn...
使用Yarn Session命令管理大数据作业
2301_79366177的博客
08-16 360
通过Yarn Session，我们可以轻松地启动、停止和管理大数据作业，提高数据处理的效率和可靠性。Yarn Session是一个用于管理大数据作业的命令，它为我们提供了一种便捷的方式来提交和监控运行在YARN集群上的应用程序。通过Yarn Session命令，我们可以轻松地启动、停止和管理我们的大数据作业，提高数据处理的效率和可靠性。通过使用Yarn Session命令，我们可以方便地管理大数据作业，并实现高效的数据处理。上述命令将停止名为“my_session”的会话，并关闭所有与之关联的应用程序。
Flink--2、Flink部署（Yarn集群搭建下的会话模式部署、单作业模式部署、应用模式部署）
星光不问赶路人，岁月不负有心人
09-08 2015
Flink--2、Flink部署（Yarn集群搭建下的会话模式部署、单作业模式部署、应用模式部署）
【Flink】SQL-Client运行yarn-session模式
lsr40的博客
02-01 9367
flink有个sql-client.sh （如下的图，是从flink官网截图下来的） 官网地址：https://ci.apache.org/projects/flink/flink-docs-release-1.11/dev/table/sqlClient.html 具体如何配置sql-client和各种框架集成， 我就不搞了，大家有兴趣研究下官网或者百度下，我就试了下集成hive 具体如何配置，请看以下文章！ flink 1.11.2-sql-client 集成hive：htt..
flink on yarn的会话模式中yarn-session.sh 参数
JustinMars的博客
07-19 1355
是 Apache Flink 在 YARN（Hadoop 的资源管理系统）上启动 Flink 会话（Session）的脚本。通过这个脚本，你可以在 YARN 上提交 Flink 任务，并在一个长时间运行的会话中执行多个作业。: 指定要在 YARN 上启动的 TaskManager 容器数量，也就是执行 Flink 任务的资源数量。: 指定 JobManager 容器的内存大小，以MB为单位。: 指定每个 TaskManager 容器的内存大小，以MB为单位。: 启动作业时可以指定特定的应用程序选项。
60-008-022-使用-命令-yarn-session命令
九师兄
03-12 1790
1.视界 2. Flink On Yarn 2.1 概述 在yarn上启动一个一直运行的flink集群 2.1 两种模式 第一种：在yarn中初始化一个flink集群，开辟指定的资源，以后提交任务都向这里提交。这个flink集群会常驻在yarn集群中，除非手工停止。 第二种(推荐)：每次提交都会创建一个新的flink集群，任务之间互相独立，互不影响，方便管理。任务执行完成之后创建的集群也会消...
Flink-1.13.0 sql-client yarn-session模式部署
lyd882的博客
05-31 2417
Flink-1.13.0 sql-client yarn-session模式部署 当前flink：sql-client.sh是 flink下类似spark-sql的sql方式处理数据的操作接口,可以像操作普通有界数据表一样去操作无界数据流，支持流实时查询、join、事件时间、水印延迟、窗口等各种操作，不用写java/scala/python代码一样可以操作数据流，当前主sql引擎采用alibaba Blink sql实现，当前flink-1.13.0版本仍是bata版本,有的公司已经在使用，也是未来的一个趋
Flink1.18.0集成Yarn-session模式部署
weixin_43655425的博客
01-19 1508
YARN上部署的过程是：客户端把Flink应用提交给Yarn的ResourceManager, Yarn的ResourceManager会向Yarn的NodeManager申请容器。在这些容器上，Flink会部署JobManager和TaskManager的实例，从而启动集群。Flink会根据运行在JobManger上的作业所需要的Slot数量动态分配TaskManager资源。分发flink安装目录到2、3、4节点。flink版本：1.18.0。浏览器打开flink-ui地址。这次集成下flink。
flink提交有几种模式 yarn-session模式 Application模式 Per-Job模式（生产中一般用这个，因为不论是监控还是提交都很方便，一个任务yarn分配一次） 详细解释
05-18
1. Yarn-session 模式：在该模式下，Flink 集群与YARN 集成，即 Flink 集群在 YARN 上启动，并在其中开启一个长期运行的会话（Session），可以重复提交多个 Flink 作业。 2. Application 模式：在该模式下，每次...
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
