编写OpenShift的yaml以定义容器

---

一、创建secret

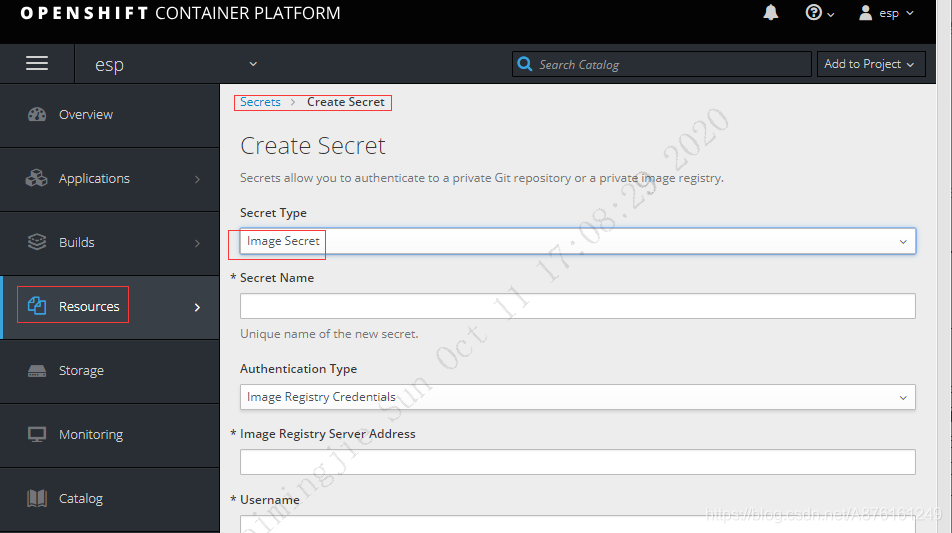

在OpenShift左侧Resources->Secret->Create Secret里选择Image Secret后创建。

二、编写yaml

1. ConfigMap

apiVersion: V1
kind: ConfigMap
metadata:
  name: app-config-map
data:
  application.properties: |
  spring.profiles.active=dev

  server.xml: >-
  <?xml version='1.0' encoding='utf-8'?>

2. Deployment

apiVersion: V1
kind: Deployment
metadata:
  name: app
spec:
  #定义副本数量
  replicas: 2
  selector:
    matchLabels:
      app: app
  template:
    metadata:
      labels:
        app: app
    spec:
      imagePullSecrets:
        - name: ${secret_name}
      containers:
        - name: app
          image: ${artifactory_url}/${dev_project_name}/${app_name}:'BUILD_ID'
          imagePullPolicy: Always
          #设置资源配额
          resources:
            limits:
              cpu: 2000m
              memory: 4Gi
            env:
              - name: TZ
                value: Asia/Shanghai
            ports:
              - containerPort: 8080
            #挂载到容器目录
            volumeMounts:
              - mountPath: /opt/tomcat/conf/server.xml
                name: [volume-app]
                readOnly: true
                subPath: server.xml
        #定义容器就绪探针
        readinessProbe:
      	  tcpSocket:
            port: 8080
          periodSeconds: 10
        #定义容器探活探针
        livenessProbe:
          periodSeconds: 5
          httpGet:
            path: /health
            port: 8080
      volumes:
        - configMap:
            defalutMode: 420
            #对应1.ConfigMap的名称
            name: app-config-map
          name: [volume-app]

3. Service

apiVersion: V1
kind: Service
metadata:
  name: app
spec:
  ports:
    - port: 8080
      targetPort: 8080
      name: app
  selector:
    app: app

4. Route

apiVersion: V1
kind: Route
metadata:
  name: app
spec:
  host: app.test.com
  #path: /test
  to:
    kind: Service
    #对应3.Service
    name: app
    weight: 100
  wildcardPolicy: None

三、应用yaml

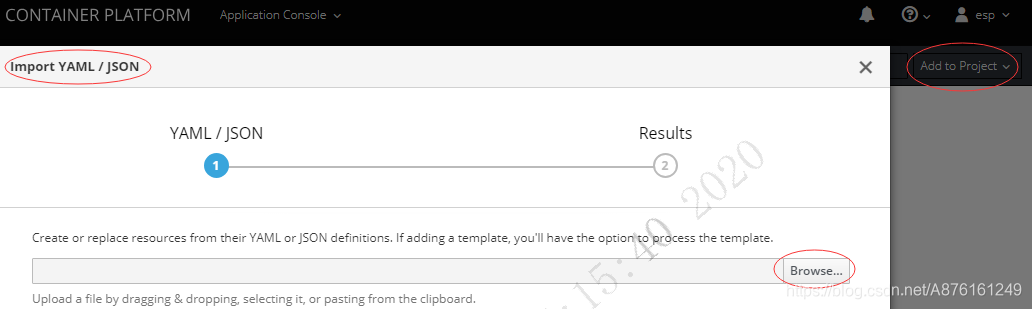

在OpenShift右侧Add to Project->Import YAML/JSON里导入上述4个yaml文件。
