android so文件攻防实战-美团libmtguard.so反混淆

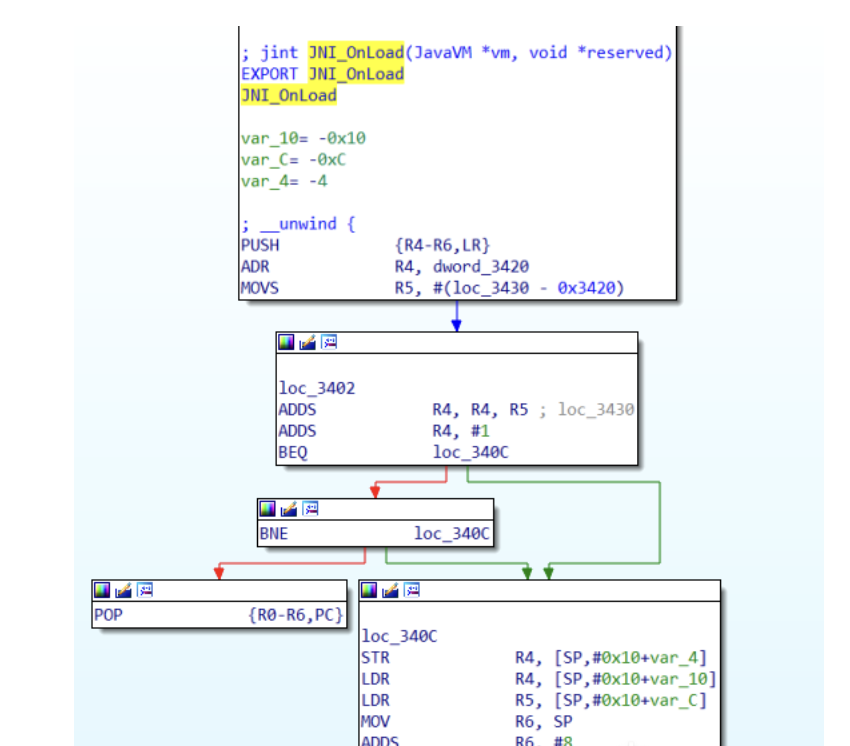

BEQ和BNE是一对条件相反的跳转，这之前计算出接下来指令的地址0x3430赋值给R4，loc_340C处的代码通过POP指令将R4的值给PC，看0x3430处的代码。

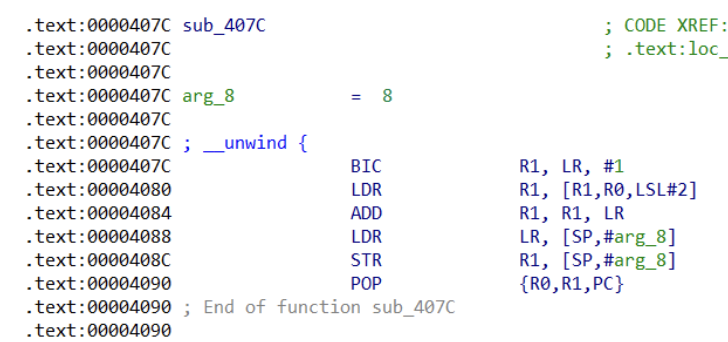

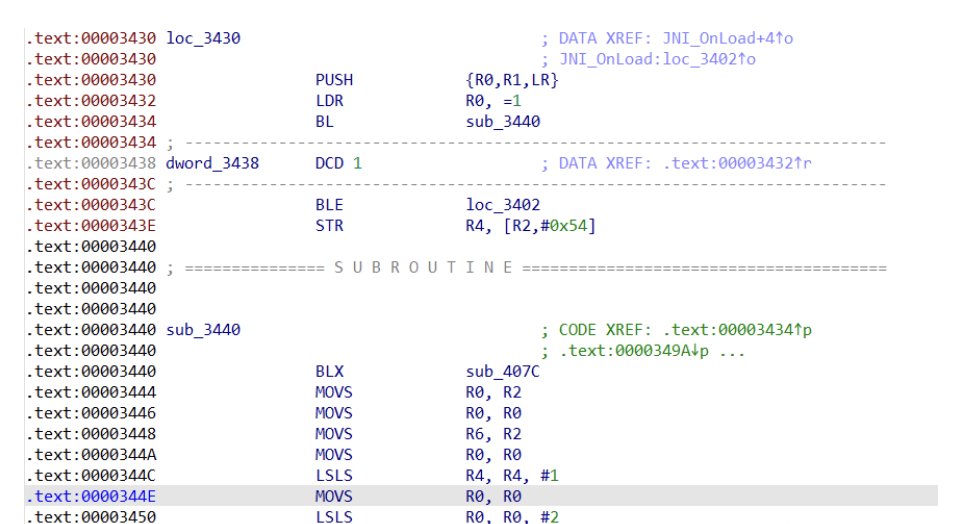

接下来的代码很多都是这种动态计算跳转地址的。0x3432处的指令从0x3438中取一个dword给R0，跳到0x3440然后再跳到0x407C。0x3444处开始不是指令而是一个跳转表，索引就是R0，值就是接下来指令地址的偏移，0x407C开始的代码就是取这个偏移。所以我们可以写一个脚本patch，计算出偏移，在0x3434处就直接跳过去。

同时还会有一些跳转到0x4094的指令，像上面这样0x3464跳到0x4094之后会返回到0x346C，从0x3462到0x346C这些指令我都直接patch成NOP了。
修复脚本：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86

import keystone from capstone import * import idc import ida_bytes import subprocess arch = keystone.KS_ARCH_ARM mode = keystone.KS_MODE_THUMB ks = keystone.Ks(arch, mode) md = Cs(CS_ARCH_ARM, CS_MODE_THUMB) def is_BLX_sub407C(ea):     ldr_addr = ea     ldr_flags = idc.get_full_flags(ldr_addr)     if not idc.is_code(ldr_flags):         return False     if idc.print_insn_mnem(ldr_addr) != 'BLX':         return False     if idc.print_operand(ldr_addr, 0) != 'sub_407C':         return False     return True def is_BLX_sub4094(ea):     ldr_addr = ea     ldr_flags = idc.get_full_flags(ldr_addr)     if not idc.is_code(ldr_flags):         return False     if idc.print_insn_mnem(ldr_addr) != 'BLX':         return False     if idc.print_operand(ldr_addr, 0) != 'sub_4094':         return False     if idc.print_insn_mnem(ldr_addr - 2) != 'PUSH':         return False     if idc.print_insn_mnem(ldr_addr + 8) != 'POP':         return False     return True def func_patch():     ins_addr = idc.next_head(0)     while ins_addr != idc.BADADDR:          if is_BLX_sub407C(ins_addr):             for i in CodeRefsTo(ins_addr, False):                 if idc.get_wide_word(i + 4) == 18112:                     index = idc.get_wide_word(i + 6)                     patch_qword(i + 6, 0x46C046C0)                     idc.create_insn(i + 6)                 else:                     index = idc.get_wide_word(i + 4)                     patch_qword(i + 4, 0x46C046C0)                     idc.create_insn(i + 4)                 print("i:" + hex(i))                 index = index * 4 + ins_addr + 4                 offset = ida_bytes.get_dword(index)                 target = ins_addr + 0x4 + offset                 command = "BL " + hex(target)                 print("command:" + command)                 pi = subprocess.Popen(['D:\\keystone-0.9.2-win64\\kstool.exe', 'thumb', command, \                 hex(i)], shell=True, stdout=subprocess.PIPE)                 output = pi.stdout.read()                 ins = str(output[-15:-4])[2:-1]                 ins = ins.split(" ")                 ins = "0x" + ins[3] + ins[2] + ins[1] + ins[0]                 print("ins:" + ins)                 patch_dword(i, int(ins, 16))          if is_BLX_sub4094(ins_addr):             patch_dword(ins_addr - 2, 0xbf00)             patch_dword(ins_addr, 0xbf00)             patch_dword(ins_addr + 2, 0xbf00)             patch_dword(ins_addr + 4, 0xbf00)             patch_dword(ins_addr + 6, 0xbf00)             patch_dword(ins_addr + 8, 0xbf00)          ins_addr = idc.next_head(ins_addr) func_patch()

修复结束之后跟踪指令，0x3434处的代码跳到了0x345A，0x345A处的代码主要逻辑是在0x34C6跳到0x34EC通过0x34EC动态计算地址跳到了0x3520，0x3524处的代码跳到了0x365C，0x366E处的代码跳到了0x35A8，0x35A8是JNI_OnLoad的主要逻辑。

如上图所示，0x35A8基本就干了两件事：FindClass(com/meituan/android/common/mtguard/NBridge)和RegisterNatives(com/meituan/android/common/mtguard/NBridge, main, 1)。

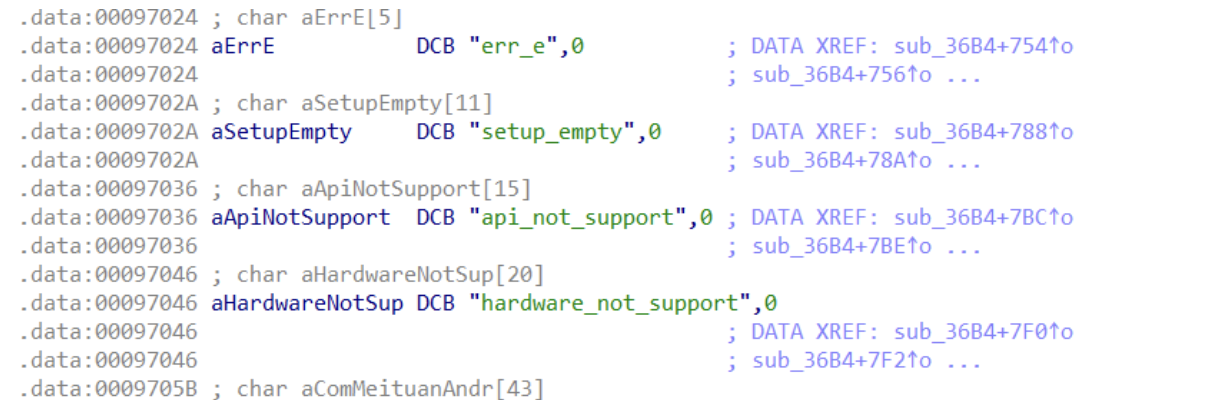

sub_3680里面调用sub_36B4通过异或解密了一些字符串，上图我已经把解密之后的结果patch进去了。

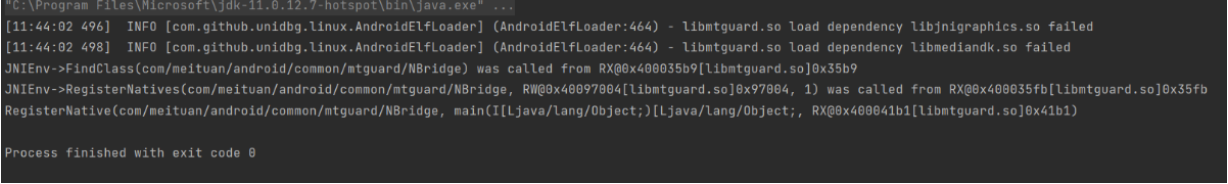

当然用unidbg是可以直接跑JNI_OnLoad的：

不过这个系列文章主要是想讨论一下so混淆和反混淆，有精力的话还可以对这个so进行完整分析，混淆应该没有啥新的了。
