蓝桥杯单片机第14届模拟题三（基于西风大模板）

原创 于 2025-03-06 13:39:19 发布
· 468 阅读 · 6 ·
版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#蓝桥杯 #职场和发展

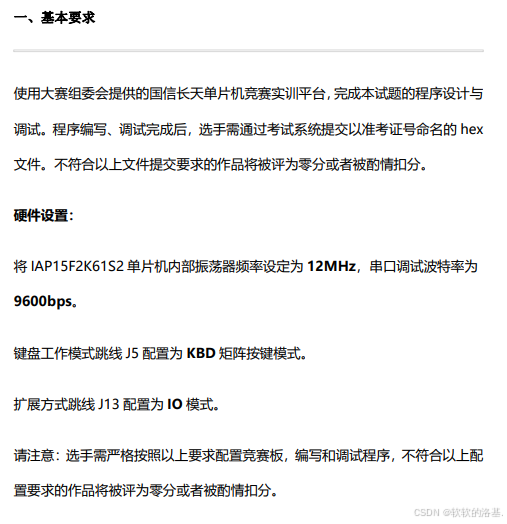

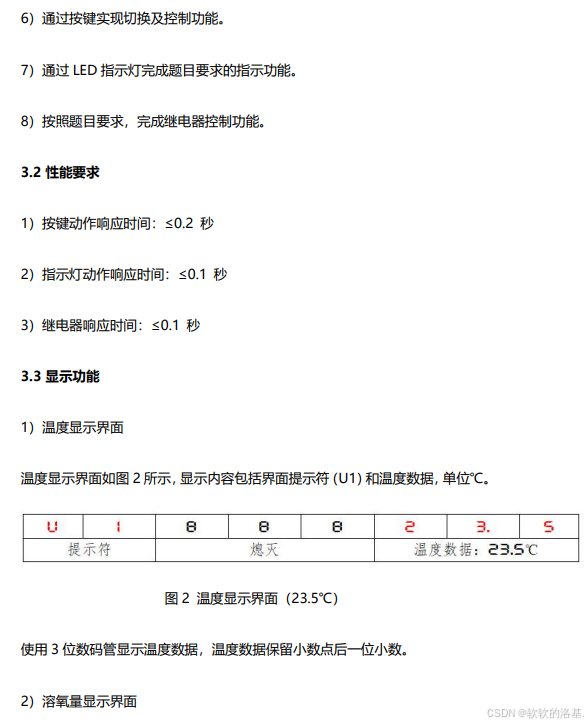

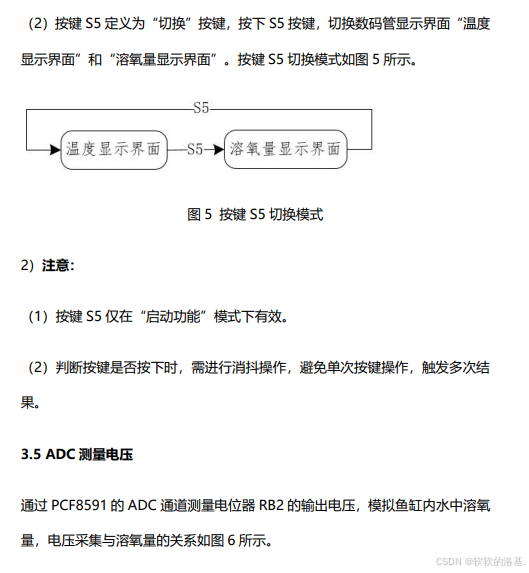

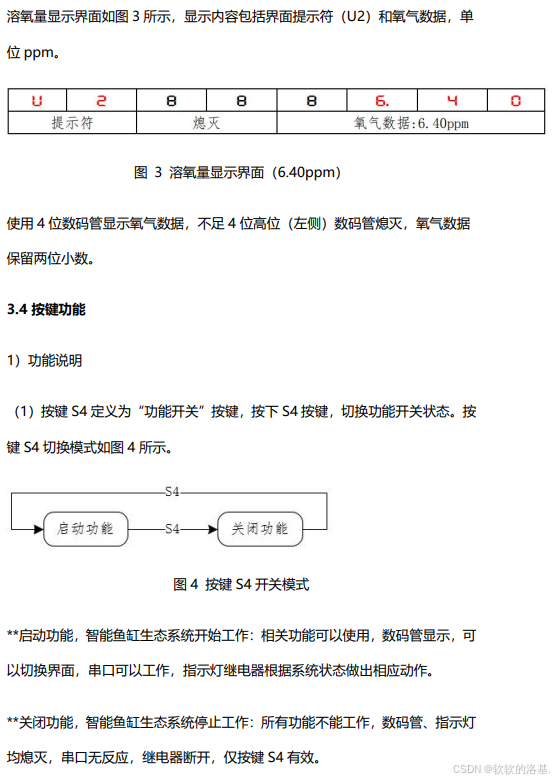

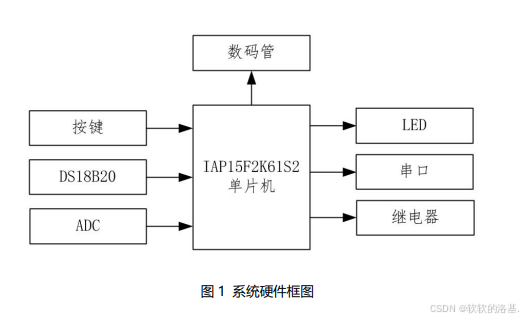

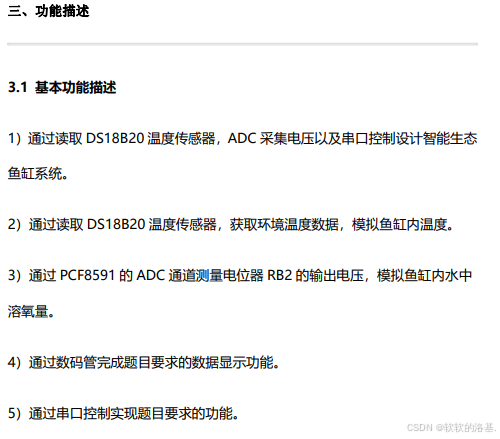

题目要求：







程序实现：

main.c

/*头文件声明区*/
#include <STC15F2K60S2.H>
#include <Init.h>
#include <Key.h>
#include <Led.h>
#include <Seg.h>
#include <Uart.h>
#include <Stdio.h>
#include <onewire.h>
#include <iic.h>
#include <String.h>

/*头文件变量声明区*/
unsigned char Key_val,Key_Down,Key_Up,Key_Old;
idata unsigned char Seg_Buf[8] = {16,16,16,16,16,16,16,16};
idata unsigned char Seg_Point[8] = {0,0,0,0,0,0,0,0};
idata unsigned char ucLed[8] = {0,0,0,0,0,0,0,0};
unsigned int Slow_Down;
bit Seg_flag,Key_flag;
idata unsigned char Uart_Recv[10];
unsigned char Uart_Recv_Index;
bit Uart_flag;
unsigned char Sys_Tick;
bit Seg_Disp_Mode;//0-温度显示界面 1-溶氧量显示界面
float T;
bit Qingdong;//0-关闭功能 1-启动功能
float dac;
float dac_Disp;
bit Toushi_Flag;
unsigned int Timer_3000ms;


void Delay750ms()		//@12.000MHz
{
	unsigned char i, j, k;

	_nop_();
	_nop_();
	i = 35;
	j = 51;
	k = 182;
	do
	{
		do
		{
			while (--k);
		} while (--j);
	} while (--i);
}


/*键盘处理函数*/
void Key_Proc()
{
	if(Key_flag) return;
	Key_flag = 1;

	Key_val = Key_Read();
	Key_Down = Key_val & (Key_val ^ Key_Old);
	Key_Up = ~Key_val & (Key_val ^ Key_Old);
	Key_Old = Key_val;

	switch(Key_Down)
	{
		case 4:
		  Qingdong ^= 1;
		if(Qingdong == 1)
			Seg_Disp_Mode = 0;
		break;
		case 5:
			if(Qingdong == 1)
			  Seg_Disp_Mode ^= 1;
		break;
	}
}

/*信息处理函数*/
void Seg_Proc()
{
	if(Seg_flag) return;
	Seg_flag = 1;

	T = rd_wendu();
	dac = Ad_read(0x43) / 51.0 * 2;
	if(Qingdong == 1)
	{
	if(Seg_Disp_Mode == 0)//温度显示界面
	{
		Seg_Buf[0] = 17;//U
		Seg_Buf[1] = 1;

		Seg_Buf[5] = (unsigned int)(T*10) / 100 % 10;
		Seg_Point[5] = 0;
		Seg_Buf[6] = (unsigned int)(T*10) / 10 % 10;
		Seg_Point[6] = 1;
		Seg_Buf[7] = (unsigned int)(T*10) % 10;
	}
	if(Seg_Disp_Mode == 1)//溶氧量显示界面
	{
		Seg_Buf[0] = 17;//U
		Seg_Buf[1] = 2;
		Seg_Buf[4] = (unsigned int)(dac*100) / 1000 % 10;
		Seg_Buf[5] = (unsigned int)(dac*100) / 100 % 10;
		Seg_Point[5] = 1;
		Seg_Buf[6] = (unsigned int)(dac*100) / 10 % 10;
		Seg_Point[6] = 0;
		Seg_Buf[7] = (unsigned int)(dac*100) % 10;
		if(Seg_Buf[4] == 0)
			Seg_Buf[4] = 16;
	}
	}
	if(Qingdong == 0)
	{
		Seg_Buf[0] = Seg_Buf[1] = Seg_Buf[4] = Seg_Buf[5] = Seg_Buf[6] = Seg_Buf[7] = 16;
		Seg_Point[5] = Seg_Point[6] = 0;
	}


}
/*其他显示函数*/
void Led_Proc()
{


	ucLed[0] = Qingdong;
	if(Qingdong==1)
	{
		Relay(dac < 3);
		ucLed[1] = (Seg_Disp_Mode == 0);
	  ucLed[2] = (Seg_Disp_Mode == 1);
	  ucLed[5] = (T>26||T<20);
  	ucLed[7] = Toushi_Flag;
	}
	else
	{
		ucLed[1] = ucLed[2] = ucLed[5] = ucLed[7] = 0;
		Relay(0);
	}



}
/*串口处理函数*/
void Uart_Proc()
{
	if(Uart_Recv_Index == 0) return;
	if(Sys_Tick >= 10)
	{
		Sys_Tick = Uart_flag = 0;
		if(Qingdong == 1)
		{
			if(Uart_Recv_Index == 1)
		{
			if(Uart_Recv[0] == '1')
			  printf("C:%.1f\r\n",T);
			if(Uart_Recv[0] == '2')
			  printf("D:%.2fppm\r\n",dac);
		}
		if(Uart_Recv_Index == 6)
		{
			if(Uart_Recv[0] == 'O'&&Uart_Recv[1] == 'p'&&Uart_Recv[2] == 'e'&&Uart_Recv[3] == 'n'&&Uart_Recv[4] == '\r'&&Uart_Recv[5] == '\n')
				Toushi_Flag = 1;
		}
		}
		memset(Uart_Recv,0,Uart_Recv_Index);
		Uart_Recv_Index = 0;
	}

}
/*定时器1初始化*/
void Timer1Init(void)		//1毫秒@12.000MHz
{
	AUXR &= 0xBF;		//定时器时钟12T模式
	TMOD &= 0x0F;		//设置定时器模式
	TL1 = 0x18;		//设置定时初值
	TH1 = 0xFC;		//设置定时初值
	TF1 = 0;		//清除TF1标志
	TR1 = 1;		//定时器1开始计时

	ET1 = 1;
	EA = 1;
}

/*定时器1中断服务程序*/
void Timer1server() interrupt 3
{
	if(++Slow_Down == 400)
    Seg_flag = Slow_Down = 0;
	if(Slow_Down % 10 == 0)
		Key_flag = 0;
	if(Uart_flag) Sys_Tick++;
	Seg_Disp(Slow_Down % 8,Seg_Buf[Slow_Down % 8],Seg_Point[Slow_Down % 8]);
	Led_Disp(Slow_Down % 8,ucLed[Slow_Down % 8]);

	if(Toushi_Flag == 1)
	{
		if(++Timer_3000ms==3000)
		{
			Toushi_Flag = 0;
			Timer_3000ms = 0;
 			printf("%s","Over!");
		}
	}
}

/*串口1中断服务程序*/
void Uart1server() interrupt 4
{
	if(RI == 1)
	{
		Sys_Tick = 0;
		Uart_flag = 1;
		Uart_Recv[Uart_Recv_Index] = SBUF;
		Uart_Recv_Index++;
		RI = 0;
	}
	if(Uart_Recv_Index > 10)
		Uart_Recv_Index = 0;
}
/*主函数*/
void main()
{
	T = rd_wendu();
	Delay750ms();
	System_Init();
	Timer1Init();
	UartInit();
  while(1)
	{
		Key_Proc();
		Seg_Proc();
		Led_Proc();
		Uart_Proc();
	}
}

 Uart.c

#include <Uart.h>
#include <Stdio.h>

void UartInit()		//9600bps@12.000MHz
{
	SCON = 0x50;		//8位数据,可变波特率
	AUXR |= 0x01;		//串口1选择定时器2为波特率发生器
	AUXR |= 0x04;		//定时器2时钟为Fosc,即1T
	T2L = 0xC7;		//设定定时初值
	T2H = 0xFE;		//设定定时初值
	AUXR |= 0x10;		//启动定时器2

	ES = 1;
	EA = 1;
}

extern char putchar (char ch)
{
	SBUF = ch;
	while(TI == 0);
	TI = 0;
	return ch;
}

 onewire.c

#include <onewire.h>

void Delay_OneWire(unsigned int t)
{
	unsigned char i;
	while(t--){
		for(i=0;i<12;i++);
	}
}

//
void Write_DS18B20(unsigned char dat)
{
	unsigned char i;
	for(i=0;i<8;i++)
	{
		DQ = 0;
		DQ = dat&0x01;
		Delay_OneWire(5);
		DQ = 1;
		dat >>= 1;
	}
	Delay_OneWire(5);
}

//
unsigned char Read_DS18B20(void)
{
	unsigned char i;
	unsigned char dat;

	for(i=0;i<8;i++)
	{
		DQ = 0;
		dat >>= 1;
		DQ = 1;
		if(DQ)
		{
			dat |= 0x80;
		}
		Delay_OneWire(5);
	}
	return dat;
}

//
bit init_ds18b20(void)
{
  	bit initflag = 0;

  	DQ = 1;
  	Delay_OneWire(12);
  	DQ = 0;
  	Delay_OneWire(80);
  	DQ = 1;
  	Delay_OneWire(10);
    initflag = DQ;
  	Delay_OneWire(5);

  	return initflag;
}

float rd_wendu()
{
	unsigned char low,high;
	init_ds18b20();
	Write_DS18B20(0xcc);
	Write_DS18B20(0x44);

	init_ds18b20();
	Write_DS18B20(0xcc);
	Write_DS18B20(0xbe);

	low = Read_DS18B20();
	high = Read_DS18B20();
	return((high << 8) | low) / 16.0;
}

iic.c

#include <iic.h>

#define DELAY_TIME	10

//
static void I2C_Delay(unsigned char n)
{
    do
    {
        _nop_();_nop_();_nop_();_nop_();_nop_();
        _nop_();_nop_();_nop_();_nop_();_nop_();
        _nop_();_nop_();_nop_();_nop_();_nop_();
    }
    while(n--);
}

//
void I2CStart(void)
{
    sda = 1;
    scl = 1;
	I2C_Delay(DELAY_TIME);
    sda = 0;
	I2C_Delay(DELAY_TIME);
    scl = 0;
}

//
void I2CStop(void)
{
    sda = 0;
    scl = 1;
	I2C_Delay(DELAY_TIME);
    sda = 1;
	I2C_Delay(DELAY_TIME);
}

//
void I2CSendByte(unsigned char byt)
{
    unsigned char i;

    for(i=0; i<8; i++){
        scl = 0;
		I2C_Delay(DELAY_TIME);
        if(byt & 0x80){
            sda = 1;
        }
        else{
            sda = 0;
        }
		I2C_Delay(DELAY_TIME);
        scl = 1;
        byt <<= 1;
		I2C_Delay(DELAY_TIME);
    }

    scl = 0;
}

//
unsigned char I2CReceiveByte(void)
{
	unsigned char da;
	unsigned char i;
	for(i=0;i<8;i++){
		scl = 1;
		I2C_Delay(DELAY_TIME);
		da <<= 1;
		if(sda)
			da |= 0x01;
		scl = 0;
		I2C_Delay(DELAY_TIME);
	}
	return da;
}

//
unsigned char I2CWaitAck(void)
{
	unsigned char ackbit;

    scl = 1;
	I2C_Delay(DELAY_TIME);
    ackbit = sda;
    scl = 0;
	I2C_Delay(DELAY_TIME);

	return ackbit;
}

//
void I2CSendAck(unsigned char ackbit)
{
    scl = 0;
    sda = ackbit;
	I2C_Delay(DELAY_TIME);
    scl = 1;
	I2C_Delay(DELAY_TIME);
    scl = 0;
	sda = 1;
	I2C_Delay(DELAY_TIME);
}

unsigned char Ad_read(unsigned char addr)
{
	unsigned char temp;
	I2CStart();
	I2CSendByte(0x90);
	I2CWaitAck();
	I2CSendByte(addr);
	I2CWaitAck();

	I2CStart();
	I2CSendByte(0x91);
	I2CWaitAck();
	temp = I2CReceiveByte();
	I2CSendAck(1);
	I2CStop();
	return temp;
}

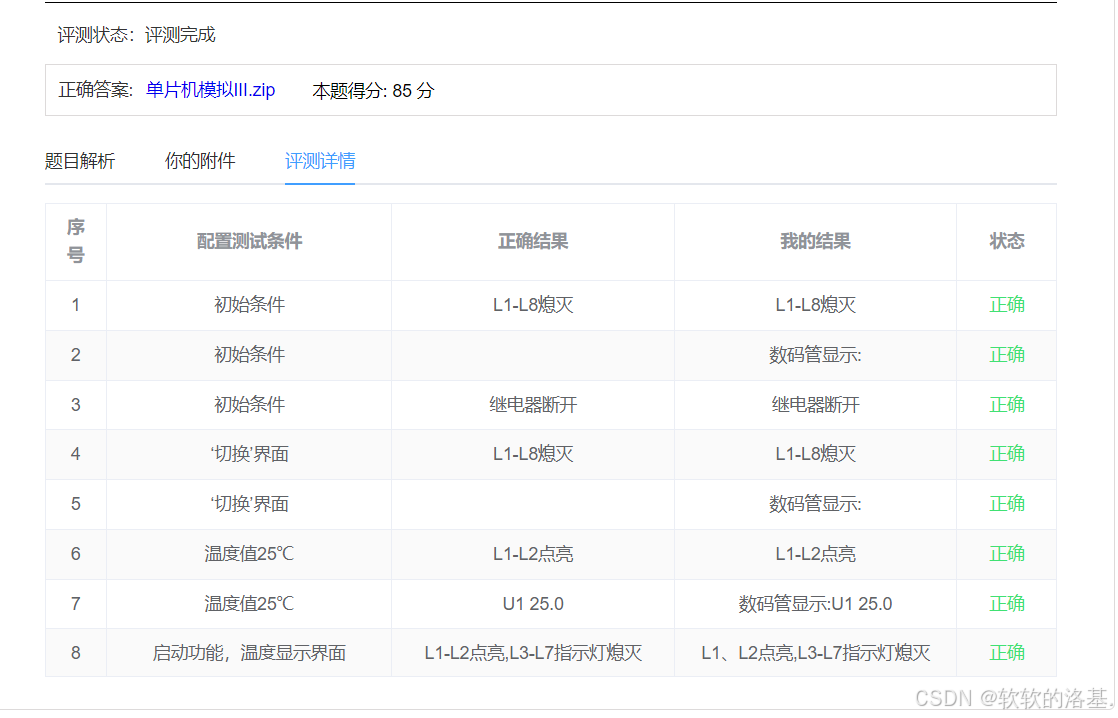

测试结果：

补充：

        第14届模拟题目均考察了串口，还有超声波，在备考蓝桥杯单片机的时候，刷完14届模拟题你的串口就掌握差不多了，希望我对你有所帮助！
