JSBridge

JSBridge优化解决方案

适用场景

应用使用ArkTS、C++语言混合开发,或本身应用架构较贴近于小程序架构,自带C++侧环境, 推荐使用ArkWeb在Native侧提供的ArkWeb_ControllerAPI、ArkWeb_ComponentAPI实现JSBridge功能。

上图为具有普适性的小程序一般架构,其中逻辑层需要应用自带JavaScript运行时,本身已存在C++环境,通过Native接口可直接在C++环境中完成与视图层(ArkWeb作为渲染器)的通信,无需再返回ArkTS环境调用JSBridge相关接口。

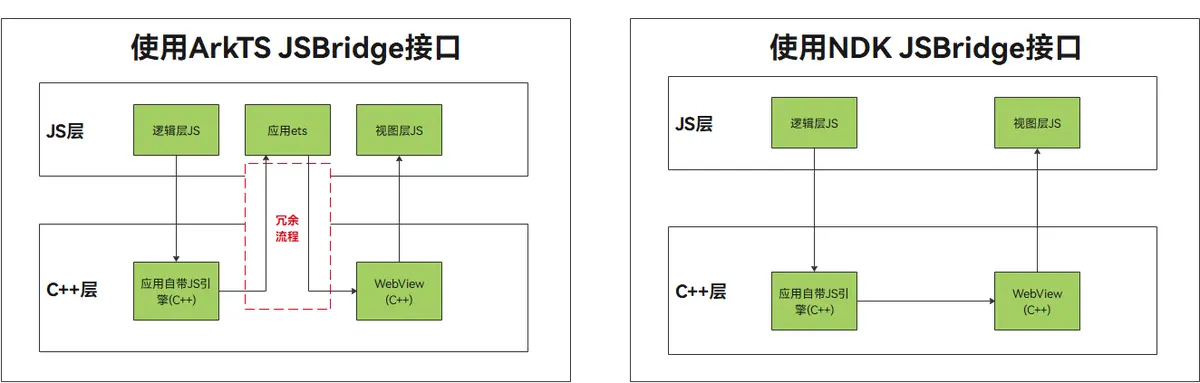

Native JSBridge方案可以解决ArkTS环境的冗余切换,同时允许回调在非UI线程上报,避免造成UI阻塞。

实践案例

案例一:使用ArkTS接口实现JSBridge通信。

应用侧代码:

import { webview } from '@kit.ArkWeb';

@Entry
@Component
struct WebComponent {
  webviewController: webview.WebviewController = new webview.WebviewController();

  aboutToAppear() {
    // 配置Web开启调试模式
    webview.WebviewController.setWebDebuggingAccess(true);
  }

  build() {
    Column() {
      Button('runJavaScript')
        .onClick(() => {
          console.info('现在时间是:' + new Date().getTime());
          // 前端页面函数无参时,将param删除。
          this.webviewController.runJavaScript('htmlTest(param)');
        })
      Button('runJavaScriptCodePassed')
        .onClick(() => {
          // 传递runJavaScript侧代码方法。
          this.webviewController.runJavaScript(`function changeColor(){document.getElementById('text').style.color = 'red'}`);
        })
      Web({ src: $rawfile('index.html'), controller: this.webviewController })
    }
  }
}

前端页面代码:

<!DOCTYPE html>
<html>
<body>
<button type="button" onclick="callArkTS()">Click Me!</button>
<h1 id="text">这是一个测试信息,默认字体为黑色,调用runJavaScript方法后字体为绿色,调用runJavaScriptCodePassed方法后字体为红色</h1>
<script>
    // 调用有参函数时实现。
    var param = "param: JavaScript Hello World!";
    function htmlTest(param) {
      document.getElementById('text').style.color = 'green';
      document.getElementById('text').innerHTML = '现在时间:'+new Date().getTime()
      console.log(param);
    }
    // 调用无参函数时实现。
    function htmlTest() {
      document.getElementById('text').style.color = 'green';
      document.getElementById('text').innerHTML = '现在时间:'+new Date().getTime();
    }
    // Click Me!触发前端页面callArkTS()函数执行JavaScript传递的代码。
    function callArkTS() {
      changeColor();
    }
</script>
</body>
</html>

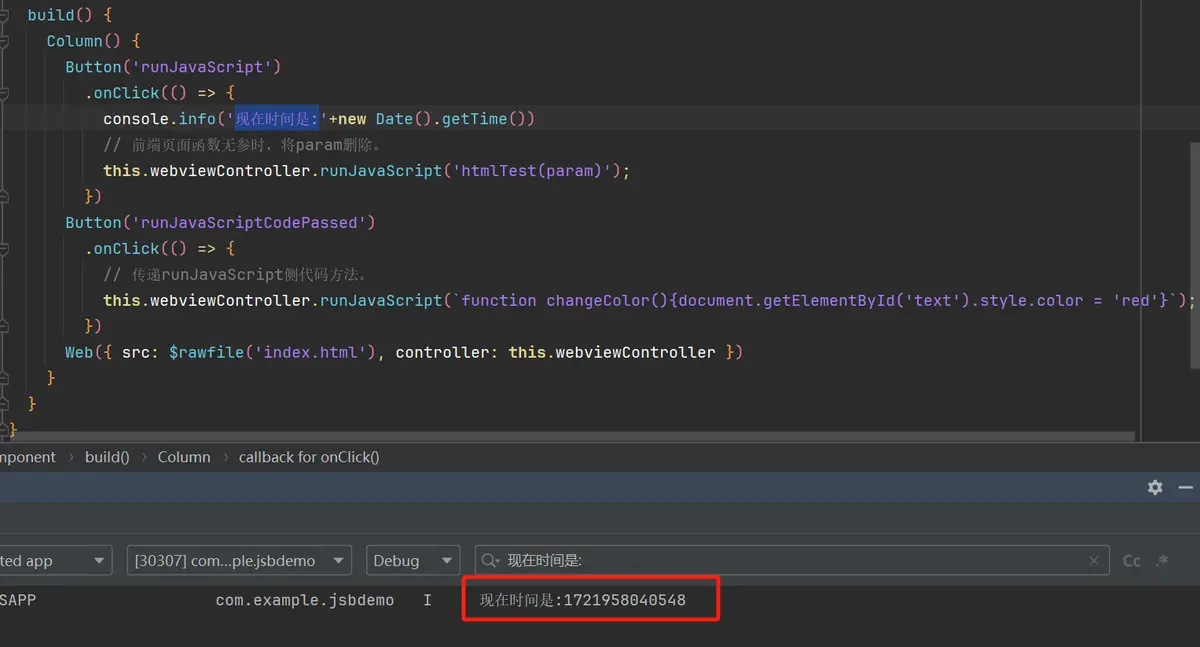

点击runJavaScript按钮后触发h5页面htmlTest方法,使得页面内容变更为当前时间戳,如下图所示:

经过多轮测试,可以得出从点击原生button到h5触发htmlTest方法,耗时约7ms~9ms。

案例二:使用NDK接口实现JSBridge通信。

应用侧代码:

import testNapi from 'libentry.so';
import { webview } from '@kit.ArkWeb';

class testObj {
  constructor() {
  }

  test(): string {
    console.log('ArkUI Web Component');
    return "ArkUI Web Component";
  }

  toString(): void {
    console.log('Web Component toString');
  }
}

@Entry
@Component
struct Index {
  webTag: string = 'ArkWeb1';
  controller: webview.WebviewController &#
