mycat---部署---

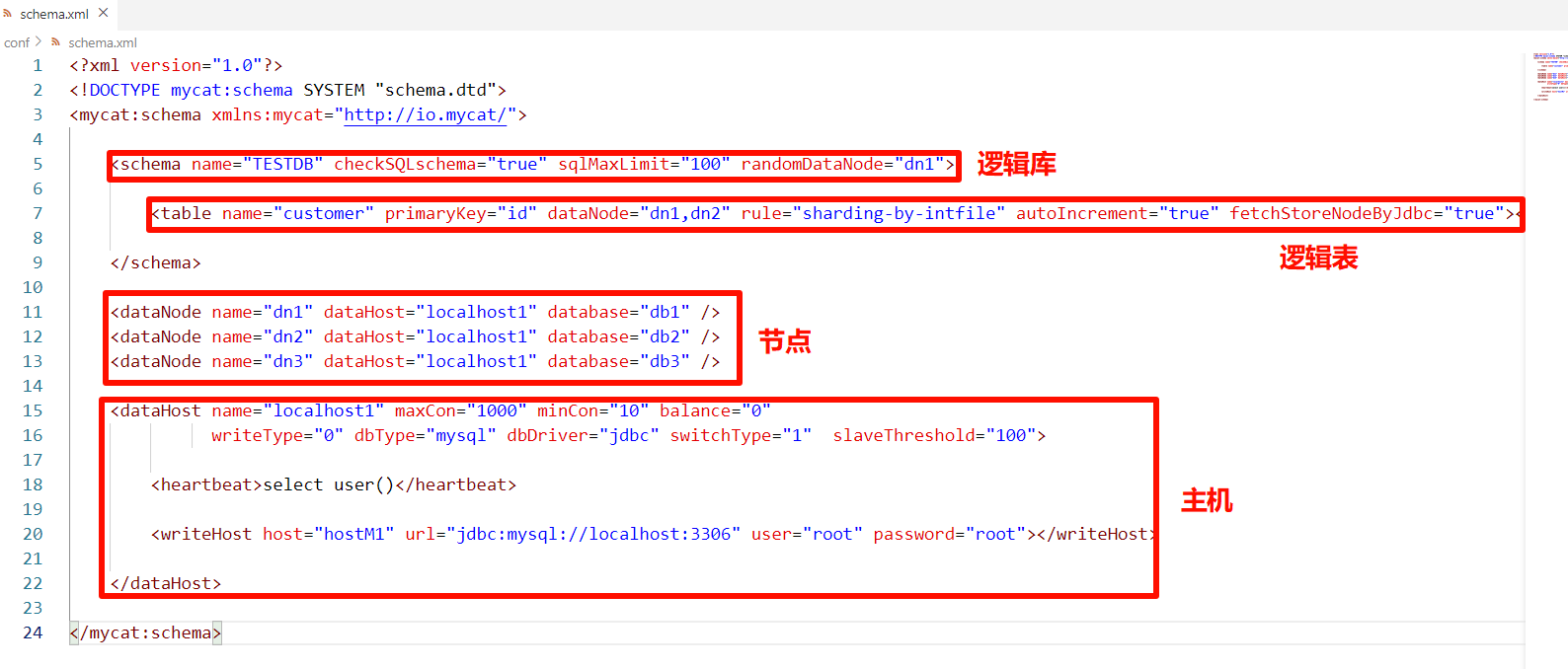

mycat/conf/schema.xml

<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">

	<!-- 逻辑库 -->
	<schema name="db01" checkSQLschema="true" sqlMaxLimit="100" >

		<!-- 逻辑表 -->
		<table name="TB_ORDER" primaryKey="id" dataNode="dn1,dn2,dn3" rule="auto-sharding-long" autoIncrement="true" fetchStoreNodeByJdbc="true">
		</table>
	</schema>

	<!-- 三个节点 -->
	<dataNode name="dn1" dataHost="dhost01" database="db01" />
	<dataNode name="dn2" dataHost="dhost02" database="db01" />
	<dataNode name="dn3" dataHost="dhost03" database="db01" />


	<!-- master01 -->
	<dataHost name="dhost01" maxCon="1000" minCon="10" balance="0"
			  writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>

		<writeHost host="hostM"
					url="jdbc:mysql://192.168.121.134:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8"
					user="root"
					password="123456">
		</writeHost>

	</dataHost>

	<!-- master02 -->
	<dataHost name="dhost02" maxCon="1000" minCon="10" balance="0"
			  writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>

		<writeHost host="hostM"
					url="jdbc:mysql://192.168.121.135:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8"
					user="root"
					password="123456">
		</writeHost>

	</dataHost>

	<!-- master03 -->
	<dataHost name="dhost03" maxCon="1000" minCon="10" balance="0"
			  writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>

		<writeHost host="hostM"
					url="jdbc:mysql://192.168.121.136:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8"
					user="root"
					password="123456">
		</writeHost>

	</dataHost>

</mycat:schema>

mycat/conf/server.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- - - Licensed under the Apache License, Version 2.0 (the "License");
	- you may not use this file except in compliance with the License. - You
	may obtain a copy of the License at - - http://www.apache.org/licenses/LICENSE-2.0
	- - Unless required by applicable law or agreed to in writing, software -
	distributed under the License is distributed on an "AS IS" BASIS, - WITHOUT
	WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. - See the
	License for the specific language governing permissions and - limitations
	under the License. -->
<!DOCTYPE mycat:server SYSTEM "server.dtd">
<mycat:server xmlns:mycat="http://io.mycat/">
	<system>
	<property name="nonePasswordLogin">0</property> <!-- 0为需要密码登陆、1为不需要密码登陆 ,默认为0，设置为1则需要指定默认账户-->
	<property name="ignoreUnknownCommand">0</property><!-- 0遇上没有实现的报文(Unknown command:),就会报错、1为忽略该报文，返回ok报文。
	在某些mysql客户端存在客户端已经登录的时候还会继续发送登录报文,mycat会报错,该设置可以绕过这个错误-->
	<property name="useHandshakeV10">1</property>
    <property name="removeGraveAccent">1</property>
	<property name="useSqlStat">0</property>  <!-- 1为开启实时统计、0为关闭 -->
	<property name="useGlobleTableCheck">0</property>  <!-- 1为开启全加班一致性检测、0为关闭 -->
	<property name="sqlExecuteTimeout">300</property>  <!-- SQL 执行超时 单位:秒-->
		<property name="sequenceHandlerType">1</property>
	<!--<property name="sequnceHandlerPattern">(?:(\s*next\s+value\s+for\s*MYCATSEQ_(\w+))(,|\)|\s)*)+</property>
	INSERT INTO `travelrecord` (`id`,user_id) VALUES ('next value for MYCATSEQ_GLOBAL',"xxx");
	-->
	<!--必须带有MYCATSEQ_或者 mycatseq_进入序列匹配流程 注意MYCATSEQ_有空格的情况-->
	<property name="sequnceHandlerPattern">(?:(\s*next\s+value\s+for\s*MYCATSEQ_(\w+))(,|\)|\s)*)+</property>
	<property name="subqueryRelationshipCheck">false</property> <!-- 子查询中存在关联查询的情况下,检查关联字段中是否有分片字段 .默认 false -->
	<property name="sequenceHanlderClass">io.mycat.route.sequence.handler.HttpIncrSequenceHandler</property>
      <!--  <property name="useCompression">1</property>--> <!--1为开启mysql压缩协议-->
        <!--  <property name="fakeMySQLVersion">5.6.20</property>--> <!--设置模拟的MySQL版本号-->
	<!-- <property name="processorBufferChunk">40960</property> -->
	<!--
	<property name="processors">1</property>
	<property name="processorExecutor">32</property>
	 -->
        <!--默认为type 0: DirectByteBufferPool | type 1 ByteBufferArena | type 2 NettyBufferPool -->
		<property name="processorBufferPoolType">0</property>
		<!--默认是65535 64K 用于sql解析时最大文本长度 -->
		<!--<property name="maxStringLiteralLength">65535</property>-->
		<!--<property name="sequenceHandlerType">0</property>-->
		<!--<property name="backSocketNoDelay">1</property>-->
		<!--<property name="frontSocketNoDelay">1</property>-->
		<!--<property name="processorExecutor">16</property>-->
		<!--

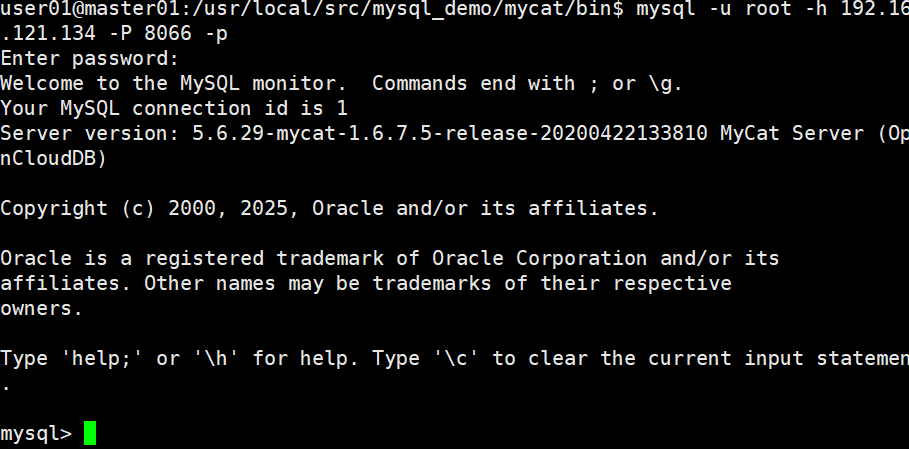

			<property name="serverPort">8066</property> <property name="managerPort">9066</property>
			<property name="idleTimeout">300000</property> <property name="bindIp">0.0.0.0</property>
			<property name="dataNodeIdleCheckPeriod">300000</property> 5 * 60 * 1000L; //连接空闲检查
			<property name="frontWriteQueueSize">4096</property> <property name="processors">32</property> -->
		<!--分布式事务开关，0为不过滤分布式事务，1为过滤分布式事务（如果分布式事务内只涉及全局表，则不过滤），2为不过滤分布式事务,但是记录分布式事务日志-->
		<property name="handleDistributedTransactions">0</property>

			<!--
			off heap for merge/order/group/limit      1开启   0关闭
		-->
		<property name="useOffHeapForMerge">0</property>

		<!--
			单位为m
		-->
        <property name="memoryPageSize">64k</property>

		<!--
			单位为k
		-->
		<property name="spillsFileBufferSize">1k</property>

		<property name="useStreamOutput">0</property>

		<!--
			单位为m
		-->
		<property name="systemReserveMemorySize">384m</property>


		<!--是否采用zookeeper协调切换  -->
		<property name="useZKSwitch">false</property>

		<!-- XA Recovery Log日志路径 -->
		<!--<property name="XARecoveryLogBaseDir">./</property>-->

		<!-- XA Recovery Log日志名称 -->
		<!--<property name="XARecoveryLogBaseName">tmlog</property>-->
		<!--如果为 true的话 严格遵守隔离级别,不会在仅仅只有select语句的时候在事务中切换连接-->
		<property name="strictTxIsolation">false</property>
		<!--如果为0的话,涉及多个DataNode的catlet任务不会跨线程执行-->
		<property name="parallExecute">0</property>
	</system>

	<!-- 全局SQL防火墙设置 -->
	<!--白名单可以使用通配符%或着*-->
	<!--例如<host host="127.0.0.*" user="root"/>-->
	<!--例如<host host="127.0.*" user="root"/>-->
	<!--例如<host host="127.*" user="root"/>-->
	<!--例如<host host="1*7.*" user="root"/>-->
	<!--这些配置情况下对于127.0.0.1都能以root账户登录-->
	<!--
	<firewall>
	   <whitehost>
	      <host host="1*7.0.0.*" user="root"/>
	   </whitehost>
       <blacklist check="false">
       </blacklist>
	</firewall>
	-->

	<user name="root" defaultAccount="true">
		<property name="password">123456</property>

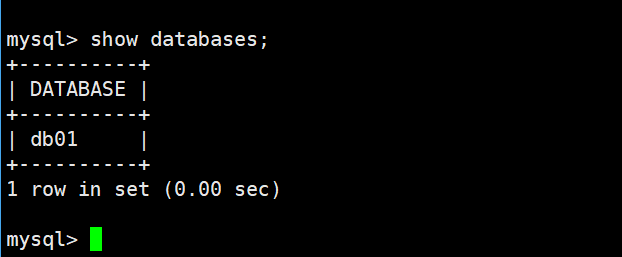

		<property name="schemas">db01</property>
		<!--No MyCAT Database selected 错误前会尝试使用该schema作为schema，不设置则为null,报错 -->

		<!-- 表级 DML 权限设置 -->
		<!--
		<privileges check="false">
			<schema name="TESTDB" dml="0110" >
				<table name="tb01" dml="0000"></table>
				<table name="tb02" dml="1111"></table>
			</schema>
		</privileges>
		 -->
	</user>

	<user name="user">
		<property name="password">user</property>
		<property name="schemas">db01</property>
		<property name="readOnly">true</property>
	</user>

</mycat:server>

mycat/conf/rule.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- - - Licensed under the Apache License, Version 2.0 (the "License");
	- you may not use this file except in compliance with the License. - You
	may obtain a copy of the License at - - http://www.apache.org/licenses/LICENSE-2.0
	- - Unless required by applicable law or agreed to in writing, software -
	distributed under the License is distributed on an "AS IS" BASIS, - WITHOUT
	WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. - See the
	License for the specific language governing permissions and - limitations
	under the License. -->
<!DOCTYPE mycat:rule SYSTEM "rule.dtd">
<mycat:rule xmlns:mycat="http://io.mycat/">
	<tableRule name="rule1">
		<rule>
			<columns>id</columns>
			<algorithm>func1</algorithm>
		</rule>
	</tableRule>

	<tableRule name="sharding-by-date">
		<rule>
			<columns>createTime</columns>
			<algorithm>partbyday</algorithm>
		</rule>
	</tableRule>

	<tableRule name="rule2">
		<rule>
			<columns>user_id</columns>
			<algorithm>func1</algorithm>
		</rule>
	</tableRule>

	<tableRule name="sharding-by-intfile">
		<rule>
			<columns>sharding_id</columns>
			<algorithm>hash-int</algorithm>
		</rule>
	</tableRule>
	<tableRule name="auto-sharding-long">
		<rule>
			<columns>id</columns>
			<algorithm>rang-long</algorithm>
		</rule>
	</tableRule>
	<tableRule name="mod-long">
		<rule>
			<columns>id</columns>
			<algorithm>mod-long</algorithm>
		</rule>
	</tableRule>
	<tableRule name="sharding-by-murmur">
		<rule>
			<columns>id</columns>
			<algorithm>murmur</algorithm>
		</rule>
	</tableRule>
	<tableRule name="crc32slot">
		<rule>
			<columns>id</columns>
			<algorithm>crc32slot</algorithm>
		</rule>
	</tableRule>
	<tableRule name="sharding-by-month">
		<rule>
			<columns>create_time</columns>
			<algorithm>partbymonth</algorithm>
		</rule>
	</tableRule>
	<tableRule name="latest-month-calldate">
		<rule>
			<columns>calldate</columns>
			<algorithm>latestMonth</algorithm>
		</rule>
	</tableRule>

	<tableRule name="auto-sharding-rang-mod">
		<rule>
			<columns>id</columns>
			<algorithm>rang-mod</algorithm>
		</rule>
	</tableRule>

	<tableRule name="jch">
		<rule>
			<columns>id</columns>
			<algorithm>jump-consistent-hash</algorithm>
		</rule>
	</tableRule>

	<function name="murmur"
			  class="io.mycat.route.function.PartitionByMurmurHash">
		<property name="seed">0</property><!-- 默认是0 -->
		<property name="count">2</property><!-- 要分片的数据库节点数量，必须指定，否则没法分片 -->
		<property name="virtualBucketTimes">160</property><!-- 一个实际的数据库节点被映射为这么多虚拟节点，默认是160倍，也就是虚拟节点数是物理节点数的160倍 -->
		<!-- <property name="weightMapFile">weightMapFile</property> 节点的权重，没有指定权重的节点默认是1。以properties文件的格式填写，以从0开始到count-1的整数值也就是节点索引为key，以节点权重值为值。所有权重值必须是正整数，否则以1代替 -->
		<!-- <property name="bucketMapPath">/etc/mycat/bucketMapPath</property>
			用于测试时观察各物理节点与虚拟节点的分布情况，如果指定了这个属性，会把虚拟节点的murmur hash值与物理节点的映射按行输出到这个文件，没有默认值，如果不指定，就不会输出任何东西 -->
	</function>

	<function name="crc32slot"
			  class="io.mycat.route.function.PartitionByCRC32PreSlot">
		<property name="count">2</property><!-- 要分片的数据库节点数量，必须指定，否则没法分片 -->
	</function>
	<function name="hash-int"
			  class="io.mycat.route.function.PartitionByFileMap">
		<property name="mapFile">partition-hash-int.txt</property>
	</function>
	<function name="rang-long"
			  class="io.mycat.route.function.AutoPartitionByLong">

		<property name="mapFile">autopartition-long.txt</property>
	</function>
	<function name="mod-long" class="io.mycat.route.function.PartitionByMod">
		<!-- how many data nodes -->
		<property name="count">3</property>
	</function>

	<function name="func1" class="io.mycat.route.function.PartitionByLong">
		<property name="partitionCount">8</property>
		<property name="partitionLength">128</property>
	</function>
	<function name="latestMonth"
			  class="io.mycat.route.function.LatestMonthPartion">
		<property name="splitOneDay">24</property>
	</function>
	<function name="partbymonth"
			  class="io.mycat.route.function.PartitionByMonth">
		<property name="dateFormat">yyyy-MM-dd</property>
		<property name="sBeginDate">2015-01-01</property>
	</function>


	<function name="partbyday"
			  class="io.mycat.route.function.PartitionByDate">
		<property name="dateFormat">yyyy-MM-dd</property>
		<property name="sNaturalDay">0</property>
		<property name="sBeginDate">2014-01-01</property>
		<property name="sEndDate">2014-01-31</property>
		<property name="sPartionDay">10</property>
	</function>

	<function name="rang-mod" class="io.mycat.route.function.PartitionByRangeMod">
		<property name="mapFile">partition-range-mod.txt</property>
	</function>

	<function name="jump-consistent-hash" class="io.mycat.route.function.PartitionByJumpConsistentHash">
		<property name="totalBuckets">3</property>
	</function>
</mycat:rule>

测试数据

-- 创建表，指定InnoDB引擎和UTF-8字符集
CREATE TABLE tb_order (
    id INT NOT NULL PRIMARY KEY,
    name VARCHAR(100) NOT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

-- 插入5条示例数据
INSERT INTO tb_order (id, name) VALUES
(1001, '电子产品订单'),
(1002, '服装批发订单'),
(1003, '生鲜食品订单'),
(1004, '办公家具订单'),
(1005, '图书采购订单');

-- 或者插入更随机的数据（可选）
-- INSERT INTO tb_order (name) VALUES
-- (CONCAT('订单-', FLOOR(RAND() * 10000))),
-- (CONCAT('订单-', FLOOR(RAND() * 10000))),
-- (CONCAT('订单-', FLOOR(RAND() * 10000))),
-- (CONCAT('订单-', FLOOR(RAND() * 10000))),
-- (CONCAT('订单-', FLOOR(RAND() * 10000)));
