Docker【部署 02】可视化工具DockerUI和Shipyard安装使用实例_dockerui安装

start container with image, and publish 8999 port to your port

docker container run --rm --name docker.ui -v /var/run/docker.sock:/var/run/docker.sock -p 8999:8999 joinsunsoft/docker.ui

Visit the browser tool
 Now, you can visit like as [http://hostname:8999]( )
 Default Username/Password ginghan/123456
 Enjoy it now.


### 1.3 界面展示

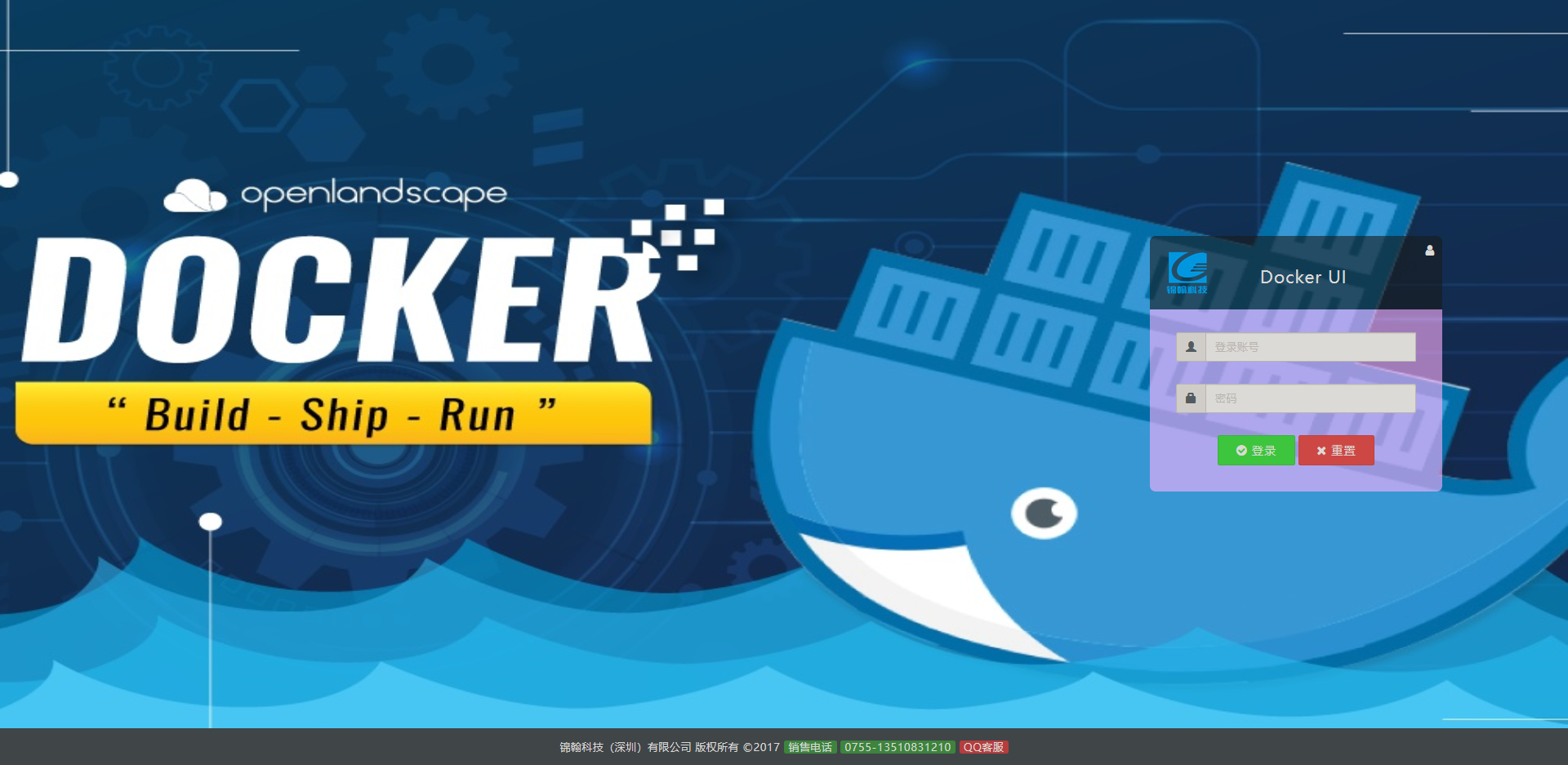

登录界面：


![在这里插入图片描述](https://img-blog.csdnimg.cn/058e03755aa24a70a7c6d9360e624e8a.png#pic_center)

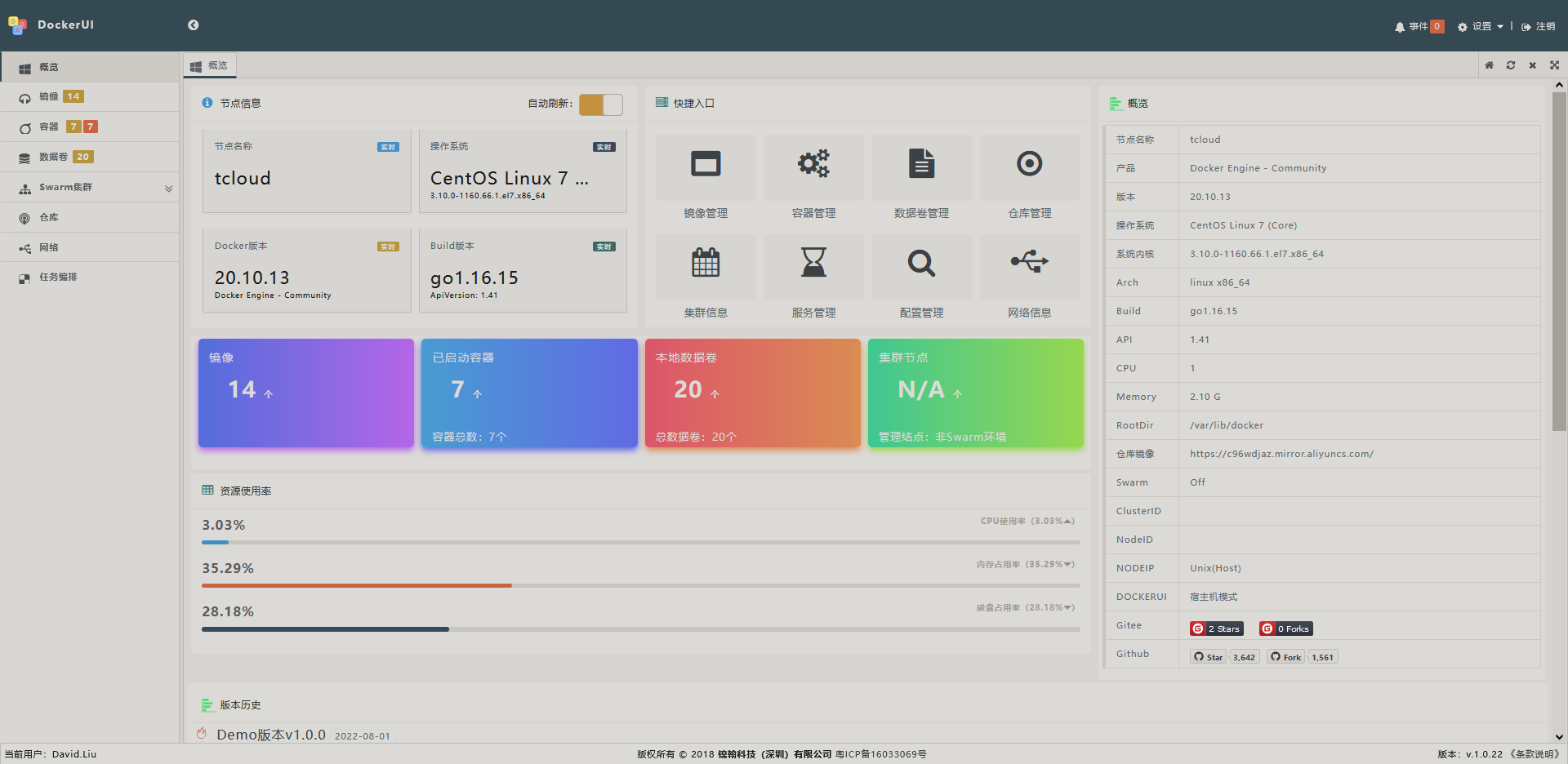

 首页：


![在这里插入图片描述](https://img-blog.csdnimg.cn/85b9115702f84a9a8d49468d0d77e3cc.png#pic_center)


镜像管理：


![在这里插入图片描述](https://img-blog.csdnimg.cn/dab18e6af1bb40b6bfca4e7ff6cb4c9a.png#pic_center)


### 1.4 总结


* 开源且安装简单
* 中文界面交互友好
* 可执行的操作全面


## 2.Shipyard


### 2.1 简介


Docker Swarm 是 Docker 的集群管理工具。Shipyard基于Docker Swarm而创建，能够管理Docker资源，包括容器、镜像、私有仓库等。
 Shipyard与其他管理应用程序的不同之处在于具有可组合性，并与Docker远程API 完全兼容。Shipyard管理集群范围内的容器、镜像、节点、私有仓库，并提供身份验证和基于角色的访问控制。


* 用户界面


Shipyard提供便于Docker集群管理的用户界面。它可以管理容器、集群镜像、私有仓库、身份验证等。


* API


Shipyard的核心是API，其Web操作页面最终均使用API实现所有功能。通过使用服务密钥，可以直接与API交互来管理Docker Swarm集群并构建定制集成。


* Database


RethinkDB用于存储帐户、引擎、服务密钥和元数据信息。它不用于存储关于Docker容器或镜像的任何信息。/data目录作为卷公开。


<https://shipyard-project.com/manual-deployment/>


### 2.2 安装


#### 2.2.1 Datastore


As mentioned, Shipyard uses RethinkDB for the datastore. First we will launch a RethinkDB container.

docker run
-ti
-d
–restart=always
–name shipyard-rethinkdb
rethinkdb

#### 2.2.2 Discovery


To enable Swarm leader election, we must use an external key value store from the Swarm container. For this example, we will use [etcd]( ) however, you can use any key/value backend supported by Swarm.

docker run
-ti
-d
-p 4001:4001
-p 7001:7001
–restart=always
–name shipyard-discovery
microbox/etcd -name discovery

#### 2.2.3 Proxy


By default, the Docker Engine only listens on a socket. We could re-configure the Engine to use TLS or you can use a proxy container. This is a very lightweight container that simply forwards requests from TCP to the Unix socket that Docker listens on.
 Note: You do not need this if you are using a manual TCP / TLS configuration.

docker run
-ti
-d
-p 2375:2375
–hostname=$HOSTNAME
–restart=always
–name shipyard-proxy
-v /var/run/docker.sock:/var/run/docker.sock
-e PORT=2375
shipyard/docker-proxy:latest

#### 2.2.4 Swarm Manager


This will run a Swarm container configured to manage.

格式

docker run
-ti
-d
–restart=always
–name shipyard-swarm-manager
swarm:latest
manage --host tcp://0.0.0.0:3375 etcd://:4001

实例

docker run
-ti
-d
–restart=always
–name shipyard-swarm-manager
swarm:latest
manage --host tcp://0.0.0.0:3375 etcd://172.17.0.8:4001

#### 2.2.5 Swarm Agent


官网的坑：


![在这里插入图片描述](https://img-blog.csdnimg.cn/ea42b4b03cab4b7d8255fc32e61fe49e.png#pic_center)


This will run a Swarm container configured to manage.

格式

docker run
-ti
-d
–name shipyard-swarm-agent docker.io/swarm join
–addr [IP-OF-HOST]:[LOCAL-DOCKER-PORT] etcd://[IP-OF-ETCD-HOST]:4001

实例

docker run
-ti
-d
–name shipyard-swarm-agent swarm join
–addr 172.17.0.8:2375 etcd://172.17.0.8:4001

#### 2.2.6 Controller


This runs the Shipyard Controller.

docker run
-ti
-d
–restart=always
–name shipyard-controller
–link shipyard-rethinkdb:rethinkdb
–link shipyard-swarm-manager:swarm
-p 8080:8080
shipyard/shipyard:latest
server
-d tcp://swarm:3375

Once the controller is launched and the controller has initialized the datastore you should be able to login via http://[ip-of-host]:8080. User:admin Password:shipyard
