[centos@ip-10-0-2-153 bin]$ ./elasticsearch -d
future versions of Elasticsearch will require Java 11; your Java version from [/home/deploy/java8/jre] does not meet this requirement
[centos@ip-10-0-2-153 bin]$ ERROR: [1] bootstrap checks failed
[1]: max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]

[1]: max file descriptors [4096] for elasticsearch process is too low, increase to at least [65535]

Exception in thread "main" java.nio.file.AccessDeniedException: /usr/local/elk/elasticsearch/config/jvm.options
	at sun.nio.fs.UnixException.translateToIOException(UnixException.java:84)
	at sun.nio.fs.UnixException.rethrowAsIOException(UnixException.java:102)
	at sun.nio.fs.UnixException.rethrowAsIOException(UnixException.java:107)
	at sun.nio.fs.UnixFileSystemProvider.newByteChannel(UnixFileSystemProvider.java:214)
	at java.nio.file.Files.newByteChannel(Files.java:361)
	at java.nio.file.Files.newByteChannel(Files.java:407)
	at java.nio.file.spi.FileSystemProvider.newInputStream(FileSystemProvider.java:384)
	at java.nio.file.Files.newInputStream(Files.java:152)
	at org.elasticsearch.tools.launchers.JvmOptionsParser.main(JvmOptionsParser.java:62)

解决办法：

A、出现future versions of Elasticsearch will require Java 11; your Java version from [/home/deploy/java8/jre] does not meet this requirement，这个报错是因为elasticsearch默认是要java11的，但这个时候是向下兼容，则可以不考虑

B、出现[1]: max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]

我们只需要切换为root用户执行一下操作就可以

[root@ip-10-0-2-153 elk]# vi /etc/sysctl.conf
[root@ip-10-0-2-153 elk]# tail -1 /etc/sysctl.conf
vm.max_map_count=655360
[root@ip-10-0-2-153 elk]# sysctl -p
vm.max_map_count = 655360

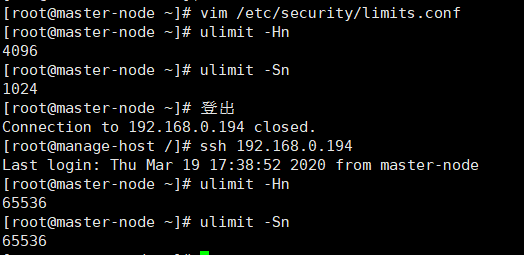

C、出现 **[1]: max file descriptors [4096] for elasticsearch process is too low, increase to at least [65535]**是因为每个进程最大同时打开文件数太小，可通过下面2个命令查看当前数量，解决办法在/etc/security/limits.conf最后添加一下内容，退出后重新登陆生效

*               soft    nofile          65536
*               hard    nofile          65536

D、出现Exception in thread “main” java.nio.file.AccessDeniedException: /usr/local/elk/elasticsearch/config/jvm.options，是因为使用非root用户执行是没有权限，解决办法

chown -R elk.elk elasticsearch/

重新启动后

[centos@ip-10-0-2-153 ~]$ cd /usr/local/elk/elasticsearch/bin/
[centos@ip-10-0-2-153 bin]$ ./elasticsearch -d
future versions of Elasticsearch will require Java 11; your Java version from [/home/deploy/java8/jre] does not meet this requirement

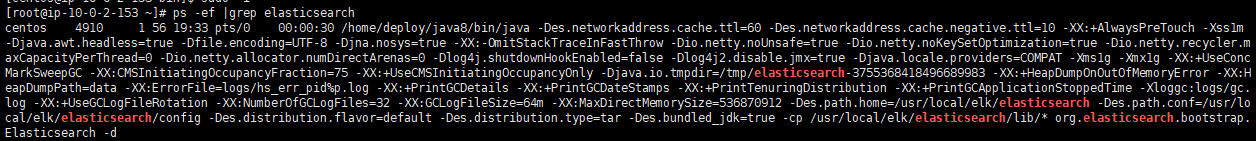

查询进程是否已启动

第二在从的主机上部署，部署过程和主一致

其中配置文件有配置如下，其余一致

#集群名称
cluster.name: cpct
# 节点名称
node.name: ip-10-0-2-111
# 存放数据目录,先创建该目录
path.data: /usr/local/elk/elasticsearch/data
# 存放日志目录,先创建该目录
path.logs: /usr/local/elk/elasticsearch/logs
# 节点IP
network.host: 10.0.2.111
# tcp端口
transport.tcp.port: 9300
# http端口
http.port: 9200
# 种子节点列表，主节点的IP地址必须在seed_hosts中
discovery.seed_hosts: ["10.0.2.153:9300","10.0.2.111:9300"]
# 主合格节点列表，若有多个主节点，则主节点进行对应的配置
cluster.initial_master_nodes: ["10.0.2.153:9300"]
# 主节点相关配置

# 是否允许作为主节点
node.master: false
# 是否保存数据
node.data: true
node.ingest: false
node.ml: false
cluster.remote.connect: false

# 跨域
http.cors.enabled: true
http.cors.allow-origin: "*"
http.cors.allow-methods: OPTIONS, HEAD, GET, POST, PUT, DELETE
http.cors.allow-headers: "X-Requested-With, Content-Type, Content-Length, X-User"

第三在主的主机上配置elasticsearch-head

安装node服务

[root@ip-10-0-2-153 updates]# tar -xf node-v10.15.3-linux-x64.tar.gz
[root@ip-10-0-2-153 updates]# mv node-v10.15.3-linux-x64 ../
[root@ip-10-0-2-153 updates]# cd ../
[root@ip-10-0-2-153 elk]# mv node-v10.15.3-linux-x64/ node
[root@ip-10-0-2-153 elk]# tail -2 /etc/profile
export NODE_HOME=/usr/local/elk/node
export PATH=$NODE_HOME/bin:$PATH
[root@ip-10-0-2-153 elk]# source /etc/profile
[root@ip-10-0-2-153 elk]# node -v
v10.15.3

2）从github上下载elasticsearch-node

[root@ip-10-0-2-153 elasticsearch-head]# yum -y install bzip2
[root@ip-10-0-2-153 elk]# git clone git://github.com/mobz/elasticsearch-head.git
Cloning into 'elasticsearch-head'...
remote: Enumerating objects: 10, done.
remote: Counting objects: 100% (10/10), done.
remote: Compressing objects: 100% (10/10), done.
remote: Total 4347 (delta 0), reused 3 (delta 0), pack-reused 4337
Receiving objects: 100% (4347/4347), 2.49 MiB | 70.00 KiB/s, done.
Resolving deltas: 100% (2417/2417), done.
[root@ip-10-0-2-153 elk]# cd elasticsearch-head
[root@ip-10-0-2-153 elasticsearch-head]# wget https://github.com/Medium/phantomjs/releases/download/v2.1.1/phantomjs-2.1.1-linux-x86_64.tar.bz2
[root@ip-10-0-2-153 elasticsearch-head]# cp phantomjs-2.1.1-linux-x86_64.tar.bz2 /tmp/phantomjs-2.1.1-linux-x86_64.tar.bz2
[root@ip-10-0-2-153 elasticsearch-head]# npm install
npm WARN deprecated phantomjs-prebuilt@2.1.16: this package is now deprecated

> phantomjs-prebuilt@2.1.16 install /usr/local/elk/elasticsearch-head/node_modules/phantomjs-prebuilt
> node install.js

PhantomJS not found on PATH
Download already available at /tmp/phantomjs/phantomjs-2.1.1-linux-x86_64.tar.bz2
Verified checksum of previously downloaded file
Extracting tar contents (via spawned process)
Removing /usr/local/elk/elasticsearch-head/node_modules/phantomjs-prebuilt/lib/phantom
Copying extracted folder /tmp/phantomjs/phantomjs-2.1.1-linux-x86_64.tar.bz2-extract-1578400904569/phantomjs-2.1.1-linux-x86_64 -> /usr/local/elk/elasticsearch-head/node_modules/phantomjs-prebuilt/lib/phantom
Writing location.js file
Done. Phantomjs binary available at /usr/local/elk/elasticsearch-head/node_modules/phantomjs-prebuilt/lib/phantom/bin/phantomjs
npm notice created a lockfile as package-lock.json. You should commit this file.
npm WARN elasticsearch-head@0.0.0 license should be a valid SPDX license expression
npm WARN optional SKIPPING OPTIONAL DEPENDENCY: fsevents@1.2.11 (node_modules/fsevents):
npm WARN notsup SKIPPING OPTIONAL DEPENDENCY: Unsupported platform for fsevents@1.2.11: wanted {"os":"darwin","arch":"any"} (current: {"os":"linux","arch":"x64"})

added 67 packages from 69 contributors and audited 1771 packages in 7.116s
found 40 vulnerabilities (19 low, 2 moderate, 19 high)
  run `npm audit fix` to fix them, or `npm audit` for details

[root@ip-10-0-2-153 elasticsearch-head]# npm run start &
[1] 5731
[root@ip-10-0-2-153 elasticsearch-head]#
> elasticsearch-head@0.0.0 start /usr/local/elk/elasticsearch-head
> grunt server

Running "connect:server" (connect) task
Waiting forever...
Started connect web server on http://localhost:9100

第四测试

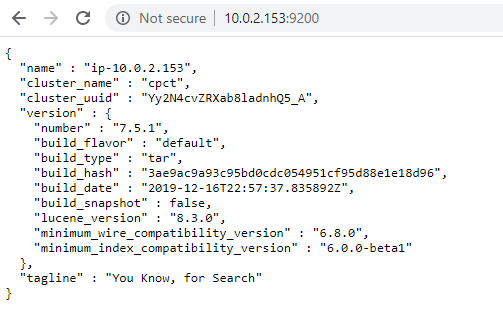

1）访问http://10.0.2.153:9200/检验elasticsearch是否部署成功

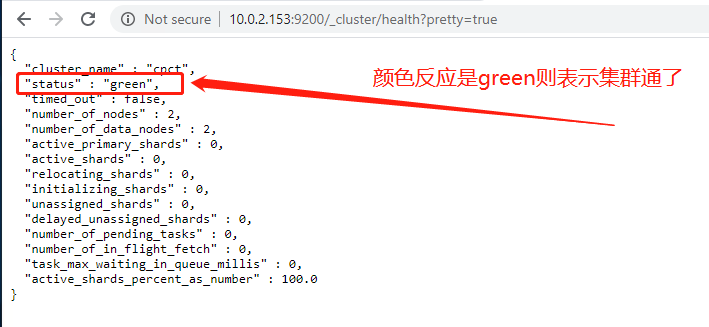

2）访问http://10.0.2.153:9200/_cluster/health?pretty=true检验整个集群是否通

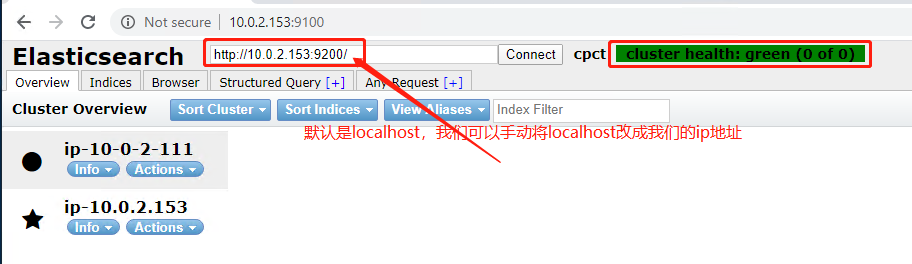

3）最后访问http://10.0.2.153:9100查看具体情况

2、安装kibana服务

1）解压安装包并修改相关配置文件内容

[root@ip-10-0-2-211 elk]# tar -xf updates/kibana-7.5.1-linux-x86_64.tar.gz
[root@ip-10-0-2-211 elk]# mv kibana-7.5.1-linux-x86_64/ kibana
[root@ip-10-0-2-211 elk]# cd kibana/
[root@ip-10-0-2-211 kibana]# vim config/kibana.yml

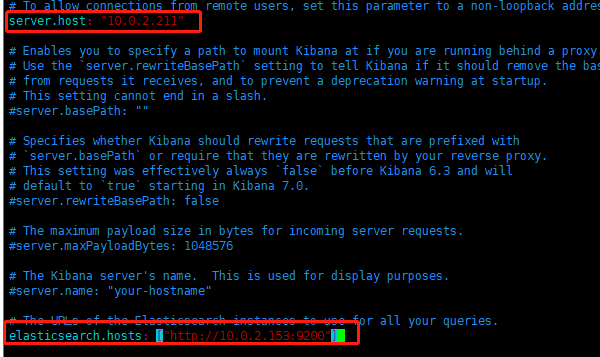

只需要修改 kibana.yml的配置文件，将server.host后面改成本机地址，elasticsearch.hosts改成我们的原地址

2）启动kibana服务

[root@ip-10-0-2-211 kibana]# cd bin/
[root@ip-10-0-2-211 bin]# ./kibana
Kibana should not be run as root.  Use --allow-root to continue.

[root@ip-10-0-2-211 bin]# ./kibana --allow-root &
[1] 30371

3）检查进程是否运行

[root@ip-10-0-2-211 bin]# ps -ef |grep node
root     30371 30179 32 10:01 pts/0    00:00:38 ./../node/bin/node ./../src/cli --allow-root
[root@ip-10-0-2-211 bin]# netstat -antpu |grep 5601
tcp        0      0 10.0.2.211:5601         0.0.0.0:*               LISTEN      30371/./../node/bin

4)创建系统启动服务并设置开机自启

[root@data-node1 system]# vim /lib/systemd/system/kibana.service

[Unit]
Description=Kibana
After=network.target

[Service]
Type=simple
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=logstash
User=root
WorkingDirectory=/usr/local/elk/kibana
ExecStart=/usr/local/elk/kibana/bin/kibana  "-c /usr/local/elk/kibana/config/kibana.yml" --allow-root
KillMode=process
TimeoutStopSec=60
Restart=on-failure
RestartSec=5
RemainAfterExit=no

[Install]
WantedBy=multi-user.target

设置开机启动并查询服务状态

[root@server-mid ~]# systemctl enable kibana
[root@server-mid ~]# systemctl restart kibana
[root@server-mid ~]# systemctl status kibana
[root@data-node1 system]# systemctl status kibana
● kibana.service - Kibana
   Loaded: loaded (/etc/systemd/system/kibana.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2020-04-09 18:19:23 CST; 1h 54min ago
 Main PID: 20338 (node)
   CGroup: /system.slice/kibana.service
           └─20338 /usr/local/elk/kibana/bin/../node/bin/node /usr/local/elk/kibana/bin/../src/cli --allow-root

Apr 09 19:44:24 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:24Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:44:26 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:26Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:44:44 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:44Z","tags":[],"pid":20338,"method":"get","statusCode":200,"req":{"url":"/built_a... (Windows NT
Apr 09 19:44:44 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:44Z","tags":[],"pid":20338,"method":"get","statusCode":200,"req":{"url":"/built_a...ows NT 10.0;
Apr 09 19:44:47 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:46Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:44:47 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:44:46Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:48:21 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:48:21Z","tags":[],"pid":20338,"method":"get","statusCode":200,"req":{"url":"/built_a...(Windows NT
Apr 09 19:48:25 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:48:23Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:48:38 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:48:36Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Apr 09 19:59:20 data-node1 logstash[20338]: {"type":"response","@timestamp":"2020-04-09T11:59:18Z","tags":[],"pid":20338,"method":"post","statusCode":200,"req":{"url":"/elasti...d":"post","h
Hint: Some lines were ellipsized, use -l to show in full.

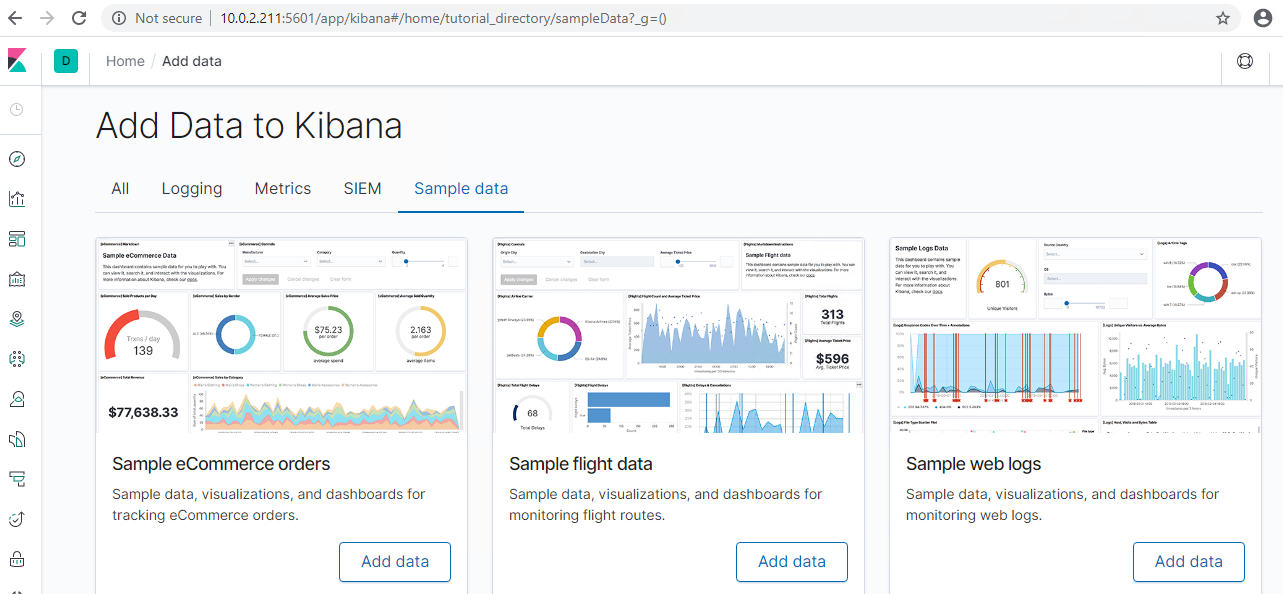

5）访问http://10.0.2.211:5601

5）配置登录验证

先在nginx配置文件里添加一下配置

server {
    listen       80;
    server_name  域名;


    location / {
        proxy_pass http://127.0.0.1:5601;
        # 加上这两行
        auth_basic "登陆验证";
        auth_basic_user_file /etc/nginx/htpasswd;
    }

}

然后执行：
htpasswd -cm /etc/nginx/htpasswd royzelas #/etc/nginx/htpasswd就是配置文件里面配置的密码文件，royzelas就是用户名
New password: #输入密码
Re-type new password: #再次输入密码，回车
Adding password for user crystal

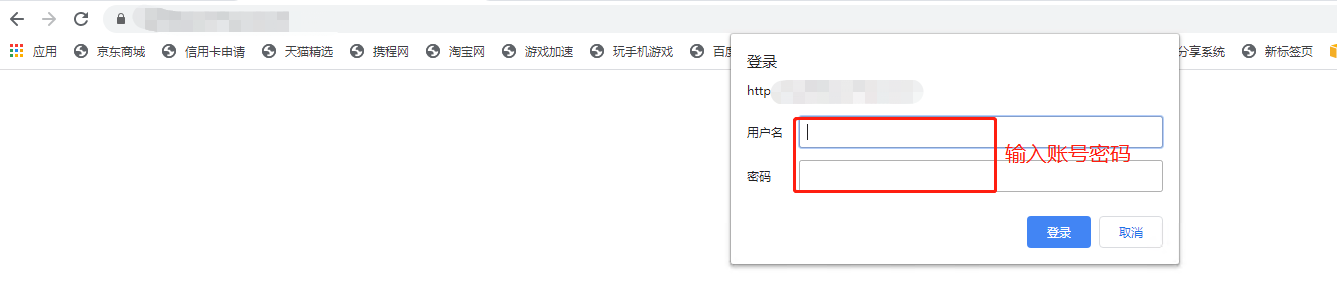

最后在浏览器上访问 http://10.0.2.211得到如下

3、部署客户端的日志收集服务

1）部署logstash服务

解压安装包，并修改配置文件

[root@ip-10-0-2-95 elk]# tar -xf updates/logstash-7.5.1.tar.gz
[root@ip-10-0-2-95 elk]# mv logstash-7.5.1/ logstash
[root@ip-10-0-2-95 elk]# cd logstash/
[root@ip-10-0-2-95 logstash]# cd bin/
[root@ip-10-0-2-95 bin]# vim log_manage.conf

启动logstash服务

[root@ip-10-0-2-95 bin]# ./logstash -f log_manage.conf &
[1] 1920

log_manage.conf配置文件信息如下

input {
      file{
        path => "/var/log/messages"             #指定要收集的日志文件
  type => "system"  #指定类型为system，可以自定义，type值和output{ } 中的type对应即可
        start_position => "beginning"       #从开始处收集
        }
      file{
        path => "/home/deploy/activity_service/logs/gxzx-act-web.log"
        type => "activity"
        start_position => "beginning"
         }
       file{
        path => "/home/deploy/tomcat8_manage/logs/catalina-*out"
        type => "manage"
        start_position => "beginning"
       }
       file{
        path => "/home/deploy/tomcat8_coin/logs/catalina-*out"
        type => "coin"
        start_position => "beginning"
       }
}
output {
        if [type] == "system" {           #如果type为system，
           elasticsearch {                  #就输出到Elasticsearch服务器
             hosts => ["10.0.2.153:9200"]               #Elasticsearch监听地址及端口
             index => "system-%{+YYYY.MM.dd}"           #指定索引格式
                }
             }
        if [type] == "activity" {
  elasticsearch {
             hosts => ["10.0.2.153:9200"]
             index => "activity-%{+YYYY.MM.dd}"
               }
             }
        if [type] == "coin" {
          elasticsearch {
             hosts => ["10.0.2.153:9200"]
             index => "coin-%{+YYYY.MM.dd}"
             }
          }
        if [type] == "manage" {
          elasticsearch {
             hosts => ["10.0.2.153:9200"]
             index => "manage-%{+YYYY.MM.dd}"
             }
          }
}

查看服务是否启动

[root@ip-10-0-2-95 bin]# ps -ef |grep logstash
root      1920  1848 99 10:34 pts/0    00:00:33 /home/deploy/java8/bin/java -Xms1g -Xmx1g -XX:+UseConcMarkSweepGC -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djruby.compile.invokedynamic=true -Djruby.jit.threshold=0 -Djruby.regexp.interruptible=true -XX:+HeapDumpOnOutOfMemoryError -Djava.security.egd=file:/dev/urandom -Dlog4j2.isThreadContextMapInheritable=true -cp /usr/local/elk/logstash/logstash-core/lib/jars/animal-sniffer-annotations-1.14.jar:/usr/local/elk/logstash/logstash-core/lib/jars/commons-codec-1.11.jar:/usr/local/elk/logstash/logstash-core/lib/jars/commons-compiler-3.0.11.jar:/usr/local/elk/logstash/logstash-core/lib/jars/error_prone_annotations-2.0.18.jar:/usr/local/elk/logstash/logstash-core/lib/jars/google-java-format-1.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/gradle-license-report-0.7.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/guava-22.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/j2objc-annotations-1.1.jar:/usr/local/elk/logstashlogstash-core/lib/jars/jackson-annotations-2.9.9.jar:/usr/local/elk/logstash/logstash-core/lib/jars/jackson-core-2.9.9.jar:/usr/local/elk/logstash/logstash-core/lib/jars/jackson-databind-2.9.9.3.jar:/usr/local/elk/logstash/logstash-core/lib/jars/jackson-dataformat-cbor-2.9.9.jar:/usr/local/elk/logstash/logstash-core/lib/jars/janino-3.0.11.jar:/usr/local/elk/logstash/logstash-core/lib/jars/javassist-3.24.0-GA.jar:/usr/local/elk/logstash/logstash-core/lib/jars/jruby-complete-9.2.8.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/jsr305-1.3.9.jar:/usr/local/elk/logstash/logstash-core/lib/jars/log4j-api-2.11.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/log4j-core-2.11.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/log4j-slf4j-impl-2.11.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/logstash-core.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.commands-3.6.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.contenttype-3.4.100.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.expressions-3.4.300.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.filesystem-1.3.100.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.jobs-3.5.100.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.resources-3.7.100.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.core.runtime-3.7.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.equinox.app-1.3.100.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.equinox.common-3.6.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.equinox.preferences-3.4.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.equinox.registry-3.5.101.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.jdt.core-3.10.0.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.osgi-3.7.1.jar:/usr/local/elk/logstash/logstash-core/lib/jars/org.eclipse.text-3.5.101.jar:/usr/local/elk/logstash/logstash-core/lib/jars/reflections-0.9.11.jar:/usr/local/elk/logstash/logstash-core/lib/jars/slf4j-api-1.7.25.jar org.logstash.Logstash -f log_manage.conf

设置系统启动服务和开机自启

[root@manage-host system]# vim /lib/systemd/system/logstash.service
[Unit]
Description=Logstash
After=network.target

[Service]
Type=simple
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=logstash
User=root
WorkingDirectory=/usr/local/elk/logstash
ExecStart=/usr/local/elk/logstash/bin/logstash -f /usr/local/elk/logstash/bin/output_kfk.conf
KillMode=process
TimeoutStopSec=60
Restart=on-failure
RestartSec=5
RemainAfterExit=no

[Install]
WantedBy=multi-user.target

启动服务并设置开启启动

[root@server-mid ~]# systemctl enable logstash
[root@server-mid ~]# systemctl restart logstash
[root@server-mid ~]# systemctl status logstash
● logstash.service - Logstash
   Loaded: loaded (/etc/systemd/system/logstash.service; disabled; vendor preset: disabled)
   Active: active (running) since Thu 2020-04-09 20:04:25 CST; 38s ago
 Main PID: 3524 (java)
   CGroup: /system.slice/logstash.service
