如何使用YOLOv8进行带钢缺陷语义分割的数据集训练钢材表面缺陷语义分割数据集 钢材表面缺陷带钢缺陷 包含12种缺陷和对应的像素级标签 每种50张 分辨率200x200 位深24，实现可视化及评估

带钢缺陷，钢材表面缺陷12种缺陷分割【数据集】 和 出处
用于语义分割

数据集说明：

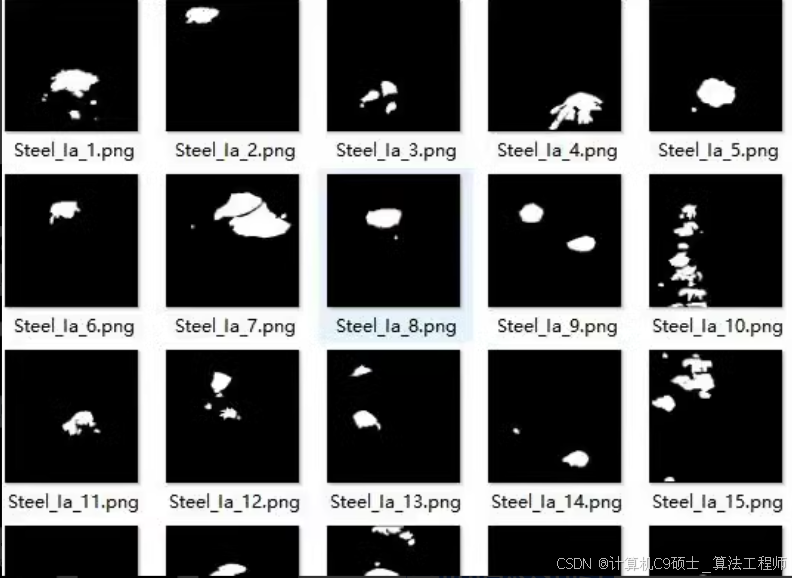

包含12种缺陷和对应的像素级标签
每种50张
分辨率200x200
位深24

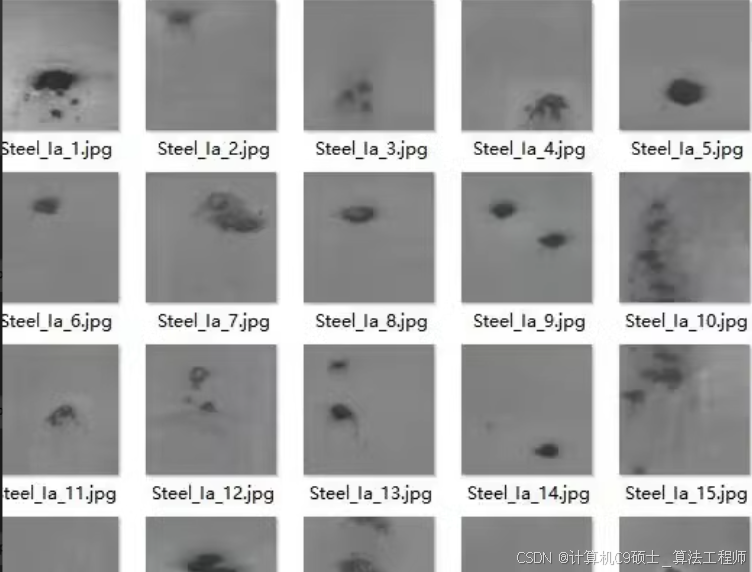

其他信息如图

文件包含：
数据集，和论文出处

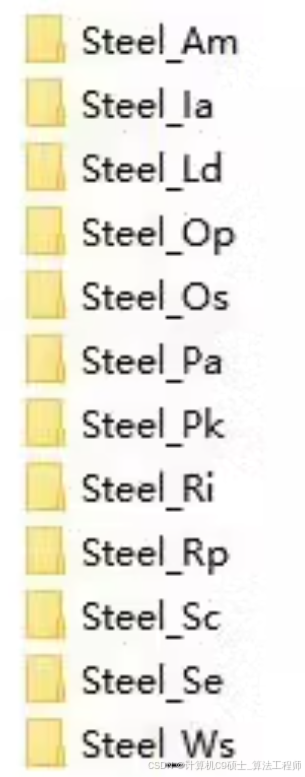

12种缺陷为：
abrasionmask,
iron-sheet ash,
liquid,
oxide-scale,
oil-spot,
water-spot,
patch,
punching,
red-iron sheet,
roll-printing,
scratch,
inclusion
好的，以下是详细的文档格式，包含了如何使用YOLOv8进行带钢缺陷语义分割的数据集训练。文档包括数据集准备、模型训练、评估、可视化训练结果、清理临时文件以及推理和显示结果的步骤。

使用 YOLOv8 训练带钢缺陷语义分割

数据集信息

• 类别: 12种缺陷 (abrasionmask, iron-sheet ash, liquid, oxide-scale, oil-spot, water-spot, patch, punching, red-iron sheet, roll-printing, scratch, inclusion)
• 图片数量: 每种缺陷50张，共600张
• 分辨率: 200x200
• 位深: 24

步骤概述

1. 数据集准备
2. 创建数据集配置文件 (data.yaml)
3. 分割数据集
4. 训练模型
5. 评估模型
6. 可视化训练结果
7. 清理临时文件
8. 推理和显示结果

详细步骤

1. 数据集准备

确保你的数据集已经按照上述格式准备好，并且包含 images 和 labels 目录。

steel_defect_detection/
├── datasets/
│   └── steel_defect_dataset/
│       ├── images/
│       │   ├── image1.jpg
│       │   ├── image2.jpg
│       │   └── ...
│       └── labels/
│           ├── image1.png
│           ├── image2.png
│           └── ...
└── main.py

2. 创建数据集配置文件 (data.yaml)

创建一个 data.yaml 文件来配置数据集路径和类别信息。

train: ./datasets/steel_defect_dataset/train/images
val: ./datasets/steel_defect_dataset/val/images

nc: 12  # 类别数量
names: ['abrasionmask', 'iron-sheet ash', 'liquid', 'oxide-scale', 'oil-spot', 'water-spot', 'patch', 'punching', 'red-iron sheet', 'roll-printing', 'scratch', 'inclusion']

3. 分割数据集

将数据集分割成训练集和验证集。

import os
import random
from pathlib import Path
import shutil

def split_dataset(data_dir, train_ratio=0.8):
    images = list(Path(data_dir).glob('*.jpg'))
    random.shuffle(images)

    num_train = int(len(images) * train_ratio)
    train_images = images[:num_train]
    val_images = images[num_train:]

    train_dir = Path(data_dir).parent / 'train'
    val_dir = Path(data_dir).parent / 'val'

    train_img_dir = train_dir / 'images'
    train_label_dir = train_dir / 'labels'
    val_img_dir = val_dir / 'images'
    val_label_dir = val_dir / 'labels'

    train_img_dir.mkdir(parents=True, exist_ok=True)
    train_label_dir.mkdir(parents=True, exist_ok=True)
    val_img_dir.mkdir(parents=True, exist_ok=True)
    val_label_dir.mkdir(parents=True, exist_ok=True)

    for img in train_images:
        label_path = img.with_suffix('.png')
        shutil.copy(img, train_img_dir / img.name)
        shutil.copy(label_path, train_label_dir / label_path.name)

    for img in val_images:
        label_path = img.with_suffix('.png')
        shutil.copy(img, val_img_dir / img.name)
        shutil.copy(label_path, val_label_dir / label_path.name)

# 使用示例
split_dataset('./datasets/steel_defect_dataset/images')

4. 训练模型

使用YOLOv8进行训练。

import torch
from ultralytics import YOLO

# 设置随机种子以保证可重复性
torch.manual_seed(42)

# 定义数据集路径
dataset_config = 'data.yaml'

# 加载预训练的YOLOv8n-seg模型（用于语义分割）
model = YOLO('yolov8n-seg.pt')

# 训练模型
results = model.train(
    data=dataset_config,
    epochs=100,
    imgsz=200,
    batch=16,
    name='steel_defect_detection',
    project='runs/train'
)

# 评估模型
metrics = model.val()

# 保存最佳模型权重
best_model_weights = 'runs/train/steel_defect_detection/weights/best.pt'
print(f"Best model weights saved to {best_model_weights}")

5. 可视化训练结果

可视化训练结果。

from ultralytics import YOLO

# 加载训练好的模型
model = YOLO('runs/train/steel_defect_detection/weights/best.pt')

# 可视化训练结果
model.plot_results(save=True, save_dir='runs/train/steel_defect_detection')

6. 清理临时文件

清理不必要的临时文件。

import shutil

def clean_temp_files(project_dir):
    temp_dirs = [
        f'{project_dir}/wandb',
        f'{project_dir}/cache'
    ]

    for dir_path in temp_dirs:
        if os.path.exists(dir_path):
            shutil.rmtree(dir_path)
            print(f"Removed directory: {dir_path}")

# 使用示例
clean_temp_files('runs/train/steel_defect_detection')

7. 推理和显示结果

推理和显示结果。

from ultralytics import YOLO
import cv2
import numpy as np
from PIL import Image
import matplotlib.pyplot as plt

# 7.1 检测单张图片
def detect_image(model, image_path, conf_threshold=0.5):
    results = model.predict(image_path, conf=conf_threshold)[0]
    annotated_frame = annotate_image(image_path, results, model)
    return annotated_frame

def annotate_image(image_path, results, model):
    frame = cv2.imread(image_path)
    mask_alpha = 0.5  # Mask transparency

    for result in results.masks.cpu().numpy():
        mask = result.data[0] * 255
        mask = mask.astype(np.uint8)

        contours, _ = cv2.findContours(mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
        for contour in contours:
            cv2.drawContours(frame, [contour], -1, (0, 255, 0), 2)

    return frame

# 7.2 检测视频
def detect_video(model, video_path, conf_threshold):
    cap = cv2.VideoCapture(video_path)
    frames = []
    while cap.isOpened():
        ret, frame = cap.read()
        if not ret:
            break
        results = model.predict(frame, conf=conf_threshold)[0]
        annotated_frame = annotate_image(frame, results, model)
        frames.append(annotated_frame)
    cap.release()
    return frames

# 7.3 检测摄像头
def detect_camera(model, conf_threshold):
    cap = cv2.VideoCapture(0)
    frames = []
    while True:
        ret, frame = cap.read()
        if not ret:
            break
        results = model.predict(frame, conf=conf_threshold)[0]
        annotated_frame = annotate_image(frame, results, model)
        frames.append(annotated_frame)
        cv2.imshow('Camera Detection', annotated_frame)
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break
    cap.release()
    cv2.destroyAllWindows()
    return frames

# 主函数
def main():
    # 加载模型
    model = YOLO('runs/train/steel_defect_detection/weights/best.pt')

    # 动态调整置信度阈值
    conf_threshold = 0.5

    # 输入方式选择
    input_type = "Image"  # 可选: "Image", "Video", "Camera"

    if input_type == "Image":
        test_image_path = './datasets/steel_defect_dataset/images/test_image.jpg'
        annotated_image = detect_image(model, test_image_path, conf_threshold)
        cv2.imwrite('annotated_test_image.jpg', annotated_image)
        plt.imshow(cv2.cvtColor(annotated_image, cv2.COLOR_BGR2RGB))
        plt.axis('off')
        plt.show()

        # 统计检测到的物体数量
        results = model.predict(test_image_path, conf=conf_threshold)[0]
        class_counts = {}
        for result in results.boxes.cpu().numpy():
            cls = int(result.cls[0])
            class_name = model.names[cls]
            if class_name in class_counts:
                class_counts[class_name] += 1
            else:
                class_counts[class_name] = 1

        print("Detection Summary:")
        for class_name, count in class_counts.items():
            print(f"{class_name}: {count}")

    elif input_type == "Video":
        test_video_path = './datasets/steel_defect_dataset/videos/test_video.mp4'
        frames = detect_video(model, test_video_path, conf_threshold)
        for i, frame in enumerate(frames):
            cv2.imwrite(f'frame_{i}.jpg', frame)
            plt.imshow(cv2.cvtColor(frame, cv2.COLOR_BGR2RGB))
            plt.axis('off')
            plt.show()

    elif input_type == "Camera":
        frames = detect_camera(model, conf_threshold)
        for i, frame in enumerate(frames):
            cv2.imwrite(f'camera_frame_{i}.jpg', frame)
            plt.imshow(cv2.cvtColor(frame, cv2.COLOR_BGR2RGB))
            plt.axis('off')
            plt.show()

if __name__ == "__main__":
    main()

运行脚本

在终端中运行以下命令来执行整个流程：

python main.py

总结

以上文档包含了从数据集准备、模型训练、评估、可视化训练结果、清理临时文件到推理和显示结果的所有步骤。希望这些详细的信息和代码能够帮助你顺利实施和优化你的带钢缺陷语义分割系统。
