主要使用 LightingLambert_GI(o,giInput,gi) 采样光照贴图来实现间接光照和阴影的效果

使用 LightingLambert(o,gi) 来实现间接光照和直接光照的混合

一、LightingLambert_GI(o,giInput,gi)

unityGI_Base中实现不同类型的分支来采样光照贴图

例如 #if defined(LIGHTMAP_ON)代表当打开烘焙全局光照采样光照贴图(lightmapUV.xy)来实现光照效果

#ifdef DYNAMICLIGHTMAP_ON代表当打开实时全局光照采样光照贴图(lightmapUV.zw)来实现光照效果

unity中与LightingLambert()函数相关的内置的宏

inline UnityGI UnityGI_Base(UnityGIInput data, half occlusion, half3 normalWorld)
{
//声明了一个UnityGI类型的变量o_gi，用来存储最终计算的GI信息
UnityGI o_gi;

//重置UnityGI
ResetUnityGI(o_gi);

//计算在Distance Shadowmask中实时阴影与烘焙阴影的混合过度
#if defined(HANDLE_SHADOWS_BLENDING_IN_GI)
half bakedAtten = UnitySampleBakedOcclusion(data.lightmapUV.xy, data.worldPos);
float zDist = dot(_WorldSpaceCameraPos - data.worldPos, UNITY_MATRIX_V[2].xyz);
float fadeDist = UnityComputeShadowFadeDistance(data.worldPos, zDist);
data.atten = UnityMixRealtimeAndBakedShadows(data.atten, bakedAtten, UnityComputeShadowFade(fadeDist));
#endif

//将主平行灯传入GI中 UnityGIInput giInput; data=giInput
o_gi.light = data.light;

//将衰减加入到灯光的颜色中
o_gi.light.color *= data.atten;

#if UNITY_SHOULD_SAMPLE_SH
o_gi.indirect.diffuse = ShadeSHPerPixel(normalWorld, data.ambient, data.worldPos);
#endif

//当使用Baked GI时
#if defined(LIGHTMAP_ON)
// Baked lightmaps
//用lightmapUV.xy的UV坐标对unity_Lightmap贴图进行采样存储到bakedColorTex这个变量中
half4 bakedColorTex = UNITY_SAMPLE_TEX2D(unity_Lightmap, data.lightmapUV.xy);
//DecodeLightmap对采样后的贴图进行解码
half3 bakedColor = DecodeLightmap(bakedColorTex);

//当directional（定向光）模式开启时
#ifdef DIRLIGHTMAP_COMBINED
fixed4 bakedDirTex = UNITY_SAMPLE_TEX2D_SAMPLER (unity_LightmapInd, unity_Lightmap, data.lightmapUV.xy);
o_gi.indirect.diffuse += DecodeDirectionalLightmap (bakedColor, bakedDirTex, normalWorld);

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
ResetUnityLight(o_gi.light);
o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap (o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#else // not directional lightmap
o_gi.indirect.diffuse += bakedColor;

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
ResetUnityLight(o_gi.light);
o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap(o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#endif
#endif

//当采用Realtime GI时
#ifdef DYNAMICLIGHTMAP_ON
// Dynamic lightmaps
//采样unity_DynamicLightmap贴图
fixed4 realtimeColorTex = UNITY_SAMPLE_TEX2D(unity_DynamicLightmap, data.lightmapUV.zw);
half3 realtimeColor = DecodeRealtimeLightmap (realtimeColorTex);

#ifdef DIRLIGHTMAP_COMBINED
half4 realtimeDirTex = UNITY_SAMPLE_TEX2D_SAMPLER(unity_DynamicDirectionality, unity_DynamicLightmap, data.lightmapUV.zw);
o_gi.indirect.diffuse += DecodeDirectionalLightmap (realtimeColor, realtimeDirTex, normalWorld);
#else
o_gi.indirect.diffuse += realtimeColor;
#endif
#endif

o_gi.indirect.diffuse *= occlusion;

//最终的计算结果
return o_gi;
}

inline UnityGI UnityGlobalIllumination (UnityGIInput data, half occlusion, half3 normalWorld)

{

return UnityGI_Base(data, occlusion, normalWorld);

}

inline void LightingLambert_GI (SurfaceOutput s,UnityGIInput data,inout UnityGI gi)

{

gi = UnityGlobalIllumination (data, 1.0, s.Normal);

}

二、LightingLambert_GI(o,giInput,gi)（LightingLambert_GI中的参数属性）

有 SurfaceOutput o, UnityGIInput giInput , UnityGI gi

SurfaceOutput o

定义模型的顶点数据
struct SurfaceOutput {
   fixed3 Albedo; //漫反射
   fixed3 Normal; //法线
   fixed3 Emission; //自发光
half Specular; //高光
fixed Gloss; //光滑度
fixed Alpha; //透明度
   };

UnityGIInput giInput

struct UnityGIInput
{
               直接光照
               UnityLight light; //pixel light, sent from the engine
               float3 worldPos;
               half3 worldViewDir; //世界空间下的视角方向
               half atten; //衰减
               half3 ambient; //环境色
               用来采样纹理贴图的UV坐标
               float4 lightmapUV; //.xy = static lightmap UV, .zw = dynamic lightmap UV
               ....
               }

UnityGI gi

直接光照
struct UnityLight
{
               half3 color; //光照颜色
               half3 dir; //光照方向
};
间接光照
struct UnityIndirect
{
               half3 diffuse; //漫反射颜色
               half3 specular; //高光色
};
struct UnityGI
{
               UnityLight light; //直接光照
               UnityIndirect indirect; //间接光照
};

三、fixed4 c=LightingLambert(o,gi);(直接光照与间接光照的混合)

LightingLambert(o,gi)函数需要使用到的内置宏

#if defined(UNITY_SHOULD_SAMPLE_SH) || defined(LIGHTMAP_ON) || defined(DYNAMICLIGHTMAP_ON)
#define UNITY_LIGHT_FUNCTION_APPLY_INDIRECT
#endif

//实现lambert光照模型

inline fixed4 UnityLambertLight(SurfaceOutput s,UnityLight light)
{
fixed diff = max(0, dot(s.Normal, light.dir));

fixed4 c;
c.rgb = s.Albedo * light.color * diff;
c.a = s.Alpha;
return c;
}

inline fixed4 LightingLambert(SurfaceOutput s, UnityGI gi)
{
fixed4 c;
c = UnityLambertLight(s, gi.light);
//是否要应用间接光将间接光照与直接光照进行混合
#ifdef UNITY_LIGHT_FUNCTION_APPLY_INDIRECT
c.rgb += s.Albedo * gi.indirect.diffuse;
#endif

return c;
}

四、在片元着色器中对函数的参数进行初始化操作

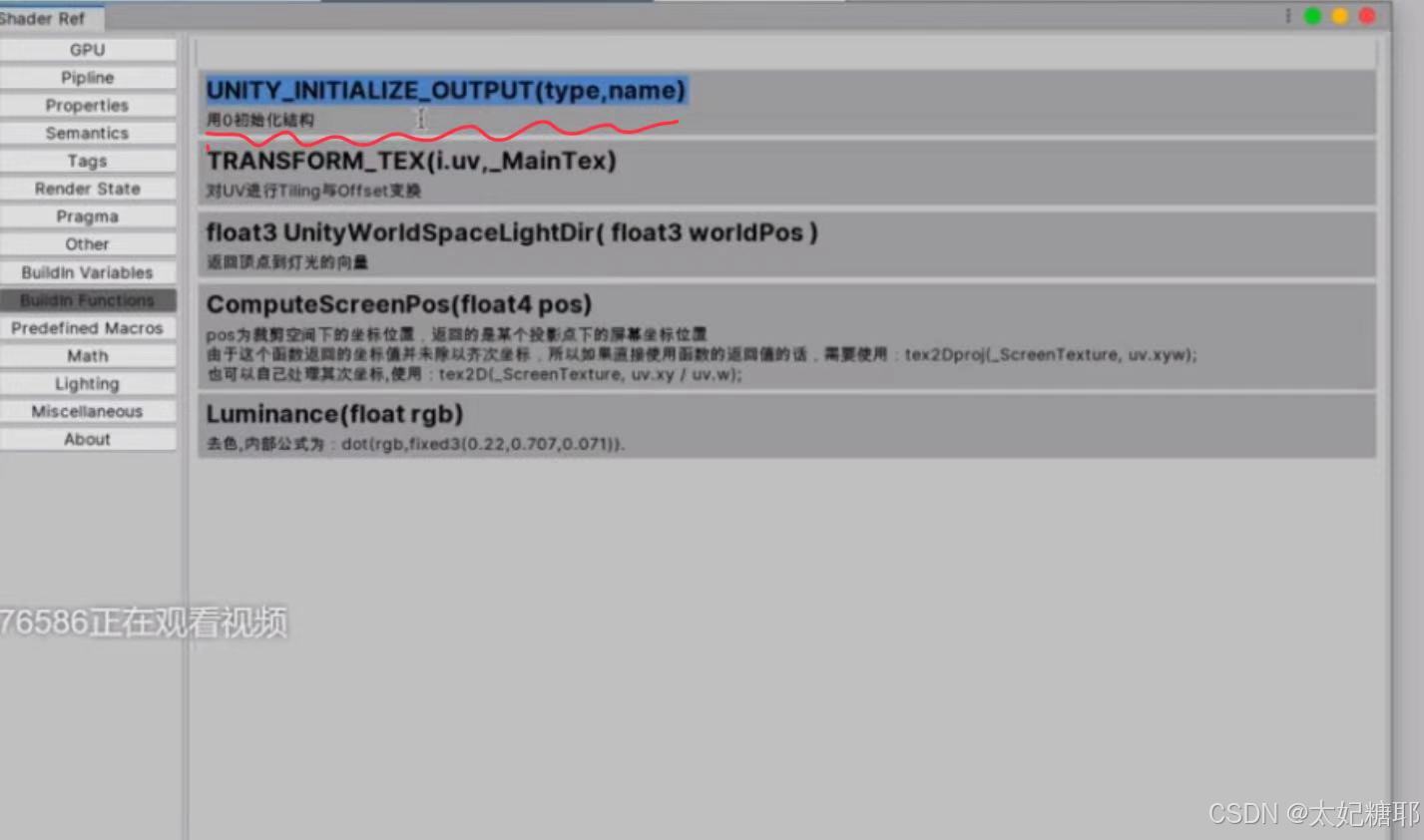

初始化函数（初始化为0）

UNITY_INITIALIZE_OUTPUT();

fixed4 frag (v2f i) : SV_Target
{
//顶点的表面数据
SurfaceOutput o;
UNITY_INITIALIZE_OUTPUT(SurfaceOutput,o) // 使SurfaceOutPut中的参数初始化为0
o.Normal=i.worldNormal; //定义NORMAL的值
o.Albedo=1; //定义Albedo漫反射

UnityGI gi;

// 初始化GI
UNITY_INITIALIZE_OUTPUT(UnityGI,gi)

// 定义主直接光照（平行灯）的灯光颜色
gi.light.color=_LightColor0;

// 定义主直接光照（平行灯）的位置方向
gi.light.dir=_WorldSpaceLightPos0;

// 定义间接光照的漫反射
gi.indirect.diffuse=1;

// 定义间接光照的高光
gi.indirect.specular=0;

//实时的阴影贴图纹理采样
UNITY_LIGHT_ATTENUATION(atten,i,i.worldPos);

UnityGIInput giInput;

// 初始化操作
UNITY_INITIALIZE_OUTPUT(UnityGIInput,giInput);
giInput.light=gi.light; // 主平行灯直接光照

giInput.worldPos=i.worldPos;

giInput.worldViewDir=normalize(_WorldSpaceCameraPos-i.worldPos);

//将实时的阴影赋予giInput.atten,将实时阴影与采样阴影进行混合
giInput.atten=atten;

giInput.ambient=0;

// 在实时全局光照或烘焙全局光照开启的情况下才会用到lightmapUV，所以要进行分支判断
#if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
giInput.lightmapUV=i.lightmapUV;
#endif

//GI 间接光照的计算
LightingLambert_GI1(o,giInput,gi);

//UnityGI UnityGI_Base1(UnityGIInput data, half occlusion, half3 normalWorld)
// gi=UnityGI_Base1(giInput,1,o.Normal); 与LightingLambert_GI1(o,giInput,gi)功能相同

//GI直接光照的计算
fixed4 c=LightingLambert1(o,gi);

return c;
}

五、关于lightmapUV的使用

只有在开启了烘焙全局光照（Baked GI）和实时全局光照（Realtime GI）的情况下才会使用lightmapUV来采样光照贴图

所以在Shader中对lightmapUV声明时需进行分支判断

在顶点着色器的输入输出结构体中都添加下面语句（当开启烘焙GI和实时GI时声明lightmapUV）

#if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
float4 lightmapUV:TEXCOORD1;
#endif

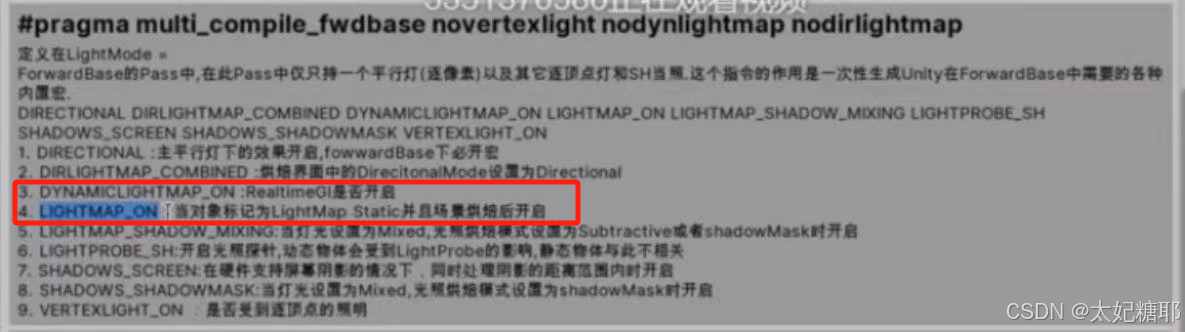

所以需要在结构体前添加宏开关#pragma multi_compile_fwdbase

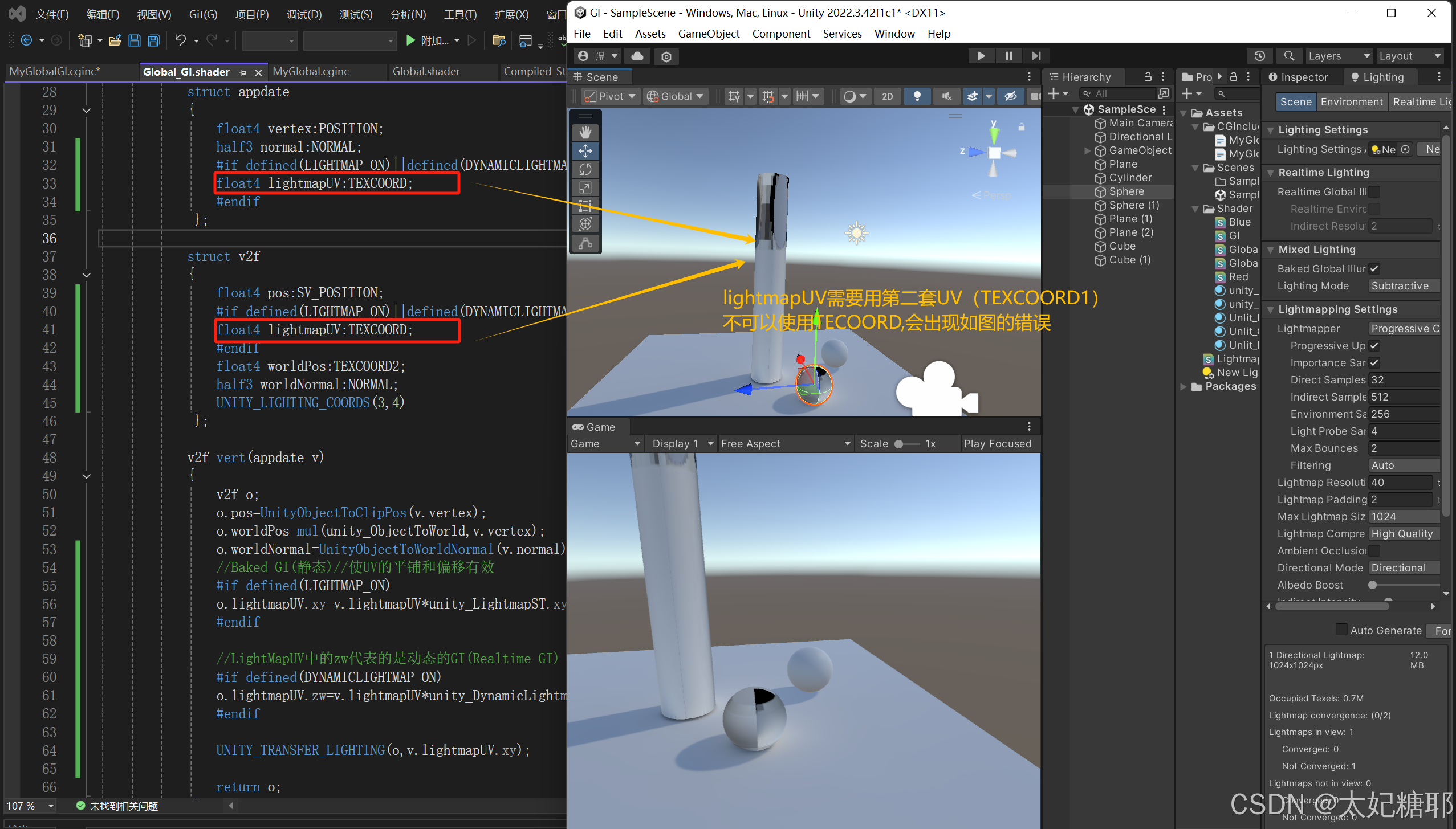

需要注意的是lightmapUV不能使用第一套UV,否则会出现错误

在顶点着色器中使用相关的语句使lightmapUV的平铺和偏移有效

//Baked GI(静态)//使UV的平铺和偏移有效
#if defined(LIGHTMAP_ON)
o.lightmapUV.xy=v.lightmapUV*unity_LightmapST.xy+unity_LightmapST.zw;
#endif

//LightMapUV中的zw代表的是动态的GI(Realtime GI)
#if defined(DYNAMICLIGHTMAP_ON) o.lightmapUV.zw=v.lightmapUV*unity_DynamicLightmapST.xy+unity_DynamicLightmapST.zw;
#endif

o.lightmapUV.xy 代表Baked GI的光照贴图

o.lightmapUV.zw代表Realtime GI的光照贴图

在片段着色器中将lightmapUV传给UnityGIInput中的lightmapUV

#if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
giInput.lightmapUV=i.lightmapUV;
#endif

六、添加实时的阴影效果

此时的Shader中并没有添加实时的阴影效果，（赋予该Shader的模型只有烘焙阴影，并不会产生跟随平行灯光而产生的实时阴影），所以要通过添加ShadowCaster Pass和实时的阴影采样语句来实现实时的阴影效果（利用之前学习的知识，忘记的话可以看前面的文章）

需要添加与阴影接收相关的变体

#pragma multi_compile SHADOWS_SCREEN DIRECTIONAL

1.在顶点着色器的输出结构体中添加

UNITY_LIGHTING_COORDS(2,3)

//定义了两个变量，同时定义灯光衰减和实时阴影采样的变量

2.在顶点着色器中添加

UNITY_TRANSFER_LIGHTING(o,v.lightmapUV.xy);

3.在片元着色器中添加

UNITY_LIGHT_ATTENUATION(atten,i,i.worldPos);

//实时的阴影贴图纹理采样以及灯光衰减的计算

七、自定义的.cginc文件

如何创建自己的cginc文件？

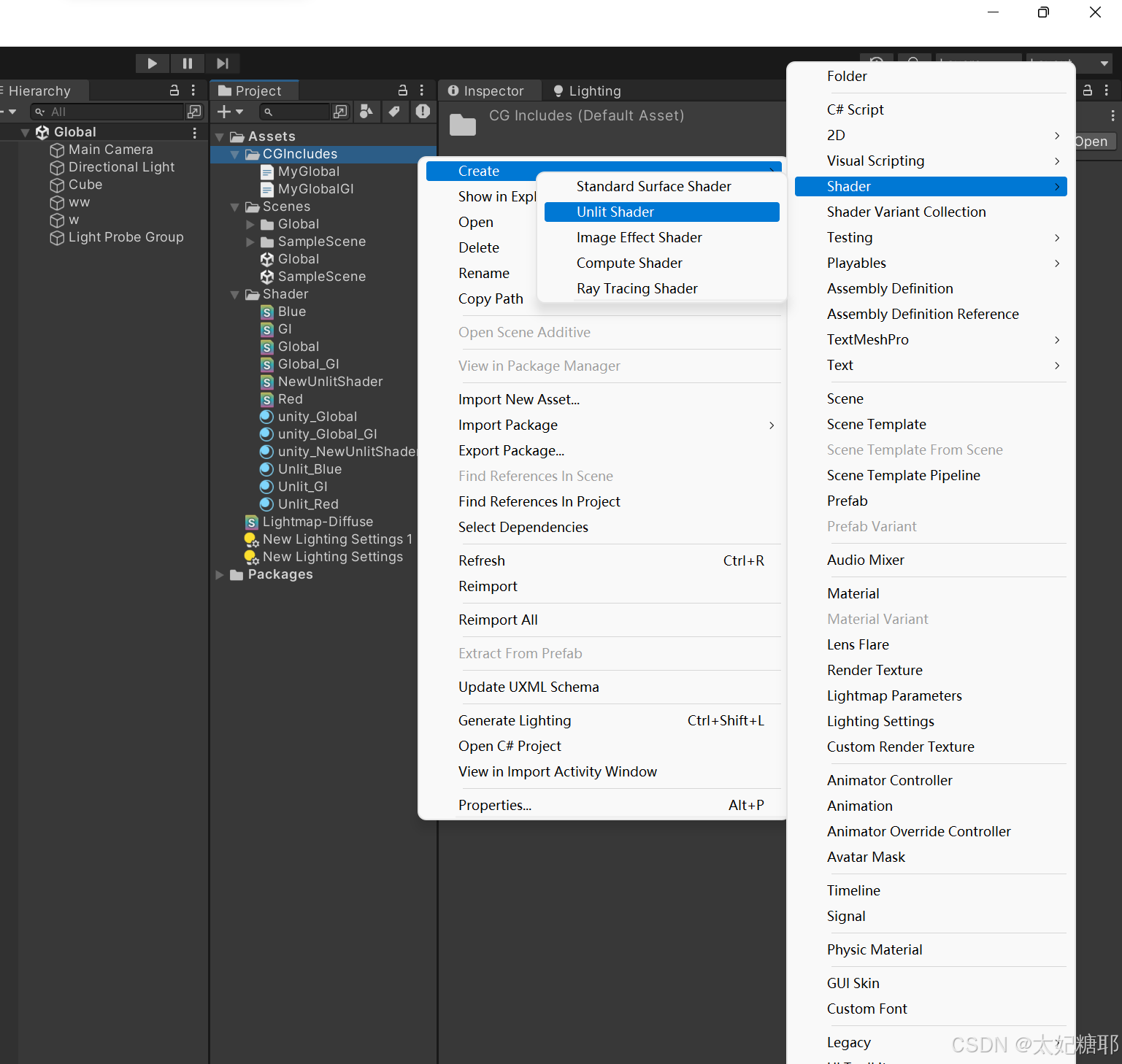

首先创建一个文件夹(Folder),用来存放自定义的cginc文件，然后再创建一个Shader

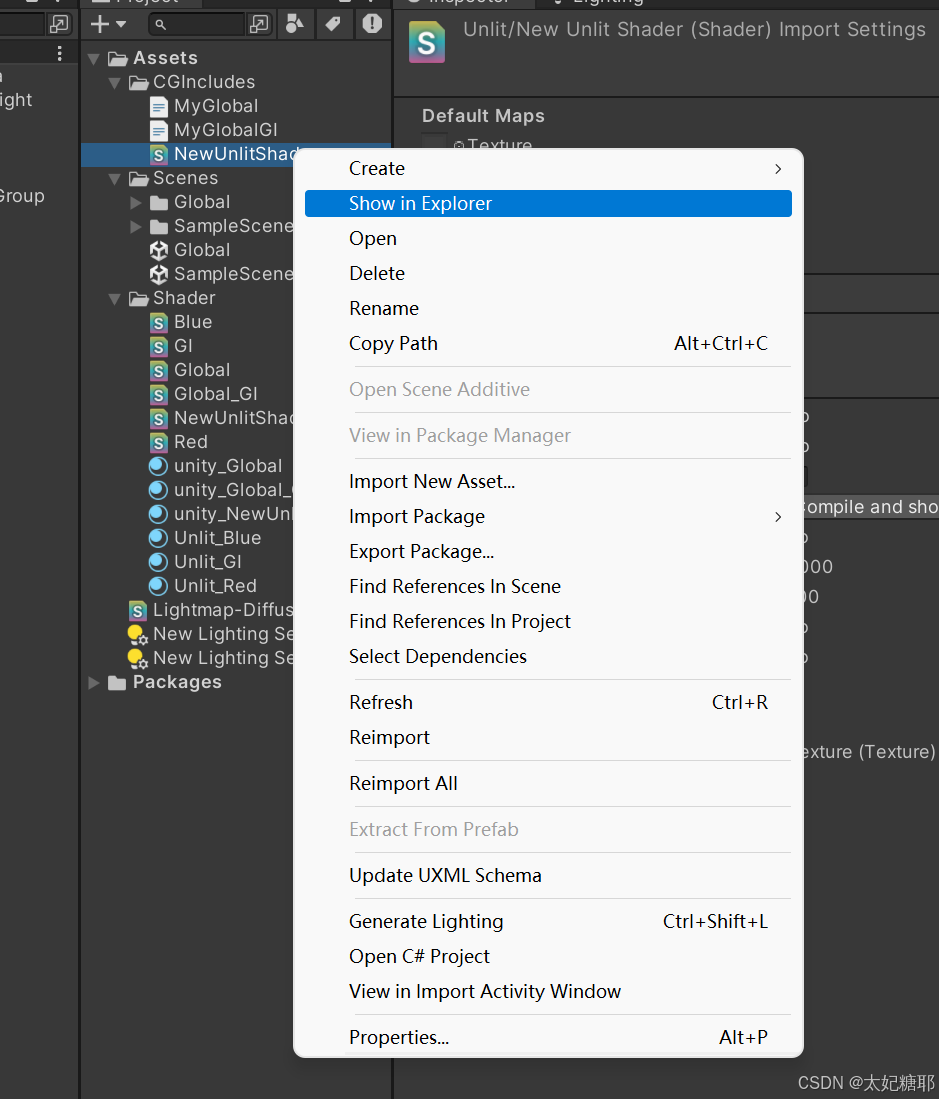

然后右击Shader，选择在文件夹中打开Shader文件

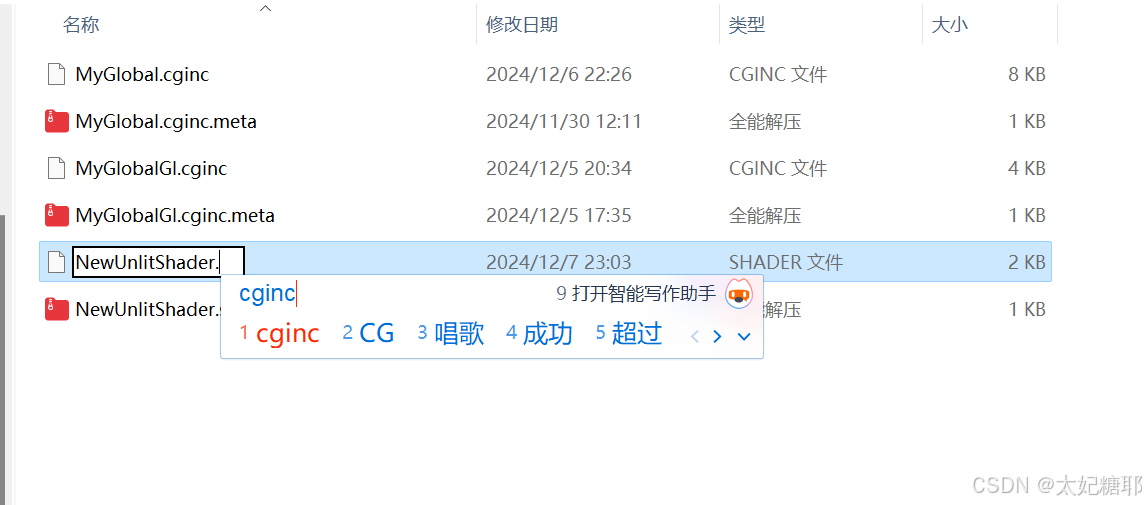

最后将文件重命名为.cginc后缀的文件即可

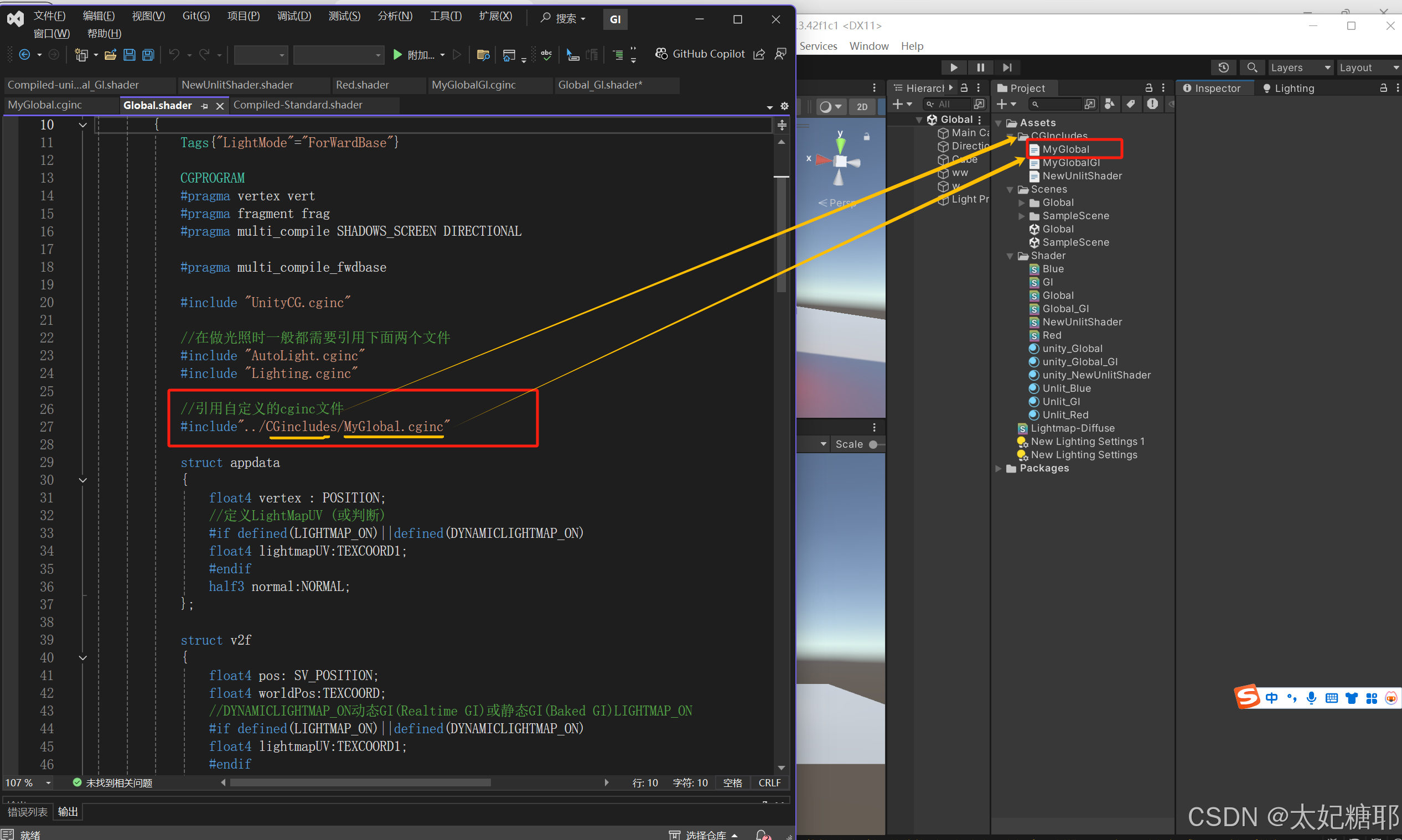

如何引用自定义的cginc文件？

自定义的cginc文件代码

#ifndef MYGLOBAL_CGINCLUDE
#define MYGLOBAL_CGINCLUDE

//将UnityGI的相关方法都添加到自定义的cginc文件中，并将unity中内置的函数名更改一下，以便区分

// 计算Lambert光照模型的式子
//SurfaceOutput表面的输出数据
#if defined(UNITY_SHOULD_SAMPLE_SH) || defined(LIGHTMAP_ON) || defined(DYNAMICLIGHTMAP_ON)
#define UNITY_LIGHT_FUNCTION_APPLY_INDIRECT
#endif

//直接光照Lambert的计算结果
inline fixed4 UnityLambertLight1(SurfaceOutput s,UnityLight light)
{
    fixed diff = max(0, dot(s.Normal, light.dir));

    fixed4 c;
    c.rgb = s.Albedo * light.color * diff;
    c.a = s.Alpha;
    return c;
}

inline fixed4 LightingLambert1(SurfaceOutput s, UnityGI gi)
{
    fixed4 c;
    c = UnityLambertLight1(s, gi.light);
    //是否要应用间接光 将间接光照与直接光照进行混合
#ifdef UNITY_LIGHT_FUNCTION_APPLY_INDIRECT
        c.rgb += s.Albedo * gi.indirect.diffuse;
#endif

    return c;
}

inline void ResetUnityLight1(out UnityLight outLight)
{
    outLight.color = half3(0, 0, 0);
    outLight.dir = half3(0, 1, 0); // Irrelevant direction, just not null
    outLight.ndotl = 0; // Not used
}

inline void ResetUnityGI1(out UnityGI outGI)
{
    ResetUnityLight(outGI.light);
    outGI.indirect.diffuse = 0;
    outGI.indirect.specular = 0;
}

inline UnityGI UnityGI_Base1(UnityGIInput data, half occlusion, half3 normalWorld)
{
    UnityGI o_gi;
    ResetUnityGI1(o_gi);

    // Base pass with Lightmap support is responsible for handling ShadowMask / blending here for performance reason
#if defined(HANDLE_SHADOWS_BLENDING_IN_GI)
        half bakedAtten = UnitySampleBakedOcclusion(data.lightmapUV.xy, data.worldPos);
        float zDist = dot(_WorldSpaceCameraPos - data.worldPos, UNITY_MATRIX_V[2].xyz);
        float fadeDist = UnityComputeShadowFadeDistance(data.worldPos, zDist);
        data.atten = UnityMixRealtimeAndBakedShadows(data.atten, bakedAtten, UnityComputeShadowFade(fadeDist));
#endif

    o_gi.light = data.light;
    o_gi.light.color *= data.atten;

#if UNITY_SHOULD_SAMPLE_SH
        o_gi.indirect.diffuse = ShadeSHPerPixel(normalWorld, data.ambient, data.worldPos);
#endif

#if defined(LIGHTMAP_ON)
        // Baked lightmaps
        half4 bakedColorTex = UNITY_SAMPLE_TEX2D(unity_Lightmap, data.lightmapUV.xy);
        half3 bakedColor = DecodeLightmap(bakedColorTex);

#ifdef DIRLIGHTMAP_COMBINED
            fixed4 bakedDirTex = UNITY_SAMPLE_TEX2D_SAMPLER (unity_LightmapInd, unity_Lightmap, data.lightmapUV.xy);
            o_gi.indirect.diffuse += DecodeDirectionalLightmap (bakedColor, bakedDirTex, normalWorld);

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
                ResetUnityLight(o_gi.light);
                o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap (o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#else // not directional lightmap
            o_gi.indirect.diffuse += bakedColor;

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
                ResetUnityLight(o_gi.light);
                o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap(o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#endif
#endif

#ifdef DYNAMICLIGHTMAP_ON
        // Dynamic lightmaps
        fixed4 realtimeColorTex = UNITY_SAMPLE_TEX2D(unity_DynamicLightmap,data.lightmapUV.zw);
        half3 realtimeColor = DecodeRealtimeLightmap (realtimeColorTex);

#ifdef DIRLIGHTMAP_COMBINED
            half4 realtimeDirTex = UNITY_SAMPLE_TEX2D_SAMPLER(unity_DynamicDirectionality, unity_DynamicLightmap, data.lightmapUV.zw);
            o_gi.indirect.diffuse += DecodeDirectionalLightmap (realtimeColor, realtimeDirTex, normalWorld);
#else
            o_gi.indirect.diffuse += realtimeColor;
#endif
#endif

    o_gi.indirect.diffuse *= occlusion;
    return o_gi;
}

/*inline UnityGI UnityGI_Base1(UnityGIInput data, half occlusion, half3 normalWorld)
{
    //声明了一个UnityGI类型的变量o_gi，用来存储最终计算的GI信息
    UnityGI o_gi;
    //重置UnityGI
    ResetUnityGI(o_gi);

    // Base pass with Lightmap support is responsible for handling ShadowMask / blending here for performance reason

    //计算在Distance Shadowmask中实时阴影与烘焙阴影的混合过度
#if defined(HANDLE_SHADOWS_BLENDING_IN_GI)
        half bakedAtten = UnitySampleBakedOcclusion(data.lightmapUV.xy, data.worldPos);
        float zDist = dot(_WorldSpaceCameraPos - data.worldPos, UNITY_MATRIX_V[2].xyz);
        float fadeDist = UnityComputeShadowFadeDistance(data.worldPos, zDist);
        data.atten = UnityMixRealtimeAndBakedShadows(data.atten, bakedAtten, UnityComputeShadowFade(fadeDist));
#endif

    //将主平行灯传入GI中   UnityGIInput giInput;  data=giInput
    o_gi.light = data.light;
    //将衰减加入到灯光的颜色中
    o_gi.light.color *= data.atten;

#if UNITY_SHOULD_SAMPLE_SH
        o_gi.indirect.diffuse = ShadeSHPerPixel(normalWorld, data.ambient, data.worldPos);
#endif

    //当使用Baked GI时
#if defined(LIGHTMAP_ON)
        // Baked lightmaps
        //用lightmapUV.xy的UV坐标对unity_Lightmap贴图进行采样存储到bakedColorTex这个变量中
        half4 bakedColorTex = UNITY_SAMPLE_TEX2D(unity_Lightmap, data.lightmapUV.xy);
        //DecodeLightmap对采样后的贴图进行解码
        half3 bakedColor = DecodeLightmap(bakedColorTex);

    //当directional（定向光）模式开启时
#ifdef DIRLIGHTMAP_COMBINED
            fixed4 bakedDirTex = UNITY_SAMPLE_TEX2D_SAMPLER (unity_LightmapInd, unity_Lightmap, data.lightmapUV.xy);
            o_gi.indirect.diffuse += DecodeDirectionalLightmap (bakedColor, bakedDirTex, normalWorld);

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
                ResetUnityLight(o_gi.light);
                o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap (o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#else // not directional lightmap
            o_gi.indirect.diffuse += bakedColor;

#if defined(LIGHTMAP_SHADOW_MIXING) && !defined(SHADOWS_SHADOWMASK) && defined(SHADOWS_SCREEN)
                ResetUnityLight(o_gi.light);
                o_gi.indirect.diffuse = SubtractMainLightWithRealtimeAttenuationFromLightmap(o_gi.indirect.diffuse, data.atten, bakedColorTex, normalWorld);
#endif

#endif
#endif


    //当采用Realtime GI时
#ifdef DYNAMICLIGHTMAP_ON
        // Dynamic lightmaps
        //采样unity_DynamicLightmap贴图
        fixed4 realtimeColorTex = UNITY_SAMPLE_TEX2D(unity_DynamicLightmap, data.lightmapUV.zw);
        half3 realtimeColor = DecodeRealtimeLightmap (realtimeColorTex);

#ifdef DIRLIGHTMAP_COMBINED
            half4 realtimeDirTex = UNITY_SAMPLE_TEX2D_SAMPLER(unity_DynamicDirectionality, unity_DynamicLightmap, data.lightmapUV.zw);
            o_gi.indirect.diffuse += DecodeDirectionalLightmap (realtimeColor, realtimeDirTex, normalWorld);
#else
            o_gi.indirect.diffuse += realtimeColor;
#endif
#endif

    o_gi.indirect.diffuse *= occlusion;
    //最终的计算结果
    return o_gi;
}*/

inline UnityGI UnityGlobalIllumination1(UnityGIInput data, half occlusion, half3 normalWorld)
{
    return UnityGI_Base1(data, occlusion, normalWorld);
}

//该函数的目的是传出gi参数
inline void LightingLambert_GI1(SurfaceOutput s,UnityGIInput data,inout UnityGI gi)
{
    gi = UnityGlobalIllumination1(data, 1.0, s.Normal);
}

#endif

八、Shader

Shader "unity/Global"
{
    Properties
    {
    }
    SubShader
    {

        Pass
        {
            Tags{"LightMode"="ForWardBase"}

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile SHADOWS_SCREEN DIRECTIONAL

            #pragma multi_compile_fwdbase

            #include "UnityCG.cginc"

            //在做光照时一般都需要引用下面两个文件
            #include "AutoLight.cginc"
            #include "Lighting.cginc"

            //引用自定义的cginc文件
            #include"../CGincludes/MyGlobal.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                //定义LightMapUV (或判断)
                #if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
                float4 lightmapUV:TEXCOORD1;
                #endif
                half3 normal:NORMAL;
            };

            struct v2f
            {
                float4 pos: SV_POSITION;
                float4 worldPos:TEXCOORD;
                //DYNAMICLIGHTMAP_ON动态GI(Realtime GI)或静态GI(Baked GI)LIGHTMAP_ON
                #if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
                float4 lightmapUV:TEXCOORD1;
                #endif
                half3 worldNormal:NORMAL;

                //定义了两个变量，同时定义灯光衰减和实时阴影采样的变量
                UNITY_LIGHTING_COORDS(2,3)
            };

            v2f vert (appdata v)
            {
                v2f o;
                o.pos = UnityObjectToClipPos(v.vertex);
                o.worldPos=mul(unity_ObjectToWorld,v.vertex);
                o.worldNormal=UnityObjectToWorldNormal(v.normal);

                //Baked GI(静态)//使UV的平铺和偏移有效
                #if defined(LIGHTMAP_ON)
                o.lightmapUV.xy=v.lightmapUV*unity_LightmapST.xy+unity_LightmapST.zw;
                #endif

                //LightMapUV中的zw代表的是动态的GI(Realtime GI)
                #if defined(DYNAMICLIGHTMAP_ON)
                o.lightmapUV.zw=v.lightmapUV*unity_DynamicLightmapST.xy+unity_DynamicLightmapST.zw;
                #endif

                UNITY_TRANSFER_LIGHTING(o,v.lightmapUV.xy);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {

                // #if defined(LIGHTMAP_ON)
                // #if defined(DYNAMICLIGHTMAP_ON)
                // return 1;
                // #else
                // return 0;
                // #endif

                //顶点的表面数据
                SurfaceOutput o;

                // 使SurfaceOutPut中的参数初始化为0
                UNITY_INITIALIZE_OUTPUT(SurfaceOutput,o)
                //定义NORMAL的值
                o.Normal=i.worldNormal;
                //定义Albedo漫反射
                o.Albedo=1;

                //实时的阴影贴图纹理采样
                UNITY_LIGHT_ATTENUATION(atten,i,i.worldPos);

                UnityGI gi;

                // 初始化GI
                UNITY_INITIALIZE_OUTPUT(UnityGI,gi)

                // 定义主直接光照（平行灯）的灯光颜色
                gi.light.color=_LightColor0;

                // 定义主直接光照（平行灯）的位置方向
                gi.light.dir=_WorldSpaceLightPos0;

                // 定义间接光照的漫反射
                gi.indirect.diffuse=1;

                // 定义间接光照的高光
                gi.indirect.specular=0;



                UnityGIInput giInput;

                // 初始化操作
                UNITY_INITIALIZE_OUTPUT(UnityGIInput,giInput);

                // 主平行灯
                giInput.light=gi.light;   //直接光照

                giInput.worldPos=i.worldPos;

                giInput.worldViewDir=normalize(_WorldSpaceCameraPos-i.worldPos);

                //将实时的阴影赋予giInput.atten,将实时阴影与采样阴影进行混合
                giInput.atten=atten;

                giInput.ambient=0;

                // 在特定的情况下才会用到lightmapUV，所以要进行分支判断
                #if defined(LIGHTMAP_ON)||defined(DYNAMICLIGHTMAP_ON)
                giInput.lightmapUV=i.lightmapUV;
                #endif

                // 更改Shader中调用的内置函数名和自定义cginc中的函数名，来以区别
                // LightingLambert_GI改为 LightingLambert_GI1

                //GI 间接光照的计算
                LightingLambert_GI1(o,giInput,gi);
                //UnityGI UnityGI_Base1(UnityGIInput data, half occlusion, half3 normalWorld)
                // gi=UnityGI_Base1(giInput,1,o.Normal);          与LightingLambert_GI1(o,giInput,gi)功能相同



                //返回间接光照的漫反射颜色
                // return fixed4(gi.indirect.diffuse,1);

                //GI直接光照的计算
                fixed4 c=LightingLambert1(o,gi);

                return c;
            }
            ENDCG
        }
    } FallBack "Specular"
}
