STP+VRRP综合实验

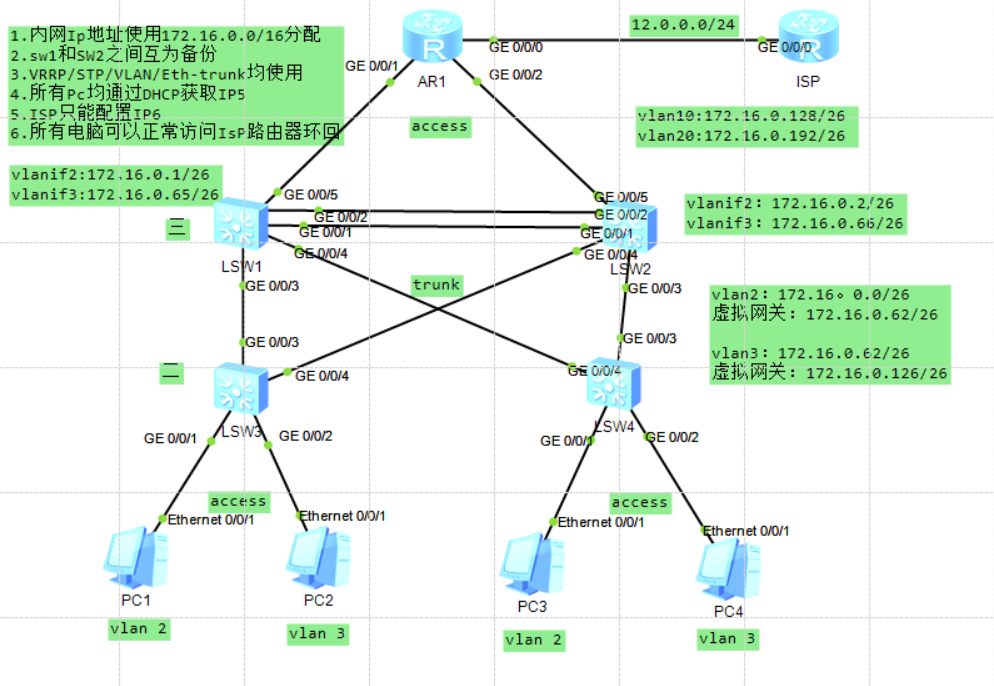

一、实验拓扑

二、实验需求

1,内网Ip地址使用172.16.0.0/16分配
2,sw1和SW2之间互为备份
3, VRRP/STP/VLAN/Eth-trunk均使用
4,所有Pc均通过DHCP获取IP地址
5,ISP只能配置IP地址
6,所有电脑可以正常访问IsP路由器环回

三、实验分析

1、二层设备上创建VLAN并划分端口，下面配置access口，交换机之间配置trunk链路，SW1和SW2之间配置Eth-trunk聚合
2、配置三层交换机，配置vlan接口，SW1 配置vlanif10,SW2配置vlanif20，R1连接内网和ISP接口，iSP配置IP地址和环回IP
3、指定根桥，sw1为vlan10的主根桥，sw2为vlan20的主根桥，之后pc接入端口启用边缘保护
4、在SW1和SW2上面配置vrrp
5、配置DHCP服务，在SW1和SW2的vlanif2\3上面激活DHCP，sw1、sw2 、r1启用ospf
7、所有交换机配置MSTP，配置NAT（IPv4访问ISP， IPv6环回）

四、实验步骤

1.vlan配置

#二层的vlan配置
#SW3配置
[SW3]vlan batch 2 to 3
交换机与客户端之间配置access
[SW3-GigabitEthernet0/0/1]p l a
[SW3-GigabitEthernet0/0/1]p d v 2
[SW3-GigabitEthernet0/0/2]p l a
[SW3-GigabitEthernet0/0/2]p d v 3

trunk配置
[SW3]port-group group-member g0/0/3 g0/0/4
[SW3-port-group]p l t
[SW3-GigabitEthernet0/0/3]p l t
[SW3-GigabitEthernet0/0/4]p l t
[SW2-port-group]p t a v 2 3
[SW2-GigabitEthernet0/0/3]p t a v 2 3
[SW2-GigabitEthernet0/0/4]p t a v 2 3

#SW4配置
[SW4]vlan batch 2 to 3
[SW4-GigabitEthernet0/0/1]p l a
[SW4-GigabitEthernet0/0/1]p d v 2
[SW4-GigabitEthernet0/0/2]p l a
[SW4-GigabitEthernet0/0/2]p d v 3

[SW4]port-group group-member g0/0/3 g0/0/4
[SW4-port-group]p l t
[SW4-GigabitEthernet0/0/3]p l t
[SW4-GigabitEthernet0/0/4]p l t
[SW4-port-group]p t a v 2 3
[SW4-GigabitEthernet0/0/3]p t a v 2 3
[SW4-GigabitEthernet0/0/4]p t a v 2 3

#三层的vlan配置
[SW1]v b 2 3 10 20
[SW1]int Eth-Trunk 0
[SW1-Eth-Trunk0]trun
[SW1-Eth-Trunk0]trunkport g 0/0/1 0/0/2

[SW1]port-group group-member g0/0/3 to g0/0/4
[SW1-port-group]port link-type trunk
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-port-group]p t a v 2 3
[SW1-GigabitEthernet0/0/3]p t a v 2 3
[SW1-GigabitEthernet0/0/4]p t a v 2 3

[SW1-Eth-Trunk0]int g0/0/5
[SW1-GigabitEthernet0/0/5]p l ac
[SW1-GigabitEthernet0/0/5]port default vlan 10


[SW2]v b 2 3 10 20
[SW2]int Eth-Trunk 0
[SW2-Eth-Trunk0]tru
[SW2-Eth-Trunk0]trunkport g 0/0/1 0/0/2

[SW2]port-group group-member g0/0/3 to g0/0/4
[SW2-port-group]p l trunk
[SW2-GigabitEthernet0/0/3]p l trunk
[SW2-GigabitEthernet0/0/4]p l trunk
[SW2-port-group]p t a v 2 3
[SW2-GigabitEthernet0/0/3]p t a v 2 3
[SW2-GigabitEthernet0/0/4]p t a v 2 3

[SW2-Eth-Trunk0]int g0/0/5
[SW2-GigabitEthernet0/0/5]p l ac
[SW2-GigabitEthernet0/0/5]port default vlan 20

2.IP配置

#创建vlanif，配置IP
[SW1]interface Vlanif 2
[SW1-Vlanif2]ip add 172.16.0.1 26
[SW1-Vlanif2]int v 3
[SW1-Vlanif3]ip add 172.16.0.65 26
[SW1]int v 10
[SW1-Vlanif10]ip add 172.16.0.129 26

[SW2]int v 2
[SW2-Vlanif2]ip add 172.16.0.2  26
[SW2-Vlanif2]int v 3
[SW2-Vlanif3]ip add 172.16.0.66 26
[SW2-Vlanif20]ip add 172.16.0.193 26

#R1
[R1-GigabitEthernet0/0/1]ip add 172.16.0.130 26
[R1-GigabitEthernet0/0/1]int g 0/0/2
[R1-GigabitEthernet0/0/2]ip add 172.16.0.194 26
[R1-GigabitEthernet0/0/2]int g 0/0/0
[R1-GigabitEthernet0/0/0]ip add 12.0.0.1 24

#ISP
[ISP]int  g 0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.2 24
[ISP-GigabitEthernet0/0/0]int l0
[ISP-LoopBack0]ip add 2.2.2.2 24

3.MSTP配置

[SW1]stp enable
[SW1]stp mode mstp
[SW1]stp region-configuration
[SW1-mst-region]region-name aa
[SW1-mst-region]instance 1 vlan 2
[SW1-mst-region]instance 2 vlan 3
[SW1-mst-region]active region-configuration

[SW2]stp enable
[SW2]stp mode mstp
[SW2]stp region-configuration
[SW2-mst-region]region-name aa
[SW2-mst-region]instance 1 vlan 2
[SW2-mst-region]instance  2 vlan 3
[SW2-mst-region]active region-configuration

[SW3]stp enable
[SW3]stp mode mstp
[SW3]stp region-configuration
SW3-mst-region]region-name aa
[SW3-mst-region]instance 1 vlan 2
[SW3-mst-region]instance 2 vlan 3
[SW3-mst-region]active region-configuration

[SW4]stp enable
[SW4]stp mode mstp
[SW4]stp region-configuration
[SW4-mst-region]region-name  aa
[SW4-mst-region]instance 1 vlan 2
[SW4-mst-region]instance 2 vlan 3
[SW4-mst-region]active region-configuration

5.根桥

[SW1]stp instance 1 root primary
[SW2]stp instance  1 root secondary
[SW1]stp instance 2 root secondary
[SW2]stp instance 2 root primary

6.pc边缘保护

[SW3]port-group group-member GigabitEthernet 0/0/1 to 0/0/2
[SW3-port-group]stp edged-port enable
[SW3-GigabitEthernet0/0/1]stp edged-port enable
[SW3-GigabitEthernet0/0/2]stp edged-port enable
[SW3]stp bpdu-protection
[SW4]port-group group-member GigabitEthernet 0/0/1 to g 0/0/2
[SW4-port-group]stp enable
[SW4-GigabitEthernet0/0/1]stp enable
[SW4-GigabitEthernet0/0/2]stp enable
[SW4-port-group]stp edged-port enable
[SW4-GigabitEthernet0/0/1]stp edged-port enable
[SW4-GigabitEthernet0/0/2]stp edged-port enable
[SW4]stp bpdu-protection

7.vrrp配置

[SW1]int v 2
[SW1-Vlanif2]vrrp vrid 1 virtual-ip 172.16.0.62
[SW1-Vlanif2]vrrp vrid 1 priority 120
[SW1-Vlanif2]vrrp vrid 1 track  interface g0/0/5 reduced 30
[SW1]int v 3
[SW1-Vlanif3]vrrp vrid 2 virtual-ip 172.16.0.126

[SW2]int v 2
[SW2-Vlanif2]vrrp vrid 1 virtual-ip 172.16.0.62
[SW2-Vlanif2]int v 3
[SW2-Vlanif3]vrrp vrid 2 virtual-ip 172.16.0.126
[SW2-Vlanif3]vrrp vrid 2 priority 120
[SW2-Vlanif3]vrrp vrid 2 track interface Vlanif 20 reduced 30


8.dhcp配置

[SW1]dhcp enable
[SW1]ip pool pool_vlan2
[SW1-ip-pool-pool_vlan2]network 172.16.0.0 mask 26
[SW1-ip-pool-pool_vlan2]gateway-list 172.16.0.62
[SW1-ip-pool-pool_vlan2]dns-list 8.8.8.8

[SW1]int vl  2
[SW1-Vlanif2]dhcp select global

[SW2]dhcp enable
[SW2]ip pool pool_vlan2
[SW2-ip-pool-pool_vlan2]network 172.16.0.0 mask 26
[SW2-ip-pool-pool_vlan2]gateway-list 172.16.0.62
[SW2-ip-pool-pool_vlan2]dns-list 8.8.8.8
[SW2-ip-pool-pool_vlan2]int v 2
[SW2-Vlanif2]dhcp select global

[SW1]ip pool pool_vlan3
[SW1-ip-pool-pool_vlan3]netw 172.16.0.64 mask 26
[SW1-ip-pool-pool_vlan3]gateway-list 172.16.0.126
[SW1-ip-pool-pool_vlan3]dns-list 8.8.8.8
[SW1]int v 3
[SW1-Vlanif3]dhcp select global

[SW2]ip pool pool_vlan3
[SW2-ip-pool-pool_vlan3]netw 172.16.0.64 mask 26
[SW2-ip-pool-pool_vlan3]gateway-list 172.16.0.126
[SW2-ip-pool-pool_vlan3]dns-list 8.8.8.8
[SW2-ip-pool-pool_vlan3]int v 3
[SW2-Vlanif3]dhcp select global

9.ospf配置

[R1]ospf 1 router-id 1.1.1.1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]ne
[R1-ospf-1-area-0.0.0.0]network 172.16.0.128 0.0.0.63
[R1-ospf-1-area-0.0.0.0]network 172.16.0.192 0.0.0.63

[SW1]ospf 1 router-id 2.2.2.2
[SW1-ospf-1]a 0
[SW1-ospf-1-area-0.0.0.0]ne 172.16.0.128 0.0.0.63
[SW1-ospf-1-area-0.0.0.0]ne 172.16.0.0 0.0.0.63
[SW1-ospf-1-area-0.0.0.0]ne 172.16.0.64 0.0.0.63

[SW2]ospf 1 router-id 3.3.3.3
[SW2-ospf-1]a 0
[SW2-ospf-1-area-0.0.0.0]ne 172.16.0.192 0.0.0.63
[SW2-ospf-1-area-0.0.0.0]ne 172.16.0.0 0.0.0.63
[SW2-ospf-1-area-0.0.0.0]ne 172.16.0.64  0.0.0.63


10.NAT配置

[R1]ip route-static 0.0.0.0 0 12.0.0.2
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 172.16.0.0 0.0.0.255
[R1]int g 0/0/0
[R1-GigabitEthernet0/0/0]nat outbound 2000
[R1]ospf 1
[R1-ospf-1]default-route-advertise

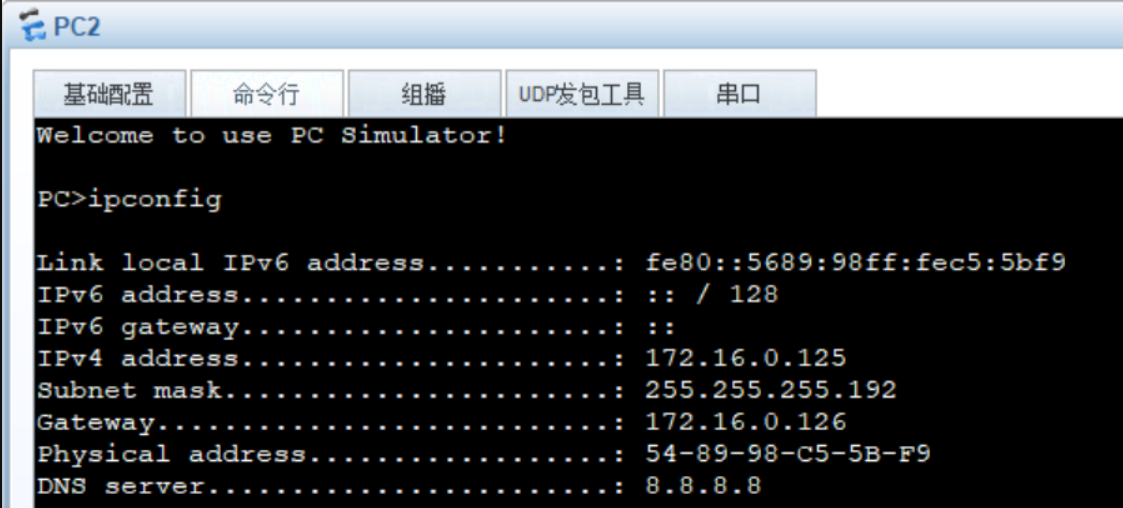

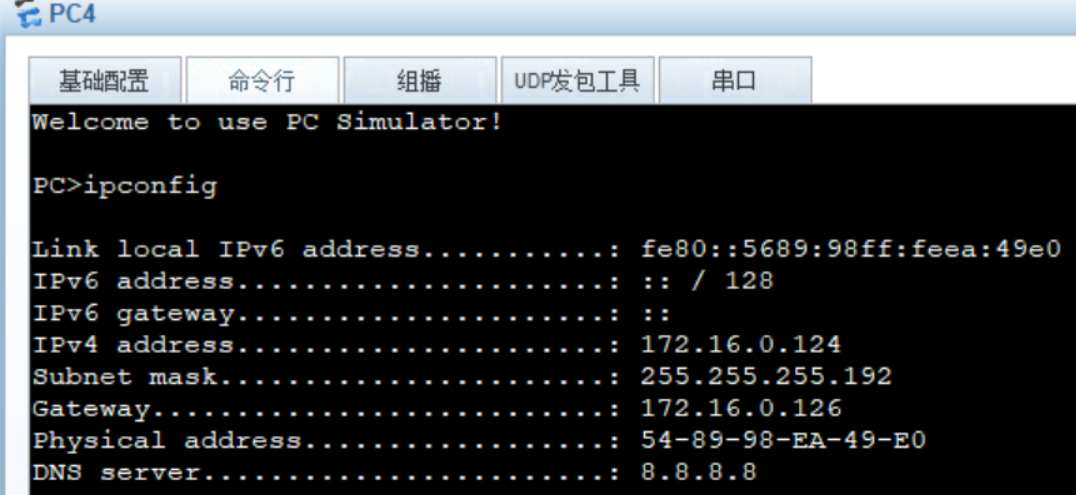

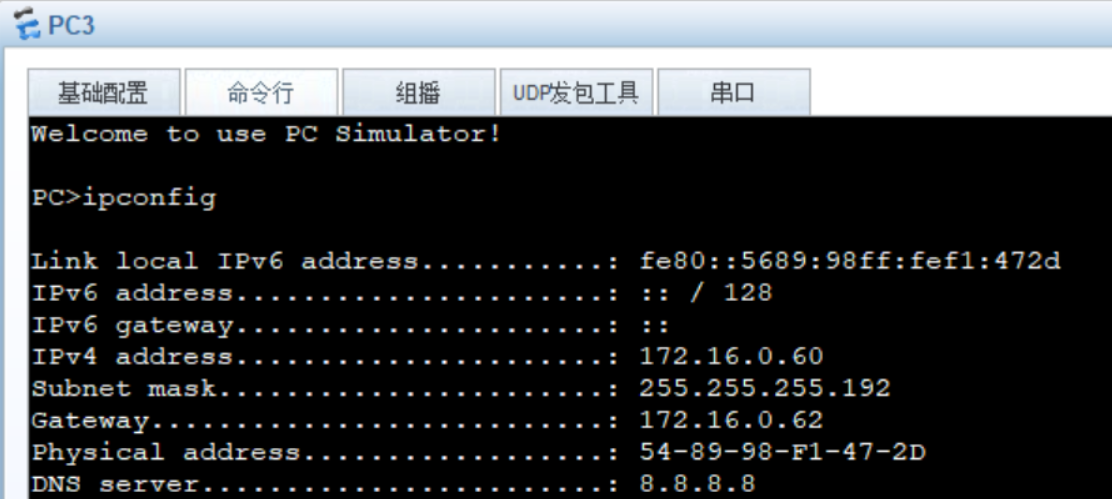

五、结果测试

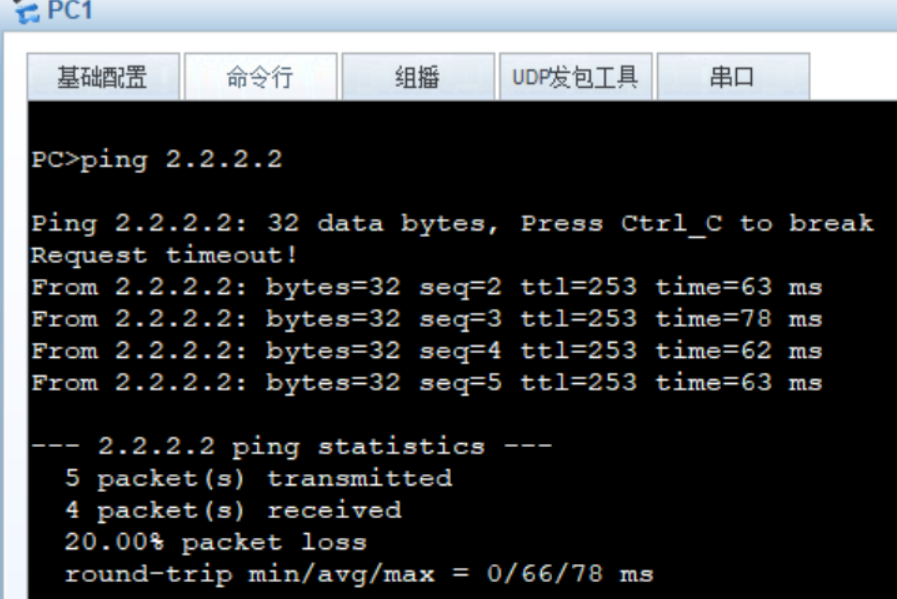

ping ISP环回接口
