蓝桥杯过度训练——电压采集器

数码管模块：

1.电压采集界面 显示当前输入电压数据 - - - - 熄灭 输入电压数据显示（mV）

TPIS：输入电压为 4 位数据，单位为 mV，当前输入数码管以 0.5S/次进行闪烁提示。 例如：输入电压 2588mV，则实际电压为 2.58V（结果保留两位有效数字）

2.数据显示界面 显示当前实际电压数据 U 2. 5 8 提示符 熄灭 实际电压数据显示（V）

3.参数设置界面 显示当前设置电压参数 P 3. 0 0 提示符 熄灭 电压参数数据显示（V）

4.计数统计界面 显示当前计数值数据 N 1 2 提示符 高位未启用数码管熄灭

每当前一次实际电压（VAIN3）大于电压设置参数（Vp），重新输入后，实际电 压（VAIN3）小于电压设置参数（Vp）时，计数值加一。

按键模块：

按键定义

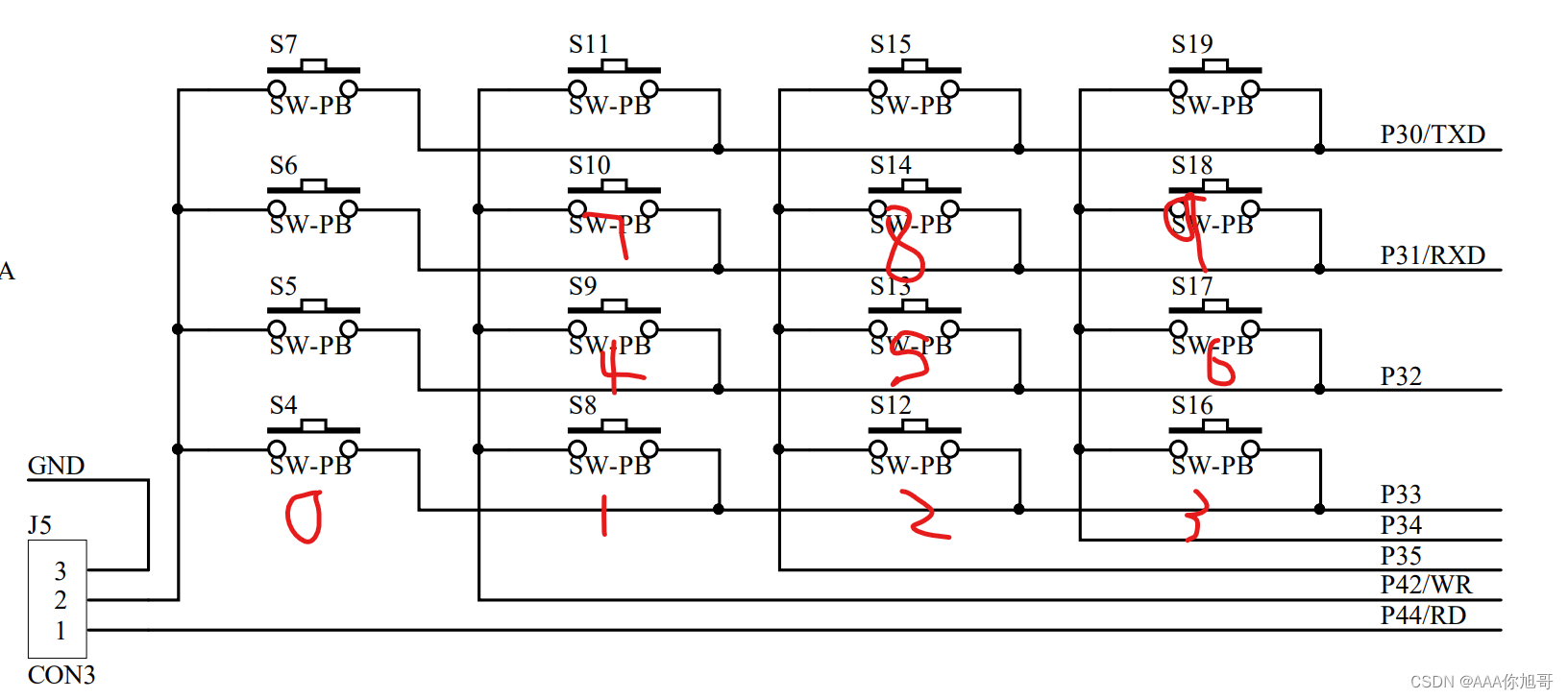

1.按键 ：0-9 键盘输入如上图所示

2.按键 S5：电压采集按键，按下 S11 后进入电压采集界面，可重新采集一次电 压值

3.按键 S6：界面切换按键，按下 S12 后可在数据显示-参数设置-计数统计三个 界面中循环切换

4、按键 S7：清零参数按键，在电压采集界面按下 S14 可清除当前输入数据，在 计数统计界面可清除当前计数值

5.按键 S11：参数+按键，按下 S15 后，电压参数+0.5V，达到上限 6V 后回到下 限 1V

6.按键 S15：参数-按键，按下 S16 后，电压参数-0.5V，达到下限 1V 后回到上 限 6V

按键说明

1.按键 ：键盘按键 只在电压采集界面有效

2.按键 S6 只在非电压采集界面有效

3.在电压采集界面按下 S6 后保存当前输入电压值，并返回电压显示界面（若输 入数据不符合规范性，则清空数据重新输入）

4.按键 S11、S15 只在电压参数设置界面有效

LED 模块：

指示灯 L1：当实际电压小于电压设置参数状态持续超过五秒后，L1 点亮，否则 熄灭 指示灯

L2：当前计数值为奇数时，L2 点亮，否则熄灭 指示灯

L3：连续三次以上无效按键操作时，L3 点亮，触发有效按键操作时熄灭

初始状态： 默认处于电压采集界面

默认电压设置参数为 3.0V

电压采集范围为 0-10V

默认计数值为0

代码范例如下，仅供参考

#include <STC15F2K60S2.H>
sbit h1 = P3^0;
sbit h2 = P3^1;
sbit h3 = P3^2;
sbit h4 = P3^3;
sbit s1 = P4^4;
sbit s2 = P4^2;
sbit s3 = P3^5;
sbit s4 = P3^4;
void Delay10ms()		//@12.000MHz
{
	unsigned char i, j;

	i = 117;
	j = 184;
	do
	{
		while (--j);
	} while (--i);
}

unsigned char code SMG_NoDot[18]={0xc0,0xf9,
    0xa4,0xb0,0x99,0x92,0x82,0xf8,0x80,0x90,
    0x88,0x80,0xc6,0xc0,0x86,0x8e,0xbf,0x7f};

unsigned char code SMG_Dot[10]={0x40,0x79,
    0x24,0x30,0x19,0x12,0x02,0x78,0x00,0x10};
unsigned char UI = 0; //0-电压采集界面 1-数据显示界面 2-参数设置界面 3- 计数统计界面
unsigned int input_data = 0;
unsigned char input_Array[4] = {0}; //存储按键输入的电压数据
unsigned char i = 0;
unsigned char num_07s = 0;
unsigned char shan = 0;
unsigned char volt_param = 30;
unsigned char volt_param2 = 0;
unsigned char count_UI = 0;
unsigned int old_data = 0;
unsigned char stat_data = 0;
unsigned char stat_1 = 0;
unsigned char stat_led = 0xff;
unsigned char stat_L1 = 0;
unsigned int num_5s = 0;
unsigned char error_key = 0;
void SelectHC573(unsigned char channel,unsigned char dat);
void Init_timer0()
{
	TMOD = 0x01;
	TH0 = (65535 - 10000) / 256;
	TL0 = (65535 - 10000) % 256;
	TR0 = 1;
	EA = 1;
	ET0 = 1;

}
void Sevice_timer0() interrupt 1
{
	TH0 = (65535 - 10000) / 256;
	TL0 = (65535 - 10000) % 256;
	if(UI == 0)
	{
		num_07s++;
		if(num_07s == 70)
		{
			if(shan == 0)
			{
				shan = 1;
			}
			else
			{
				shan = 0;
			}
			num_07s = 0;
		}
	}
	if(stat_L1 == 1)
	{
		num_5s++;
		if(num_5s == 500)
		{
			stat_led = stat_led & 0xfe;
			SelectHC573(4,stat_led);
			num_5s = 0;
		}
	}
}
void SelectHC573(unsigned char channel,unsigned char dat)
{
	P2 = (P2 & 0x1f) | 0x00;
	P0 = dat;
	switch(channel)
	{
		case 4:
			P2 = (P2 & 0x1f) | 0x80;
		break;
		case 5:
			P2 = (P2 & 0x1f) | 0xa0;
		break;
		case 6:
			P2 = (P2 & 0x1f) | 0xc0;
		break;
		case 7:
			P2 = (P2 & 0x1f) | 0xe0;
		break;
		case 0:
			P2 = (P2 & 0x1f) | 0x00;
		break;
	}
	P2 = (P2 & 0x1f) | 0x00;
}
void DelaySMG(unsigned int t)
{
	while(t--);
}
void DisplaySMG_Bit(unsigned char pos,unsigned char value)
{
	SelectHC573(6,0x01 << pos);
	SelectHC573(7,value);
	DelaySMG(500);
	SelectHC573(6,0x01 << pos);
	SelectHC573(7,0xff);
}
void DisplaySMG_ALL()
{
	SelectHC573(6,0xff);
	SelectHC573(7,0xff);
}
void DisplaySMG_Info()
{
	switch(UI)
	{
		case 0:
			if(i == 0)
			{
				if(shan == 0)
				{
					DisplaySMG_Bit(4,SMG_NoDot[input_Array[0]]);
				}
			}
			else if(i == 1)
			{
				if(shan == 0)
				{
					DisplaySMG_Bit(5,SMG_NoDot[input_Array[1]]);
				}
				DisplaySMG_Bit(4,SMG_NoDot[input_Array[0]]);
			}
			else if(i == 2)
			{
				if(shan == 0)
				{
					DisplaySMG_Bit(6,SMG_NoDot[input_Array[2]]);
				}
				DisplaySMG_Bit(4,SMG_NoDot[input_Array[0]]);
				DisplaySMG_Bit(5,SMG_NoDot[input_Array[1]]);
			}
			else if(i == 3)
			{
				if(shan == 0)
				{
					DisplaySMG_Bit(7,SMG_NoDot[input_Array[3]]);
				}
				DisplaySMG_Bit(4,SMG_NoDot[input_Array[0]]);
				DisplaySMG_Bit(6,SMG_NoDot[input_Array[2]]);
				DisplaySMG_Bit(5,SMG_NoDot[input_Array[1]]);
			}
			else if(i == 4)
			{
			    DisplaySMG_Bit(7,SMG_NoDot[input_Array[3]]);
				DisplaySMG_Bit(4,SMG_NoDot[input_Array[0]]);
				DisplaySMG_Bit(6,SMG_NoDot[input_Array[2]]);
				DisplaySMG_Bit(5,SMG_NoDot[input_Array[1]]);
			}
		break;
		case 1:
			DisplaySMG_Bit(0,0xc1);
			DisplaySMG_Bit(5,SMG_Dot[input_data / 1000]);
			DisplaySMG_Bit(6,SMG_NoDot[input_data / 100 % 10]);
			DisplaySMG_Bit(7,SMG_NoDot[input_data / 10 % 10]);
		break;
		case 2:
			DisplaySMG_Bit(0,0x8c);
			DisplaySMG_Bit(5,SMG_Dot[volt_param /10]);
			DisplaySMG_Bit(6,SMG_NoDot[volt_param % 10]);
			DisplaySMG_Bit(7,SMG_NoDot[0]);
		break;
		case 3:
			DisplaySMG_Bit(0,0xc8);
			if(count_UI > 9)
			{
				DisplaySMG_Bit(6,SMG_NoDot[count_UI / 10]);

			}
			else
			{
				DisplaySMG_Bit(7,SMG_NoDot[count_UI]);
			}

		break;
	}
}
void scan_key()
{
	s1 = 0;
	s2 = s3 = s4 = h1 = h2 = h3 = h4 = 1;
	if(h1 == 0)//s7
	{
		Delay10ms();
		if(h1 == 0)
		{
			if(UI == 2)
			{
				volt_param = 0;
				error_key = 0;
			}
			if(UI == 0)
			{
				i = 0;
				input_Array[0] = 0;
				input_Array[1] = 0;
				input_Array[2] = 0;
				input_Array[3] = 0;
				error_key = 0;
			}
			if(UI == 3)
			{
				count_UI = 0;
				error_key = 0;
			}
			if(UI == 1)
			{
				error_key++;
			}
			while(h1 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h2 == 0)//s6
	{
		Delay10ms();
		if(h2 == 0)
		{
			error_key = 0;
			if(UI == 0)
			{
				UI = 1;
				input_data = input_Array[0] * 1000 + input_Array[1] * 100 + input_Array[2] * 10 + input_Array[3];
				if(stat_data == 0)
				{
					old_data = input_data;
					stat_data = 1;
				}
				old_data = input_data;
				if(old_data > (volt_param * 100))
				{
					stat_1 = 1;
				}
				else if(stat_1 == 1)
				{
					if(old_data < (volt_param * 100))
					{
						count_UI++;
						stat_1 = 0;
					}
				}
			}
			else if(UI == 1)
			{
				UI = 2;
			}
			else if(UI == 2)
			{
				UI = 3;
			}
			else if(UI == 3)
			{
				UI = 1;
			}
			while(h2 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h3 == 0)//s5
	{
		Delay10ms();
		if(h3 == 0)
		{
			error_key = 0;
			UI = 0;
			i = 0;
			input_Array[0] = 0;
			input_Array[1] = 0;
			input_Array[2] = 0;
			input_Array[3] = 0;
			while(h3 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h4 == 0)//s4
	{
		Delay10ms();
		if(h4 == 0)
		{
			if(UI == 0)
			{
				if(i < 4)
				{
					input_Array[i] = 0;
					i = i + 1;
				}
				error_key = 0;
			}
			else
			{
				error_key++;
			}
				while(h4 == 0)
				{
					DisplaySMG_Info();
				}

		}
	}

	s2 = 0;
	s1 = s3 = s4 = h1 = h2 = h3 = h4 = 1;
	if(h1 == 0)//s11
	{
		Delay10ms();
		if(h1 == 0)
		{
			if(UI == 2)
			{
				error_key = 0;
				if(volt_param == 60)
				{
					volt_param = 10;
				}
				else
				{
					volt_param = volt_param + 5;
				}
			}
			else
			{
				error_key++;
			}
			while(h1 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h2 == 0)//s10
	{
		Delay10ms();
		if(h2 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 7;
				i = i + 1;
			}
			}
			else
			{
				error_key++;
			}
			while(h2 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h3 == 0)//s9
	{
		Delay10ms();
		if(h3 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 4;
				i = i + 1;
			}
			}
			else
			{
				error_key++;
			}
			while(h3 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h4 == 0)//s8
	{
		Delay10ms();
		if(h4 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 1;
				i = i + 1;
			}
			}
			else
			{
				error_key++;
			}
			while(h4 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}


	s3 = 0;
	s2 = s1 = s4 = h1 = h2 = h3 = h4 = 1;
	if(h1 == 0)//s15
	{
		Delay10ms();
		if(h1 == 0)
		{
			if(UI == 2)
			{
				error_key = 0;
				if(volt_param == 10)
				{
					volt_param = 60;
				}
				else
				{
					volt_param = volt_param - 5;
				}
			}
			else
			{
				error_key++;
			}
			while(h1 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h2 == 0)//s14
	{
		Delay10ms();
		if(h2 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 8;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h2 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h3 == 0)//s13
	{
		Delay10ms();
		if(h3 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 5;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h3 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h4 == 0)//s12
	{
		Delay10ms();
		if(h4 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 2;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h4 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}

	s4 = 0;
	s2 = s3 = s1 = h1 = h2 = h3 = h4 = 1;
	if(h1 == 0)//s19
	{
		Delay10ms();
		if(h1 == 0)
		{

			while(h1 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h2 == 0)//s18
	{
		Delay10ms();
		if(h2 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 9;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h2 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h3 == 0)//s17
	{
		Delay10ms();
		if(h3 == 0)
		{
			if(UI == 0)
			{
			error_key = 0;
			if(i < 4)
			{
				input_Array[i] = 6;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h3 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
	if(h4 == 0)//s16
	{
		Delay10ms();
		if(h4 == 0)
		{
			if(UI == 0)
			{
			error_key= 0;
			if(i < 4)
			{
				input_Array[i] = 3;
				i = i + 1;
			}
		}
			else
			{
				error_key++;
			}
			while(h4 == 0)
			{
				DisplaySMG_Info();
			}
		}
	}
}
void led_deal()
{
	if(input_data < (volt_param * 100))
	{
		stat_L1 = 1;
	}
	else
	{
		stat_led = stat_led | 0x01;
		SelectHC573(4,stat_led);
	}
	if((count_UI % 2) != 0)
	{
		stat_led = stat_led & 0xfd;
		SelectHC573(4,stat_led);
	}
	else
	{
		stat_led = stat_led | 0x02;
		SelectHC573(4,stat_led);
	}
	if(error_key > 3)
	{
		stat_led = stat_led & 0xfb;
		SelectHC573(4,stat_led);
	}
	else
	{
		stat_led = stat_led | 0x04;
		SelectHC573(4,stat_led);
	}
}
void main()
{
	SelectHC573(4,0xff);
	SelectHC573(5,0x00);
	DisplaySMG_ALL();
	led_deal();
	Init_timer0();
	while(1)
	{
		led_deal();
		scan_key();
		DisplaySMG_Info();
	}
}
