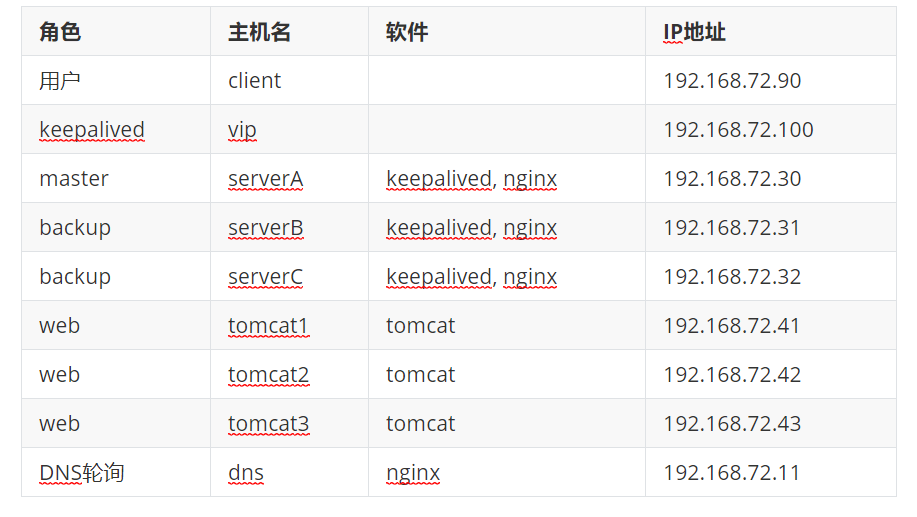

架构规划

三台server操作

分别修改三台server主机

所有节点安装Keepalived和Nginx

停止serverA的keepalived服务，看是否转移到serverC

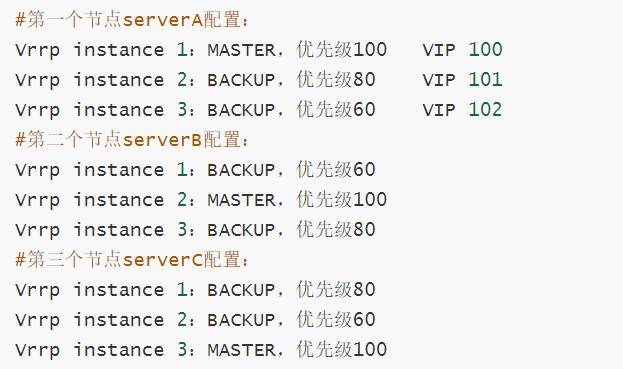

架构规划

三台server操作

分别修改三台server主机

[root@192 ~]# hostnamectl hostname serverA
[root@192 ~]# nmcli c modify ens160 ipv4.method manual ipv4.addresses 192.168.193.30/24 ipv4.gateway 192.168.193.2  ipv4.dns 223.5.5.5 connection.autoconnect yes
[root@serverA ~]# nmcli c up ens160

[root@192 ~]# hostnamectl hostname serverB
[root@192 ~]# nmcli c modify ens160 ipv4.method manual ipv4.addresses 192.168.193.31/24 ipv4.gateway 192.168.193.2  ipv4.dns 223.5.5.5 connection.autoconnect yes
[root@serverB ~]# nmcli c up ens160

[root@192 ~]# hostnamectl hostname serverC
[root@192 ~]# nmcli c modify ens160 ipv4.method manual ipv4.addresses 192.168.193.32/24 ipv4.gateway 192.168.193.2  ipv4.dns 223.5.5.5 connection.autoconnect yes
[root@serverC ~]# nmcli c up ens160

所有节点安装Keepalived和Nginx

yum install -y keepalived nginx

serverA配置Keepalived

[root@serverA ~]# vi /etc/keepalived/keepalived.conf
[root@serverA ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
vrrp_instance VI_1 {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.100
    }
}

vrrp_instance VI_2 {
    state BACKUP
    interface ens160
    virtual_router_id 52
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.101
    }
}

vrrp_instance VI_3 {
    state BACKUP
    interface ens160
    virtual_router_id 53
    priority 60
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.102
    }
}

serverB配置Keepalived

[root@serverB ~]# vi /etc/keepalived/keepalived.conf
[root@serverB ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 60
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.100
    }
}

vrrp_instance VI_2 {
    state MASTER
    interface ens160
    virtual_router_id 52
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.101
    }
}

vrrp_instance VI_3 {
    state BACKUP
    interface ens160
    virtual_router_id 53
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.102
    }
}

serverC配置Keepalived

[root@serverC ~]# vi /etc/keepalived/keepalived.conf
[root@serverC ~]# cat /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.100
    }
}

vrrp_instance VI_2 {
    state BACKUP
    interface ens160
    virtual_router_id 52
    priority 60
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.101
    }
}

vrrp_instance VI_3 {
    state MASTER
    interface ens160
    virtual_router_id 53
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.193.102
    }
}

所有节点配置Nginx负载均衡

[root@serverA conf.d]# vi /etc/nginx/conf.d/server.conf
[root@serverA conf.d]# cat /etc/nginx/conf.d/server.conf
upstream backend {
	    server 192.168.193.41:8080;
	    server 192.168.193.42:8080;
	    server 192.168.193.43:8080;
}

server {
	    listen 80;
	    server_name localhost;
	    location / {
			  proxy_pass http://backend;
				        }
}

远程复制给其他两台主机

[root@serverA conf.d]# scp -r /etc/nginx/conf.d/server.conf root@192.168.193.31:/etc/nginx/conf.d/
The authenticity of host '192.168.193.31 (192.168.193.31)' can't be established.
ED25519 key fingerprint is SHA256:uMFqXde/hjx7VDo4nYuEbEq2Mf0JkBwzkezkB5D64NQ.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.193.31' (ED25519) to the list of known hosts.
root@192.168.193.31's password:
server.conf                                100%  241   578.5KB/s   00:00
[root@serverA conf.d]# scp -r /etc/nginx/conf.d/server.conf root@192.168.193.32:/etc/nginx/conf.d/
The authenticity of host '192.168.193.32 (192.168.193.32)' can't be established.
ED25519 key fingerprint is SHA256:uMFqXde/hjx7VDo4nYuEbEq2Mf0JkBwzkezkB5D64NQ.
This host key is known by the following other names/addresses:
    ~/.ssh/known_hosts:1: 192.168.193.31
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.193.32' (ED25519) to the list of known hosts.
root@192.168.193.32's password:
server.conf                                100%  241   450.6KB/s   00:00

验证是否有文件

[root@serverB ~]# cd /etc/nginx/conf.d/
[root@serverB conf.d]# ls
server.conf

[root@serverC ~]# cat /etc/nginx/conf.d/server.conf
upstream backend {
	    server 192.168.193.41:8080;
	    server 192.168.193.42:8080;
	    server 192.168.193.43:8080;
}

server {
	    listen 80;
	    server_name localhost;
	    location / {
			  proxy_pass http://backend;
				        }
}

三台server上启动服务

[root@serverC ~]# systemctl start keepalived
[root@serverC ~]# systemctl enable keepalived
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
[root@serverC ~]# systemctl start nginx
[root@serverC ~]# systemctl enable nginx
Created symlink /etc/systemd/system/multi-user.target.wants/nginx.service → /usr/lib/systemd/system/nginx.service.

配置三台jdk

下载JDK21

wget https://download.oracle.com/java/21/latest/jdk-21_linux-x64_bin.tar.gz

查看并解压文件

[root@tomcat2 ~]# ls
anaconda-ks.cfg  jdk-21_linux-x64_bin.tar.gz  myfile
[root@tomcat2 ~]# tar -zxf jdk-21_linux-x64_bin.tar.gz -C /usr/local
[root@tomcat2 ~]# ls /usr/local
bin  etc  games  include  jdk-21.0.6  lib  lib64  libexec  sbin  share  src

配置JDK

[root@tomcat2 ~]# vim /etc/profile
[root@tomcat2 ~]# tail -n 3 /etc/profile
export JAVA_HOME=/usr/local/jdk-21.0.6/
export PATH=$PATH:$JAVA_HOME/bin

刷新配置文件验证JDK

[root@tomcat2 ~]# source /etc/profile
[root@tomcat2 ~]# java -version
java version "21.0.6" 2025-01-21 LTS
Java(TM) SE Runtime Environment (build 21.0.6+8-LTS-188)
Java HotSpot(TM) 64-Bit Server VM (build 21.0.6+8-LTS-188, mixed mode, sharing)

配置三台Tomcat

下载tomcat

[root@tomcat1 ~]# wget https://dlcdn.apache.org/tomcat/tomcat-11/v11.0.5/bin/apache-tomcat-11.0.5.tar.gz

查看并解压

[root@tomcat1 ~]# ls
anaconda-ks.cfg  apache-tomcat-11.0.5.tar.gz  jdk-21_linux
4_bin.tar.gz
[root@tomcat1 ~]# tar -zxf apache-tomcat-11.0.5.tar.gz -C /usr/local/
[root@tomcat1 ~]# cd /usr/local/
[root@tomcat1 local]# ls
apache-tomcat-11.0.5  bin  etc  games  include  jdk-21.0.6  lib  lib64  libexec  sbin  share  src
[root@tomcat1 local]# mv apache-tomcat-11.0.5/ tomcat-11.0.5/
[root@tomcat1 local]# cd tomcat-11.0.5/
[root@tomcat1 tomcat-11.0.5]# ls

配置tomcat

[root@tomcat2 tomcat-11.0.5]# vim /etc/profile
[root@tomcat2 tomcat-11.0.5]# tail -n 3 /etc/profile
export TOMCAT_HOME=/usr/local/tomcat-11.0.5
export PATH=$PATH:$TOMCAT_HOME/bin

刷新配置并启动

[root@tomcat2 tomcat-11.0.5]# source /etc/profile
[root@tomcat2 tomcat-11.0.5]# startup.sh
Using CATALINA_BASE:   /usr/local/tomcat-11.0.5
Using CATALINA_HOME:   /usr/local/tomcat-11.0.5
Using CATALINA_TMPDIR: /usr/local/tomcat-11.0.5/temp
Using JRE_HOME:        /usr/local/jdk-21.0.6/
Using CLASSPATH:       /usr/local/tomcat-11.0.5/bin/bootstrap.jar:/usr/local/tomcat-11.0.5/bin/tomcat-juli.jar
Using CATALINA_OPTS:
Tomcat started.

验证VIP绑定

[root@serverA ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:4a:9c:7c brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.193.30/24 brd 192.168.193.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.193.100/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe4a:9c7c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever


[root@serverB ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:a0:1e:13 brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.193.31/24 brd 192.168.193.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.193.101/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fea0:1e13/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

[root@serverC ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:98:fb:7c brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.193.32/24 brd 192.168.193.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.193.102/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe98:fb7c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

停止serverA的keepalived服务，看是否转移到serverC

[root@serverA ~]# systemctl stop keepalived

[root@serverC ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0c:29:98:fb:7c brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.193.32/24 brd 192.168.193.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.193.102/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet 192.168.193.100/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe98:fb7c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

DNS服务器

[root@192 ~]# hostnamectl hostname dns
[root@192 ~]# nmcli c modify ens160 ipv4.method manual ipv4.addresses 192.168.193.11/24 ipv4.gateway 192.168.193.2  ipv4.dns 223.5.5.5 connection.autoconnect yes
[root@192 ~]# nmcli c up ens160

安装服务

[root@dns ~]# yum install -y bind bind-utils
[root@dns ~]# systemctl start named
[root@dns ~]# systemctl enable named
Created symlink /etc/systemd/system/multi-user.target.wants/named.service → /usr/lib/systemd/system/named.service.

修改主配置文件

[root@dns ~]# vi /etc/named.conf
[root@dns ~]# head -n 15 /etc/named.conf
//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//

options {
	listen-on port 53 { 127.0.0.1; 192.168.193.11; };
	listen-on-v6 port 53 { ::1; };

修改区域文件

[root@dns ~]# tail -n 10 /etc/named.conf
zone "example.com" IN {
    type master;
    file "/var/named/example.com.zone";
    allow-update { none; };
};


include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

修改数据文件

[root@dns ~]# cat /var/named/example.com.zone
$TTL 86400
@       IN      SOA     ns1.example.com. admin.example.com. (
                        1800 ; Serial
                        3600       ; Refresh
                        1800       ; Retry
                        6040     ; Expire
                        1800      ; Minimum TTL
)

@       IN      NS      ns1.example.com.
@       IN      A       192.168.193.100
@       IN      A       192.168.193.101
@       IN      A       192.168.193.102
www     IN      A       192.168.193.100
www     IN      A       192.168.193.101
www     IN      A       192.168.193.102
ns1     IN      A       192.168.193.11

检查配置并重启服务

[root@dns ~]# named-checkconf
[root@dns ~]# named-checkzone example.com /var/named/example.com.zone
zone example.com/IN: loaded serial 1800
OK
[root@dns ~]# systemctl restart named

client客户端操作

[root@192 ~]# hostnamectl hostname client
[root@192 ~]# nmcli c modify ens160 ipv4.method manual ipv4.addresses 192.168.193.90/24 ipv4.gateway 192.168.193.2  ipv4.dns 192.168.193.11 connection.autoconnect yes
[root@192 ~]# nmcli c up ens160

客户端测试

[root@client ~]# dig www.example.com

; <<>> DiG 9.16.23-RH <<>> www.example.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 8311
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 3, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: efcea6c80851d1460100000067e39fd49e0b91c78f25f130 (good)
;; QUESTION SECTION:
;www.example.com.		IN	A

;; ANSWER SECTION:
www.example.com.	86400	IN	A	192.168.193.101
www.example.com.	86400	IN	A	192.168.193.100
www.example.com.	86400	IN	A	192.168.193.102

;; Query time: 2 msec
;; SERVER: 192.168.193.11#53(192.168.193.11)
;; WHEN: Wed Mar 26 14:33:56 CST 2025
;; MSG SIZE  rcvd: 120
