构建多主机虚拟机集群的详细配置教程-优快云博客

本文链接：https://blog.youkuaiyun.com/2301_76767460/article/details/133760364

创建一个虚拟机克隆两个相当于三个虚拟机

做好网络配置给第二个第三个虚拟机的ip配置更改为12 13做到三个主机同步

1分别创建三个主机名 123

hostnamectl set-hostname sunreze1 2 3

2设置selinux

vi /etc/selinux/config

将里面的selinux等于disabled

3编辑hosts

vi /etc/hosts

192.168.1.11 sunrenze1

192.168.1.12 sunrenze2

192.168.1.13 sunrenze3

(三个ip加主机名)

4创建用户

useradd sunrenze

设置密码 passwd sunrenze 密码000000

5给用户权限

vi /etc/sudoers

按esc后输入 set nu 回车输入111回车查找111行写入sunrenze加内容冲齐

6在主机1 里面创建两个目录

mkdir /opt/{software,module}

在主机2 3下面只创建module

mkdir /opt/module

7给所有文件权限

chown -R sunrenze：sunrenze /opt/*

8 免密配置

登录普通用户

su - sunrenze

设置免密

ssh-keygen -t rsa

复制给主机名

ssh-copy-id sunrenze1

ssh-copy-id sunrenze2

ssh-copy-id sunrenze3

8在主机1里面software下上传两个文件

9解压到module下

tar xf /opt/software/jdk-8u162-linux-x64.tar.gz -C /opt/module/
tar xf /opt/software/hadoop-3.3.1.tar -C /opt/module/

hadoop同理解压

10解压完成后编辑sunrenze.sh

sudo vi /etc/profile.d/sunrenze.sh

编写

export JAVA_HOME=/opt/module/jdk1.8.0_162
export PATH=$PATH:$JAVA_HOME/bin
export HADOOP_HOME=/opt/module/hadoop-3.3.1
export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin

12生效

source /etc/profile

13测试

java -version

hadoop version

这里环境配置已经完成

13切换到hadoop下编辑配置文件

vi hadoop-env.sh

export JAVA_HOME=/opt/module/jdk1.8.0_162
export HADOOP_MAPRED_HOME=/opt/module/hadoop-3.3.1

export HDFS_NAMENODE_UESR=sunrenze
export HDFS_DATANODE_USER=sunrenze
export HDFS_SECONDARYNAMENODE=sunrenze

export YARN_RESOURCEMANAGER_USER=sunrenze
export YARN_NODEMANAGER_USER=sunrenze

2.vi core-site.xml

<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://sunrenze1:9000</value>
</property>
<property>
<name>hadoop.tmp.dir</name>
<value>/opt/module/hadoop-3.3.1/tmp</value>
</property>
<property>
<name>hadoop.http.staticuser.user</name>
<value>sunrenze</value>
</property>
</configuration>

3. vi hdfs-site.xml

<configuration>
<property>
<name>dfs.namenode.http-address</name>
<value>sunrenze1:9870</value>
</property>
<property>
<name>dfs.namenode.secondary.http-address</name>
<value>sunrenze3:9868</value>
</property>
</configuration>

4.vi yarn-site.xml

<property>
<name>yarn.resourcemanager.hostname</name>
<value>sunrenze2</value>
</property>
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
<property>
<name>yarn.nodemanager.env-whitelist</name>
<value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_HOME,PATH,LANG,TZ</value>
</property>
</configuration>

5.vi mapred-site.xml

<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
<property>
<name>mapreduce.application.classpath</name>
<value>/opt/module/hadoop-3.3.1/etc/hadoop:/opt/module/hadoop-3.3.1/share/hadoop/common/lib/*:/opt/module/hadoop-3.3.1/share/hadoop/common/*:/opt/module/hadoop-3.3.1/share/hadoop/hdfs:/opt/module/hadoop-3.3.1/share/hadoop/hdfs/lib/*:/opt/module/hadoop-3.3.1/share/hadoop/hdfs/*:/opt/module/hadoop-3.3.1/share/hadoop/mapreduce/*:/opt/module/hadoop-3.3.1/share/hadoop/yarn:/opt/module/hadoop-3.3.1/share/hadoop/yarn/lib/*:/opt/module/hadoop-3.3.1/share/hadoop/yarn/*</value>
</property>
<property>
<name>mapreduce.jobhistory.address</name>
<value>sunrenze1:10020</value>
</property>

<property>
<name>mapreduce.jobhistory.webapp.address</name>
<value>sunrenze1:19888</value>
</property>
</configuration>

6.vi workers

sunrenze1

sunrenze2

sunrenze3

15分发文件给主机2 3
scp -r /opt/module/* sunrenze@sunrenze3:/opt/module/

scp -r /opt/module/* sunrenze@sunrenze2:/opt/module/

scp /etc/profile.d/sunrenze.sh root@sunrenze3:/etc/profile.d/

scp /etc/profile.d/sunrenze.sh root@sunrenze2:/etc/profile.d/

14格式化

hdfs namenode -format

15启动

start-dfs.sh start-yarn.sh

16主机1 单独启动

mapred --daemon start historyserver

17主机2 单独启动

yarn --daemon start resourcemanager

全部启动

18测试网页

192.168.1.11:9870

192.168.1.11：19888

192.168.1.12:8088

记得防火墙全部关闭

19创建脚本文件bin

mkdir bin

20编辑姓名文件

vi bin/sunrenze.sh

if [ $# -lt 1 ]
then
echo "没有输入参数！"
exit
fi

case $1 in
'start')
echo "*************************开启namenode**************************"
ssh sunrenze1 hdfs --daemon start namenode
echo "*************************开启datanode**************************"
for host in sunrenze1 sunrenze2 sunrenze3
do
echo "*****************$host***************"
ssh $host hdfs --daemon start datanode
done
echo "*************************开启secondarynamenode**************************"
ssh sunrenze3 hdfs --daemon start secondarynamenode
echo "*************************开启resourcemanager**************************"
ssh sunrenze2 yarn --daemon start resourcemanager
echo "*************************开启nodemanager**************************"
for host in sunrenze1 sunrenze2 sunrenze3
do
echo "**************$host****************"
ssh $host yarn --daemon start nodemanager
done
echo "*************************开启historyserver**************************"
ssh sunrenze1 mapred --daemon start historyserver
;;
'stop')
echo "*************************关闭historyserver**************************"
ssh sunrenze1 mapred --daemon stop historyserver
echo "*************************关闭nodemanager**************************"
for host in sunrenze1 sunrenze2 sunrenze3
do
echo "*********$host***********"
ssh $host yarn --daemon stop nodemanager
done
echo "*************************关闭resourcemanager**************************"
ssh sunrenze2 yarn --daemon stop resourcemanager
echo "*************************关闭secondarynamenode**************************"
ssh sunrenze3 hdfs --daemon stop secondarynamenode
echo "*************************关闭datanode**************************"
for host in sunrenze1 sunrenze2 sunrenze3
do
ssh $host hdfs --daemon stop datanode
done
echo "*************************关闭namenode**************************"
ssh sunrenze1 hdfs --daemon stop namenode
;;
'jps')
echo "***************查看服务****************"
for host in sunrenze1 sunrenze2 sunrenze3
do
echo "***********$host****************"
ssh $host jps
done
;;
'*')
echo "******************参数输入错误*****************"
;;
esac

21查看

cat bin/sunrenze.sh

使用脚本开启 ./bin/sunrenze.sh start

22赋予权限

chmod +x bin/sunrenze.sh

23设置时间同步

下载

sudo yum install -y ntp

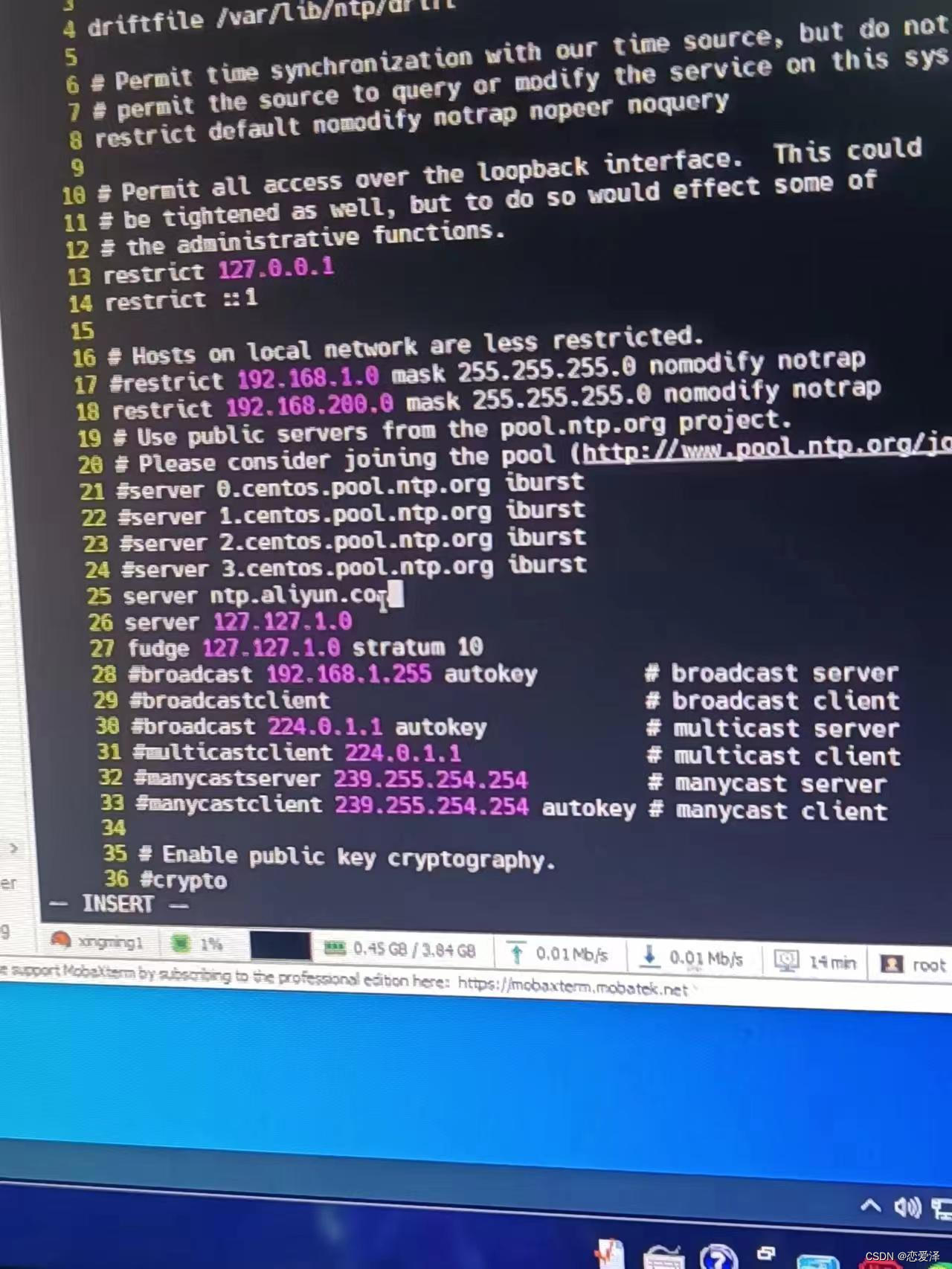

修改配置文件

编辑配置文件

vi /etc/sysconfig/ntpd

SYNC_HWCLOCK=yes

开启ntpd服务

sudo systemctl start ntpd

sudo systemctl status ntpd

其他主机配置

主机2

sudo crontab -e

写入

*/1 * * * * /usr/sbin/ntpdate sunrenze1

主机3同理

最后测试

date
————————————————
版权声明：本文为优快云博主「恋爱泽」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.youkuaiyun.com/2301_76767460/article/details/133078716

完全发布式全过程
