实验题目：

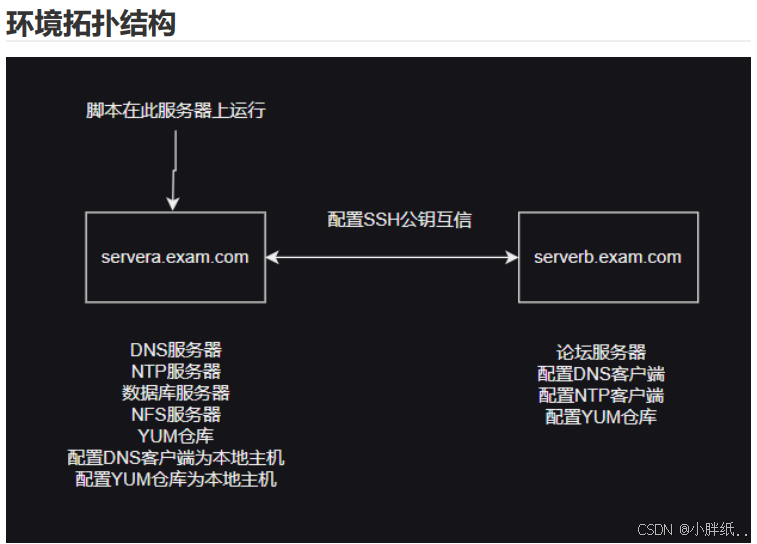

主机环境描述：

主机名	主机地址	需要提供的服务
content.exam.com	172.25.250.101	提供基于 httpd/nginx 的 YUM仓库服务
ntp.exam.com	172.25.250.102	提供基于Chronyd 的 NTP 服务
mysql.exam.com	172.25.250.103	提供基于 MySQL 的数据库服务
nfs.exam.com	172.25.250.104	提供基于 NFS 的网络文件系统服务
dns.exam.com	172.25.250.105	提供基于 bind 的 DNS 服务
bbs.exam.com	172.25.250.106	提供基于 Discuz 的论坛服务

注意：172.25.250.101-172.25.250.105 共 5 个 IP 地址由servera.exam.com服务器进行提供。 172.25.250.106 由 serverb.exam.com 服务器进行提供。

需求描述：

项目需求：

1、172.25.250.101 主机上的 Web 服务要求提供 www.exam.com Web站点，该站点在任何路由可达的主机上被访问，页面内容显示为 "Hello，Welcome to www.exam.com !"，并提供 content.exam.com/yum/AppStream和content.exam.com/yum/BaseOS URL 作为网络仓库供所有主机使用。

2、172.25.250.102 主机提供基于Chronyd 的 NTP 服务将本主机作为时间服务器，对外提供 NTP 服务，并设置本服务器为 3 层。

3、172.25.250.103 主机提供的MySQL 数据库服务，要求使用需求1中提供的仓库进行安装，并将数据库密码设定为 redhat。创建名称为 bbs 的数据库提供给论坛服务使用。

4、172.25.250.104 主机提供 NFS 服务，该服务将导出本地的 /bbs 目录作为论坛数据目录，该导出指定只能论坛所在主机使用，并且开机自动挂载。

5、172.25.250.105 主机提供 DNS 服务，该服务需要提供对项目中所有主机名的正向和反向解析，并要求所有服务器的 DNS 配置为该 DNS 服务器。

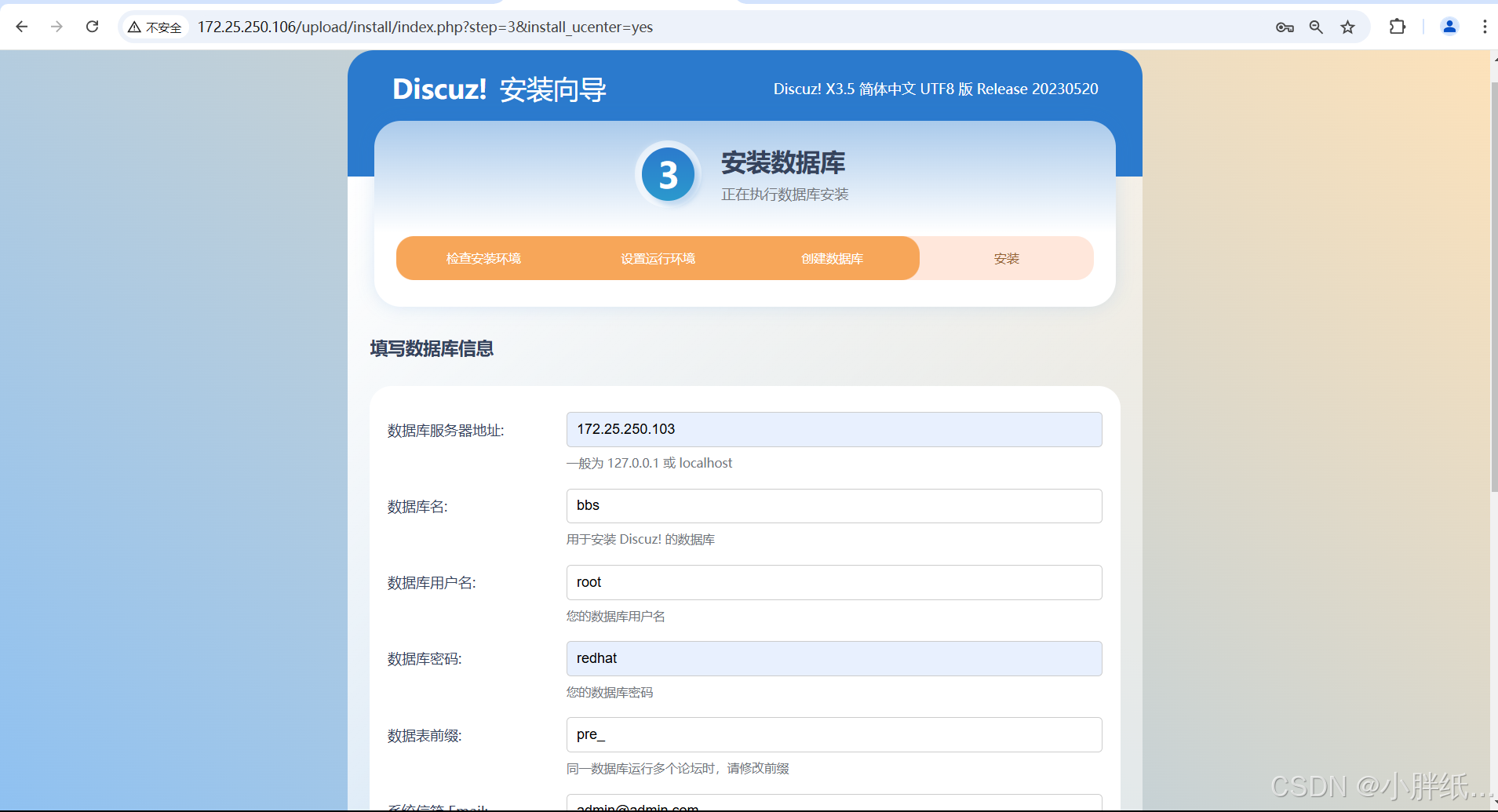

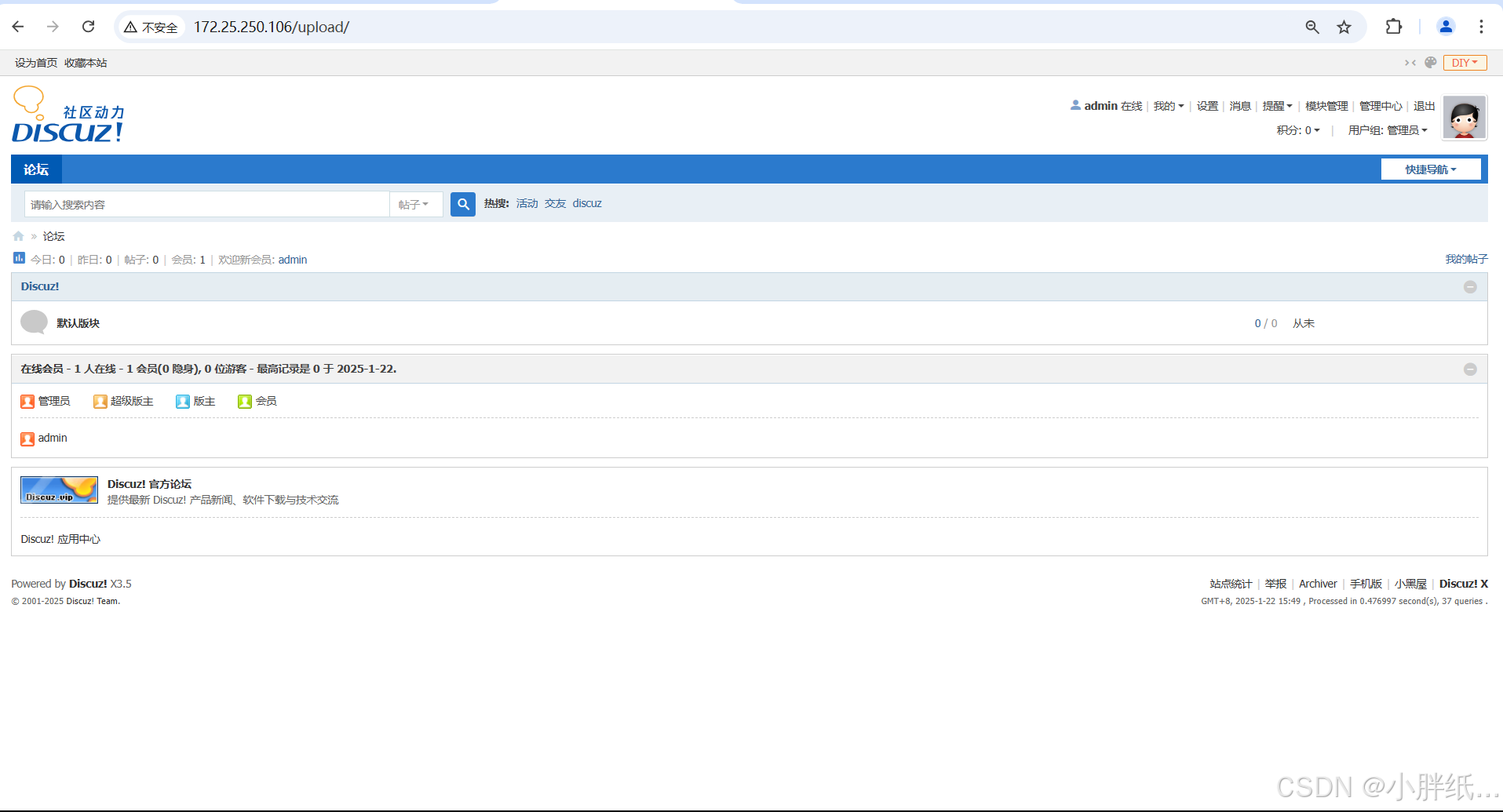

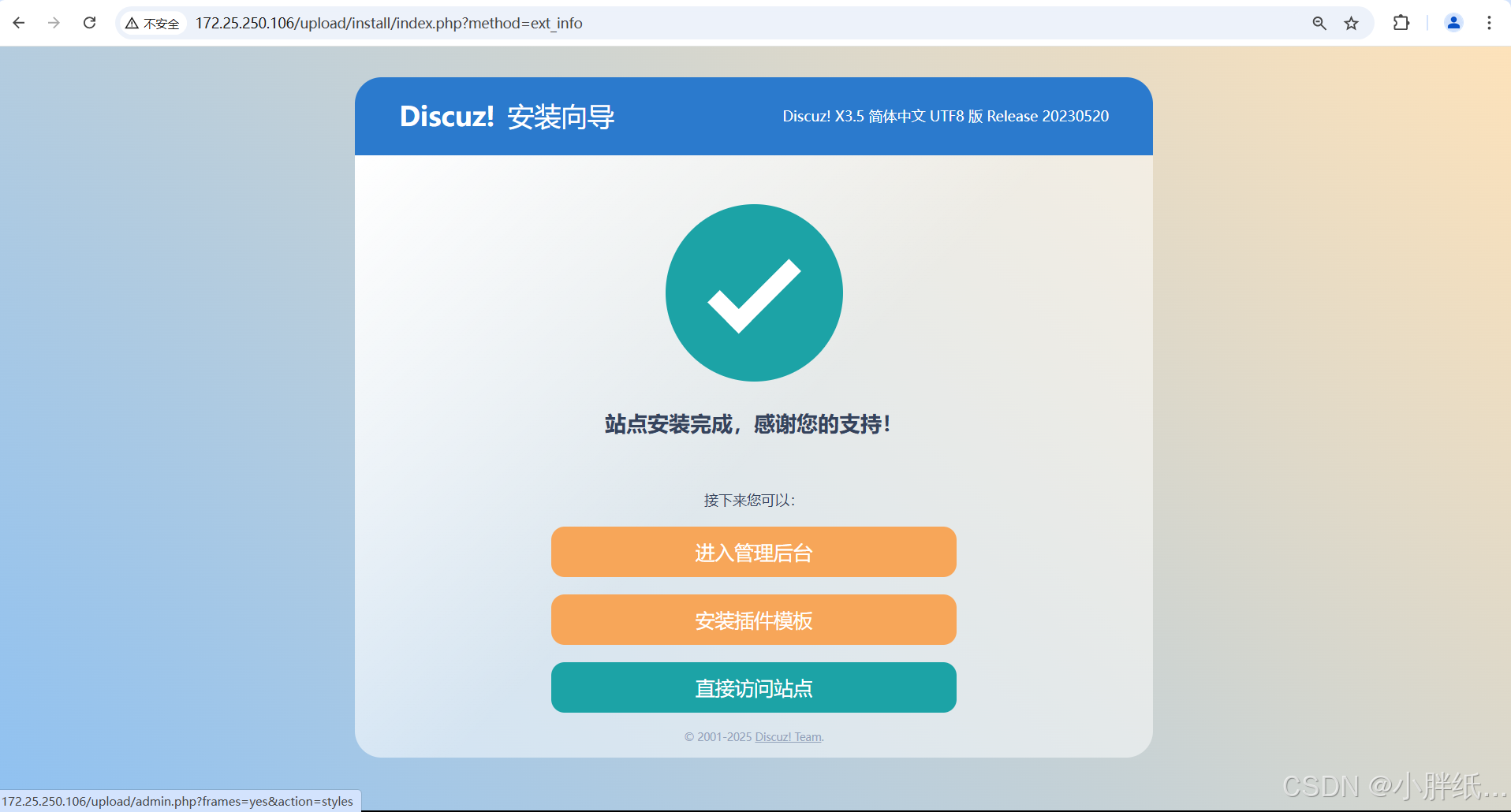

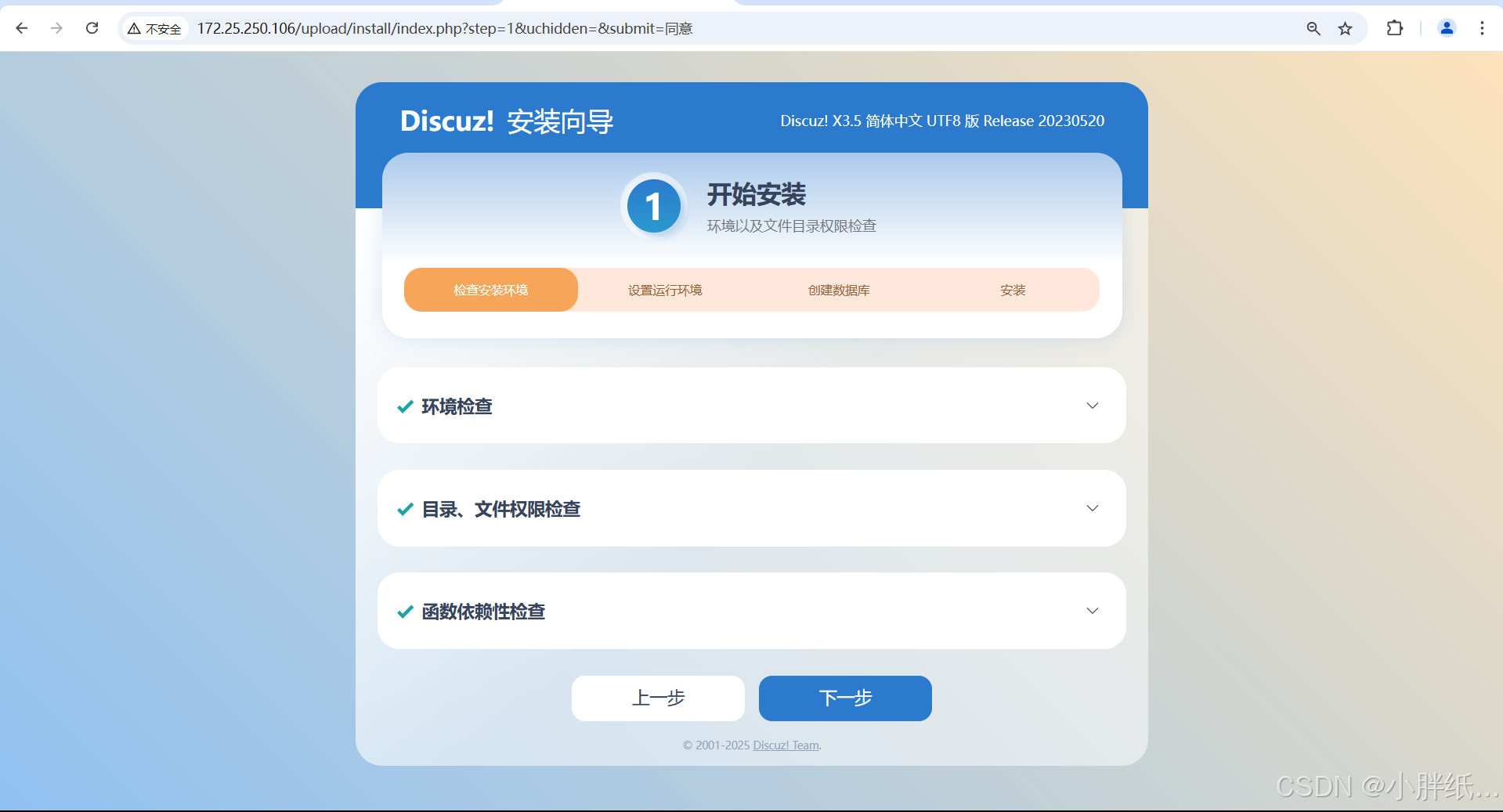

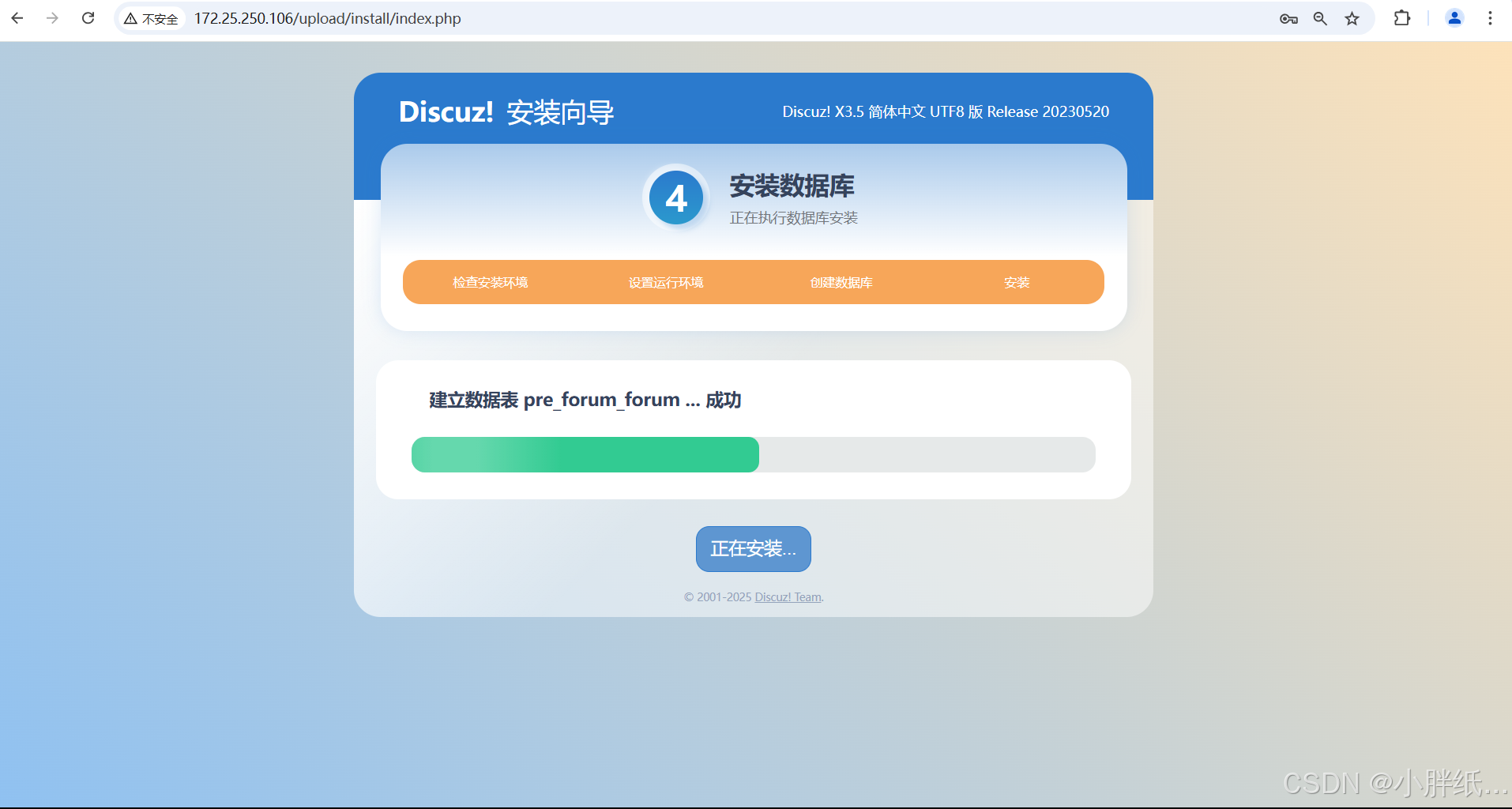

6、172.25.250.106 主机提供基于 Discuz 的论坛服务，该论坛服务使用 172.25.250.103 主机提供的数据库 bbs，使用 172.25.250.104 主机提供的 NFS 作为论坛数据目录，并开机挂载。并使用 172.25.250.101 主机提供的网络仓库，172.25.250.102 主机提供的 NTP 服务，172.25.250.105 主机提供的 DNS 服务

7、所有服务器的防火墙服务和 SELinux 服务必须开启。

8、所有服务器提供的网络服务必须在系统重启后仍然可以正常提供服务。

9、根据所有服务的相关代码，编写一键部署shell脚本，最基础的功能为通过执行该脚本实现所有上面所有需求，要求脚本必须在 servera.exam.com 主机上运行，并支持多次运行。

实验步骤：

1、更改IP地址和DNS

servera：

###ipv4
echo "-----changing ipv4 wait-----"
hostnamectl set-hostname servera.exam.com
nmcli connection modify ens160 +ipv4.addresses 172.25.250.101/24
nmcli connection modify ens160 +ipv4.addresses 172.25.250.102/24
nmcli connection modify ens160 +ipv4.addresses 172.25.250.103/24
nmcli connection modify ens160 +ipv4.addresses 172.25.250.104/24
nmcli connection modify ens160 +ipv4.addresses 172.25.250.105/24
nmcli connection modify ens160 ipv4.gateway 172.25.250.2 ipv4.dns 172.25.250.105 ipv4.method manual connection.autoconnect yes
nmcli connection up ens160 &> /dev/null
echo "ipv4 change success"
pzdns=$(dig | grep SERVER: | awk -F# '{ print $1 }' | awk -F: '{ print $2 }')
if [ "$pzdns" == " 172.25.250.105" ]
then
         echo "dns成功修改为172.25.250.105"
else
         echo "dns修改失败"
fi

serverb:

ssh root@172.25.250.106 << 'ALLEOF'
hostnamectl set-hostname serverb.exam.com
nmcli connection modify ens160 +ipv4.addresses 172.25.250.106/24
nmcli connection modify ens160 +ipv4.addresses 172.25.250.106/24 ipv4.gateway 172.25.250.2 ipv4.dns 172.25.250.105 ipv4.method manual connection.autoconnect yes
nmcli connection up ens160  &> /dev/null
echo "Modified successfully"

2、公钥互信

主机servera与serverb进行公钥互信：使用ssh服务完成

#密钥互信
echo "" > /etc/yum.repos.d/rpm.repo
cat > /etc/yum.repos.d/rpm.repo << EOF
[baseos]
name=baseos
baseurl=/mnt/BaseOS
gpgcheck=0
[appstream]
name=appstream
baseurl=/mnt/AppStream
gpgcheck=0
EOF
mount /dev/sr0 /mnt    &>  /dev/null
xs=$(ls  /mnt/GPL)  &> /dev/null
if  [ $xs == "/mnt/GPL" ]
    then
            echo "挂载成功"
    else
            echo "挂载失败"
            exit 2
fi

dnf repolist &> /dev/null
if [ $? -eq 0 ]
then
        echo "The source is ready"
else
        echo "The source is error"
fi
ls /root/.ssh/id_rsa &> /dev/null
if [ $? -eq 0 ]
then
    echo "互信已经完成"
else
    ssh-keygen -t ed25519 -C "comment" -f /root/.ssh/id_rsa -N ''
fi

mkdir -p /root/.ssh &> /dev/null
chmod 700 /root/.ssh &> /dev/null
touch /root/.ssh/authorized_keys &> /dev/null
chmod 600 /root/.ssh/authorized_keys &> /dev/null

if ! command -v sshpass &> /dev/null
then
    yum install -y sshpass &> /dev/null
fi

sshpass -p "redhat" ssh-copy-id -i /root/.ssh/id_rsa.pub root@172.25.250.106
if [ $? -eq 0 ]
then
    echo "连接中......."
else
    echo "互信失败"
    exit 1
fi
ls /root/.ssh/authorized_keys &> /dev/null
if [ $? -eq 0 ]
then
    echo "互信完成OK"
else
    scp root@172.25.250.106:/root/.ssh/id_rsa.pub /root/.ssh/authorized_keys &> /dev/null
    echo "密钥发送"
fi

3、搭建nginx服务器

在172.25.250.105上搭建nginx服务

###install nginx-service
dnf install nginx -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep nginx &>  /dev/null
        if [ $? -eq 0 ]
        then
                echo "nginx-service install successful"
        else
                echo "nginx-service install error"
        fi
else
        echo "nginx-service install error"
fi
###start nginx-service
systemctl start nginx &> /dev/null
if [ $? -eq 0 ]
then
        NGINX=$(systemctl is-active nginx)
        if [ $NGINX == "active" ]
        then
                echo "The nginx-service start successful"
        else
                echo "The nginx-service start error"
        fi
else
        echo "The nginx-service start error"
fi
systemctl enable nginx &> /dev/null
### configuration file
cat > /etc/nginx/conf.d/exam.conf << EOF
server {
    server_name www.exam.com;
    root /var/www/;
    access_log /var/log/nginx/exam/access.log;
    error_log /var/log/nginx/exam/error.log;
}
EOF
cat > /etc/nginx/nginx.conf   << EOF

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;
include /usr/share/nginx/modules/*.conf;
events {
    worker_connections 1024;
}
http {
    log_format  main  '\$remote_addr - \$remote_user \$time_local "\$request" '
                      '\$status \$body_bytes_sent "\$http_referer" '
                      '"\$http_user_agent" "\$http_x_forwarded_for"';
    access_log  /var/log/nginx/access.log  main;
    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;
    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;
    include /etc/nginx/conf.d/*.conf;
server {
    listen 172.25.250.101;
    server_name www.exam.com;

    root /var/www;
    index index.html index.htm;
location / {
        try_files \$uri \$uri/ =404;
        allow all;
    }
location /var/www {
        deny all;
        allow all;
        internal;
    }

    location /var/www/yum/ {
        allow all;
        deny all;
        allow all;
    }
}
}
EOF
cat > /etc/hosts << EOF
172.25.250.101  www.exam.com
EOF
if [ $? -eq 0 ]
then
        echo "configuration file  successful"
else
        echo "configuration file  error"
fi
###mkdir file
mkdir /var/www  &> /dev/null
ls /var/www  &> /dev/null
if [ $? -eq 0 ]
then
        echo "file1 make successful"
else
        echo "file1 make error"
fi

mkdir /var/log/nginx/exam &> /dev/null
ls /var/log/nginx/exam &> /dev/null
if [ $? -eq 0 ]
then
        echo "file2 make successful"
else
        echo "file2 make error"
fi
echo Hello welcome to www.exam.com  > /var/www/index.html

#firewalld rules
RULES1=$(firewall-cmd  --permanent --add-service=http)

if [ "$RULES1" == "success" ]
then
        echo "firewalld ok"
elif [ "$RULES1" == "Warning: ALREADY_ENABLED: http" ]
then
        echo "firealld ok"

else
        echo "firewalld error"
fi
RULES2=$(firewall-cmd --reload)
if [ "$RULES2" == "success" ]
then
        echo "firewalld reload successful"
else
        echo "firewall reload error"
fi
###SELiunx
chcon_http=`ls -Zl /var/www/index.html | awk '{print $5}' | awk -F: '{print $3}'`
if [ "$chcon_http" = "httpd_sys_content_t" ]
then
        echo "标签修改成功"
else
chcon -t httpd_sys_content_t /var/www/index.html
fi

#restart nginx-service
systemctl restart nginx
if [ $? -eq 0 ]
then
        echo "nginx-service restart successful"
else
        echo "nginx-service restart error"
fi

#test nginx-service
NGPAGE=$(curl  -s  www.exam.com)
if [ "$NGPAGE" == "Hello welcome to www.exam.com" ]
then
        echo "The nginx-service test successful"
else
        echo "The nginx-service test error"
fi

4、搭建DNS正反向解析

### dnf install bind
dnf install bind -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep bind &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The bind-service install success"
        else
                echo "The bind-service install error"
        fi
else
        echo "The bind-service install error"
fi
### start named-service
systemctl start named &> /dev/null
if [ $? -eq 0 ]
then
        NAMED=$(systemctl is-active named) &> /dev/null
        if [ "$NAMED" == "active" ]
        then
                echo "named-service start successful"
        else
                echo "named-service start error"
        fi
else
        echo "named-service start error"
fi
###configuration file
cat > /etc/named.conf << EOF
options {
        listen-on port 53 { 172.25.250.105; };
        directory       "/var/named";
};

zone "exam.com" IN {
        type master;
        file "named.exam";
};


zone "250.25.172.in-addr.arpa" IN {
        type master;
        file "named.fanxiang";
};

EOF
cat > /var/named/named.exam << EOF
\$TTL 1D
@ IN SOA @ admin.exam.com. (
                         0
                        1D
                        1D
                        2D
                        1D)
        IN      NS      ns.exam.com.
        IN      MX      10 mail.exam.com.
ns      IN      A       172.25.250.101
content IN      A       172.25.250.101
www     IN      A       172.25.250.101
ntp     IN      A       172.25.250.102
mysql   IN      A       172.25.250.103
dns     IN      A       172.25.250.105
nfs     IN      A       172.25.250.104
bbs     IN      A       172.25.250.106
EOF
##fanxiang
cat > /var/named/named.fanxiang << EOF
\$TTL 1D
@ IN SOA @ admin.exam.com.(
                          0
                          1
                          1
                          2
                          1)
        IN      NS        ns.exam.com.
101     IN      PTR       content.exam.com.
102     IN      PTR       ntp.exam.com.
103     IN      PTR       mysql.exam.com.
104     IN      PTR       nfs.exam.com.
105     IN      PTR       dns.exam.com.
106     IN      PTR       bbs.exam.com.
EOF
if [ $? -eq 0  ]
then
        echo "make configuration file success"
else
        echo "make configuration file error"
fi
### firewalld rules
RULES3=$(firewall-cmd --permanent --add-service=dns)
if [ "$RULES3" == "success" ]
then
        echo "firewalld ok"
elif [ "$RULES3" == "Warning: ALREADY_ENABLED: dns" ]
then
        echo "firewalld ok"
else
        echo "firewall error"
fi
#### reload firewalld rules
RULES4=$(firewall-cmd --reload)
if [ "$RULES4" == "success" ]
then
        echo "firewalld reload success"
else
        echo "firewalld reload error"
fi
### restart dns-service
systemctl restart named &> /dev/null
if [ $? -eq 0 ]
then
        echo "DNS-Service restart successful"
else
        echo "DNS-Service restart error"
fi
###test DNS
DNS=$(curl  -s  content.exam.com)
if [ "$DNS" == "Hello welcome to www.exam.com" ]
then
        echo "The DNS-service test successful"
else
        echo "The DNS-service test error"
fi

5、配置网络仓库

##yumsource
mkdir /var/www/yum &> /dev/null
ls /var/www/yum &> /dev/null
if [ $? -eq 0 ]
then
        echo "The file make successful"
else
        echo "The file make error"
fi

##yum
cat > /etc/yum.repos.d/rpm.repo << EOF
[baseos]
name=baseos
baseurl=http://content.exam.com/yum/BaseOS
gpgcheck=0
[appstream]
name=appstream
baseurl=http://content.exam.com/yum/AppStream
gpgcheck=0
EOF
###Re mount
umount /dev/sr0 /mnt &> /dev/null
mount /dev/sr0 /var/www/yum &> /dev/null
ls /var/www/yum/GPL &> /dev/null
if [ $? -eq 0 ]
then
        echo "Re mount successful"
else
        echo "Re mount error"
fi

6、搭建NTP时间服务器

注意是在172.25.250.102上搭建服务器

ssh root@172.25.250.102 << 'END'
if grep -q '^#pool 2.rhel.pool.ntp.org iburst' /etc/chrony.conf
then
        echo "The line in the configuration file has been commented out"
else
        sed -i '/pool 2.rhel.pool.ntp.org iburst/s/^/#/' /etc/chrony.conf
        echo "The annotation of this line in the configuration file was successful"
fi
cat > /etc/chrony.conf << EOF
local stratum 3
server 172.25.250.102 iburst
allow 172.25.250.0/24
log measurements statistics tracking
EOF
####firewalld rules
RULES5=$(firewall-cmd --permanent --add-service=ntp)
if [ "$RULES5" == "success" ]
then
        echo " The firewalld rules ok"
elif [ "$RULES5" == "Warning: ALREADY_ENABLED: ntp" ]
then
        echo "The firewalld rules ok"
else
        echo "The firewalld rules error"
fi
####reload firewalld
RULES6=$(firewall-cmd --reload)
if [ "$RULES6" == "success" ]
then
        echo "The firewalld rules reload successful"
else
        echo "The firewalld rules reload error"
fi
####restart time-service
systemctl restart chronyd.service &> /dev/null
if [ $? -eq 0 ]
then
        echo "Time-service restart successful"
else
        echo "Time-service restart error"
fi
###test time-service
chronyc sources &> /dev/null
if [ $? -eq 0 ]
then
        echo "The time-service test successful"
else
fi
END

7、NTP客户端

客户端在172.25.250.106主机上

###time-service client
ssh root@172.25.250.106 << 'EONF'
###insatll time-service
dnf install vim net-tools bash-com* -y  &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep chrony &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The time-service install successful"
        else
                echo "The time-service install error"
        fi
else
        echo "The time-service install error"
fi
####time-service client
if grep -q '^#pool 2.rhel.pool.ntp.org iburst' /etc/chrony.conf
then
        echo "The line in the configuration file has been commented out"
else
        sed -i '/pool 2.rhel.pool.ntp.org iburst/s/^/#/' /etc/chrony.conf
        echo "The annotation of this line in the configuration file was successful"
fi
cat >  /etc/chrony.conf << EOF
server 172.25.250.102 iburst
EOF
####firewall rules
RULES7=$(firewall-cmd --permanent --add-service=ntp)
if [ "$RULES7" == "success" ]
then
        echo " The firewalld rules ok"
elif [ "$RULES7" == "Warning: ALREADY_ENABLED: ntp" ]
then
        echo "The firewalld rules ok"
else
        echo "The firewalld rules error"
fi
####reload firewalld
RULES8=$(firewall-cmd --reload)
if [ "$RULES8" == "success" ]
then
        echo "The firewalld rules reload successful"
else
        echo "The firewalld rules reload error"
fi
###restart time-service
systemctl restart chronyd.service &> /dev/null
if [ $? -eq 0 ]
then
        echo "Time-service restart successful"
else
        echo "Time-service restart error"
fi
###test time-service
chronyc sources &> /dev/null
if [ $? -eq 0 ]
then
        echo "The time-service test successful"
else
        echo "The time-service test error"
fi
EONF

8、MySQL数据库

数据库在172.25.250.103主机上

###mysql-service
###install mysql-service
ssh root@172.25.250.103 << 'EOCF'
dnf install mariadb mariadb-server -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep mariadb-server  &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "Mysql-service install successful"
        else
                echo "Mysql-service install error"
        fi
else
        echo "Mysql-service install error"
fi

###firewalld rules
RULES10=$(firewall-cmd --permanent --add-port=3306/tcp)
if [ "$RULES10" == "success" ]
then
        echo " The firewalld rules ok"
elif [ "$RULES10" == "Warning: ALREADY_ENABLED: 3306:tcp" ]
then
        echo "The firewalld rules ok"
else
        echo "The firewalld rules error"
fi
####reload firewalld
RULES11=$(firewall-cmd --reload)
if [ "$RULES11" == "success" ]
then
        echo "The firewalld rules reload successful"
else
        echo "The firewalld rules reload error"
fi
###start mysql-service
systemctl start mariadb.service  &> /dev/null
if [ $? -eq 0 ]
then
        MY=$(systemctl is-active mariadb.service)
        if [ "$MY" == "active" ]
        then
                echo "Mysql start successful"
        else
                echo "Mysql start error"
        fi
else
        echo "Mysql start error"
fi
###login  and  passwd
mysqladmin -u root password "redhat" &>/dev/null

if mysql -u root -predhat -e "USE bbs"
then
        echo "database ok"
else

mysql -u root -predhat<<EOF
create database bbs;
grant all privileges on *.* to 'root'@'%' identified by 'redhat';
flush privileges;
EOF

fi
####start mysql-service
systemctl restart mariadb.service  &> /dev/null
if [ $? -eq 0 ]
then
        echo "Successfully logged in and created the BBS database"
else
        echo "Login failed, creation of BBS database failed"
fi
EOCF

9、搭建NFS服务器

在172.25.250.104主机

####NFS-service
ssh root@172.25.250.104 << 'END'
####install nfs-serice
dnf install nfs-utils -y &> /dev/nll
if [ $? -eq 0 ]
then
        rpm -qa | grep nfs-utils &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The NFS-server install successful"
        else
                echo "The NFS-server install error"
        fi
else
        echo "The NFS-sercer install error"
fi
###start NFS-service
systemctl start nfs-server &> /dev/null
if [ $? -eq 0 ]
then
        NNN=$(systemctl is-active nfs-server)
        if [ "$NNN" == "active" ]
        then
                echo "The NFS-service start successful"
        else
                echo "The NFS-service start error"
        fi
else
        echo "The NFs-service start error"
fi
####make file
mkdir /bbs &> /dev/null
ls /bbs &> /dev/null
if [ $? -eq 0 ]
then
        echo "The /bbs make success"
else
        echo "The /bbs make error"
fi
####Modify permissions
chmod 777 /bbs &> /dev/null
if [ $? -eq 0 ]
then
        echo "Modify permissions successful"
else
        echo "Modify permissions error"
fi
###echo file
cat > /etc/exports << EONF
/bbs  172.25.250.106(rw,sync)
EONF
###firewalld rules
NFS1=$(firewall-cmd --permanent  --add-service=rpc-bind --add-service=mountd --add-service=nfs)
if [ "$NFS1" == "success" ]
then
        echo "The firewalld rules ok"
elif [ "$NFS1"  == "Warning: ALREADY_ENABLED: 'rpc-bind' already in 'public'
Warning: ALREADY_ENABLED: 'mountd' already in 'public'
Warning: ALREADY_ENABLED: 'nfs' already in 'public'" ]
then
        echo "The firewalld rules ok"
else
        echo "The firewalld rules error"
fi
###firewalld reload
NFS2=$(firewall-cmd --reload)
if [ "$NFS2" == "success" ]
then
        echo "The firewalld reoad suceessful"
else
        echo "The firewalld reload error"
fi

###retart nfs-service
systemctl restart nfs-server &> /dev/null
if [ $? -eq 0 ]
then
        echo "nfs-service make successful"
else
        echo "nfs-service make error"
fi
END

10、搭建Discuz论坛（nginx）(NFS客户端）

###Forum construction
ssh root@172.25.250.106 << 'ALLEOF'
###install httpd-service
dnf install php*  -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep php &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The php-service install successful"
        else
                echo "The php-service install error"
        fi
else
        echo "The php-service install error"
fi
###firewalld rules
HTTP=$(firewall-cmd --permanent --add-port=80/tcp)
if [ "$HTTP" == "success" ]
then
        echo "The firewalld is ok"
elif [ "$HTTP" == ""Warning: ALREADY_ENABLED: 80:tcp ]
then
        echo "The firewalld is ok"
else
        echo "The firewalld is error"
fi
PPP=$(firewall-cmd --reload)
if [ "$PPP" == "success" ]
then
        echo "firewalld reload ok"
else
        echo "firewalld reload error"
fi
###install nfs
dnf install nfs-utils -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep nfs &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The nfs-service install successful"
        else
                echo "The nfs-service install error"
        fi
else
        echo "The nfs-service install error"
fi
##start nfs
systemctl start nfs-server  &> /dev/null
if [ $? -eq 0 ]
then
        NNN=$(systemctl is-active nfs-server)
        if [ "$NNN" == "active" ]
        then
                echo "nfs start successful"
        else
                echo "nfs start error"
        fi
else
        echo "nfs  start error"
fi
###nfs kehu
showmount -e 172.25.250.104 &> /dev/null
if [ $? -eq 0 ]
then
        echo "mount to 104 success"
else
        echo "mount to 104 error"
fi
###make file
mkdir /var/www/html/bbs &> /dev/null
ls /var/www/html/bbs &> /dev/null
if [ $? -eq 0 ]
then
        echo "The file make success"
else
        echo "The file make error"
fi
###mount /bbs
ummount /var/www/html/bbs/ &> /dev/null
mount 172.25.250.104:/bbs /var/www/html/bbs &> /dev/null
echo "172.25.250.104:/bbs /var/www/html/bbs nfs defaults 0 0" >> /etc/fstab
mount -a
dnf install autofs -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep autofs &> /dev/null
        if [ $? -eq 0 ]
        then
                echo "The autofs install successful"
        else
                echo "The autofs install successful"
        fi
else
        echo "The autofs install error"
fi
echo "/nfs /etc/auto.nfs" >> /etc/auto.master
echo "upload 172.25.250.104:/nfs/upload" >> /etc/auto.nfs
systemctl restart autofs
if [ $? -eq 0 ]
then
        echo "Automatic mounting successful"
else
        echo "Automatic mounting failed"
fi
###install nginx-service
dnf install nginx -y &> /dev/null
if [ $? -eq 0 ]
then
        rpm -qa | grep nginx &>  /dev/null
        if [ $? -eq 0 ]
        then
                echo "nginx-service install successful"
        else
                echo "nginx-service install error"
        fi
else
        echo "nginx-service install error"
fi
###start nginx-service
systemctl start nginx &> /dev/null
if [ $? -eq 0 ]
then
        NGINX=$(systemctl is-active nginx)
        if [ $NGINX == "active" ]
        then
                echo "The nginx-service start successful"
        else
                echo "The nginx-service start error"
        fi
else
        echo "The nginx-service start error"
fi
systemctl enable nginx &> /dev/null
cat > /etc/nginx/conf.d/bbs.conf << EOF
server {
    listen 80;
    server_name bbs.exam.com; # 替换为你的域名

    root /var/www/html/bbs;       # Discuz源码目录
    index index.php index.html index.htm;

    location / {
        try_files \$uri \$uri/ /index.php?\$args;
    }
location ~ \.php$ {
        fastcgi_pass unix:/run/php-fpm/www.sock; # 根据PHP版本和配置调整
        fastcgi_index index.php;
        fastcgi_param SCRIPT_FILENAME \$document_root\$fastcgi_script_name;
        include fastcgi_params;
    }

    location ~ /\.ht {
        deny all;
    }
}
EOF
cat > /etc/hosts << EOF
172.25.250.106  bbs.exam.com
EOF
if [ $? -eq 0 ]
then
        echo "configuration file  successful"
else
        echo "configuration file  error"
fi
##selinux
setsebool -P httpd_use_nfs 1 &> /dev/null
if [ $? -eq 0 ]
then
    echo "SELinux boolean httpd_use_nfs set successfully."
else
    echo "Failed to set SELinux boolean httpd_use_nfs."
    exit 1
fi

setsebool -P httpd_can_network_connect_db 1 &> /dev/null
if [ $? -eq 0 ]
then
    echo "SELinux boolean httpd_can_network_connect_db set successfully."
else
    echo "Failed to set SELinux boolean httpd_can_network_connect_db."
    exit 1
fi
#restart nginx-service
systemctl restart nginx
if [ $? -eq 0 ]
then
        echo "nginx-service restart successful"
else
        echo "nginx-service restart error"
fi
cd /var/www/html/bbs
rm -rf *
echo bbs.exam.com > /var/www/html/bbs/index.html
cp /root/Discuz_X3.5_SC_UTF8_20230520.zip /var/www/html/bbs
if [ $? -eq 0 ]
then
        echo "Discuz 复制完成"
else
        echo "Discuz 复制失败"
fi
unzip Discuz_X3.5_SC_UTF8_20230520.zip &> /dev/null
if [ $? -eq 0 ]
then
        echo "Discuz 解压缩完成"
else
        echo "Discuz 解压缩失败"
fi
cd upload/
chmod -R 777 data/ uc_client/ uc_server/ config/
if [ $? -eq 0 ]
then
        echo "chmod success"
else
        echo "chmod error"
fi
echo "论坛搭建完成"
ALLEOF

测试：

1、测试nginx服务器

[root@servera ~]# curl content.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl nfs.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl www.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl mysql.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl ntp.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl dns.exam.com
Hello welcome to www.exam.com
[root@servera ~]# curl bbs.exam.com
bbs.exam.com
[root@servera ~]#

2、测试DNS

[root@servera ~]# dig -t A  nfs.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A nfs.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 62154
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 1dcc8e8c50695439010000006790a02e5dae0a26120eda6c (good)
;; QUESTION SECTION:
;nfs.exam.com.			IN	A

;; ANSWER SECTION:
nfs.exam.com.		86400	IN	A	172.25.250.104

;; ANSWER SECTION:
nfs.exam.com.		86400	IN	A	172.25.250.104

[root@servera ~]# dig -t A  mysql.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A mysql.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 59829
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: c30383f28f2e6f4f010000006790a0330f295d2b5e6918b2 (good)
;; QUESTION SECTION:
;mysql.exam.com.			IN	A

;; ANSWER SECTION:
mysql.exam.com.		86400	IN	A	172.25.250.103

;; Query time: 0 msec
;; SERVER: 172.25.250.105#53(172.25.250.105)
;; WHEN: Wed Jan 22 15:37:23 CST 2025
;; MSG SIZE  rcvd: 87

[root@servera ~]# dig -t A  bbs.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A bbs.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 36886
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 0f8c821cf1edf50c010000006790a037c851c17e1e1bb6ba (good)
;; QUESTION SECTION:
;bbs.exam.com.			IN	A

;; ANSWER SECTION:
bbs.exam.com.		86400	IN	A	172.25.250.106

;; Query time: 1 msec
;; SERVER: 172.25.250.105#53(172.25.250.105)
;; WHEN: Wed Jan 22 15:37:27 CST 2025
;; MSG SIZE  rcvd: 85

[root@servera ~]# dig -t A  ntp.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A ntp.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 48299
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: f26fa30eebf3cff4010000006790a03d894fe5377b83fe68 (good)
;; QUESTION SECTION:
;ntp.exam.com.			IN	A

;; ANSWER SECTION:
ntp.exam.com.		86400	IN	A	172.25.250.102

;; Query time: 1 msec
;; SERVER: 172.25.250.105#53(172.25.250.105)
;; WHEN: Wed Jan 22 15:37:33 CST 2025
;; MSG SIZE  rcvd: 85

[root@servera ~]# dig -t A  dns.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A dns.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 22729
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 6d7ef8a84259a22f010000006790a04c21bf041d6a473c98 (good)
;; QUESTION SECTION:
;dns.exam.com.			IN	A

;; ANSWER SECTION:
dns.exam.com.		86400	IN	A	172.25.250.105

;; Query time: 0 msec
;; SERVER: 172.25.250.105#53(172.25.250.105)
;; WHEN: Wed Jan 22 15:37:48 CST 2025
;; MSG SIZE  rcvd: 85

[root@servera ~]# dig -t A  content.exam.com

; <<>> DiG 9.16.23-RH <<>> -t A content.exam.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 19870
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 7f72a45ddc4a051f010000006790a05327d7ac17625ce4fe (good)
;; QUESTION SECTION:
;content.exam.com.		IN	A

;; ANSWER SECTION:
content.exam.com.	86400	IN	A	172.25.250.101

;; Query time: 1 msec
;; SERVER: 172.25.250.105#53(172.25.250.105)
;; WHEN: Wed Jan 22 15:37:55 CST 2025
;; MSG SIZE  rcvd: 89

3、测试NTP时间服务器

[root@servera ~]# chronyc sources
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
^? ntp.exam.com                  0   7   377     -     +0ns[   +0ns] +/-    0ns
[root@servera ~]#

[root@serverb ~]# chronyc sources
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
^* ntp.exam.com                  3   6   377    23  +6923ns[ +840ns] +/-  321us
[root@serverb ~]#

4、Discuz论坛测试

成功搭建论坛！！！

总结：

实验要求需要看清楚，每个主机上对应的服务，注意进行实验前应当先配置好公钥互信，注意nginx的配置文件，特别是/etc/nginx/nginx.conf。创建MySQL数据库的时候，注意要允许root用户远程登录数据库，否则到最后一步安装论坛会失败。这里的Discuz论坛是基于nginx搭建的所以在172.25.250.106上应配置nginx而不是httpd，所以主机106上的nginx的配置文件有所不同，详情请看上面的代码部分。
