A serialization primer - Part 1

This article is the first of a 3 part tutorial on serialization.

• Part 1 introduces the basics of serialization.
• Part 2 explains how to gracefully handle reading invalid data stores and support versioning.
• Part 3 describes how to serialize complex objects.

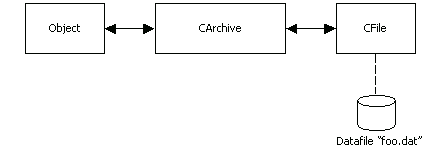

Serialization is the process of writing or reading an object to or from a persistent storage medium, such as a disk file. Serializing an object requires 3 ingredients:

• A CFile object representing the datafile
• A CArchive object that provides the serialization context
• The object being serialized

Step 1 - Open the datafile

To serialize an object to the file "foo.dat", open the file with the appropriate access mode. In this example, the file is opened for exclusive read/write access.

Collapse Copy Code

// Open file "foo.dat" CFile* pFile = new CFile(); ASSERT (pFile != NULL); if (!pFile- >Open ( " foo.dat", CFile::modeReadWrite | CFile::shareExclusive)) { // Handle error return; } Step 2 - Hook up the archive

Next, a CArchive object is hooked up to the file. The archive provides an efficient conduit to persistent storage. Instead of directly reading and writing the file, you serialize data to and from the archive. The archive needs to know if you're going to be using it to read or write data. In this example, we'll assume we're writing data.

Collapse Copy Code

// Create archive ... bool bReading = false; // ... for writing CArchive* pArchive = NULL; try { pFile- >SeekToBegin(); UINT uMode = (bReading ? CArchive::load : CArchive::store); pArchive = new CArchive (pFile, uMode); ASSERT (pArchive != NULL); } catch (CException* pException) { // Handle error return; } Step 3 - Serialize the object

Finally, we serialize the object by calling its serialize() method. serialize() is just a method we made up. It has nothing to with MFC's CObject::Serialize(). Also, you don't have to derive your object from CObject. Our serialize() method takes a pointer to a CArchive and returns an integer status.

Collapse Copy Code

int CFoo::serialize (CArchive* pArchive) { int nStatus = SUCCESS; // Serialize the object ... ... return (nStatus); }

We'll get to the actual serialization process in a minute. Meanwhile, let's recognize a couple of important points:

• The same method CFoo::serialize() is used to read/write the object from/to persistent storage.
• CFoo::serialize() doesn't know anything about the datafile bring accessed.

Assume CFoo represents an employee record that contains a couple of data members.

Collapse Copy Code

class CFoo { // Construction/destruction public: CFoo::CFoo(); virtual CFoo::~CFoo(); // Methods public: int serialize (CArchive* pArchive); // Data members public: CString m_strName; // employee name int m_nId; // employee id };

We use CArchive's streaming operators << and >> to read/write the data members from/to the archive. CArchive knows how to serialize simple data types like int, float, DWORD, and objects like CString. The archive also knows whether it's in read or write mode. You can query its mode by calling CArchive::IsStoring(). CFoo's serialization method can then be written as:

Collapse Copy Code

int CFoo::serialize (CArchive* pArchive) { int nStatus = SUCCESS; // Serialize the object ... ASSERT (pArchive != NULL); try { if (pArchive- >IsStoring()) { // Write employee name and id (*pArchive) < < m_strName; (*pArchive) < < m_nId; } else { // Read employee name and id (*pArchive) > > m_strName; (*pArchive) > > m_nId; } } catch (CException* pException) { nStatus = ERROR; } return (nStatus); } Step 4 - Clean up

When you've finished serializing, you should clean up by closing the archive and datafile.

Collapse Copy Code

pArchive- >Close(); delete pArchive; pFile- >Close(); delete pFile(); Conclusion

Well, there you have it - serialization in a (very small) nutshell. In Part 2, we'll see how to gracefully handle reading invalid data stores and support different versions of our object. In Part 3, we'll see how to serialize complex objects.
