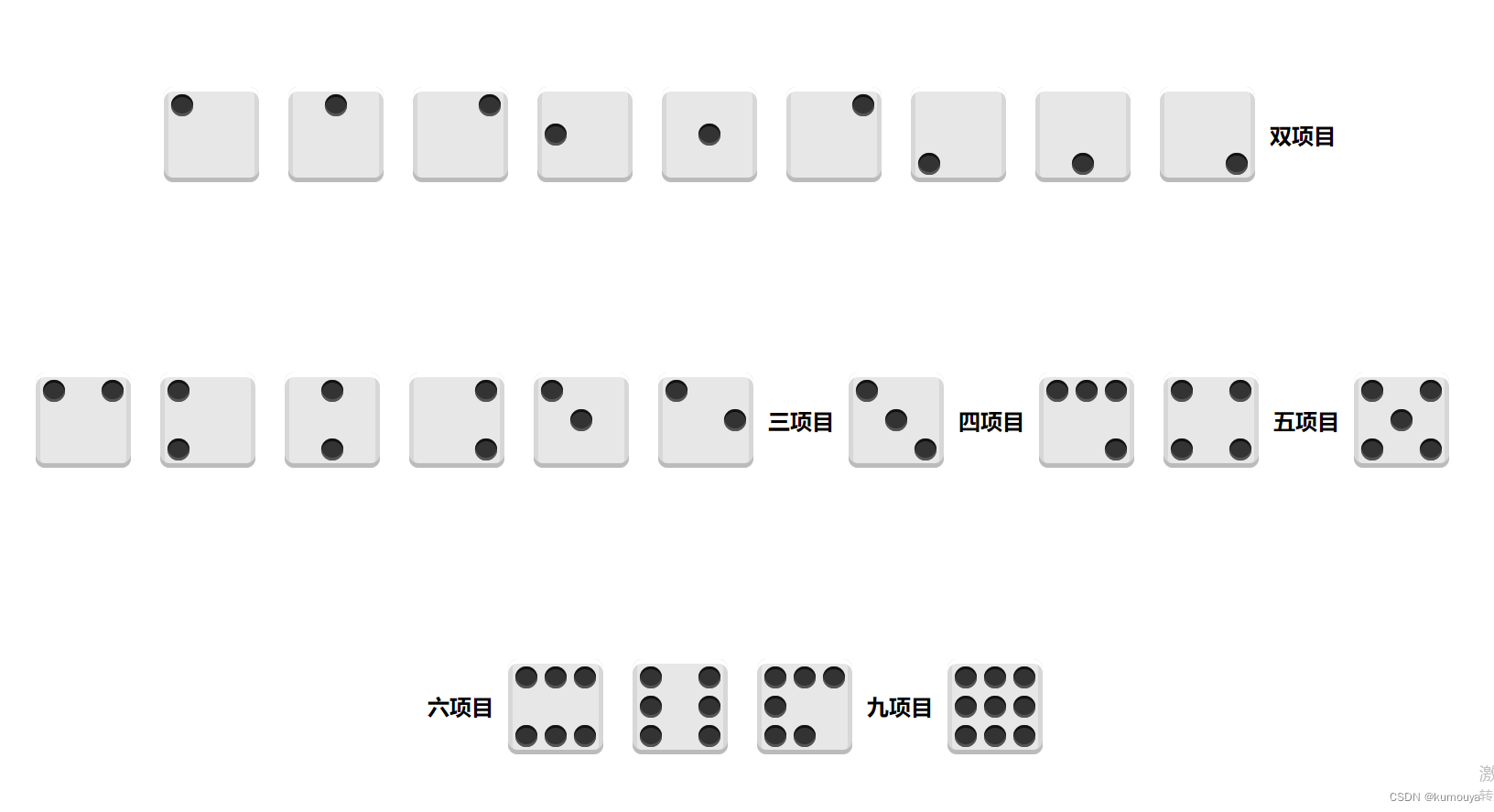

效果图
弹性布局

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=di, initial-scale=1.0">
    <title>Document</title>
</head>
<style>
    * {
        box-sizing: border-box;
    }

    html,
    body {
        height: 100%;
    }

    body {
        display: flex;
        align-items: center;
        justify-content: center;
        flex-wrap: wrap;
        font-family: 'Open Sans', sans-serif;
        background: linear-gradient(top, #222, #333);
    }

    /*[attribute$="value"]:匹配给定的属性是以某些值结尾的元素*/
    [class$="face"] {
        margin: 16px;
        padding: 4px;
        display: flex;
        background-color: #e7e7e7;
        width: 104px;
        height: 104px;
        object-fit: contain;

        box-shadow:
            /* 第二参代表竖直，正为上 */
            inset 0 5px white,
            /* 第二参代表竖直，正为下 */
            inset 0 -5px #bbb,
            /* 第一参代表横向，正为左 */
            inset 5px 0 #d7d7d7,
            /* 第一参代表横向，正为右 */
            inset -5px 0 #d7d7d7;

        border-radius: 10%;
    }

    [class$="item"] {
        display: flex;
    }

    .pip {
        display: block;
        width: 24px;
        height: 24px;
        border-radius: 50%;
        margin: 4px;
        background-color: #333;
        box-shadow: inset 0 3px #111, inset 0 -3px #555;
    }

    .item1-2face {
        justify-content: center;
    }

    .item1-3face {
        justify-content: flex-end;
    }

    .item1-4face {
        align-items: center;
    }

    .item1-5face {
        align-items: center;
        justify-content: center;
    }

    .item1-6face {
        align-items: flex-start;
        justify-content: flex-end;
    }

    .item1-7face {
        align-items: flex-end;
        justify-content: flex-start;
    }

    .item1-8face {
        align-items: flex-end;
        justify-content: center;
    }

    .item1-9face {
        align-items: flex-end;
        justify-content: flex-end;
    }

    /*
    row（默认值）：主轴为水平方向，起点在左端。
    row-reverse：主轴为水平方向，起点在右端。
    column：主轴为垂直方向，起点在上沿。
    column-reverse：主轴为垂直方向，起点在下沿。 */
    .item2-1face {
        justify-content: space-between;
    }

    .item2-2face {
        flex-direction: column;
        justify-content: space-between;
    }

    .item2-3face {
        flex-direction: column;
        align-items: center;
        justify-content: space-between;
    }

    .item2-4face {
        flex-direction: column;
        justify-content: space-between;
        align-items: flex-end;
    }

    .item2-5face .pip:nth-child(2) {
        align-self: center;
    }

    .item2-6face {
        justify-content: space-between;
    }

    /* 如果不指名，会默认排在左上角或右上角 */
    .item2-6face .pip:nth-child(2) {
        align-self: center;
    }

    .item3-1face {
        justify-content: space-between;
    }

    .item3-1face .pip:nth-child(2) {
        align-self: center;
    }

    .item3-1face .pip:nth-child(3) {
        align-self: flex-end;
    }

    .item4-1face {
        flex-wrap: wrap;
        justify-content: flex-end;
        align-content: space-between;
    }

    .item4-2face {
        flex-wrap: wrap;
        align-content: space-between;
    }

    .item4-2face .column {
        display: flex;
        /* column的长度 */
        flex-basis: 100%;
        justify-content: space-between;
    }

    .item5-1face {
        flex-wrap: wrap;
        align-content: space-between;
    }

    .item5-1face .column {
        display: flex;
        /* column的长度 */
        flex-basis: 100%;
        justify-content: space-between;
    }

    .item5-1face .column:nth-child(2) {
        justify-content: center;
    }

    .item6-1face {
        flex-wrap: wrap;
        /* justify-content: space-between; */
        align-content: space-between;
    }

    .item6-2face {
        flex-direction: column;
        flex-wrap: wrap;
        align-content: space-between;
    }

    .item6-3face {
        flex-wrap: wrap;
    }

    .item6-3face .row {
        display: flex;
        flex-basis: 100%;
    }

    .item9-1face {
        flex-wrap: wrap;
    }
</style>

<body>
    <div class="first-item">
        <div class="item1-1face">
            <span class="pip"></span>
        </div>
        <div class="item1-2face">
            <span class="pip"></span>
        </div>
        <div class="item1-3face">
            <span class="pip"></span>
        </div>
        <div class="item1-4face">
            <span class="pip"></span>
        </div>
        <div class="item1-5face">
            <span class="pip"></span>
        </div>
        <div class="item1-6face">
            <span class="pip"></span>
        </div>
        <div class="item1-7face">
            <span class="pip"></span>
        </div>
        <div class="item1-8face">
            <span class="pip"></span>
        </div>
        <div class="item1-9face">
            <span class="pip"></span>
        </div>
    </div>
    <h2>双项目</h2>
    <div class="second-item">
        <div class="item2-1face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item2-2face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item2-3face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item2-4face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item2-5face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item2-6face">
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
    </div>

    <h2>三项目</h2>
    <div class="third-item">
        <div class="item3-1face">
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
    </div>

    <h2>四项目</h2>
    <div class="forth-item">
        <div class="item4-1face">
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item4-2face">
            <div class="column">
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
            <div class="column">
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
        </div>
    </div>

    <h2>五项目</h2>
    <div class="fifth-item">
        <div class="item5-1face">
            <div class="column">
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
            <div class="column">
                <span class="pip"></span>
            </div>
            <div class="column">
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
        </div>
    </div>

    <h2>六项目</h2>
    <div class="six-item">
        <div class="item6-1face">
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item6-2face">
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
        <div class="item6-3face">
            <div class="row">
                <span class="pip"></span>
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
            <div class="row">
                <span class="pip"></span>
            </div>
            <div class="row">
                <span class="pip"></span>
                <span class="pip"></span>
            </div>
        </div>
    </div>

    <h2>九项目</h2>
    <div class="nine-item">
        <div class="item9-1face">
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
            <span class="pip"></span>
        </div>
    </div>


</body>

</html>
