一、背景：
部署服务器时，时常需要安装jdk、配置环境变量，比较麻烦，使用此种方式可以直接实现环境的搭建，启动tomcat。
二、步骤：
1. 资源准备：
jdk免安装版--任意版本（或者安装后从安装路径下拷贝）
tomcat--任意版本
2. 路径配置：
将jdk及tomcat文件放置同一文件夹下，文件夹自定义命名，如test_tomcat
注意：路径中不允许出现中文字符
3. tomcat中jdk路径修改：

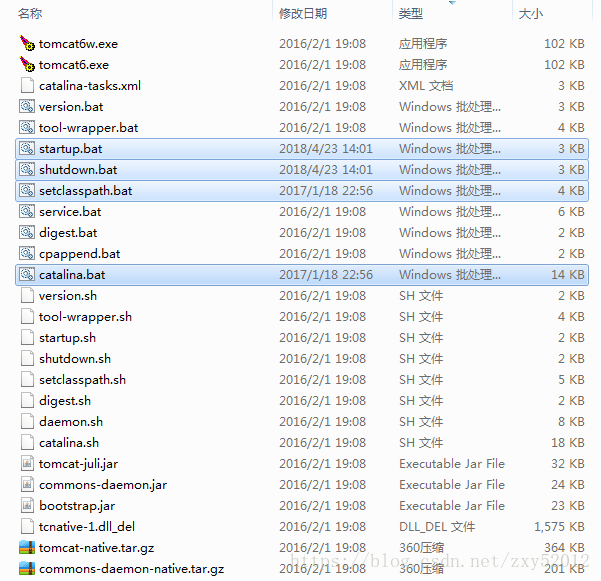

打开tomcat路径bin文件夹下，修改以下四个文件：
4. 文件编辑：
注意：a: 直接编辑替换对应文件内容为以下内容；b: startup.bat、shutdown.bat需替换jdk文件夹名称
① setclasspath.bat
@echo off
rem In debug mode we need a real JDK (JAVA_HOME)
if ""%1"" == ""debug"" goto needJavaHome
rem Otherwise either JRE or JDK are fine
if not "%JRE_HOME%" == "" goto gotJreHome
if not "%JAVA_HOME%" == "" goto gotJavaHome
echo Neither the JAVA_HOME nor the JRE_HOME environment variable is defined
echo At least one of these environment variable is needed to run this program
goto exit
:needJavaHome
rem Check if we have a usable JDK
if "%JAVA_HOME%" == "" goto noJavaHome
if not exist "%JAVA_HOME%\bin\java.exe" goto noJavaHome
if not exist "%JAVA_HOME%\bin\javaw.exe" goto noJavaHome
if not exist "%JAVA_HOME%\bin\jdb.exe" goto noJavaHome
if not exist "%JAVA_HOME%\bin\javac.exe" goto noJavaHome
set "JRE_HOME=%JAVA_HOME%"
goto okJava
:noJavaHome
echo The JAVA_HOME environment variable is not defined correctly.
echo It is needed to run this program in debug mode.
echo NB: JAVA_HOME should point to a JDK not a JRE.
goto exit
:gotJavaHome
rem No JRE given, use JAVA_HOME as JRE_HOME
set "JRE_HOME=%JAVA_HOME%"
:gotJreHome
rem Check if we have a usable JRE
if not exist "%JRE_HOME%\bin\java.exe" goto noJreHome
if not exist "%JRE_HOME%\bin\javaw.exe" goto noJreHome
goto okJava
:noJreHome
rem Needed at least a JRE
echo The JRE_HOME environment variable is not defined correctly
echo This environment variable is needed to run this program
goto exit
:okJava
rem Don't override the endorsed dir if the user has set it previously
if not "%JAVA_ENDORSED_DIRS%" == "" goto gotEndorseddir
rem Set the default -Djava.endorsed.dirs argument
set "JAVA_ENDORSED_DIRS=%CATALINA_HOME%\endorsed"
:gotEndorseddir
rem Don't override _RUNJAVA if the user has set it previously
if not "%_RUNJAVA%" == "" goto gotRunJava
rem Set standard command for invoking Java.
rem Also note the quoting as JRE_HOME may contain spaces.
set _RUNJAVA="%JRE_HOME%\bin\java.exe"
:gotRunJava
rem Don't override _RUNJDB if the user has set it previously
rem Also note the quoting as JAVA_HOME may contain spaces.
if not "%_RUNJDB%" == "" goto gotRunJdb
set _RUNJDB="%JAVA_HOME%\bin\jdb.exe"
:gotRunJdb
goto end
:exit
exit /b 1
:end
exit /b 0 ② catalina.bat
@echo off
setlocal
rem Suppress Terminate batch job on CTRL+C
if not ""%1"" == ""run"" goto mainEntry
if "%TEMP%" == "" goto mainEntry
if exist "%TEMP%\%~nx0.run" goto mainEntry
echo Y>"%TEMP%\%~nx0.run"
if not exist "%TEMP%\%~nx0.run" goto mainEntry
echo Y>"%TEMP%\%~nx0.Y"
call "%~f0" %* <"%TEMP%\%~nx0.Y"
rem Use provided errorlevel
set RETVAL=%ERRORLEVEL%
del /Q "%TEMP%\%~nx0.Y" >NUL 2>&1
exit /B %RETVAL%
:mainEntry
del /Q "%TEMP%\%~nx0.run" >NUL 2>&1
rem Guess CATALINA_HOME if not defined
set "CURRENT_DIR=%cd%"
if not "%CATALINA_HOME%" == "" goto gotHome
set "CATALINA_HOME=%CURRENT_DIR%"
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
cd ..
set "CATALINA_HOME=%cd%"
cd "%CURRENT_DIR%"
:gotHome
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
echo The CATALINA_HOME environment variable is not defined correctly
echo This environment variable is needed to run this program
goto end
:okHome
rem Copy CATALINA_BASE from CATALINA_HOME if not defined
if not "%CATALINA_BASE%" == "" goto gotBase
set "CATALINA_BASE=%CATALINA_HOME%"
:gotBase
rem Ensure that any user defined CLASSPATH variables are not used on startup,
rem but allow them to be specified in setenv.bat, in rare case when it is needed.
set CLASSPATH=
rem Get standard environment variables
if not exist "%CATALINA_BASE%\bin\setenv.bat" goto checkSetenvHome
call "%CATALINA_BASE%\bin\setenv.bat"
goto setenvDone
:checkSetenvHome
if exist "%CATALINA_HOME%\bin\setenv.bat" call "%CATALINA_HOME%\bin\setenv.bat"
:setenvDone
rem Get standard Java environment variables
if exist "%CATALINA_HOME%\bin\setclasspath.bat" goto okSetclasspath
echo Cannot find "%CATALINA_HOME%\bin\setclasspath.bat"
echo This file is needed to run this program
goto end
:okSetclasspath
call "%CATALINA_HOME%\bin\setclasspath.bat" %1
if errorlevel 1 goto end
rem Add on extra jar file to CLASSPATH
rem Note that there are no quotes as we do not want to introduce random
rem quotes into the CLASSPATH
if "%CLASSPATH%" == "" goto emptyClasspath
set "CLASSPATH=%CLASSPATH%;"
:emptyClasspath
set "CLASSPATH=%CLASSPATH%%CATALINA_HOME%\bin\bootstrap.jar"
if not "%CATALINA_TMPDIR%" == "" goto gotTmpdir
set "CATALINA_TMPDIR=%CATALINA_BASE%\temp"
:gotTmpdir
rem Add tomcat-juli.jar to classpath
rem tomcat-juli.jar can be over-ridden per instance
if not exist "%CATALINA_BASE%\bin\tomcat-juli.jar" goto juliClasspathHome
set "CLASSPATH=%CLASSPATH%;%CATALINA_BASE%\bin\tomcat-juli.jar"
goto juliClasspathDone
:juliClasspathHome
set "CLASSPATH=%CLASSPATH%;%CATALINA_HOME%\bin\tomcat-juli.jar"
:juliClasspathDone
if not "%JSSE_OPTS%" == "" goto gotJsseOpts
set JSSE_OPTS="-Djdk.tls.ephemeralDHKeySize=2048"
:gotJsseOpts
set "JAVA_OPTS=%JAVA_OPTS% %JSSE_OPTS%"
if not "%LOGGING_CONFIG%" == "" goto noJuliConfig
set LOGGING_CONFIG=-Dnop
if not exist "%CATALINA_BASE%\conf\logging.properties" goto noJuliConfig
set LOGGING_CONFIG=-Djava.util.logging.config.file="%CATALINA_BASE%\conf\logging.properties"
:noJuliConfig
if not "%LOGGING_MANAGER%" == "" goto noJuliManager
set LOGGING_MANAGER=-Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager
:noJuliManager
rem ----- Execute The Requested Command ---------------------------------------
echo Using CATALINA_BASE: "%CATALINA_BASE%"
echo Using CATALINA_HOME: "%CATALINA_HOME%"
echo Using CATALINA_TMPDIR: "%CATALINA_TMPDIR%"
if ""%1"" == ""debug"" goto use_jdk
echo Using JRE_HOME: "%JRE_HOME%"
goto java_dir_displayed
:use_jdk
echo Using JAVA_HOME: "%JAVA_HOME%"
:java_dir_displayed
echo Using CLASSPATH: "%CLASSPATH%"
set _EXECJAVA=%_RUNJAVA%
set MAINCLASS=org.apache.catalina.startup.Bootstrap
set ACTION=start
set SECURITY_POLICY_FILE=
set DEBUG_OPTS=
set JPDA=
if not ""%1"" == ""jpda"" goto noJpda
set JPDA=jpda
if not "%JPDA_TRANSPORT%" == "" goto gotJpdaTransport
set JPDA_TRANSPORT=dt_socket
:gotJpdaTransport
if not "%JPDA_ADDRESS%" == "" goto gotJpdaAddress
set JPDA_ADDRESS=8000
:gotJpdaAddress
if not "%JPDA_SUSPEND%" == "" goto gotJpdaSuspend
set JPDA_SUSPEND=n
:gotJpdaSuspend
if not "%JPDA_OPTS%" == "" goto gotJpdaOpts
set JPDA_OPTS=-agentlib:jdwp=transport=%JPDA_TRANSPORT%,address=%JPDA_ADDRESS%,server=y,suspend=%JPDA_SUSPEND%
:gotJpdaOpts
shift
:noJpda
if ""%1"" == ""debug"" goto doDebug
if ""%1"" == ""run"" goto doRun
if ""%1"" == ""start"" goto doStart
if ""%1"" == ""stop"" goto doStop
if ""%1"" == ""configtest"" goto doConfigTest
if ""%1"" == ""version"" goto doVersion
echo Usage: catalina ( commands ... )
echo commands:
echo debug Start Catalina in a debugger
echo debug -security Debug Catalina with a security manager
echo jpda start Start Catalina under JPDA debugger
echo run Start Catalina in the current window
echo run -security Start in the current window with security manager
echo start Start Catalina in a separate window
echo start -security Start in a separate window with security manager
echo stop Stop Catalina
echo configtest Run a basic syntax check on server.xml
echo version What version of tomcat are you running?
goto end
:doDebug
shift
set _EXECJAVA=%_RUNJDB%
set DEBUG_OPTS=-sourcepath "%CATALINA_HOME%\..\..\java"
if not ""%1"" == ""-security"" goto execCmd
shift
echo Using Security Manager
set "SECURITY_POLICY_FILE=%CATALINA_BASE%\conf\catalina.policy"
goto execCmd
:doRun
shift
if not ""%1"" == ""-security"" goto execCmd
shift
echo Using Security Manager
set "SECURITY_POLICY_FILE=%CATALINA_BASE%\conf\catalina.policy"
goto execCmd
:doStart
shift
if "%TITLE%" == "" set TITLE=Tomcat
set _EXECJAVA=start "%TITLE%" %_RUNJAVA%
if not ""%1"" == ""-security"" goto execCmd
shift
echo Using Security Manager
set "SECURITY_POLICY_FILE=%CATALINA_BASE%\conf\catalina.policy"
goto execCmd
:doStop
shift
set ACTION=stop
set CATALINA_OPTS=
goto execCmd
:doConfigTest
shift
set ACTION=configtest
set CATALINA_OPTS=
goto execCmd
:doVersion
%_EXECJAVA% -classpath "%CATALINA_HOME%\lib\catalina.jar" org.apache.catalina.util.ServerInfo
goto end
:execCmd
rem Get remaining unshifted command line arguments and save them in the
set CMD_LINE_ARGS=
:setArgs
if ""%1""=="""" goto doneSetArgs
set CMD_LINE_ARGS=%CMD_LINE_ARGS% %1
shift
goto setArgs
:doneSetArgs
rem Execute Java with the applicable properties
if not "%JPDA%" == "" goto doJpda
if not "%SECURITY_POLICY_FILE%" == "" goto doSecurity
%_EXECJAVA% %LOGGING_CONFIG% %LOGGING_MANAGER% %JAVA_OPTS% %CATALINA_OPTS% %DEBUG_OPTS% -Djava.endorsed.dirs="%JAVA_ENDORSED_DIRS%" -classpath "%CLASSPATH%" -Dcatalina.base="%CATALINA_BASE%" -Dcatalina.home="%CATALINA_HOME%" -Djava.io.tmpdir="%CATALINA_TMPDIR%" %MAINCLASS% %CMD_LINE_ARGS% %ACTION%
goto end
:doSecurity
%_EXECJAVA% %LOGGING_CONFIG% %LOGGING_MANAGER% %JAVA_OPTS% %CATALINA_OPTS% %DEBUG_OPTS% -Djava.endorsed.dirs="%JAVA_ENDORSED_DIRS%" -classpath "%CLASSPATH%" -Djava.security.manager -Djava.security.policy=="%SECURITY_POLICY_FILE%" -Dcatalina.base="%CATALINA_BASE%" -Dcatalina.home="%CATALINA_HOME%" -Djava.io.tmpdir="%CATALINA_TMPDIR%" %MAINCLASS% %CMD_LINE_ARGS% %ACTION%
goto end
:doJpda
if not "%SECURITY_POLICY_FILE%" == "" goto doSecurityJpda
%_EXECJAVA% %LOGGING_CONFIG% %LOGGING_MANAGER% %JAVA_OPTS% %JPDA_OPTS% %CATALINA_OPTS% %DEBUG_OPTS% -Djava.endorsed.dirs="%JAVA_ENDORSED_DIRS%" -classpath "%CLASSPATH%" -Dcatalina.base="%CATALINA_BASE%" -Dcatalina.home="%CATALINA_HOME%" -Djava.io.tmpdir="%CATALINA_TMPDIR%" %MAINCLASS% %CMD_LINE_ARGS% %ACTION%
goto end
:doSecurityJpda
%_EXECJAVA% %LOGGING_CONFIG% %LOGGING_MANAGER% %JAVA_OPTS% %JPDA_OPTS% %CATALINA_OPTS% %DEBUG_OPTS% -Djava.endorsed.dirs="%JAVA_ENDORSED_DIRS%" -classpath "%CLASSPATH%" -Djava.security.manager -Djava.security.policy=="%SECURITY_POLICY_FILE%" -Dcatalina.base="%CATALINA_BASE%" -Dcatalina.home="%CATALINA_HOME%" -Djava.io.tmpdir="%CATALINA_TMPDIR%" %MAINCLASS% %CMD_LINE_ARGS% %ACTION%
goto end
:end
③ startup.bat（其中jdk文件夹名称需要替换，将本文中默认名称jdk1.6替换即可(2处)）
@echo off
setlocal
rem Guess CATALINA_HOME if not defined
set "CURRENT_DIR=%cd%"
if not "%CATALINA_HOME%" == "" goto gotHome
if not "%CATALINA_HOME%" == "" goto gotHome
cd ..
set JAVA_HOME=%CURRENT_DIR%/jdk1.6
if exist "%JAVA_HOME%" goto gogoTomcat
cd ..
set JAVA_HOME=%cd%/jdk1.6
cd %CURRENT_DIR%
:gogoTomcat
set "CATALINA_HOME=%CURRENT_DIR%"
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
cd ..
set "CATALINA_HOME=%cd%"
cd "%CURRENT_DIR%"
:gotHome
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
echo The CATALINA_HOME environment variable is not defined correctly
echo This environment variable is needed to run this program
goto end
:okHome
set "EXECUTABLE=%CATALINA_HOME%\bin\catalina.bat"
rem Check that target executable exists
if exist "%EXECUTABLE%" goto okExec
echo Cannot find "%EXECUTABLE%"
echo This file is needed to run this program
goto end
:okExec
rem Get remaining unshifted command line arguments and save them in the
set CMD_LINE_ARGS=
:setArgs
if ""%1""=="""" goto doneSetArgs
set CMD_LINE_ARGS=%CMD_LINE_ARGS% %1
shift
goto setArgs
:doneSetArgs
call "%EXECUTABLE%" start %CMD_LINE_ARGS%
:end ④ shutdown.bat （其中jdk文件夹名称需要替换，将本文中默认名称jdk1.6替换即可(2处)）
@echo off
setlocal
rem Guess CATALINA_HOME if not defined
set "CURRENT_DIR=%cd%"
if not "%CATALINA_HOME%" == "" goto gotHome
if not "%CATALINA_HOME%" == "" goto gotHome
cd ..
set JAVA_HOME=%CURRENT_DIR%/jdk1.6
if exist "%JAVA_HOME%" goto gogoTomcat
cd ..
set JAVA_HOME=%cd%/jdk1.6
cd %CURRENT_DIR%
:gogoTomcat
set "CATALINA_HOME=%CURRENT_DIR%"
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
cd ..
set "CATALINA_HOME=%cd%"
cd "%CURRENT_DIR%"
:gotHome
if exist "%CATALINA_HOME%\bin\catalina.bat" goto okHome
echo The CATALINA_HOME environment variable is not defined correctly
echo This environment variable is needed to run this program
goto end
:okHome
set "EXECUTABLE=%CATALINA_HOME%\bin\catalina.bat"
rem Check that target executable exists
if exist "%EXECUTABLE%" goto okExec
echo Cannot find "%EXECUTABLE%"
echo This file is needed to run this program
goto end
:okExec
rem Get remaining unshifted command line arguments and save them in the
set CMD_LINE_ARGS=
:setArgs
if ""%1""=="""" goto doneSetArgs
set CMD_LINE_ARGS=%CMD_LINE_ARGS% %1
shift
goto setArgs
:doneSetArgs
call "%EXECUTABLE%" stop %CMD_LINE_ARGS%
:end
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
