高可用集群KEEPALIVED

高可用集群

集群类型

LB：Load Balance 负载均衡

LVS/HAProxy/nginx（http/upstream, stream/upstream）
HA：High Availability 高可用集群

数据库、Redis
SPoF: Single Point of Failure，解决单点故障

HPC：High Performance Computing 高性能集群

系统可用性

SLA：Service-Level Agreement 服务等级协议（提供服务的企业与客户之间就服务的品质、水准、性能等方面所达成的双方共同认可的协议或契约）

A = MTBF / (MTBF+MTTR）

99.95%:(60*24*30)*(1-0.9995)=21.6分钟 #一般按一个月停机时间统计

指标：99.9%, 99.99%, 99.999%,99.9999%

系统故障

硬件故障：设计缺陷、wear out（损耗）、非人为不可抗拒因素
软件故障：设计缺陷 bug

实现高可用

提升系统高用性的解决方案：降低MTTR- Mean Time To Repair(平均故障时间)
解决方案：建立冗余机制

active/passive 主/备
active/active 双主
active --> HEARTBEAT --> passive
active <–> HEARTBEAT <–> active

VRRP：Virtual Router Redundancy Protocol

虚拟路由冗余协议,解决静态网关单点风险

物理层:路由器、三层交换机
软件层:keepalive

VRRP 相关术语

虚拟路由器：Virtual Router
虚拟路由器标识：VRID(0-255)，唯一标识虚拟路由器
VIP：Virtual IP
VMAC：Virutal MAC (00-00-5e-00-01-VRID)
物理路由器：
- master：主设备
- backup：备用设备
- priority：优先级

VRRP 相关技术

通告：心跳，优先级等；周期性
工作方式：抢占式，非抢占式
安全认证：

无认证
简单字符认证：预共享密钥
MD5

工作模式：

主/备：单虚拟路由器
主/主：主/备（虚拟路由器1），备/主（虚拟路由器2）

Keepalived 部署

keepalived 简介

vrrp 协议的软件实现，原生设计目的为了高可用 ipvs服务

官网：http://keepalived.org/

功能：

基于vrrp协议完成地址流动
为vip地址所在的节点生成ipvs规则(在配置文件中预先定义)
为ipvs集群的各RS做健康状态检测
基于脚本调用接口完成脚本中定义的功能，进而影响集群事务，以此支持nginx、haproxy等服务

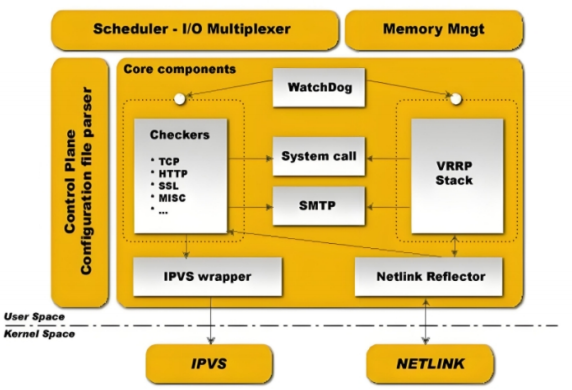

Keepalived 架构

官方文档：

在这里插入图片描述

用户空间核心组件：

vrrp stack：VIP消息通告

checkers：监测real server

system call：实现 vrrp 协议状态转换时调用脚本的功能

SMTP：邮件组件

IPVS wrapper：生成IPVS规则

Netlink Reflector：网络接口

WatchDog：监控进程
控制组件：提供keepalived.conf 的解析器，完成Keepalived配置
IO复用器：针对网络目的而优化的自己的线程抽象
内存管理组件：为某些通用的内存管理功能（例如分配，重新分配，发布等）提供访问权限

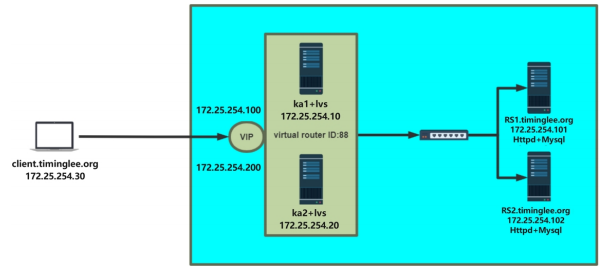

Keepalived 环境准备

在这里插入图片描述

各节点时间必须同步：ntp, chrony
关闭防火墙及SELinux
各节点之间可通过主机名互相通信：非必须
建议使用/etc/hosts文件实现：非必须
各节点之间的root用户可以基于密钥认证的ssh服务完成互相通信：非必须

Keepalived 相关文件

软件包名：keepalived
主程序文件：/usr/sbin/keepalived
主配置文件：/etc/keepalived/keepalived.conf
配置文件示例：/usr/share/doc/keepalived/
Unit File：/lib/systemd/system/keepalived.service
Unit File的环境配置文件：/etc/sysconfig/keepalived

[!WARNING]

RHEL7中可能会遇到一下bug，RHEL9中无此问题

systemctl restart keepalived #新配置可能无法生效
systemctl stop keepalived;systemctl start keepalived #无法停止进程，需要 kill 停止

Keepalived 安装

安装 keepalived

[root@KA1 ~]# dnf install keepalived -y
[root@KA1 ~]# systemctl start keepalived
[root@KA1 ~]# ps axf | grep keepalived
   2385 pts/0    S+     0:00              \_ grep --color=auto keepalived
   2326 ?        Ss     0:00 /usr/sbin/keepalived -D
   2327 ?        S      0:00  \_ /usr/sbin/keepalived -D

KeepAlived 配置说明

配置文件组成部分

配置文件：/etc/keepalived/keepalived.conf

配置文件组成

GLOBAL CONFIGURATION

Global definitions：定义邮件配置，route_id，vrrp配置，多播地址等
VRRP CONFIGURATION

VRRP instance(s)：定义每个vrrp虚拟路由器
LVS CONFIGURATION

Virtual server group(s)

Virtual server(s)： LVS集群的VS和RS

配置语法说明

帮助

man keepalived.conf

全局配置

! Configuration File for keepalived

global_defs {
   notification_email {
         timiniglee-zln@163.com		#keepalived 发生故障切换时邮件发送的目标邮箱，可以按行区分写多个

   }
   notification_email_from keepalived@KA1.timinglee.org	#发邮件的地址
   smtp_server 127.0.0.1								#邮件服务器地址
   smtp_connect_timeout 30								#邮件服务器连接timeout
   router_id KA1.timinglee.org							#每个keepalived主机唯一标识
   														#建议使用当前主机名，但多节点重名不影响

  vrrp_skip_check_adv_addr								#对所有通告报文都检查，会比较消耗性能
  														#启用此配置后，如果收到的通告报文和上一个报文是同一												  					#个路由器，则跳过检查，默认值为全检查


   vrrp_strict									#严格遵循vrrp协议
  												#启用此项后以下状况将无法启动服务:
 												#1.无VIP地址
 												#2.配置了单播邻居
 												#3.在VRRP版本2中有IPv6地址
 												#建议不加此项配置

  vrrp_garp_interval 1							#免费 ARP（Gratuitous ARP）报文时间间隔
  												#免费 ARP用于通知网络中其他设备，某 IP 地址对应的 MAC 地址发生了变化
  												#帮助网络设备更新 ARP 缓存，确保数据能正确转发到新的主节点

  vrrp_gna_interval 1							#用于配置发送 Gratuitous NA（免费邻居通告）报文的时间间隔
  												#通知网络中其他设备，某 IPv6 地址对应的链路层地址（MAC 地址）发生了变化
  												#帮助网络设备更新邻居缓存（Neighbor Cache）
  												#确保 IPv6 数据包能正确转发到新的主节点

  vrrp_mcast_group4 224.0.0.44 					#指定组播IP地址范围：

}

配置虚拟路由器

vrrp_instance VI_1 {
    state MASTER
    interface eth0			#绑定为当前虚拟路由器使用的物理接口，如：eth0,可以和VIP不在一个网卡

    virtual_router_id 51	#每个虚拟路由器惟一标识,范围：0-255，每个虚拟路由器此值必须唯一
    						#否则服务无法启动
    						#同属一个虚拟路由器的多个keepalived节点必须相同
    						#务必要确认在同一网络中此值必须唯一

    priority 100			#当前物理节点在此虚拟路由器的优先级，范围：1-254
    						#值越大优先级越高,每个keepalived主机节点此值不同

    advert_int 1			#vrrp通告的时间间隔，默认1s
    authentication {		#认证机制
        auth_type AH|PASS	#AH为IPSEC认证(不推荐),PASS为简单密码(建议使用)

        uth_pass 1111		#预共享密钥，仅前8位有效
        					#同一个虚拟路由器的多个keepalived节点必须一样
    }
    virtual_ipaddress {		#虚拟IP,生产环境可能指定上百个IP地址

        <IPADDR>/<MASK> brd <IPADDR> dev <STRING> scope <SCOPE> label <LABEL>
        172.25.254.100		#指定VIP，不指定网卡，默认为eth0,注意：不指定/prefix,默认32
        172.25.254.101/24 dev eth1
        172.25.254.102/24 dev eth2 label eth2:1
    }
    accept					#开启vip 对外响应ping包，注意此处功能需要关闭vrrp_strict
    						#默认使用nftab策略禁用ping包响应，nft list ruleset 显示策略中即可看到
}

#检测配置文件语法
[root@KA1 ~]# keepalived -t -f /etc/keepalived/keepalived.conf

示例：

#配置master端
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
        594233887@qq.com
   }
   notification_email_from keepalived@KA1.timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict					#nft list ruleset
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.18
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 20
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

配置slave端
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
        594233887@qq.com
   }
   notification_email_from keepalived@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA2.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.18
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20		#相同id管理同一个虚拟路由
    priority 80					#低优先级
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24  dev eth0 label eth0:0
    }
}

测试
[root@KA2 ~]# tcpdump -i eth0 -nn host 224.0.0.18
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
22:48:23.294894 IP 172.25.254.20 > 224.0.0.18: VRRPv2, Advertisement, vrid 20, prio 100, authtype none, intvl 1s, length 20
22:48:24.084793 IP 172.25.254.30 > 224.0.0.18: VRRPv2, Advertisement, vrid 30, prio 80, authtype none, intvl 1s, length 20
22:48:24.295075 IP 172.25.254.20 > 224.0.0.18: VRRPv2, Advertisement, vrid 20, prio 100, authtype none, intvl 1s, length 20
22:48:25.085256 IP 172.25.254.30 > 224.0.0.18: VRRPv2, Advertisement, vrid 30, prio 80, authtype none, intvl 1s, length 20
22:48:25.296296 IP 172.25.254.20 > 224.0.0.18: VRRPv2, Advertisement, vrid 20, prio 100, authtype none, intvl 1s, length 20
22:48:26.085843 IP 172.25.254.30 > 224.0.0.18: VRRPv2, Advertisement, vrid 30, prio 80, authtype none, intvl 1s, length 20

关闭KA1后再看组播信息

启用keepalived日志功能

示例：

[root@KA1 ~]# vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"							#日志级别为0-7
[root@ka1 ~]#vim /etc/rsyslog.conf
local6.*                                               /var/log/keepalived.log
[root@ka1 ~]#systemctl restart keepalived.service rsyslog.service
[root@ka1 ~]#tail -f /var/log/keepalived.log
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:51 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: (VI_1) Sending/queueing gratuitous
ARPs on eth0 for 10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10
Apr 14 09:25:56 ka1 Keepalived_vrrp[1263]: Sending gratuitous ARP on eth0 for
10.0.0.10

实现独立子配置文件

当生产环境复杂时， /etc/keepalived/keepalived.conf 文件中内容过多，不易管理

将不同集群的配置，比如：不同集群的VIP配置放在独立的子配置文件中利用include 指令可以实现包含子配置文件

格式：

include /path/file

示例：

[root@KA1 ~]# mkdir  /etc/keepalived/conf.d
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
        594233887@qq.com
   }
   notification_email_from keepalived@KA1.timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
   vrrp_ipsets keepalived
   vrrp_iptables
}
include /etc/keepalived/conf.d/*.conf		#相关子配置文件

[root@KA1 ~]# vim /etc/keepalived/conf.d/router.conf
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 20
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

Keepalived 企业应用示例

实现master/slave的 Keepalived 单主架构

MASTER配置

[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
        594233887@qq.com
   }
   notification_email_from keepalived@KA1.timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict					#添加此选项无法访问vip，可以用nft list ruleset查看
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.18
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 20
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}

3.1.2 BACKUP配置

#配置文件和master基本一致，只需修改三行
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
        594233887@qq.com
   }
   notification_email_from keepalived@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA2.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_mcast_group4 224.0.0.18
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20		#相同id管理同一个虚拟路由
    priority 80					#低优先级
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24  dev eth0 label eth0:0
    }
}

抓包观察

tcpdump -i eth0 -nn host 224.0.0.18

抢占模式和非抢占模式

非抢占模式 nopreempt

默认为抢占模式preempt，即当高优先级的主机恢复在线后，会抢占低先级的主机的master角色，

这样会使vip在KA主机中来回漂移，造成网络抖动，

建议设置为非抢占模式 nopreempt ，即高优先级主机恢复后，并不会抢占低优先级主机的master角色

非抢占模块下,如果原主机down机, VIP迁移至的新主机, 后续也发生down时,仍会将VIP迁移回原主机

[!NOTE]

注意：要关闭 VIP抢占，必须将各 keepalived 服务器state配置为BACKUP

#ka1主机配置
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20
    priority 100		#优先级高
    nopreempt			#非抢占模式
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}



#KA2主机配置
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20
    priority 80				#优先级低
    advert_int 1
    nopreempt				#非抢占模式
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
      172.25.254.100/24  dev eth0 label eth0:0
    }
}

抢占延迟模式 preempt_delay

抢占延迟模式，即优先级高的主机恢复后，不会立即抢回VIP，而是延迟一段时间（默认300s）再抢回VIP

preempt_delay #     #指定抢占延迟时间为#s，默认延迟300s

[!NOTE]

注意：需要各keepalived服务器state为BACKUP,并且不要启用 vrrp_strict

示例：

#ka1主机配置
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20
    priority 100		#优先级高
    preempt_delay 10	#抢占延迟10s
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100/24 dev eth0 label eth0:0
    }
}



#KA2主机配置
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20
    priority 80				#优先级低
    advert_int 1
   	preempt_delay 10		#抢占延迟10S
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
      172.25.254.100/24  dev eth0 label eth0:0
    }
}

VIP单播配置

默认keepalived主机之间利用多播相互通告消息，会造成网络拥塞，可以替换成单播，减少网络流量

[!NOTE]

注意：启用 vrrp_strict 时，不能启用单播

#在所有节点vrrp_instance语句块中设置对方主机的IP，建议设置为专用于对应心跳线网络的地址，而非使
用业务网络
unicast_src_ip <IPADDR>  #指定发送单播的源IP
unicast_peer {
   <IPADDR>     #指定接收单播的对方目标主机IP
   ......
}
#启用 vrrp_strict 时，不能启用单播,否则服务无法启动,并在messages文件中记录下面信息
Jun 16 17:50:06 centos8 Keepalived_vrrp[23180]: (m44) Strict mode does not
support authentication. Ignoring.
Jun 16 17:50:06 centos8 Keepalived_vrrp[23180]: (m44) Unicast peers are not
supported in strict mode
Jun 16 17:50:06 centos8 Keepalived_vrrp[23180]: Stopped - used 0.000606 user
time, 0.000000 system time
Jun 16 17:50:06 centos8 Keepalived[23179]: Keepalived_vrrp exited with permanent
error CONFIG. Terminating
Jun 16 17:50:06 centos8 systemd[1]: keepalived.service: Succeeded.
Jun 16 17:50:06 centos8 Keepalived[23179]: Stopped Keepalived v2.0.10
(11/12,2018)

示例：

#master 主机配置
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
    594233887@qq.com
   }
   notification_email_from keepalived@KA1.timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict					#注释此参数，与vip单播模式冲突
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   vrrp_ipsets keepalived
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 20
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
    172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.20			#本机IP
    unicast_peer {
        172.25.254.30						#指向对方主机IP
        									#如果有多个keepalived,再加其它节点的IP
    }
}


##在slave主机中

[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
 ! Configuration File for keepalived

global_defs {
   notification_email {
    594233887@qq.com
   }
   notification_email_from keepalived@KA1.timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict					#注释此参数，与vip单播模式冲突
   vrrp_garp_interval 0
   vrrp_gna_interval 0
   vrrp_ipsets keepalived
}


vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 20
    priority 80
    advert_int 1
    preempt_delay 60
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
      172.25.254.100/24  dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.30			#本机ip
    unicast_peer {
      172.25.254.20							#对端主机IP
    }
}

抓包查看单播效果

[root@KA1 ~]# tcpdump -i eth0 -nn src host 172.25.254.20 and dst 172.25.254.30
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
00:20:16.150917 IP 172.25.254.20 > 172.25.254.30: VRRPv2, Advertisement, vrid 20, prio 100, authtype simple, intvl 1s, length 20
00:20:17.151569 IP 172.25.254.20 > 172.25.254.30: VRRPv2, Advertisement, vrid 20, prio 100, authtype simple, intvl 1s, length 20
00:20:18.151754 IP 172.25.254.20 > 172.25.254.30: VRRPv2, Advertisement, vrid 20, prio 100, authtype simple, intvl 1s, length 20
00:20:19.152290 IP 172.25.254.20 > 172.25.254.30: VRRPv2, Advertisement, vrid 20, prio 100, authtype simple, intvl 1s, length 20


[root@KA2 ~]# tcpdump -i eth0 -nn src 172.25.254.30 and dst 172.25.254.20
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
00:20:50.853174 IP 172.25.254.30 > 172.25.254.20: VRRPv2, Advertisement, vrid 30, prio 80, authtype simple, intvl 1s, length 20
00:20:51.853798 IP 172.25.254.30 > 172.25.254.20: VRRPv2, Advertisement, vrid 30, prio 80, authtype simple, intvl 1s, length 20

Keepalived 通知脚本配置

当keepalived的状态变化时，可以自动触发脚本的执行，比如：发邮件通知用户

默认以用户keepalived_script身份执行脚本

如果此用户不存在，以root执行脚本可以用下面指令指定脚本执行用户的身份

global_defs {
 ......
 script_user <USER>
 ......
}

通知脚本类型

当前节点成为主节点时触发的脚本

notify_master <STRING>|<QUOTED-STRING>

当前节点转为备节点时触发的脚本

notify_backup <STRING>|<QUOTED-STRING>

当前节点转为“失败”状态时触发的脚本

notify_fault <STRING>|<QUOTED-STRING>

脚本的调用方法

在 vrrp_instance VI_1 语句块的末尾加下面行

notify_master "/etc/keepalived/notify.sh master"
notify_backup "/etc/keepalived/notify.sh backup"
notify_fault "/etc/keepalived/notify.sh fault"

3.4.3 创建通知脚本

[root@KA1 ~]# vim /etc/keepalived/mail.sh
#!/bin/bash
mail_dest='594233887@qq.com'

mail_send()
{
    mail_subj="$HOSTNAME to be $1 vip 转移"
    mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
    echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
}
case $1 in
    master)
    mail_send master
    ;;
    backup)
    mail_send backup
    ;;
    fault)
    mail_send fault
    ;;
    *)
    exit 1
    ;;
esac

邮件配置

安装邮件发送工具

[root@KA2 ~]# dnf install mailx -y

QQ邮箱配置

[root@KA1 ~]# vim /etc/mail.rc
#######mail set##########
set smtp=smtp.163.com
set smtp-auth=login
set smtp-auth-user=timinglee_zln@163.com
set smtp-auth-password=TAb9vYbWevbPtN4m
set from=timinglee_zln@163.com
set ssl-verify=ignore

发送测试邮件

[root@KA1 ~]# dnf install s-nail sendmail   -y
[root@KA1 ~]# systemctl enable --now sendmail.service

[root@KA1 ~]# echo test message |mail -s test 594233887@qq.com

实战案例：实现 Keepalived 状态切换的通知脚本

#在所有 keepalived节点配置如下
[root@KA1 + KA2 ~]# vim /etc/keepalived/mail.sh
#!/bin/bash
mail_dest='594233887@qq.com'

mail_send()
{
    mail_subj="$HOSTNAME to be $1 vip 转移"
    mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
    echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
}
case $1 in
    master)
    mail_send master
    ;;
    backup)
    mail_send backup
    ;;
    fault)
    mail_send fault
    ;;
    *)
    exit 1
    ;;
esac


[root@KA1 +KA2 ~]# chmod  +x /etc/keepalived/mail.sh
[root@KA1 +K2  ~]#vim /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     timinglee_zln@163.com
   }
   notification_email_from timinglee@timinglee.org
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id KA1.timinglee.org
   vrrp_skip_check_adv_addr
   #vrrp_strict
   vrrp_garp_interval 1
   vrrp_gna_interval 1
   enable_script_security			#开启keepalived执行脚本功能
   script_user root					#指定脚本执行用户身份
}
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 20
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
    172.25.254.100/24 dev eth0 label eth0:0
    }
    unicast_src_ip 172.25.254.20
    unicast_peer {
        172.25.254.30
    }
    notify_master "/etc/keepalived/mail.sh master"
    notify_backup "/etc/keepalived/mail.sh backup"
    notify_fault "/etc/keepalived/mail.sh fault"
}

#模拟master故障
[root@ka1-centos8 ~]#killall keepalived

测试：在浏览器中观察邮件即可

实现 master/master 的 Keepalived 双主架构

master/slave的单主架构，同一时间只有一个Keepalived对外提供服务，此主机繁忙，而另一台主机却很空闲，利用率低下，可以使用master/master的双主架构，解决此问题。

master/master 的双主架构：

即将两个或以上VIP分别运行在不同的keepalived服务器，以实现服务器并行提供web访问的目的，提高服务器资源利用率

#ha1主机配置
[root@rhel7-ka1 ~]# vim /etc/keepalived/keepalived.conf
@@@@ 内容省略 @@@@
vrrp_instance VI_1 {
    state MASTER			#主
    interface ens33
    virtual_router_id 50
    priority 100
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.50 dev ens33 label ens33:0
    }
}

vrrp_instance VI_60 {
    state BACKUP		#备
    interface ens33
    virtual_router_id 60
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.60 dev ens33 label ens33:1
    }
}

#ka2主机配置,和ka1配置只需五行不同
[root@rhel7-ka2 ~]# vim /etc/keepalived/keepalived.conf
@@@@ 内容省略 @@@@
vrrp_instance VI_1 {
    state BACKUP			#备
    interface ens33
    virtual_router_id 50
    priority 80
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.50 dev ens33 label ens33:0
    }
}

vrrp_instance VI_60 {
    state MASTER		#主
    interface ens33
    virtual_router_id 60
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.60 dev eth0 label eth0:1
    }
}

实战案例：三个节点的三主架构实现

#第一个节点ka1配置：
Vrrp instance 1：MASTER，优先级100
Vrrp instance 2：BACKUP，优先级80
Vrrp instance 3：BACKUP，优先级60
#第二个节点ka2配置：
Vrrp instance 1：BACKUP，优先级60
Vrrp instance 2：MASTER，优先级100
Vrrp instance 3：BACKUP，优先级80
#第三个节点ka3配置：
Vrrp instance 1：BACKUP，优先级80
Vrrp instance 2：BACKUP，优先级60
Vrrp instance 3：MASTER，优先级100

实现IPVS的高可用性

IPVS相关配置

虚拟服务器配置结构

virtual_server IP port {
   ...
 real_server {
 ...
 }
 real_server {
 ...
 }
 …
}

virtual server （虚拟服务器）的定义格式

virtual_server IP port     	#定义虚拟主机IP地址及其端口
virtual_server fwmark int 	#ipvs的防火墙打标，实现基于防火墙的负载均衡集群
virtual_server group string #使用虚拟服务器组

虚拟服务器配置

virtual_server IP port { 			#VIP和PORT
 delay_loop <INT> 					#检查后端服务器的时间间隔
 lb_algo rr|wrr|lc|wlc|lblc|sh|dh 	#定义调度方法
 lb_kind NAT|DR|TUN 				#集群的类型,注意要大写
 persistence_timeout <INT> 			#持久连接时长
 protocol TCP|UDP|SCTP 				#指定服务协议,一般为TCP
 sorry_server <IPADDR> <PORT> 			#所有RS故障时，备用服务器地址
 real_server <IPADDR> <PORT> {          #RS的IP和PORT
 	weight <INT>   						#RS权重
 	notify_up <STRING>|<QUOTED-STRING>  	#RS上线通知脚本
 	notify_down <STRING>|<QUOTED-STRING> 	#RS下线通知脚本
 	HTTP_GET|SSL_GET|TCP_CHECK|SMTP_CHECK|MISC_CHECK { ... } 	#定义当前主机健康状
 		态检测方法
 	}
}
#注意:括号必须分行写,两个括号写在同一行,如: }} 会出错

应用层监测

应用层检测：HTTP_GET|SSL_GET

HTTP_GET|SSL_GET {
 url {
   path <URL_PATH> 			#定义要监控的URL
   status_code <INT> 		#判断上述检测机制为健康状态的响应码，一般为 200
 }
 connect_timeout <INTEGER> 	#客户端请求的超时时长, 相当于haproxy的timeout server
 nb_get_retry <INT> 		#重试次数
 delay_before_retry <INT> 	#重试之前的延迟时长
 connect_ip <IP ADDRESS> 	#向当前RS哪个IP地址发起健康状态检测请求
 connect_port <PORT> 		#向当前RS的哪个PORT发起健康状态检测请求
 bindto <IP ADDRESS> 		#向当前RS发出健康状态检测请求时使用的源地址
 bind_port <PORT> 			#向当前RS发出健康状态检测请求时使用的源端口
}

TCP监测

传输层检测：TCP_CHECK

TCP_CHECK {
     connect_ip <IP ADDRESS> 		#向当前RS的哪个IP地址发起健康状态检测请求
     connect_port <PORT> 			#向当前RS的哪个PORT发起健康状态检测请求
     bindto <IP ADDRESS> 			#发出健康状态检测请求时使用的源地址
     bind_port <PORT> 				#发出健康状态检测请求时使用的源端口
     connect_timeout <INTEGER> 		#客户端请求的超时时长
     								#等于haproxy的timeout server
}

实战案例

实战案例：实现单主的 LVS-DR 模式

准备web服务器并使用脚本绑定VIP至web服务器lo网卡

#准备两台后端RS主机
[root@rs1 ~]# yum install httpd -y
[root@rs1 ~]# echo RS1 - 172.25.254.101 > /var/www/html/index.html

[root@rs1 ~]# ip addr add 172.25.254.100/32 dev lo
[root@rs1 ~]# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@rs1 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@rs1 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce

[root@rs2 ~]# yum install httpd -y
[root@rs1 ~]# echo RS1 - 172.25.254.101 > /var/www/html/index.html

[root@rs2 ~]# ip addr add 172.25.254.100/32 dev lo
[root@rs2 ~]#  echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@rs2 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@rs2 ~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce

[root@node30 ~]# yum install httpd -y
[root@node30 ~]# echo RS1 - 172.25.254.101 > /var/www/html/index.html

[root@node30 ~]# ip addr add 172.25.254.100/32 dev lo
[root@node30 ~]#  echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@node30 ~]# echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
[root@node30
~]# echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce

配置keepalived

#ka1节点的配置
[root@rhel7-ka1 ~]# vim /etc/keepalived/keepalived.conf
@@@@ 省略内容 @@@@
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    protocol TCP
    sorry_server 172.25.254.30

    real_server 172.25.254.101 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            retry 3
            delay_before_retry 3
            connect_port 80
        }
    }

    real_server 172.25.254.102 80 {
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
            connect_timeout 1
            retry 3
            delay_before_retry 1
        }
    }

}

#ka2节点的配置，配置和ka1基本相同，只需修改三行
[root@rhel7-ka2 ~]# vim /etc/keepalived/keepalived.conf
@@@@ 省略内容 @@@@
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    protocol TCP
    sorry_server 172.25.254.30

    real_server 172.25.254.101 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            retry 3
            delay_before_retry 3
            connect_port 80
        }
    }

    real_server 172.25.254.102 80 {
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
            connect_timeout 1
            retry 3
            delay_before_retry 1
        }
    }

}

访问测试结果

[Administrator.WIN-20240602BIS] ➤ for i in {1..6}; do curl 172.25.254.100; done
RS1 - 172.25.254.101
RS2 - 172.25.254.102
RS1 - 172.25.254.101
RS2 - 172.25.254.102
RS1 - 172.25.254.101
RS2 - 172.25.254.102

[root@rhel7-ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.101:80            Route   1      0          6
  -> 172.25.254.102:80            Route   1      0          6

模拟故障

#第一台RS1故障，自动切换至RS2
[root@rs1 ~]# systemctl stop httpd		#当RS1故障

[Administrator.WIN-20240602BIS] ➤ for i in {1..6}; do curl 172.25.254.100; done		#全部流浪被定向到RS2中
RS2 - 172.25.254.102
RS2 - 172.25.254.102
RS2 - 172.25.254.102
RS2 - 172.25.254.102
RS2 - 172.25.254.102
RS2 - 172.25.254.102

[root@rhel7-ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.102:80            Route   1      0          12		#RS1被踢出保留RS2

#后端RS服务器都故障，启动Sorry Server
[root@rs2 ~]#systemctl stop httpd
[Administrator.WIN-20240602BIS] ➤ for i in {1..6}; do curl 172.25.254.100; done
sorry server
sorry server
sorry server
sorry server
sorry server
sorry server
[root@rhel7-ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.30:80             Route   1      0          3

#陆续启动RS1 RS2
[root@rhel7-ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.101:80            Route   1      0          3
  -> 172.25.254.102:80            Route   1      0          9


#ka1故障，自动切换至ka2
[root@rhel7-ka1 ~]# systemctl stop keepalived.service
[root@rhel7-ka2 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.101:80            Route   1      0          0
  -> 172.25.254.102:80            Route   1      0          0

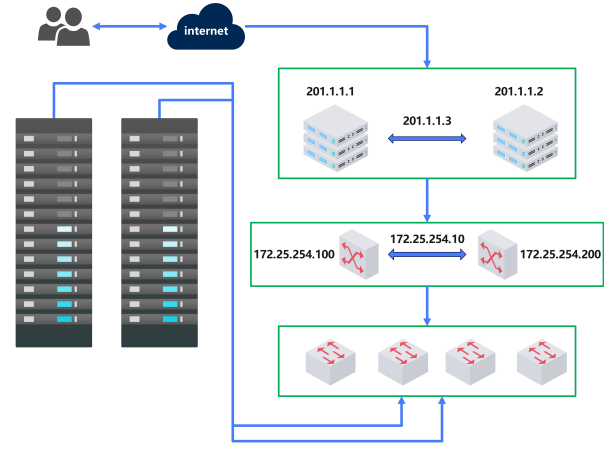

企业示例: 双主分别实现httpd和mysql服务的调度

在这里插入图片描述

准备实验素材
在RS1和RS2中准备httpd和mysql环境

在RS1中：
[root@rs1 ~]# ip addr add 172.25.254.200/32 dev lo
[root@rs1 ~]# yum install mariadb-server  -y
root@rs1 ~]# vim /etc/my.cnf
server-id=1
[root@rs1 ~]# systemctl enable --now mariadb
[root@rs1 ~]# mysql -e "grant ALL on *.* to lee@'%' identified by 'lee'"
[root@rs1 ~]# mysql -ulee -plee -h172.25.254.101 -e 'select @@server_id'
+-------------+
| @@server_id |
+-------------+
|           1 |
+-------------+

在RS2中：
[root@rs2 ~]# ip addr add 172.25.254.200/32 dev lo
[root@rs2 ~]# yum install mariadb-server  -y
[root@rs2 ~]# vim /etc/my.cnf
server-id=2
[root@rs2 ~]# systemctl enable --now mariadb
[root@rs2 ~]# mysql -e "grant ALL on *.* to lee@'%' identified by 'lee'"
[root@rs2 ~]# mysql -ulee -plee -h172.25.254.102 -e 'select @@server_id'
+-------------+
| @@server_id |
+-------------+
|           2 |
+-------------+


#配置双主模式
[root@rhel7-ka1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance web {
    state MASTER
    interface ens33
    virtual_router_id 100
    priority 100
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100 dev ens33 label ens33:0
    }
}

vrrp_instance sql {
    state BACKUP
    interface ens33
    virtual_router_id 200
    priority 80
    advert_int 1
   authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.200 dev ens33 label ens33:1
    }
}
include "/etc/keepalived/conf.d/web.conf"
include "/etc/keepalived/conf.d/sql.conf"


[root@rhel7-ka1 ~]# vim /etc/keepalived/conf.d/web.conf
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    protocol TCP
    sorry_server 172.25.254.30 80

    real_server 172.25.254.101 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 80
        }
    }

    real_server 172.25.254.102 80 {
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
            connect_timeout 1
            nb_get_retry 3
            delay_before_retry 1
        }
    }
}

[root@rhel7-ka1 ~]# vim /etc/keepalived/conf.d/sql.conf
virtual_server 172.25.254.200 3306 {
    delay_loop 3
    lb_algo rr
    lb_kind DR
    protocol TCP
    real_server 172.25.254.101 3306 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            retry 3
            delay_before_retry 3
            connect_port 3306
        }
    }
    real_server 172.25.254.102 3306 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 3306
        }
    }
}


##在ka2中：
[root@rhel7-ka2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance web {
    state BACKUP				#备机
    interface eth0
    virtual_router_id 50
    priority 80
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100 dev eth0 label eth0:0
    }
}


vrrp_instance sql {
    state MASTER			#主机
    interface eth0
    virtual_router_id 60
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.200 dev eth0 label eth0:1
    }
}

include "/etc/keepalived/conf.d/web.conf"
include "/etc/keepalived/conf.d/sql.conf"

[root@rhel7-ka2 ~]# vim /etc/keepalived/conf.d/web.conf
virtual_server 172.25.254.100 80 {
    delay_loop 6
    lb_algo wrr
    lb_kind DR
    protocol TCP
    sorry_server 172.25.254.30 80

    real_server 172.25.254.101 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 80
        }
    }

    real_server 172.25.254.102 80 {
        weight 1
        HTTP_GET {
            url {
                path /
                status_code 200
            }
            connect_timeout 1
            nb_get_retry 3
            delay_before_retry 1
        }
    }
}

[root@rhel7-ka2 ~]# vim /etc/keepalived/conf.d/web.conf
virtual_server 172.25.254.200 3306 {
    delay_loop 3
    lb_algo rr
    lb_kind DR
    protocol TCP
    real_server 172.25.254.101 3306 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 3306
        }
    }
    real_server 172.25.254.102 3306 {
        weight 1
        TCP_CHECK {
            connect_timeout 5
            nb_get_retry 3
            delay_before_retry 3
            connect_port 3306
        }
    }
}


[root@rhel7-ka1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.254.100:80 wrr
  -> 172.25.254.101:80            Route   1      0          0
  -> 172.25.254.102:80            Route   1      0          0
TCP  172.25.254.200:3306 rr
  -> 172.25.254.101:3306          Route   1      0          0
  -> 172.25.254.102:3306          Route   1      0          0

#测试
[root@node30 html]# mysql -ulee -plee -h172.25.254.200 -e 'select @@server_id'
+-------------+
| @@server_id |
+-------------+
|           2 |
+-------------+
[root@node30 html]# mysql -ulee -plee -h172.25.254.200 -e 'select @@server_id'
+-------------+
| @@server_id |
+-------------+
|           1 |
+-------------+
[root@node30 html]# mysql -ulee -plee -h172.25.254.200 -e 'select @@server_id'

实现其它应用的高可用性 VRRP Script

keepalived利用 VRRP Script 技术，可以调用外部的辅助脚本进行资源监控，并根据监控的结果实现优先动态调整，从而实现其它应用的高可用性功能

参考配置文件：/usr/share/doc/keepalived/keepalived.conf.vrrp.localcheck

VRRP Script 配置

分两步实现：

定义脚本

vrrp_script：自定义资源监控脚本，vrrp实例根据脚本返回值，公共定义，可被多个实例调用，定义在vrrp实例之外的独立配置块，一般放在global_defs设置块之后。
通常此脚本用于监控指定应用的状态。一旦发现应用的状态异常，则触发对MASTER节点的权重减至低于SLAVE节点，从而实现 VIP 切换到 SLAVE 节点

vrrp_script <SCRIPT_NAME> {
 script <STRING>|<QUOTED-STRING>   #此脚本返回值为非0时，会触发下面OPTIONS执行
 OPTIONS
}

调用脚本

track_script：调用vrrp_script定义的脚本去监控资源，定义在VRRP实例之内，调用事先定义的
vrrp_script
```
track_script {
 SCRIPT_NAME_1
 SCRIPT_NAME_2
}
```

定义 VRRP script

vrrp_script <SCRIPT_NAME> { 			#定义一个检测脚本，在global_defs 之外配置
     script <STRING>|<QUOTED-STRING> 	#shell命令或脚本路径
     interval <INTEGER> 				#间隔时间，单位为秒，默认1秒
     timeout <INTEGER> 					#超时时间
     weight <INTEGER:-254..254> 		#默认为0,如果设置此值为负数，
     									#当上面脚本返回值为非0时
     									#会将此值与本节点权重相加可以降低本节点权重，																		#即表示fall.
     									#如果是正数，当脚本返回值为0，
     									#会将此值与本节点权重相加可以提高本节点权重
     									#即表示 rise.通常使用负值

     fall <INTEGER>       		#执行脚本连续几次都失败,则转换为失败，建议设为2以上
     rise <INTEGER>       		#执行脚本连续几次都成功，把服务器从失败标记为成功
     user USERNAME [GROUPNAME] 	#执行监测脚本的用户或组
     init_fail         			#设置默认标记为失败状态，监测成功之后再转换为成功状态
}

调用 VRRP script

vrrp_instance test {
... ...
	track_script {
		check_down
	}
}

实战案例：利用脚本实现主从角色切换

[root@rhel7-ka1 ~]# vim /mnt/check_lee.sh
#!/bin/bash
[ ！ -f "/mnt/lee" ]

[root@rhel7-ka1 ~]# chmod  +x /mnt/check_lee.sh

[root@rhel7-ka1 ~]# vim /etc/keepalived/keepalived.conf
@@@@ 省略内容 @@@@
vrrp_script check_lee {
    script "/mnt/check_lee.sh"
    interval 1
    weight -30
    fall 2
    rise 2
    timeout 2
}

vrrp_instance web {
    state MASTER
    interface ens33
    virtual_router_id 50
    priority 100
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100 dev ens33 label ens33:0
    }
    track_script {
        check_lee
    }
}

[root@rhel7-ka1 ~]# touch /mnt/lee
[root@rhel7-ka1 ~]# tail -f /var/log/messages

实战案例：实现HAProxy高可用

#在两个ka1和ka2先实现haproxy的配置
[root@rhel7-ka1 & ka2 ~]# vim /etc/haproxy/haproxy.cfg
listen webserver
    bind 172.25.254.100:80
    server web1 172.25.254.101:80 check
    server web2 172.25.254.102:80 check


#在两个ka1和ka2两个节点启用内核参数
[root@rhel7-ka1 & ka2 ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind = 1
[root@rhel7-ka1 & ka2 ~]# sysctl -p

#在ka1中编写检测脚本
[root@rhel7-ka1 ~]# vim /etc/keepalived/scripts/haproxy.sh
#!/bin/bash
/usr/bin/killall -0 haproxy

[root@rhel7-ka1 ~]# chmod  +X /etc/keepalived/scripts/haproxy.sh

#在ka1中配置keepalived
[root@ka1-centos8 ~]#cat /etc/keepalived/keepalived.conf
vrrp_script check_haproxy {
    script "/etc/keepalived/scripts/haproxy.sh"
    interval 1
    weight -30
    fall 2
    rise 2
    timeout 2
}

vrrp_instance web {
    state MASTER
    interface ens33
    virtual_router_id 50
    priority 100
    advert_int 1

    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.254.100 dev ens33 label ens33:0
    }
    track_script {
        check_haproxy
    }
}

#测试
root@rhel7-ka1 ~]# systemctl stop haproxy.service

etc/keepalived/keepalived.conf
@@@@ 省略内容 @@@@
vrrp_script check_lee {
script “/mnt/check_lee.sh”
interval 1
weight -30
fall 2
rise 2
timeout 2
}

vrrp_instance web {
state MASTER
interface ens33
virtual_router_id 50
priority 100
advert_int 1

authentication {
    auth_type PASS
    auth_pass 1111
}
virtual_ipaddress {
    172.25.254.100 dev ens33 label ens33:0
}
track_script {
    check_lee
}

}

[root@rhel7-ka1 ~]# touch /mnt/lee
[root@rhel7-ka1 ~]# tail -f /var/log/messages








#### 实战案例：实现HAProxy高可用

#在两个ka1和ka2先实现haproxy的配置
[root@rhel7-ka1 & ka2 ~]# vim /etc/haproxy/haproxy.cfg
listen webserver
bind 172.25.254.100:80
server web1 172.25.254.101:80 check
server web2 172.25.254.102:80 check

#在两个ka1和ka2两个节点启用内核参数
[root@rhel7-ka1 & ka2 ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind = 1
[root@rhel7-ka1 & ka2 ~]# sysctl -p

#在ka1中编写检测脚本
[root@rhel7-ka1 ~]# vim /etc/keepalived/scripts/haproxy.sh
#!/bin/bash
/usr/bin/killall -0 haproxy

[root@rhel7-ka1 ~]# chmod +X /etc/keepalived/scripts/haproxy.sh

#在ka1中配置keepalived
[root@ka1-centos8 ~]#cat /etc/keepalived/keepalived.conf
vrrp_script check_haproxy {
script “/etc/keepalived/scripts/haproxy.sh”
interval 1
weight -30
fall 2
rise 2
timeout 2
}

vrrp_instance web {
state MASTER
interface ens33
virtual_router_id 50
priority 100
advert_int 1

authentication {
    auth_type PASS
    auth_pass 1111
}
virtual_ipaddress {
    172.25.254.100 dev ens33 label ens33:0
}
track_script {
    check_haproxy
}

}

#测试
root@rhel7-ka1 ~]# systemctl stop haproxy.service
