本文介绍三种Thrift服务代理的实现方法，包括基于经典socket、nio及Thrift API的方式，并对比其优劣。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

WEB中我们很常见的一种部署方式是在几个tomcat前面加一个nginx做反向代理，此时的nginx有了负载均衡和路由网关的功能。nginx工作在http层，thirft服务工作在tcp层上，所以不能用nginx作为thirft服务的代理（据说nginx可以装一个插件来支持tcp层）。tcp层上的有一个开源的叫HAProxy，用成熟的开源软件有好处，受限制也比较大，本节是用3种方式实现thirft代理，可以更灵活的实现一些自定义功能等。

1 用经典的socket实现：api写起来代码比较简单，就做做转发，但是因为不解析数据协议，且read和accept是阻塞的，所以一个连接会需要两个线程，高并发时，这个缺陷会非常严重。

import java.io.InputStream;
import java.io.OutputStream;
import java.net.ServerSocket;
import java.net.Socket;

public class SocketProxy {
	public static void main(String[] args) throws Exception {
		ServerSocket serverSocket = null;
		try {
			serverSocket = new ServerSocket(4567);
			System.out.println("Starting the proxy on port 4567...");
			while (true) {
				Socket socket = serverSocket.accept();
				//可改成线程池提升性能
				new SocketThread(socket).start();
			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			serverSocket.close();
		}
	}

	static class SocketThread extends Thread {
		private Socket socketIn = null;

		public SocketThread(Socket socket){
			socketIn = socket;
		}

    	public void run() {
    		//可改成缓冲流BufferedInputStream和BufferedOutputStream提升性能
    		InputStream isIn = null;
			OutputStream osIn = null;

    		Socket socketOut = null;
    		InputStream isOut = null;
    		OutputStream osOut = null;

    		try {
    			isIn = socketIn.getInputStream();
				osIn = socketIn.getOutputStream();

				//真正的服务在9090端口
    			socketOut = new Socket("127.0.0.1", 9090);
    			isOut = socketOut.getInputStream();
    			osOut = socketOut.getOutputStream();

    			//可改成线程池提升性能
    			new StreamThread(isOut, osIn).start();

				byte[] buffer = new byte[1024];
				int temp = 0;
				while ((temp = isIn.read(buffer)) != -1) {
					System.out.println("send:" + new String(buffer, 0, temp, "UTF-8"));
					osOut.write(buffer, 0, temp);
				}

				System.out.println("server end");
			} catch (Exception e) {
				e.printStackTrace();
			} finally {
				closeAll(socketIn, isIn, osIn, socketOut, isOut, osOut);
			}
    	}

    	private void closeAll(Socket socketIn, InputStream isIn, OutputStream osIn,
    			Socket socketOut, InputStream isOut, OutputStream osOut) {
    		try {
				isIn.close();
				osIn.flush();
				osIn.close();
				socketIn.close();

				isOut.close();
				osOut.flush();
				osOut.close();
				socketOut.close();
			} catch (Exception e) {
				e.printStackTrace();
			}
    	}
    }

	static class StreamThread extends Thread {
		private InputStream is = null;
		private OutputStream os = null;

		public StreamThread(InputStream inputStream, OutputStream outputStream) {
			is = inputStream;
			os = outputStream;
		}

		public void run() {
			byte[] buffer = new byte[1024];
			int temp = 0;
			try {
				while ((temp = is.read(buffer)) != -1) {
					System.out.println("receive:" + new String(buffer, 0, temp, "UTF-8"));
					os.write(buffer, 0, temp);
				}
			} catch (Exception e) {
				e.printStackTrace();
			}
		}
	}
}

2 针对1的缺点，用nio的api实现：api写起来比较恶心，只有一个线程处理一切操作，当然实际应用时当然不会只有一个线程，可以参考thirft的TThreadedSelectorServer是怎么做的，一个线程也非常危险，当一个连接出现问题抛异常的时候，整个程序down掉，其它的连接也一并会被影响。

import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;

public class NioProxy {
    private static final int Listenning_Port = 4567;
    private static final int Buffer_Size = 1024;
    private static final int TimeOut = 3000;

    public static void main(String[] args) throws Exception {
        // 创建一个在本地端口进行监听的服务Socket信道并设置为非阻塞方式
        ServerSocketChannel serverChannel = ServerSocketChannel.open();
        serverChannel.socket().bind(new InetSocketAddress(Listenning_Port));
        serverChannel.configureBlocking(false);
        System.out.println("Starting the proxy on port " + Listenning_Port + "...");

        // 创建一个选择器并将serverChannel注册到它上面
        Selector selector = Selector.open();
        serverChannel.register(selector, SelectionKey.OP_ACCEPT);

        while (true) {
            // 等待某个信道就绪
            if( selector.select(TimeOut) == 0 ){
                System.out.println(".");
                continue;
            }

            // 获得就绪信道的键迭代器
            Iterator<SelectionKey> keyIter = selector.selectedKeys().iterator();
            // 使用迭代器进行遍历就绪信道
            while (keyIter.hasNext()) {
                SelectionKey key = keyIter.next();

                // 这种情况是有客户端连接过来，准备一个Channel与之通信，并关联一个真正服务的Channel
                if (key.isValid() && key.isAcceptable()) {
                	SocketChannel inChannel = ((ServerSocketChannel)key.channel()).accept();
                	inChannel.configureBlocking(false);
                    SelectionKey icKey = inChannel.register(key.selector(), SelectionKey.OP_READ);

                    SocketChannel outChannel = SocketChannel.open(new InetSocketAddress("127.0.0.1", 9090));
                    outChannel.configureBlocking(false);
                    SelectionKey ocKey = outChannel.register(selector, SelectionKey.OP_READ);

                    //互相关联
                    icKey.attach(ocKey);
                    ocKey.attach(icKey);
                }

                // 客户端有写入时
                if (key.isValid() && key.isReadable()) {
                    // 获得与客户端通信的信道
                    SocketChannel channel = (SocketChannel)key.channel();
                    SelectionKey relateKey = (SelectionKey)key.attachment();
                    SocketChannel relateChannel = (SocketChannel)relateKey.channel();
                    ByteBuffer buffer = ByteBuffer.allocate(Buffer_Size);
                    buffer.clear();

                    // 读取信息获得读取的字节数
                    long bytesRead = channel.read(buffer);
                    if (bytesRead == -1) {
                    	// 没有读取到内容的情况
                    	channel.close();
                    	relateChannel.close();
                    } else {
                        // 将缓冲区准备为数据传出状态
                        buffer.flip();
                        relateChannel.write(buffer);
                        // 设置为下一次读取或是写入做准备
                        key.interestOps(SelectionKey.OP_READ | SelectionKey.OP_WRITE);
                    }
                }

                keyIter.remove();
            }
        }
    }
}

3 用thirft的api实现：这个方式可以利用thirft本身的成熟的东西，可以解析数据包，做做认证或者过滤之类的功能。查看thirft的源码，从TSimpleServer的serve方法看进去，我们看到读数据，处理数据，写数据是在processor的process方法里，因此我们可以不用thrift生成的processor，自定义一个万能的processor，接收各种类型的数据再转发出去。

import java.util.ArrayList;
import java.util.List;

import org.apache.thrift.TApplicationException;
import org.apache.thrift.TException;
import org.apache.thrift.TProcessor;
import org.apache.thrift.protocol.TField;
import org.apache.thrift.protocol.TJSONProtocol;
import org.apache.thrift.protocol.TList;
import org.apache.thrift.protocol.TMap;
import org.apache.thrift.protocol.TMessage;
import org.apache.thrift.protocol.TMessageType;
import org.apache.thrift.protocol.TProtocol;
import org.apache.thrift.protocol.TProtocolFactory;
import org.apache.thrift.protocol.TProtocolUtil;
import org.apache.thrift.protocol.TSet;
import org.apache.thrift.protocol.TStruct;
import org.apache.thrift.protocol.TType;
import org.apache.thrift.server.TServer;
import org.apache.thrift.server.TThreadedSelectorServer;
import org.apache.thrift.transport.TFastFramedTransport;
import org.apache.thrift.transport.TNonblockingServerSocket;
import org.apache.thrift.transport.TSocket;
import org.apache.thrift.transport.TTransport;
import org.apache.thrift.transport.TTransportFactory;

public class ThirftProxy {
	public static void main(String [] args) throws Exception {
		//自定义的一个processor，非生成代码
		ProxyProcessor proxyProcessor = new ProxyProcessor();
        //指定的通信协议
        TProtocolFactory tProtocolFactory = new TJSONProtocol.Factory();
        //指定的通信方式
        TTransportFactory tTransportFactory = new TFastFramedTransport.Factory();

        int port = 4567;
    	TNonblockingServerSocket tNonblockingServerSocket =
    			new TNonblockingServerSocket(new TNonblockingServerSocket.NonblockingAbstractServerSocketArgs().port(port));
    	TThreadedSelectorServer.Args tThreadedSelectorServerArgs
          	= new TThreadedSelectorServer.Args(tNonblockingServerSocket);
    	tThreadedSelectorServerArgs.processor(proxyProcessor);
    	tThreadedSelectorServerArgs.protocolFactory(tProtocolFactory);
    	tThreadedSelectorServerArgs.transportFactory(tTransportFactory);
    	//指定的服务器模式
    	TServer serverEngine = new TThreadedSelectorServer(tThreadedSelectorServerArgs);
        System.out.println("Starting the proxy on port " + port + "...");
        serverEngine.serve();
	}

	static class ProxyProcessor implements TProcessor {
		@Override
		public boolean process(TProtocol in, TProtocol out) throws TException {
			TMessage msg = in.readMessageBegin();
			List<ProxyStruct> inDatas = readData(in);
			in.readMessageEnd();

			//转发请求到9090端口
			TSocket socket = new TSocket("127.0.0.1", 9090);
	        socket.setTimeout(1000);
	        TTransport transport = socket;
	        transport = new TFastFramedTransport(transport);
		    TProtocol tProtocol = new TJSONProtocol(transport);
		    if ( !transport.isOpen() ) {
	        	transport.open();
	        }

		    tProtocol.writeMessageBegin(msg);
		    wirteData(tProtocol, inDatas);
		    tProtocol.writeMessageEnd();
		    tProtocol.getTransport().flush();

		    int seqid = msg.seqid;
		    String methodName = msg.name;
		    msg = tProtocol.readMessageBegin();
		    if (msg.type == TMessageType.EXCEPTION) {
		        TApplicationException x = TApplicationException.read(tProtocol);
		        tProtocol.readMessageEnd();
		        throw x;
		    }
		    if (msg.seqid != seqid) {
		        throw new TApplicationException(TApplicationException.BAD_SEQUENCE_ID, methodName + " failed: out of sequence response");
		    }
			inDatas = readData(tProtocol);
			tProtocol.readMessageEnd();

			out.writeMessageBegin(msg);
		    wirteData(out, inDatas);
		    out.writeMessageEnd();
		    out.getTransport().flush();

			return true;
		}

		private void wirteData(TProtocol out, List<ProxyStruct> outDatas) throws TException {
			out.writeStructBegin(new TStruct(""));
		    for (ProxyStruct outData : outDatas) {
		    	TField field = outData.field;
		    	Object value = outData.value;
		    	out.writeFieldBegin(field);

		    	switch (field.type) {
					case TType.VOID:
						break;
					case TType.BOOL:
						out.writeBool((boolean)value);
						break;
					case TType.BYTE:
						out.writeByte((byte)value);
						break;
					case TType.DOUBLE:
						out.writeDouble((double)value);
						break;
					case TType.I16:
						out.writeI16((short)value);
						break;
					case TType.I32:
						out.writeI32((int)value);
						break;
					case TType.I64:
						out.writeI64((long)value);
						break;
					case TType.STRING:
						out.writeString((String)value);
						break;
					case TType.STRUCT:
						wirteData(out, (List<ProxyStruct>)value);
						break;
					case TType.MAP:
						//out.writeMapBegin((TMap)value);
						//out.writeMapEnd();
						break;
					case TType.SET:
						//out.writeSetBegin((TSet)value);
						//out.writeSetEnd();
						break;
					case TType.LIST:
						//out.writeListBegin((TList)value);
						//out.writeListEnd();
						break;
					case TType.ENUM:
						break;
					default:
				}

		    	out.writeFieldEnd();
		    }
		    out.writeFieldStop();
			out.writeStructEnd();
		}

		private List<ProxyStruct> readData(TProtocol in) throws TException {
			List<ProxyStruct> inDatas = new ArrayList<ProxyStruct>();
			TField schemeField;
			in.readStructBegin();
			while (true) {
				schemeField = in.readFieldBegin();
				if (schemeField.type == TType.STOP) {
					break;
				}
				ProxyStruct inData = null;

				switch (schemeField.type) {
					case TType.VOID:
						TProtocolUtil.skip(in, schemeField.type);
						break;
					case TType.BOOL:
						inData = new ProxyStruct(schemeField, in.readBool());
						break;
					case TType.BYTE:
						inData = new ProxyStruct(schemeField, in.readByte());
						break;
					case TType.DOUBLE:
						inData = new ProxyStruct(schemeField, in.readDouble());
						break;
					case TType.I16:
						inData = new ProxyStruct(schemeField, in.readI16());
						break;
					case TType.I32:
						inData = new ProxyStruct(schemeField, in.readI32());
						System.out.println("I32-->" + inData.value);
						break;
					case TType.I64:
						inData = new ProxyStruct(schemeField, in.readI64());
						break;
					case TType.STRING:
						inData = new ProxyStruct(schemeField, in.readString());
						System.out.println("STRING-->" + inData.value);
						break;
					case TType.STRUCT:
						inData = new ProxyStruct(schemeField, readData(in));
						break;
					case TType.MAP:
						//inData = new ProxyStruct(schemeField, in.readMapBegin());
						/**
						 * 这里我懒了，不想写了，readMapBegin返回的TMap对象有3个字段
						 * keyType，valueType，size，没错就是map的key的类型，value的类型，map的大小
						 * 从0到size累计循环的按类型读取key和读取value，构造一个hashmap就可以了
						 */
						//in.readMapEnd();
						break;
					case TType.SET:
						//inData = new ProxyStruct(schemeField, in.readSetBegin());
						//同理MAP类型
						//in.readSetEnd();
						break;
					case TType.LIST:
						//inData = new ProxyStruct(schemeField, in.readListBegin());
						//同理MAP类型
						//in.readListEnd();
						break;
					case TType.ENUM:
						//Enum类型传输时是个i32
						TProtocolUtil.skip(in, schemeField.type);
						break;
					default:
						TProtocolUtil.skip(in, schemeField.type);
				}
				if (inData != null ) inDatas.add(inData);

				in.readFieldEnd();
			}
			in.readStructEnd();

			return inDatas;
		}

	}

	//用来存储读取到的各种类型的字段
	static class ProxyStruct {
		public TField field;
		public Object value;

		public ProxyStruct(TField tField, Object object) {
			field = tField;
			value = object;
		}
	}
}

注意：这种方式无法支持TTupleProtocol，查看源码知道TTupleProtocol继承了TCompactProtocol，TTupleProtocol编码时为了省空间，没有字段的元信息（id，名字，类型等），只有一个bitset表明哪几个field有值，然后直接用生成的代码读取这些有值的field。TTupleProtocol这种编码方式有个缺点就是服务版本间不兼容。

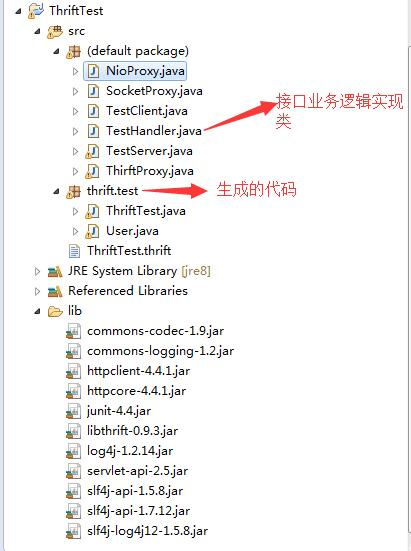

工程文件结构

依次运行TestServer，SocketProxy/NioProxy/ThirftProxy，TestClient，结果如预期。

推荐一些比较好的相关文章：

通信协议之序列化 http://blog.chinaunix.net/uid-27105712-id-3266286.html

Apache Thrift设计概要 http://calvin1978.blogcn.com/articles/apache-thrift.html

Java NIO浅析 https://zhuanlan.zhihu.com/p/23488863

补充：

jdk1.7后有了aio，和nio有什么不同呢，nio是同步非阻塞的，意思是在真正read数据的时候是阻塞的，只是通过循环信道，事件机制和buffer达到并发的目的，所以对于那些读的数据比较大，读写过程时间长的，nio就不太适合。而aio是异步非阻塞的，read到数据后是通过回调通知相应的方法来继续后面的逻辑，类似于js的callback，所以aio能够胜任那些重量级，读写过程长的任务。写了一个例子AioProxy.java，已经放在附件里了。

java中的AIO https://www.jianshu.com/p/c5e16460047b。

[高并发Java 八] NIO和AIO https://my.oschina.net/hosee/blog/615269。

感谢阅读！附件是eclipse工程源码。
