本文详细介绍了如何在Spring MVC环境下创建并配置WebService服务端，包括Maven依赖、web页面、mvc和root-context配置，以及编写实体类和webservice接口。此外，还阐述了中间工程的设置，包括生成jar包的过程。客户端配置方面，提到了pom依赖、web配置、root-context和mvc配置，以及测试控制器的编写。最后，文章指导了如何同时部署服务端和客户端到Tomcat进行运行。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

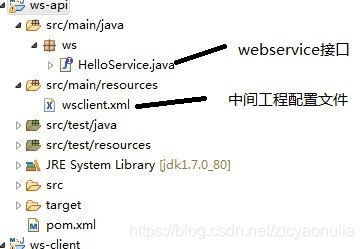

一.项目结构
服务端
在这里插入图片描述
中间工程

客户端

二.详细配置过程（jdk使用的为1.7）
（一）.服务端配置
1.Maven pom文件依赖

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>ztc</groupId>
	<artifactId>springMVCMaven</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>springMVCMaven Maven Webapp</name>
	<url>http://maven.apache.org</url>
		<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<spring.vesion>3.1.4.RELEASE</spring.vesion>
		<cxf.vesion>2.2.9</cxf.vesion>
	</properties>
	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>3.8.1</version>
			<scope>test</scope>
		</dependency>
				<dependency>
			<groupId>ztc</groupId>
 			<artifactId>ws-api</artifactId>
  			<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>dubbo</artifactId>
			<exclusions>
				<exclusion>
					<groupId>org.springframework</groupId>
					<artifactId>spring</artifactId>
				</exclusion>
			</exclusions>
			<version>2.5.3</version>
		</dependency>
		<dependency>
			<groupId>com.101tec</groupId>
			<artifactId>zkclient</artifactId>
			<version>0.10</version>
		</dependency>
		<!-- <dependency> <groupId>com.wsapi</groupId> <artifactId>ws-api01</artifactId>
			<version>0.0.1-SNAPSHOT</version> </dependency> -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.38</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-asm</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-beans</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-expression</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-instrument</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-instrument-tomcat</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjweaver</artifactId>
			<version>1.6.9</version>
		</dependency>
		<dependency>
			<groupId>commons-pool</groupId>
			<artifactId>commons-pool</artifactId>
			<version>1.5.3</version>
		</dependency>
		<dependency>
			<groupId>commons-collections</groupId>
			<artifactId>commons-collections</artifactId>
			<version>3.2</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jms</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-oxm</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc-portlet</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-struts</artifactId>
			<version>${spring.vesion}</version>
		</dependency>
		<dependency>
			<groupId>commons-httpclient</groupId>
			<artifactId>commons-httpclient</artifactId>
			<version>3.1</version>
		</dependency>
		<!-- ibatis -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>1.5.10</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>1.5.
