本文介绍如何使用ElementUI的el-dialog和el-tabs组件创建一个动态报警设置界面，该界面从数据库获取报警条件并允许用户编辑。文章详细展示了AlarmSet.vue、ColdSet.vue和EndSet.vue组件的代码，以及如何在数据变更时更新界面和验证输入格式。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

　　需求：点击一个按钮，弹出一个模态框，这个模态框有两个tab，tab中是各种报警条件，这些报警条件是从数据库中动态取出的，数据库中数据变更后，这个界面也要变更，我们可以查看和编辑这些报警条件。底部“确定”按钮点击的时候，会同时将这两个tab中的内容都保存到数据库中去，数据录入要验证输入的格式。

　　对于熟练的人来说，实现其实很简单，但是对于没有经验的人来说，如果按照官网给的那些简单实例来做，你会发现，出现一些奇怪的问题，诸如，文本框不能编辑内容，表单验证无效等。感觉elementUI官网的示例太过于粗浅，无法适应实际工作中的许多需求场景。

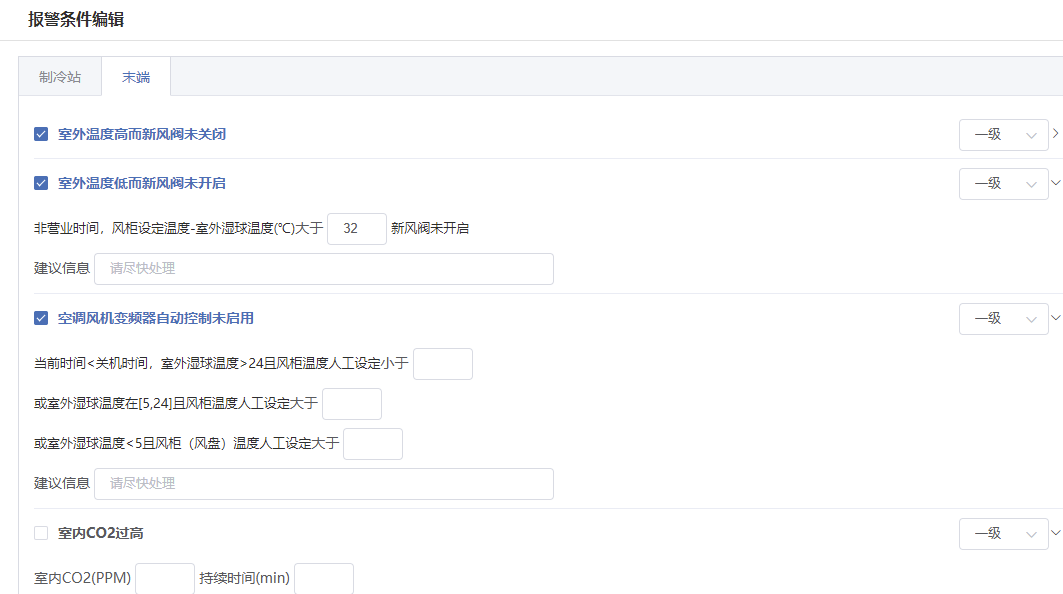

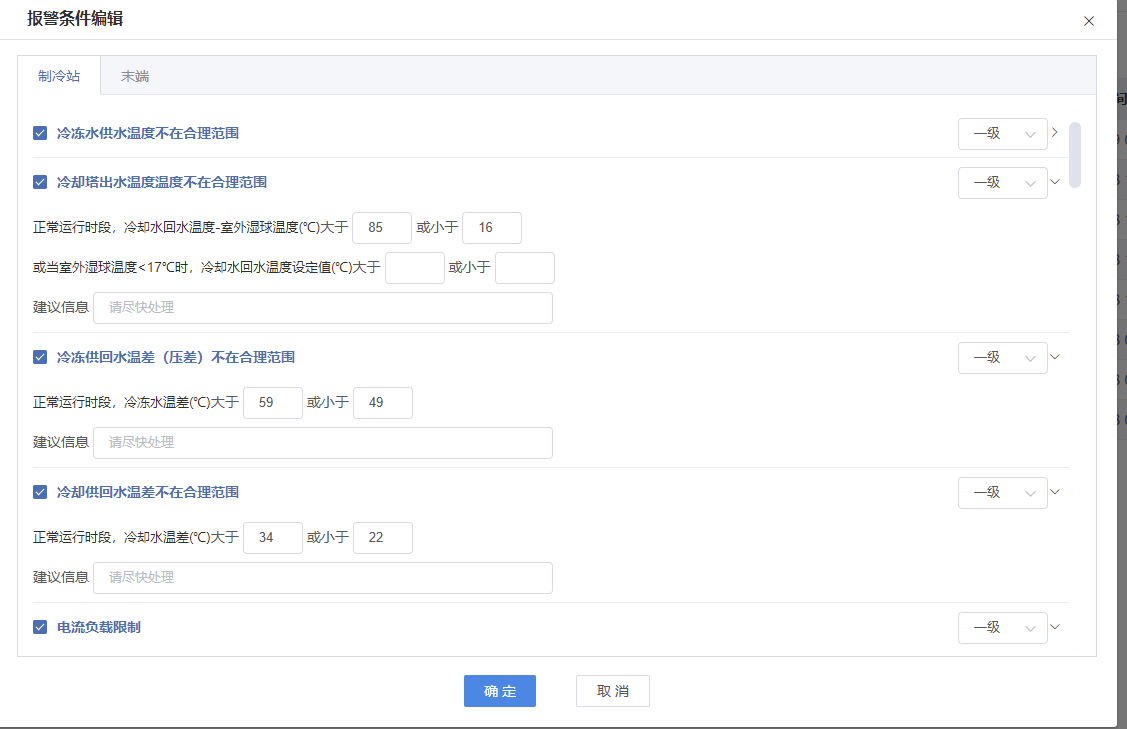

　　界面效果如下图所示：

　　分析：用到的组件：el-dialog、el-tabs

 　　AlarmSet.vue代码：

<template>
  <div>
    <div class="alarm-set" v-loading="winLoading">
      <el-tabs v-model="activeName" type="border-card" v-if="alarmTmplData.length>0">
        <el-tab-pane label="制冷站" name="coldSet">
          <ColdSet
            ref="coldSet"
            :alarmTmplData="alarmTmplData"
            @onSubmit="coldSetSummit"
            :showAlarmSetWin.sync="showAlarmSetWin"
          ></ColdSet>
        </el-tab-pane>
        <el-tab-pane label="末端" name="endSet">
          <EndSet
            ref="endSet"
            :alarmTmplData="alarmTmplData"
            @onSubmit="endSetSummit"
            :showAlarmSetWin.sync="showAlarmSetWin"
          ></EndSet>
        </el-tab-pane>
      </el-tabs>
    </div>
    <div slot="footer" class="dialog-footer">
      <div style="display: inline-block">
        <el-button type="primary" @click="onSubmit" :loading="btnLoading">确 定</el-button>
        <el-button @click="isHide">取 消</el-button>
      </div>
    </div>
  </div>
</template>

<script>
import ColdSet from "./ColdSet";
import EndSet from "./EndSet";
import mixinsOption from "@/mixins/mixin-options";
import { alarmService } from "@/services/cold-station-service";
// import { alarmConditionData } from "@/mock/json.js";
export default {
  mixins: [mixinsOption],
  props: {
    showAlarmSetWin: {
      type: Boolean,
      default: false
    },
    alarmTmpl: {
      type: Object,
      default: {}
    }
  },
  components: {
    ColdSet,
    EndSet
  },
  data() {
    return {
      alarmConditionData: [], //报警条件数据
      activeName: "coldSet",
      alarmTmplData: [],
      coldConditionData: [], //冷站报警条件数据
      endConditionData: [], //末端报警条件数据
      isColdValid: false,
      isEndValid: false,
      btnLoading: false
    };
  },
  watch: {
    showAlarmSetWin: {
      handler(val) {
        console.log("showAlarmSetWin", val);
        if (val) {
          this.initData();
        }
      },
      immediate: true
    }
  },
  methods: {
    //初始化数据
    initData() {
      this.$store.commit("base/setWinLoading", true);
      console.log("initData");
      alarmService
        .getConditionList({
          groupNumber: this.groupNumber,
          projectNumber: this.projectNumber
        })
        .then(res => {
          if (res.code === 200) {
            this.alarmConditionData = res.data;
            this.createAlarmTmplData(res.data);
          }
          this.$store.commit("base/setWinLoading", false);
        });
    },
    //构造报警模板数据
    createAlarmTmplData(conditionData) {
      let res = [];
      this.alarmTmplData = this.alarmTmpl.data;
      if (this.alarmTmpl) {
        this.alarmTmplData.forEach(n => {
          // debugger;
          n.descr = eval(n.descr);
          let item = conditionData.find(m => m.tempId == n.id);
          if (item) {
            n["alarmLevel"] = item.alarmLevel;
            n["suggestion"] = item.suggestion;
            n["firstVal"] = item.firstVal;
            n["secondVal"] = item.secondVal;
            n["fourthVal"] = item.fourthVal;
            n["thirdVal"] = item.thirdVal;
            n["status"] = item.status;
          }
        });
      }
      // console.log("this.alarmTmplData :>> ", this.alarmTmplData);
    },
    //确定操作
    onSubmit() {
      this.$refs["coldSet"].onSubmit();
      this.$refs["endSet"].onSubmit();
      if (this.isColdValid && this.isEndValid) {
        this.btnLoading = true;
        let list = this.coldConditionData
          .concat(this.endConditionData)
          .map(m => {
            return {
              tempId: m.id,
              alarmLevel: m.alarmLevel,
              firstVal: m.firstVal,
              secondVal: m.secondVal,
              thirdVal: m.thirdVal,
              fourthVal: m.fourthVal,
              status: m.status,
              suggestion: m.suggestion
            };
          });

        alarmService
          .batchEdit({
            projectNumber: this.projectNumber,
            groupNumber: this.groupNumber,
            list: list
          })
          .then(res => {
            if (res.code === 200) {
              this.$message({
                message: "操作成功！",
                type: "success",
                duration: this.$baseConfig.messageDuration
              });
            }
            this.btnLoading = false;
          })
          .catch(() => {
            this.btnLoading = false;
          });
      }
    },
    coldSetSummit(val, isValid) {
      if (isValid) {
        this.isColdValid = isValid;
        this.coldConditionData = val;
      }
    },
    endSetSummit(val, isValid) {
      if (isValid) {
        this.isEndValid = isValid;
        this.endConditionData = val;
      }
    },
    //取消
    isHide() {
      this.$emit("update:showAlarmSetWin", false);
    }
  }
};
</script>

<style lang="scss" scoped>
.alarm-set {
  height: 600px;
  /deep/ .el-tabs--border-card {
    height: 100%;
  }
  /deep/ .el-tabs__content {
    height: calc(100% - 60px);
  }
}
</style>

重写elementUI组件样式，可以使用/deep/ 进行样式穿透覆写。

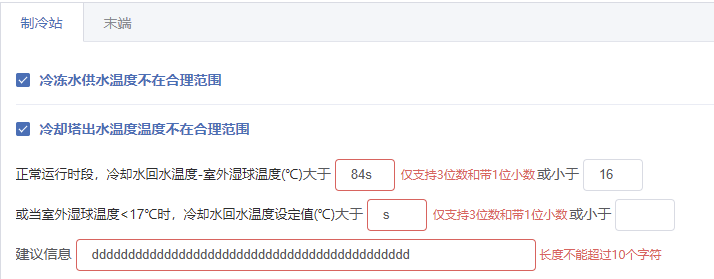

关于表单验证：由于是动态生成的表单，所以不能按照官网提供的示例来做。

 el-form中不指定验证规则，而是在el-form-item中指定，如下：
 :prop="`list.${rowIndex}.${fieldArr[2*index+index+1]}`"
 :rules="rules.numberRule"
 表单数据ruleForm中要对数据进行初始化，否则会无法自动识别数据变化，建议采用深拷贝的形式
考虑到冷站和末端这两个组件中的代码可以复用，抽取公共js文件set-mixin.js，然后通过mixins引入，这个类似于组合，还有一种继承是通过extends来实现。
分析界面虽然是动态的，但是总共只有几种类型，分别是：1个文本框，2个文本框，没有文本框。他们都带有建议信息这一行，所以可以用几个v-if来区分。


import { alarmLevelOptions, fieldArr } from '@/enum/alarm-enum.js';
import Regexps from '@/utils/regexp.js';
import mixinsOption from '@/mixins/mixin-options';
export default {
  props: {
    alarmTmplData: {
      type: Array,
      default: () => {
        return [];
      },
    },
    showAlarmSetWin: {
      type: Boolean,
      default: false,
    },
  },
  mixins: [mixinsOption],
  data() {
    return {
      levelOptions: alarmLevelOptions(),
      ruleForm: {
        list: [],
      },
      rules: {
        numberRule: [
          {
            pattern: Regexps.commonNumber,
            message: '仅支持3位数和带1位小数',
            trigger: 'blur',
          },
        ],
        suggestion: [
          { max: 10, message: '长度不能超过10个字符', trigger: 'blur' },
        ],
      },
      fieldArr,
      tmplData: [],
    };
  },
  computed: {
    activeNames() {
      let activeNames = this.tmplData
        .filter((f) => f.descParamType != 0)
        .map((n) => {
          return n.id;
        });
      console.log('activeNames :>> ', activeNames);
      return activeNames;
    },
  },
  methods: {
    initData(type) {
      console.log('initData', type);
      if (this.alarmTmplData.length > 0) {
        this.tmplData = this.alarmTmplData.filter((n) => n.sys == type);
        this.ruleForm.list = JSON.parse(JSON.stringify(this.tmplData));
        // console.log('条件设置initData :>> ', this.ruleForm.list);
      }
    },
  },
};

ColdSet.vue代码：

<template>
  <div>
    <el-form :model="ruleForm" ref="ruleForm">
      <el-collapse v-model="activeNames">
        <el-collapse-item :name="item.id" v-for="(item,rowIndex) in ruleForm.list" :key="item.id">
          <template slot="title">
            <div class="header">
              <el-checkbox v-model="item.status" :true-label="0" :false-label="1">{{item.name}}</el-checkbox>
              <el-select v-model="item.alarmLevel" size="small">
                <el-option
                  v-for="item in levelOptions"
                  :key="item.value"
                  :label="item.label"
                  :value="item.value"
                ></el-option>
              </el-select>
            </div>
          </template>
          <div class="content vertical">
            <div class="row one" v-if="item.descParamType==1">
              <div class="item" v-for="(subItem,index) in item.descr" :key="index">
                <label>{{subItem}}</label>
                <el-form-item
                  label="大于"
                  :prop="`list.${rowIndex}.${fieldArr[index]}`"
                  :rules="rules.numberRule"
                >
                  <el-input v-model="item[`${fieldArr[index]}`]" size="small"></el-input>
                </el-form-item>
              </div>
            </div>
            <template v-if="item.descParamType==2">
              <div class="row two" v-for="(subItem,index) in item.descr" :key="index">
                <div class="item">
                  <label>{{subItem}}</label>
                  <el-form-item
                    label="大于"
                    :prop="`list.${rowIndex}.${fieldArr[2*index+index]}`"
                    :rules="rules.numberRule"
                  >
                    <el-input
                      v-model="item[`${fieldArr[2*index+index]}`]"
                      size="small"
                    ></el-input>
                  </el-form-item>
                  <el-form-item
                    label="或小于"
                    :prop="`list.${rowIndex}.${fieldArr[2*index+index+1]}`"
                    :rules="rules.numberRule"
                  >
                    <el-input
                      v-model="item[`${fieldArr[2*index+index+1]}`]"
                      size="small"
                    ></el-input>
                  </el-form-item>
                </div>
              </div>
            </template>

            <div class="row one">
              <el-form-item
                label="建议信息"
                :prop="`list.${rowIndex}.suggestion`"
                :rules="rules.suggestion"
              >
                <el-input
                  v-model="item.suggestion"
                  class="max-width"
                  size="small"
                  placeholder="请尽快处理"
                ></el-input>
              </el-form-item>
            </div>
          </div>
        </el-collapse-item>
      </el-collapse>
    </el-form>
  </div>
</template>

<script>
import { alarmLevelOptions, fieldArr } from "@/enum/alarm-enum.js";
import Regexps from "@/utils/regexp.js";
import { validateVal } from "@/utils/validate-utils.js";
import { alarmService } from "@/services/cold-station-service";
import setMixin from "./set-mixin";
export default {
  mixins: [setMixin],
  watch: {
    alarmTmplData: {
      handler(val) {
        console.log("showAlarmSetWin cold :>> ", val);
        if (val) {
          this.initData(1);
        }
         else{
           this.$refs["ruleForm"].resetFields();
        }
      },
      deep:true,
      immediate: true
    }
  },
  methods: {
    onSubmit() {
      console.log("冷站确定 :>> ");
      this.$refs["ruleForm"].validate(valid => {
        if (valid) {
          console.log("验证成功");
          this.$emit("onSubmit", this.ruleForm.list, true);
        }
      });
    }
  }
};
</script>

<style lang="scss" scoped>
@import "./set.scss";
</style>

EndSet.vue：

<template>
  <div>
    <el-form :model="ruleForm" ref="ruleForm">
      <el-collapse v-model="activeNames">
        <el-collapse-item :name="item.id" v-for="(item,rowIndex) in ruleForm.list" :key="item.id">
          <template slot="title">
            <div class="header">
              <el-checkbox v-model="item.status" :true-label="0" :false-label="1">{{item.name}}</el-checkbox>
              <el-select v-model="item.alarmLevel" size="small">
                <el-option
                  v-for="item in levelOptions"
                  :key="item.value"
                  :label="item.label"
                  :value="item.value"
                ></el-option>
              </el-select>
            </div>
          </template>
          <div class="content vertical">
            <div class="row two" v-if="item.descParamType==1">
              <div class="item" v-for="(subItem,index) in item.descr" :key="index">
                <label>{{subItem}}</label>
                <el-form-item
                  label="大于"
                  :prop="`list.${rowIndex}.${fieldArr[index]}`"
                  :rules="rules.numberRule"
                  v-if="index==0"
                >
                  <el-input v-model="item[fieldArr[index]]" size="small"></el-input>
                </el-form-item>
              </div>
            </div>
            <div class="row two" v-if="item.descParamType==2">
              <div class="item" v-for="(subItem,index) in item.descr" :key="index">
                <label>{{subItem}}</label>
                <el-form-item
                  label="大于"
                  :prop="`list.${rowIndex}.${fieldArr[2*index+index]}`"
                  :rules="rules.numberRule"
                >
                  <el-input v-model="item[fieldArr[2*index+index]]" size="small"></el-input>
                </el-form-item>
                <el-form-item
                  label="或小于"
                  :prop="`list.${rowIndex}.${fieldArr[2*index+index+1]}`"
                  :rules="rules.numberRule"
                >
                  <el-input v-model="item[fieldArr[2*index+index+1]]" size="small"></el-input>
                </el-form-item>
              </div>
            </div>
            <div class="row two" v-if="item.descParamType==3">
              <div class="item">
                <el-form-item
                  :label="subItem"
                  :prop="`list.${rowIndex}.${fieldArr[index]}`"
                  :rules="rules.numberRule"
                  v-for="(subItem,index) in item.descr"
                  :key="index"
                >
                  <el-input v-model="item[fieldArr[index]]" size="small"></el-input>
                </el-form-item>
              </div>
            </div>
            <template v-if="item.descParamType==4">
              <div class="row one" v-for="(subItem,index) in item.descr" :key="index">
                <div class="item">{{subItem}}</div>
                <div class="item">
                  <el-form-item
                    :label="index==0?'小于':'大于'"
                    :prop="`list.${rowIndex}.${fieldArr[index]}`"
                    :rules="rules.numberRule"
                  >
                    <el-input v-model="item[fieldArr[index]]" size="small"></el-input>
                  </el-form-item>
                </div>
              </div>
            </template>
            <!-- <div class="row multi-row" v-if="item.descParamType==4">
              multi-item
            </div>-->
            <div class="row one">
              <el-form-item
                label="建议信息"
                :prop="`list.${rowIndex}.suggestion`"
                :rules="rules.suggestion"
              >
                <el-input
                  v-model="item.suggestion"
                  class="max-width"
                  size="small"
                  placeholder="请尽快处理"
                ></el-input>
              </el-form-item>
            </div>
          </div>
        </el-collapse-item>
      </el-collapse>
    </el-form>
  </div>
</template>

<script>
import setMixin from "./set-mixin";
import { alarmService } from "@/services/cold-station-service";
export default {
  mixins: [setMixin],
  watch: {
    alarmTmplData: {
      handler(val) {
        console.log("showAlarmSetWin end:>> ", val);
        if (val) {
          this.initData(2);
        }
         else{
           this.$refs["ruleForm"].resetFields();
        }
      },
      deep:true,
      immediate: true
    }
  },
  methods: {
    onSubmit() {
      console.log("末端确定 :>> ");
      this.$refs["ruleForm"].validate(valid => {
        if (valid) {
          console.log("验证成功");
          this.$emit("onSubmit", this.ruleForm.list, true);
        }
      });
    }
  }
};
</script>

<style lang="scss" scoped>
@import "./set.scss";
</style>

由于要两个tab中都验证通过时，才提交表单，所以两个表单都要验证，只有都验证通过时在提交表单，提交表单之前，要合并表单数据再统一提交。父组件调用子组件的方法 this.$refs["coldSet"].onSubmit();

考虑到弹窗组件的性能问题，我们可以通过将显示标识以 :showAlarmSetWin.sync="showAlarmSetWin"这样的形式传递给子组件，(注意，要加sync关键字)子组件监听showAlarmSetWin，当弹窗显示时，加载数据并初始化，并设置属性：immediate: true，让弹窗第一次执行时也加载数据。

当窗体隐藏时，重置表单：
this.$refs["ruleForm"].resetFields(); 为了防止同一时间多次点击操作按钮“确定”，可以给按钮加上loading
数据列表格式：
{
    "data": [{
        "id": 246,
        "tempId": "1",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 247,
        "tempId": "2",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 248,
        "tempId": "3",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 249,
        "tempId": "4",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 250,
        "tempId": "5",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 251,
        "tempId": "6",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 252,
        "tempId": "7",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 253,
        "tempId": "8",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 254,
        "tempId": "9",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 255,
        "tempId": "10",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 256,
        "tempId": "11",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 257,
        "tempId": "12",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 258,
        "tempId": "13",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 259,
        "tempId": "14",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 260,
        "tempId": "15",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 261,
        "tempId": "16",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 262,
        "tempId": "50",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 263,
        "tempId": "51",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 264,
        "tempId": "52",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 265,
        "tempId": "53",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 266,
        "tempId": "54",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 267,
        "tempId": "55",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 268,
        "tempId": "56",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 269,
        "tempId": "57",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 270,
        "tempId": "58",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 271,
        "tempId": "59",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 272,
        "tempId": "60",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 273,
        "tempId": "61",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 274,
        "tempId": "62",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 275,
        "tempId": "63",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 276,
        "tempId": "64",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 277,
        "tempId": "65",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 278,
        "tempId": "66",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 279,
        "tempId": "67",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 280,
        "tempId": "68",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 281,
        "tempId": "69",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 282,
        "tempId": "101",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 283,
        "tempId": "102",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 84.0,
        "secondVal": 16.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 284,
        "tempId": "103",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 59.0,
        "secondVal": 49.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 285,
        "tempId": "104",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 34.0,
        "secondVal": 22.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 286,
        "tempId": "105",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 92.0,
        "secondVal": 66.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 287,
        "tempId": "106",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 55.0,
        "secondVal": 29.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 288,
        "tempId": "107",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 86.0,
        "secondVal": 81.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 289,
        "tempId": "108",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 67.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 290,
        "tempId": "109",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 85.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 291,
        "tempId": "110",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 16.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 292,
        "tempId": "111",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 92.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 293,
        "tempId": "112",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": "请尽快安排人检查",
        "firstVal": 10.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 294,
        "tempId": "113",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 44.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 295,
        "tempId": "114",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": "请尽快安排人检查",
        "firstVal": 61.0,
        "secondVal": 35.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 296,
        "tempId": "115",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 48.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 297,
        "tempId": "116",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 298,
        "tempId": "117",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 299,
        "tempId": "118",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 76.0,
        "secondVal": 23.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 300,
        "tempId": "119",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 64.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 301,
        "tempId": "120",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 302,
        "tempId": "121",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 73.0,
        "secondVal": 15.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 303,
        "tempId": "122",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 90.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 304,
        "tempId": "201",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 305,
        "tempId": "202",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 306,
        "tempId": "203",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 307,
        "tempId": "204",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 32.0,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 308,
        "tempId": "205",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 309,
        "tempId": "206",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 310,
        "tempId": "207",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 311,
        "tempId": "208",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 312,
        "tempId": "209",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 313,
        "tempId": "210",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 314,
        "tempId": "211",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 315,
        "tempId": "212",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 316,
        "tempId": "213",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 317,
        "tempId": "214",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 318,
        "tempId": "215",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 319,
        "tempId": "216",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 320,
        "tempId": "217",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 321,
        "tempId": "218",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 322,
        "tempId": "219",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 323,
        "tempId": "220",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 36.0,
        "secondVal": 11.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 324,
        "tempId": "221",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": 66.0,
        "secondVal": 59.0,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }, {
        "id": 325,
        "tempId": "222",
        "projectNumber": "440300A088",
        "groupNumber": "G1",
        "alarmLevel": 1,
        "suggestion": null,
        "firstVal": null,
        "secondVal": null,
        "thirdVal": null,
        "fourthVal": null,
        "status": 0
    }],
    "code": 200,
    "msg": "成功",
    "errors": null
}
View Code

模板数据列表格式：

{
    "data": [{
        "id": "1",
        "name": "制冷机启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "10",
        "name": "冷冻泵故障",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷冻水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "101",
        "name": "冷冻水供水温度不在合理范围",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷冻水供水温度\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "102",
        "name": "冷却塔出水温度温度不在合理范围",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却水回水温度-室外湿球温度(℃)\",\"或当室外湿球温度<17℃时，冷却水回水温度设定值(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "103",
        "name": "冷冻供回水温差(压差)不在合理范围",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷冻水温差(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "104",
        "name": "冷却供回水温差不在合理范围",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却水温差(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "105",
        "name": "电流负载限制",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷水机组电流负载率\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "106",
        "name": "冷凝温度限制",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷凝器出水温度(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "107",
        "name": "蒸发温度限制",
        "sys": 1,
        "type": 3,
        "descr": "[\"蒸发器出水温度(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "108",
        "name": "蒸发器内水压力超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"蒸发器冷媒压力(Mpa)\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "109",
        "name": "蒸发器内水流量超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷冻水流量/当前制冷机的额定流量*制冷剂运行台数\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "11",
        "name": "冷却泵启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "110",
        "name": "冷凝器内水压力超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷机冷凝器冷媒压力(Mpa)\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "111",
        "name": "冷凝器内水流量超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷却水流量/当前制冷机的额定流量*制冷机运行台数\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "112",
        "name": "冷冻水侧小温差过高",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，蒸发器出水温度-冷媒温度(℃)\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "113",
        "name": "冷却水侧小温差过高",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷凝器冷媒温度-出水温度(℃)\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "114",
        "name": "冷冻水流量超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷冻泵流量/额定流量\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "115",
        "name": "冷冻泵功率超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷冻泵功率/额定功率\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "116",
        "name": "冷冻泵频率超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷冻泵运行频率不在配置的上下限范围内\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "117",
        "name": "冷冻水温差超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷冻水温差在(3，7)范围内\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "118",
        "name": "冷却泵流量超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"冷却泵流量/额定流量\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "119",
        "name": "冷却泵功率超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却泵功率/额定功率\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "12",
        "name": "冷却泵停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "120",
        "name": "冷却塔频率超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却塔频率不在配置的上下限范围\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "121",
        "name": "冷却回水温度超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却回水温度\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "122",
        "name": "冷却塔功率超限",
        "sys": 1,
        "type": 3,
        "descr": "[\"正常运行时段，冷却塔功率/额定功率\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "13",
        "name": "冷却泵故障",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "14",
        "name": "冷却塔启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却塔风机故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "15",
        "name": "冷却塔停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却塔风机故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "16",
        "name": "冷却塔故障",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷却塔风机故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "2",
        "name": "制冷机停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "201",
        "name": "室内温度传感器需要校核",
        "sys": 2,
        "type": 4,
        "descr": "[\"每日6点，当前末端温度反馈值与其他末端温度反馈值相差2℃以上\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "202",
        "name": "工作时间前过早开启空调末端",
        "sys": 2,
        "type": 2,
        "descr": "[\"工作时间前过早开启空调末端\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "203",
        "name": "室外温度高而新风阀未关闭",
        "sys": 2,
        "type": 2,
        "descr": "[\"室外温度高而新风阀未关闭\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "204",
        "name": "室外温度低而新风阀未开启",
        "sys": 2,
        "type": 2,
        "descr": "[\"非营业时间，风柜设定温度-室外湿球温度(℃)\",\"新风阀未开启\"]",
        "descParamType": 1,
        "hasSuge": 1,
        "runTime": 3
    }, {
        "id": "205",
        "name": "空调风机变频器自动控制未启用",
        "sys": 2,
        "type": 2,
        "descr": "[\"当前时间<关机时间，室外湿球温度>24且风柜温度人工设定\",\"或室外湿球温度在[5,24]且风柜温度人工设定\",\"或室外湿球温度<5且风柜(风盘)温度人工设定\"]",
        "descParamType": 4,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "206",
        "name": "室内CO2过高",
        "sys": 2,
        "type": 3,
        "descr": "[\"室内CO2(PPM)\",\"持续时间(min)\"]",
        "descParamType": 3,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "207",
        "name": "空调末端风机故障",
        "sys": 2,
        "type": 1,
        "descr": "[\"空调末端风机故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "208",
        "name": "空调末端新风阀故障",
        "sys": 2,
        "type": 1,
        "descr": "[\"空调末端新风阀故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "209",
        "name": "空调末端回风阀故障",
        "sys": 2,
        "type": 1,
        "descr": "[\"空调末端回风阀故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "210",
        "name": "空调末端水阀故障",
        "sys": 2,
        "type": 1,
        "descr": "[\"空调末端水阀故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "211",
        "name": "风柜开启失败",
        "sys": 2,
        "type": 1,
        "descr": "[\"风柜开启失败\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "212",
        "name": "风柜停止失败",
        "sys": 2,
        "type": 1,
        "descr": "[\"风柜停止失败\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "213",
        "name": "风盘开启失败",
        "sys": 2,
        "type": 1,
        "descr": "[\"风盘开启失败\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "214",
        "name": "风盘停止失败",
        "sys": 2,
        "type": 1,
        "descr": "[\"风盘停止失败\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "215",
        "name": "时序配置异常",
        "sys": 2,
        "type": 2,
        "descr": "[\"时序配置异常\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "216",
        "name": "末端设备为手动模式",
        "sys": 2,
        "type": 2,
        "descr": "[\"末端设备为手动模式\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "217",
        "name": "风柜故障报警",
        "sys": 2,
        "type": 1,
        "descr": "[\"风柜故障报警\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "218",
        "name": "风盘故障报警",
        "sys": 2,
        "type": 1,
        "descr": "[\"风盘故障报警\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "219",
        "name": "风柜频率超限",
        "sys": 2,
        "type": 3,
        "descr": "[\"风柜频率超限\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "220",
        "name": "室内温度不在合理范围",
        "sys": 2,
        "type": 3,
        "descr": "[\"风柜回风温度(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "221",
        "name": "末端水力不平衡",
        "sys": 2,
        "type": 2,
        "descr": "[\"营业时间内，风柜回风温度(℃)\"]",
        "descParamType": 2,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "222",
        "name": "风柜频率超限",
        "sys": 2,
        "type": 3,
        "descr": "[\"风柜频率CAB_FRQ不在配置的上下限范围\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 2
    }, {
        "id": "3",
        "name": "制冷机故障",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "4",
        "name": "制冷机冷冻侧阀门启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "5",
        "name": "制冷机冷冻侧阀门停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "50",
        "name": "水力不平衡",
        "sys": 1,
        "type": 2,
        "descr": "[\"触发冰爽模式\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "51",
        "name": "非变频自动运行",
        "sys": 1,
        "type": 2,
        "descr": "[\"设备工频启停或频率手动设定\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "52",
        "name": "全自动或一键启动失败",
        "sys": 1,
        "type": 2,
        "descr": "[\"全自动模式、一键启动模式无法生效\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "53",
        "name": "过早开制冷站设备",
        "sys": 1,
        "type": 2,
        "descr": "[\"营业时间前过早开制冷站设备\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "54",
        "name": "停业后未及时停止制冷站设备",
        "sys": 1,
        "type": 2,
        "descr": "[\"停业后未及时停止制冷站设备\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "55",
        "name": "低温未启用全新风策略",
        "sys": 1,
        "type": 2,
        "descr": "[\"天气温度低而制冷站运行\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "56",
        "name": "制冷机加减载不合理",
        "sys": 1,
        "type": 2,
        "descr": "[\"手动模式下，执行制冷机的加减载\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "57",
        "name": "制冷机加减载失败",
        "sys": 1,
        "type": 2,
        "descr": "[\"制冷机加减载失败\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "58",
        "name": "冷水机组冷冻水旁通",
        "sys": 1,
        "type": 2,
        "descr": "[\"正常运行时段，运行状态-停止状态的冷机蒸发器进水温度<1\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "59",
        "name": "冷水机组冷却水旁通",
        "sys": 1,
        "type": 2,
        "descr": "[\"正常运行时段，运行状态-停止状态的冷机冷凝器进水温度<1\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "6",
        "name": "制冷机冷却侧阀门启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "60",
        "name": "制冷机频繁启停机",
        "sys": 1,
        "type": 2,
        "descr": "[\"设备启停记录中，同一设备的启动和停止时间间隔<30min\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "61",
        "name": "冷却泵频繁启停机",
        "sys": 1,
        "type": 2,
        "descr": "[\"设备启停记录中，同一设备的启动和停止时间间隔<30min\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "62",
        "name": "冷冻泵频繁启停机",
        "sys": 1,
        "type": 2,
        "descr": "[\"设备启停记录中，同一设备的启动和停止时间间隔<30min\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "63",
        "name": "冷却塔频繁启停机",
        "sys": 1,
        "type": 2,
        "descr": "[\"设备启停记录中，同一设备的启动和停止时间间隔<30min\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "64",
        "name": "未启用控制模式",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷冻泵运行频率为手动设定或工频运行\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "65",
        "name": "冷却塔集水盘溢流",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷却塔液位COT1_WL>后台配置中的液位上限\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "66",
        "name": "冷却塔集水盘干涸",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷却塔液位COT1_WL<后台配置中的液位下限\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "67",
        "name": "冷却塔启停机不及时",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷却塔在主机停机后5min以外关闭\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "68",
        "name": "冷却塔未启用控制模式",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷却塔运行频率为手动设定或工频运行\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "69",
        "name": "冷却泵启停机不及时",
        "sys": 1,
        "type": 2,
        "descr": "[\"冷却泵在主机启动前2min以外启动，或冷却泵在主机停机后5min以外关闭\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 1
    }, {
        "id": "7",
        "name": "制冷机冷却侧阀门停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"制冷机组设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "8",
        "name": "冷冻泵启动失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷冻水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }, {
        "id": "9",
        "name": "冷冻泵停止失败",
        "sys": 1,
        "type": 1,
        "descr": "[\"冷冻水泵设备故障\"]",
        "descParamType": 0,
        "hasSuge": 1,
        "runTime": 0
    }],
    "code": 200,
    "msg": "成功",
    "errors": null
}
View Code

总共两个接口，一个加载模板，一个加载数据，模板数据只第一次进入到页面的时候调用，数据是每次打开弹窗都要调用。

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

邹琼俊

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
