教育项目之统计分析模块介绍

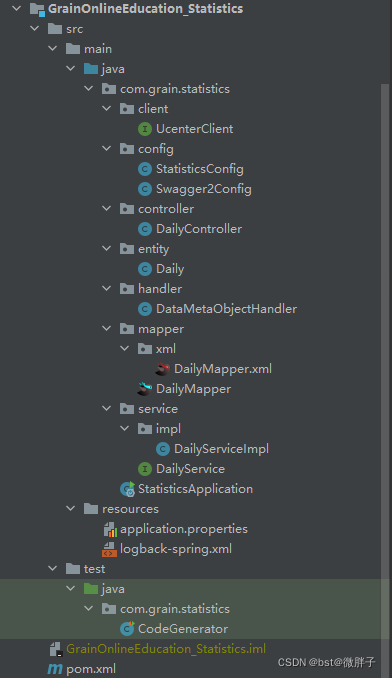

1.项目结构

2.pom文件介绍

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>GrainOnlineEducation_Parent</artifactId>
        <groupId>com.grain</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>GrainOnlineEducation_Statistics</artifactId>

    <dependencies>
        <dependency>
            <groupId>com.grain</groupId>
            <artifactId>GrainOnlineEducation_Common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>

        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- velocity 模板引擎, Mybatis Plus 代码生成器需要 -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
        </dependency>

        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>

        <!--lombok用来简化实体类：需要安装lombok插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--服务注册-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <!--服务调用-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <!--开发者工具-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <!-- 项目打包时会将java目录中的*.xml文件也进行打包 -->
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>

</project>

3.代码分析

package com.grain.statistics.client;

import com.grain.common.result.Result;
import io.swagger.annotations.ApiParam;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * @author：Dragon Wen
 * @email：18475536452@163.com
 * @date：Created in 2020/3/10 10:25
 * @description：
 * @modified By：
 * @version: $
 */
@Component
@FeignClient("grain-ucenter")
public interface UcenterClient {

    @GetMapping(value = "/ucenter/member/count-register/{day}")
    public Result registerCount(@PathVariable String day);
}

package com.grain.statistics.config;

import com.baomidou.mybatisplus.extension.plugins.PerformanceInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@EnableTransactionManagement
@Configuration
@MapperScan("com.grain.statistics.mapper")
public class StatisticsConfig {

    /**
     * SQL 执行性能分析插件
     * 开发环境使用，线上不推荐。 maxTime 指的是 sql 最大执行时长
     */
    @Bean
    @Profile({"dev","test"})// 设置 dev test 环境开启
    public PerformanceInterceptor performanceInterceptor() {
        PerformanceInterceptor performanceInterceptor = new PerformanceInterceptor();
        performanceInterceptor.setMaxTime(1000);//ms，超过此处设置的ms则sql不执行
        performanceInterceptor.setFormat(true);
        return performanceInterceptor;
    }

}

package com.grain.statistics.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @author：Dragon Wen
 * @email：18475536452@163.com
 * @date：Created in 2020/2/27 15:42
 * @description：Swagger2配置文件
 * @modified By：
 * @version: $
 */
@Configuration
@EnableSwagger2
public class Swagger2Config {
    @Bean
    public Docket webApiConfig(){

        return new Docket(DocumentationType.SWAGGER_2)
                .groupName("webApi")
                .apiInfo(webApiInfo())
                .select()
                .build();

    }

    private ApiInfo webApiInfo(){

        return new ApiInfoBuilder()
                .title("谷粒学院-统计分析服务API文档")
                .description("本文档描述了统计分析服务服务接口定义")
                .version("1.0")
                .contact(new Contact("Dragon Wen", "www.dragonwen.cn", "18475536452@163.com"))
                .build();
    }

}

package com.grain.statistics.controller;


import com.grain.common.result.Result;
import com.grain.statistics.service.DailyService;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.Map;

/**
 * <p>
 * 网站统计日数据 前端控制器
 * </p>
 *
 * @author Dragon Wen
 * @since 2020-03-09
 */
@CrossOrigin
@RestController
@RequestMapping("/statistics/daily")
public class DailyController {

    @Autowired
    private DailyService dailyService;

    /**
     * 创建统计数据
     * @param day
     * @return
     */
    @ApiOperation(value = "创建统计数据")
    @PostMapping("{day}")
    public Result createStatisticsByDate(
            @ApiParam(name = "day", value = "统计日期", required = true)
            @PathVariable String day){

        dailyService.createStatisticsByDay(day);
        return Result.ok();
    }

    /**
     * 获取统计数据
     * @param begin
     * @param end
     * @param type
     * @return
     */
    @ApiOperation(value = "获取统计数据")
    @GetMapping("show-chart/{begin}/{end}/{type}")
    public Result showChart(
            @ApiParam(name = "begin", value = "开始时间")
            @PathVariable String begin,
            @ApiParam(name = "end", value = "结束时间")
            @PathVariable String end,
            @ApiParam(name = "type", value = "统计类型")
            @PathVariable String type){

        Map<String, Object> map = dailyService.getChartData(begin, end, type);
        return Result.ok().data(map);
    }
}

package com.grain.statistics.entity;

import com.baomidou.mybatisplus.annotation.*;

import java.util.Date;
import java.io.Serializable;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.experimental.Accessors;

/**
 * <p>
 * 网站统计日数据
 * </p>
 *
 * @author Dragon Wen
 * @since 2020-03-09
 */
@Data
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
@TableName("statistics_daily")
@ApiModel(value="Daily对象", description="网站统计日数据")
public class Daily implements Serializable {

    private static final long serialVersionUID = 1L;

    @ApiModelProperty(value = "主键")
    @TableId(value = "id", type = IdType.ID_WORKER_STR)
    private String id;

    @ApiModelProperty(value = "统计日期")
    private String dateCalculated;

    @ApiModelProperty(value = "注册人数")
    private Integer registerNum;

    @ApiModelProperty(value = "登录人数")
    private Integer loginNum;

    @ApiModelProperty(value = "每日播放视频数")
    private Integer videoViewNum;

    @ApiModelProperty(value = "每日新增课程数")
    private Integer courseNum;

    @ApiModelProperty(value = "创建时间", example = "2020-01-01 8:00:00")
    @TableField(fill = FieldFill.INSERT)
    private Date gmtCreate;

    @ApiModelProperty(value = "更新时间", example = "2020-01-01 8:00:00")
    @TableField(fill = FieldFill.INSERT_UPDATE)
    private Date gmtModified;


}

package com.grain.statistics.handler;

import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import com.baomidou.mybatisplus.core.injector.ISqlInjector;
import com.baomidou.mybatisplus.extension.injector.LogicSqlInjector;
import com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor;
import org.apache.ibatis.reflection.MetaObject;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;

import java.util.Date;


/**
 * @author：Dragon Wen
 * @email：18475536452@163.com
 * @date：Created in 2020/2/27 15:40
 * @description：在操作数据库的时候根据语句拦截，帮我们自动补充被拦截的语句的属性
 * @modified By：
 * @version: $
 */
@Component
public class DataMetaObjectHandler implements MetaObjectHandler {
    //在执行insert语句时被拦截操作的
    @Override
    public void insertFill(MetaObject metaObject) {
        this.setFieldValByName("gmtCreate", new Date(), metaObject);
        this.setFieldValByName("gmtModified", new Date(), metaObject);
    }

    //在执行update语句时被拦截操作的
    @Override
    public void updateFill(MetaObject metaObject) {
        this.setFieldValByName("gmtModified", new Date(), metaObject);
    }

    /**
     * 逻辑删除插件
     */
    @Bean
    public ISqlInjector sqlInjector() {
        return new LogicSqlInjector();
    }
                      //逻辑删除和分页插件都是package com.baomidou.mybatisplus.extension.plugins;此包下面的
    /**
     * 分页插件
     */
    @Bean
    public PaginationInterceptor paginationInterceptor() {
        return new PaginationInterceptor();
    }


}

package com.grain.statistics.service;

import com.grain.statistics.entity.Daily;
import com.baomidou.mybatisplus.extension.service.IService;

import java.util.Map;

/**
 * <p>
 * 网站统计日数据 服务类
 * </p>
 *
 * @author Dragon Wen
 * @since 2020-03-09
 */
public interface DailyService extends IService<Daily> {

    /**
     * 根据日期创建统计信息
     * @param day
     */
    void createStatisticsByDay(String day);

    /**
     * 获取统计数据
     * @param begin
     * @param end
     * @param type
     * @return
     */
    Map<String, Object> getChartData(String begin, String end, String type);
}

package com.grain.statistics.service.impl;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.grain.statistics.client.UcenterClient;
import com.grain.statistics.entity.Daily;
import com.grain.statistics.mapper.DailyMapper;
import com.grain.statistics.service.DailyService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.apache.commons.lang3.RandomUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * <p>
 * 网站统计日数据 服务实现类
 * </p>
 *
 * @author Dragon Wen
 * @since 2020-03-09
 */
@Service
public class DailyServiceImpl extends ServiceImpl<DailyMapper, Daily> implements DailyService {

    @Autowired
    private UcenterClient ucenterClient;

    @Override
    public void createStatisticsByDay(String day) {

        // 查询统计表中是否存在当前日期的统计数据，如果存在则删除数据
        QueryWrapper<Daily> dailyQueryWrapper = new QueryWrapper<>();
        dailyQueryWrapper.eq("date_calculated", day);
        baseMapper.delete(dailyQueryWrapper);

        // 获取统计信息
        Integer registerNum = (Integer) ucenterClient.registerCount(day).getData().get("countRegister");
        Integer loginNum = RandomUtils.nextInt(100, 200);//TODO
        Integer videoViewNum = RandomUtils.nextInt(200, 300);//TODO
        Integer courseNum = RandomUtils.nextInt(100, 200);//TODO

        // 创建统计对象
        Daily daily = new Daily();
        daily.setDateCalculated(day);
        daily.setRegisterNum(registerNum);
        daily.setLoginNum(loginNum);
        daily.setVideoViewNum(videoViewNum);
        daily.setCourseNum(courseNum);

        baseMapper.insert(daily);
    }

    @Override
    public Map<String, Object> getChartData(String begin, String end, String type) {

        // 根据时间范围进行数据查询
        QueryWrapper<Daily> dailyQueryWrapper = new QueryWrapper<>();
        dailyQueryWrapper.between("date_calculated", begin, end);
        // 指定查询的字段
        dailyQueryWrapper.select("date_calculated", type);
        List<Daily> statisticsList  = baseMapper.selectList(dailyQueryWrapper);
        //把数据构建成想要的结构，最终变成两个json数组形式
        //创建两个list集合
        //日期集合
        List<String> calculatedList = new ArrayList<>();
        //数据集合
        List<Integer> dataList = new ArrayList<>();

        //向两个list集合中封装数据
        //遍历查询集合
        for (int i = 0; i < statisticsList.size(); i++) {
            //集合每个对象
            Daily sta = statisticsList.get(i);
            //封装日期集合数据
            String dateCalculated = sta.getDateCalculated();
            calculatedList.add(dateCalculated);

            //封装数据部分
            //判断获取哪个统计因子
            switch (type) {
                case "register_num":
                    Integer registerNum = sta.getRegisterNum();
                    dataList.add(registerNum);
                    break;
                case "login_num":
                    Integer loginNum = sta.getLoginNum();
                    dataList.add(loginNum);
                    break;
                case "video_view_num":
                    Integer videoViewNum = sta.getVideoViewNum();
                    dataList.add(videoViewNum);
                    break;
                case "course_num":
                    Integer courseNum = sta.getCourseNum();
                    dataList.add(courseNum);
                    break;
                default:
                    break;
            }
        }

        //创建map集合，把封装之后两个list集合放到map集合，返回
        Map<String,Object> map = new HashMap<>();
        map.put("calculatedList",calculatedList);
        map.put("dataList",dataList);

        return map;
    }
}

package com.grain.statistics;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * @author：Dragon Wen
 * @email：18475536452@163.com
 * @date：Created in 2020/3/9 17:43
 * @description：
 * @modified By：
 * @version: $
 */
@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
public class StatisticsApplication {

    public static void main(String[] args) {
        SpringApplication.run(StatisticsApplication.class, args);
    }
}

test包下的代码生成器：

package com.grain.statistics;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.config.DataSourceConfig;
import com.baomidou.mybatisplus.generator.config.GlobalConfig;
import com.baomidou.mybatisplus.generator.config.PackageConfig;
import com.baomidou.mybatisplus.generator.config.StrategyConfig;
import com.baomidou.mybatisplus.generator.config.rules.DateType;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

/**
 * @author：Dragon Wen
 * @email：18475536452@163.com
 * @date：Created in 2020/2/27 12:10
 * @description：
 * @modified By：
 * @version: $
 */
@RunWith(SpringRunner.class)//运行在什么环境下：加载spring容器
@SpringBootTest(classes = CodeGenerator.class)
public class CodeGenerator {

    @Test
    public void run() {

        // 1、创建代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 2、全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setAuthor("Dragon Wen");
        gc.setOpen(false); //生成后是否打开资源管理器
        gc.setFileOverride(false); //重新生成时文件是否覆盖
        gc.setServiceName("%sService");	//去掉Service接口的首字母I
        gc.setIdType(IdType.ID_WORKER); //主键策略
        gc.setDateType(DateType.ONLY_DATE);//定义生成的实体类中日期类型
        gc.setSwagger2(true);//开启Swagger2模式

        mpg.setGlobalConfig(gc);

        // 3、数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/grain?characterEncoding=utf-8&useSSL=false&serverTimezone=UTC");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("root");
        dsc.setDbType(DbType.MYSQL);
        mpg.setDataSource(dsc);

        // 4、包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName("statistics"); //模块名
        pc.setParent("com.grain");
        pc.setController("controller");
        pc.setEntity("entity");
        pc.setService("service");
        pc.setMapper("mapper");
        mpg.setPackageInfo(pc);

        // 5、策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setInclude("statistics_daily");
        strategy.setNaming(NamingStrategy.underline_to_camel);//数据库表映射到实体的命名策略
        strategy.setTablePrefix(pc.getModuleName() + "_"); //生成实体时去掉表前缀

        strategy.setColumnNaming(NamingStrategy.underline_to_camel);//数据库表字段映射到实体的命名策略
        strategy.setEntityLombokModel(true); // lombok 模型 @Accessors(chain = true) setter链式操作

        strategy.setRestControllerStyle(true); //restful api风格控制器
        strategy.setControllerMappingHyphenStyle(true); //url中驼峰转连字符

        mpg.setStrategy(strategy);


        // 6、执行
        mpg.execute();
    }
}

4.配置文件

# 服务端口
server.port=8006
# 服务名
spring.application.name=grain-statistics

# 环境设置：dev、test、prod
spring.profiles.active=dev

# mysql数据库连接
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/grain?characterEncoding=utf-8&useSSL=false&serverTimezone=UTC
spring.datasource.username=root
spring.datasource.password=root

#返回json的全局时间格式
spring.jackson.date-format=yyyy-MM-dd HH:mm:ss
spring.jackson.time-zone=GMT+8

#mybatis日志
mybatis-plus.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl

#配置mapper xml文件的路径
mybatis-plus.mapper-locations=classpath:com/grain/statistics/mapper/xml/*.xml

# 设置日志级别
# logging.level.root=WARN

#指定注册中心地址
eureka.client.service-url.defaultZone=http://localhost:8004/eureka/
#eureka服务器上获取的是服务器的ip地址，否则是主机名
eureka.instance.prefer-ip-address=true
