【JVM】Jstack实战死循环与死锁

死锁检测

# 查看Java PID（进程号）
[root@localhost ~]# jps -l
# 控制台输出线程的dump信息
[root@localhost tomcat]# jstack PID

[root@localhost tomcat]# jstack
Usage:
    jstack [-l] <pid>
        (to connect to running process)
    jstack -F [-m] [-l] <pid>
        (to connect to a hung process)
    jstack [-m] [-l] <executable> <core>
        (to connect to a core file)
    jstack [-m] [-l] [server_id@]<remote server IP or hostname>
        (to connect to a remote debug server)

Options:
    -F  to force a thread dump. Use when jstack <pid> does not respond (process is hung)
    -m  to print both java and native frames (mixed mode)
    # 可以查看线程是否被锁
    -l  long listing. Prints additional information about locks
    -h or -help to print this help message

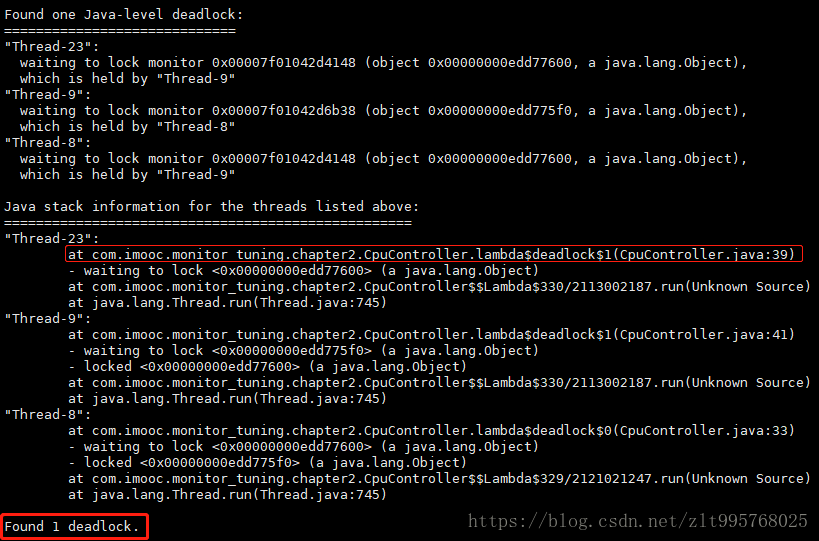

# 输出带有线程锁信息的线程信息
[root@localhost tomcat]# jstack -l 2439 >jstack2.log
# 输出线程信息
[root@localhost tomcat]# jstack 2439 >jstack.log

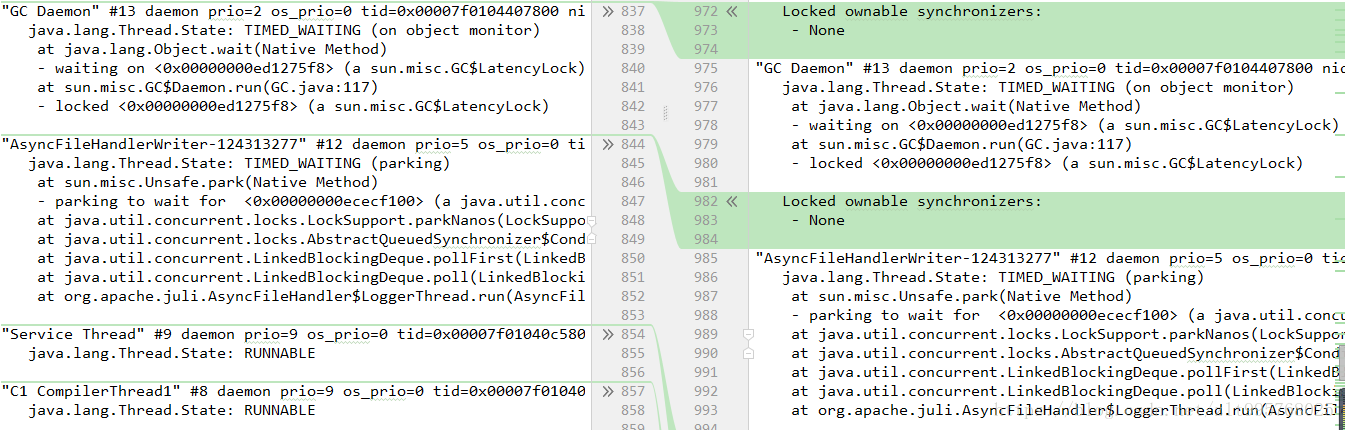

用对比工具对比上面jstack2.log和jstack.log文件：

死锁的代码

	/**
	 * 死锁
	 * */
	@RequestMapping("/deadlock")
	public String deadlock(){
		new Thread(()->{
			synchronized(lock1) {
				try {Thread.sleep(1000);}catch(Exception e) {}
				synchronized(lock2) {
					System.out.println("Thread1 over");
				}
			}
		}) .start();
		new Thread(()->{
			synchronized(lock2) {
				try {Thread.sleep(1000);}catch(Exception e) {}
				synchronized(lock1) {
					System.out.println("Thread2 over");
				}
			}
		}) .start();
		return "deadlock";
	}

死循环检测

# 查看Java PID（进程号）
[root@localhost ~]# jps -l
# 控制台输出线程的dump信息
[root@localhost tomcat]# jstack -l PID
# top：找到占用CPU最大的进程号
[root@localhost tomcat]# top

# top -Hp 进程号：查看指定进程下的线程，选出占用毕竟高的线程进行分析
[root@localhost tomcat]# top -Hp 3063
top - 02:38:08 up  1:51,  2 users,  load average: 2.47, 2.58, 2.97
Threads:  44 total,   2 running,  42 sleeping,   0 stopped,   0 zombie
%Cpu(s): 99.7 us,  0.3 sy,  0.0 ni,  0.0 id,  0.0 wa,  0.0 hi,  0.0 si,  0.0 st
KiB Mem :  1884124 total,   967372 free,   497876 used,   418876 buff/cache
KiB Swap:  1572860 total,  1572860 free,        0 used.  1201884 avail Mem

  PID USER      PR  NI    VIRT    RES    SHR S %CPU %MEM     TIME+ COMMAND
 3096 root      20   0 2562528 183620  14544 R 50.3  9.7  19:32.11 java
 3097 root      20   0 2562528 183620  14544 R 49.7  9.7   5:56.43 java
 3063 root      20   0 2562528 183620  14544 S  0.0  9.7   0:00.00 java

根据上面的分析，得出3063进程下的3096、3097线程占用CPU资源比较大，由于线程号都为十六进制，需要进行进制转换，转换如下：

十进制		十六进制
3096	   0xc18
3097	   0xc19

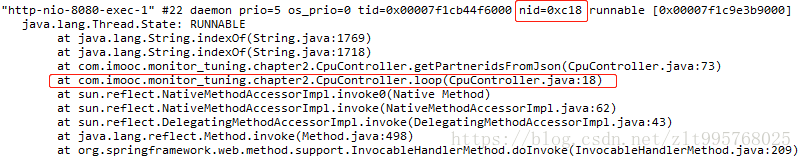

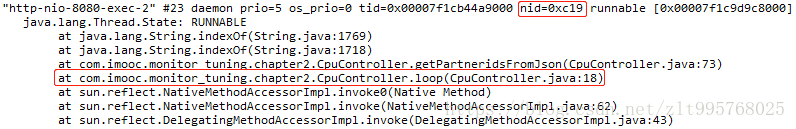

拿到转换后的十六进制，在线程dump中进行查找如下：

定位到程序代码，进行优化。

测试代码

	/**
	 * 死循环
	 * */
	@RequestMapping("/loop")
	public List<Long> loop(){
		String data = "{\"data\":[{\"partnerid\":]";
		return getPartneridsFromJson(data);
	}

	public static List<Long> getPartneridsFromJson(String data){
	    //{\"data\":[{\"partnerid\":982,\"count\":\"10000\",\"cityid\":\"11\"},{\"partnerid\":983,\"count\":\"10000\",\"cityid\":\"11\"},{\"partnerid\":984,\"count\":\"10000\",\"cityid\":\"11\"}]}
	    //上面是正常的数据
	    List<Long> list = new ArrayList<Long>(2);
	    if(data == null || data.length() <= 0){
	        return list;
	    }
	    int datapos = data.indexOf("data");
	    if(datapos < 0){
	        return list;
	    }
	    int leftBracket = data.indexOf("[",datapos);
	    int rightBracket= data.indexOf("]",datapos);
	    if(leftBracket < 0 || rightBracket < 0){
	        return list;
	    }
	    String partners = data.substring(leftBracket+1,rightBracket);
	    if(partners == null || partners.length() <= 0){
	        return list;
	    }
	    while(partners!=null && partners.length() > 0){
	        int idpos = partners.indexOf("partnerid");
	        if(idpos < 0){
	            break;
	        }
	        int colonpos = partners.indexOf(":",idpos);
	        int commapos = partners.indexOf(",",idpos);
	        if(colonpos < 0 || commapos < 0){
	            //partners = partners.substring(idpos+"partnerid".length());//1
	            continue;
	        }
	        String pid = partners.substring(colonpos+1,commapos);
	        if(pid == null || pid.length() <= 0){
	            //partners = partners.substring(idpos+"partnerid".length());//2
	            continue;
	        }
	        try{
	            list.add(Long.parseLong(pid));
	        }catch(Exception e){
	            //do nothing
	        }
	        partners = partners.substring(commapos);
	    }
	    return list;
	}
