Clickhouse 源码编译和部署

编译

参考官网文档：https://clickhouse.tech/docs/en/development/build/#how-to-build-clickhouse-on-any-linux

1. 环境准备

a. gcc

        依赖于gcc 10或者以上版本。默认系统上没有安装这么高版本的gcc，需要手动安装。安装方法参考链接：https://blog.youkuaiyun.com/wulinncom/article/details/107773145

b. ninja

        参考链接：https://www.cnblogs.com/bjarnescottlee/p/13872893.html

2. 编译

1. git clone --recursive https://github.com/ClickHouse/ClickHouse.git
2. cd ClickHouse
   mkdir build && cd build
3. export CC=gcc CXX=g++
   cmake -D CMAKE_INSTALL_PREFIX=/home/ck-programs ../../ClickHouse
   ninja
4. cmake -P cmake_install.cmake

执行完成后，clickhouse会安装到/home/ck-programs目录。

单机分布式部署

由于机器不够，只有一台机器，需要在这一台机器部署click集群，方法如下：

1. 安装zookeeper

zookeeper 安装比较简单，在官网下载二进制表，解压即可。

然后在该机器上启动zookeeper。

2. 创建配置文件

我打算部署2个node，数据目录分别在：

/home/ck-data/node1
/home/ck-data/node2

分别创建node1和node2的配置文件：

node1的config.xml文件：

<?xml version="1.0"?>
<yandex>
   <!-- 日志 -->
   <logger>
       <level>trace</level>
       <log>/home/ck-data/node1/log/server.log</log>
       <errorlog>/home/ck-data/node1/log/error.log</errorlog>
       <size>1000M</size>
       <count>10</count>
   </logger>

   <!-- 端口 -->
   <http_port>8123</http_port>
   <tcp_port>9000</tcp_port>
   <interserver_http_port>9009</interserver_http_port>

   <!-- 本机域名 -->
   <interserver_http_host>这里需要用域名，如果后续用到复制的话</interserver_http_host>

   <!-- 监听IP -->
   <listen_host>::</listen_host>
   <!-- 最大连接数 -->
   <max_connections>64</max_connections>

   <!-- 没搞懂的参数 -->
   <keep_alive_timeout>3</keep_alive_timeout>

   <!-- 最大并发查询数 -->
   <max_concurrent_queries>16</max_concurrent_queries>

   <!-- 单位是B -->
   <uncompressed_cache_size>8589934592</uncompressed_cache_size>
   <mark_cache_size>10737418240</mark_cache_size>

   <!-- 存储路径 -->
   <path>/home/ck-data/node1/</path>
   <tmp_path>/home/ck-data/node1/tmp/</tmp_path>

   <!-- user配置 -->
   <users_config>users.xml</users_config>
   <default_profile>default</default_profile>


   <default_database>default</default_database>
   <remote_servers incl="clickhouse_remote_servers" />
   <zookeeper incl="zookeeper-servers" optional="true" />
   <macros incl="macros" optional="true" />

   <!-- 没搞懂的参数 -->
   <builtin_dictionaries_reload_interval>3600</builtin_dictionaries_reload_interval>

   <!-- 控制大表的删除 -->
   <max_table_size_to_drop>0</max_table_size_to_drop>

   <include_from>/home/ck-data/metrika.xml</include_from>
   <distributed_ddl>
          <!-- Path in ZooKeeper to queue with DDL queries -->
          <path>/clickhouse/task_queue/ddl</path>
          <cleanup_delay_period>60</cleanup_delay_period>
          <task_max_lifetime>86400</task_max_lifetime>
          <max_tasks_in_queue>1000</max_tasks_in_queue>
  </distributed_ddl>
</yandex>

node1的users.xml配置文件：

<?xml version="1.0"?>
<yandex>
    <profiles>
        <!-- 读写用户设置  -->
        <default>
            <max_memory_usage>10000000000</max_memory_usage>
            <use_uncompressed_cache>0</use_uncompressed_cache>
            <load_balancing>random</load_balancing>
        </default>

        <!-- 只写用户设置  -->
        <readonly>
            <max_memory_usage>10000000000</max_memory_usage>
            <use_uncompressed_cache>0</use_uncompressed_cache>
            <load_balancing>random</load_balancing>
            <readonly>1</readonly>
        </readonly>
    </profiles>

    <!-- 配额  -->
    <quotas>
        <!-- Name of quota. -->
        <default>
            <interval>
                <duration>3600</duration>
                <queries>0</queries>
                <errors>0</errors>
                <result_rows>0</result_rows>
                <read_rows>0</read_rows>
                <execution_time>0</execution_time>
            </interval>
        </default>
    </quotas>

    <users>
        <!-- 读写用户  -->
        <default>
            <password_sha256_hex>ef797c8118f02dfb649607dd5d3f8c7623048c9c063d532cc95c5ed7a898a64f</password_sha256_hex>
            <networks incl="networks" replace="replace">
                <ip>::/0</ip>
            </networks>
            <profile>default</profile>
            <quota>default</quota>
        </default>

        <!-- 只读用户  -->
        <ck>
            <password_sha256_hex>ef797c8118f02dfb649607dd5d3f8c7623048c9c063d532cc95c5ed7a898a64f</password_sha256_hex>
            <networks incl="networks" replace="replace">
                <ip>::/0</ip>
            </networks>
            <profile>readonly</profile>
            <quota>default</quota>
        </ck>
    </users>
</yandex>

node2的config.xml和users.xml与node1基本一样，主要是把路径和端口号改掉就行了。

metrika.xml配置文件：

<yandex>

<!-- 集群配置 -->
<clickhouse_remote_servers>
    <bip_ck_cluster>

        <!-- 数据分片1  -->
        <shard>
            <internal_replication>false</internal_replication>
            <replica>
                <host>localhost</host>
                <port>9000</port>
                <user>default</user>
                <password>12345678</password>
            </replica>
        </shard>

        <!-- 数据分片2  -->
        <shard>
            <internal_replication>false</internal_replication>
            <replica>
                <host>localhost</host>
                <port>9100</port>
                <user>default</user>
                <password>12345678</password>
            </replica>
        </shard>
    </bip_ck_cluster>
</clickhouse_remote_servers>

<!-- 本节点副本名称（这里无用） -->
<macros>
    <replica>ck1</replica>
</macros>

<!-- 监听网络（貌似重复） -->
<networks>
   <ip>::/0</ip>
</networks>

<!-- ZK  -->
<zookeeper-servers>
  <node index="1">
    <host>localhost</host>
    <port>2181</port>
  </node>
</zookeeper-servers>

<!-- 数据压缩算法  -->
<clickhouse_compression>
<case>
  <min_part_size>10000000000</min_part_size>
  <min_part_size_ratio>0.01</min_part_size_ratio>
  <method>lz4</method>
</case>
</clickhouse_compression>

</yandex>

3. 启动ck node

if [ "$1" = "start" ];then
        nohup  /home/ck-programs/bin/clickhouse-server --config=/home/ck-data/node1/config.xml --pid-file=/home/ck-data/node1/clickhouse-server.pid &
        nohup  /home/ck-programs/bin/clickhouse-server --config=/home/ck-data/node2/config.xml --pid-file=/home/ck-data/node2/clickhouse-server.pid &
else
        pids=`ps ux|grep clickhouse-server|grep -v  clickhouse-watchdog|grep -v grep|awk '{print $2}'`
        pids=`echo $pids`
        echo $pids
        kill -s 2 $pids
fi

4. 至此2节点的clickhouse集群已经部署成功。

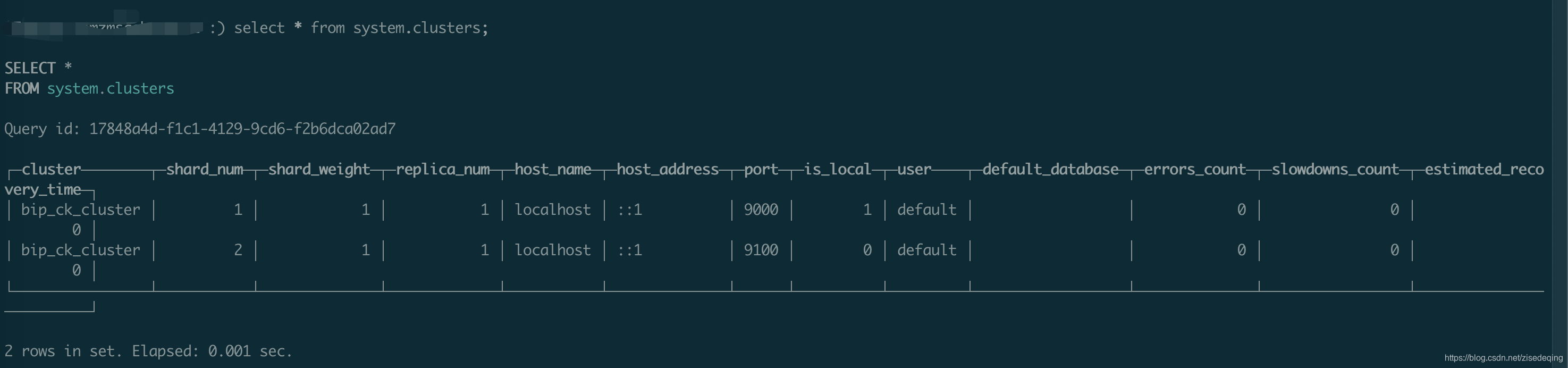

可以查看system.clusters查看部署信息：

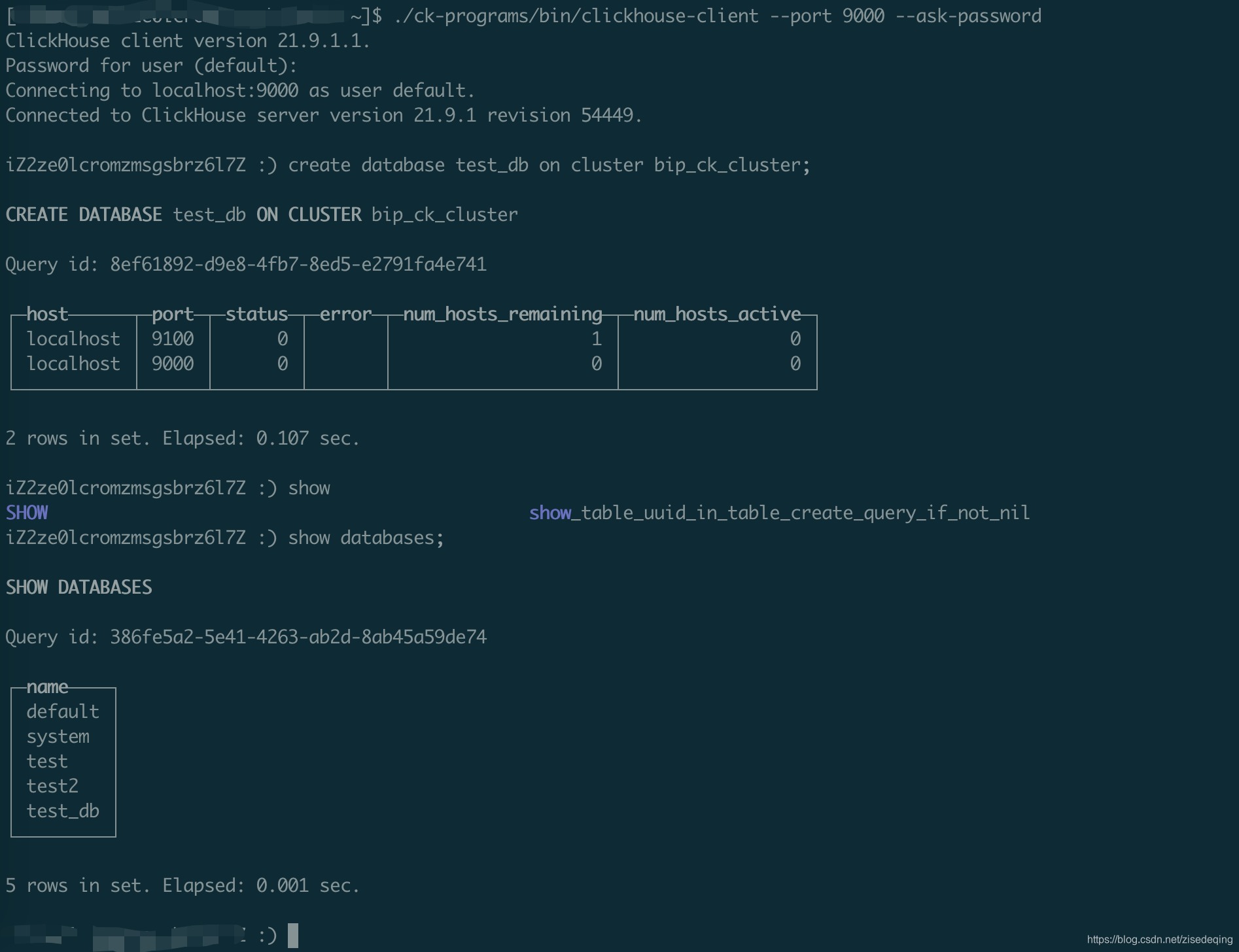

然后就可以执行SQL了：
