Linux_Samba 安装笔记

[root@localhost ~]# yum install samba

[root@localhost ~]# systemctl start smb

[root@localhost ~]# systemctl status smb

● smb.service - Samba SMB Daemon
Loaded: loaded (/usr/lib/systemd/system/smb.service; disabled; vendor preset: disabled)
Active: active (running) since Tue 2018-03-13 15:18:47 CST; 2s ago
Main PID: 2340 (smbd)

[root@localhost ~]# systemctl enable smb

Created symlink from /etc/systemd/system/multi-user.target.wants/smb.service to /usr/lib/systemd/system/smb.service.

[root@localhost ~]# systemctl status smb

● smb.service - Samba SMB Daemon
Loaded: loaded (/usr/lib/systemd/system/smb.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2018-03-13 15:18:47 CST; 1min 33s ago

[root@localhost ~]# testparm

Load smb config files from /etc/samba/smb.conf
rlimit_max: increasing rlimit_max (1024) to minimum Windows limit (16384)
Processing section “[homes]”
Processing section “[printers]”
Processing section “[print$]”
Loaded services file OK.
Server role: ROLE_STANDALONE

Press enter to see a dump of your service definitions

[root@localhost ~]# useradd manager

[root@localhost ~]# passwd manager

[root@localhost ~]# usermod -L manager

[root@localhost ~]# smbpasswd -a manager

[root@localhost ~]# useradd employee

[root@localhost ~]# passwd employee

[root@localhost ~]# usermod -L employee

[root@localhost ~]# smbpasswd -a employee

创建共享目录share

[root@localhost ~]# mkdir -p /samba/share && chmod -R +777 /samba/share

[root@localhost ~]# ls -ldZ /samba/share

drwxrwxrwx. root root unconfined_u:object_r:default_t:s0 /samba/share

selinux给共享目录授权

[root@localhost ~]# chcon -t samba_share_t /samba/share/

[root@localhost ~]# ls -ldZ /samba/share

drwxrwxrwx. root root unconfined_u:object_r:samba_share_t:s0 /samba/share

创建管理者目录managers

[root@localhost ~]# mkdir -p /samba/managers && chmod -R +777 /samba/managers

[root@localhost ~]# ls -ldZ /samba/managers

drwxrwxrwx. root root unconfined_u:object_r:default_t:s0 /samba/managers

[root@localhost ~]# chcon -t samba_share_t /samba/managers/

[root@localhost ~]# ls -ldZ /samba/managers

drwxrwxrwx. root root unconfined_u:object_r:samba_share_t:s0 /samba/managers

创建职工目录employees

[root@localhost ~]# mkdir -p /samba/employees && chmod -R +777 /samba/employees

[root@localhost ~]# ls -ldZ /samba/employees

drwxrwxrwx. root root unconfined_u:object_r:default_t:s0 /samba/employees

[root@localhost ~]# chcon -t samba_share_t /samba/employees/

[root@localhost ~]# ls -ldZ /samba/employees

drwxrwxrwx. root root unconfined_u:object_r:samba_share_t:s0 /samba/employees

打开home目录

[root@localhost ~]# setsebool -P samba_enable_home_dirs on

[root@localhost ~]# setsebool -P samba_domain_controller on

配置用户读写权限

[root@localhost ~]# cp /etc/samba/smb.conf /etc/samba/smb.conf.copy

[root@localhost ~]# vim /etc/samba/smb.conf

[share]
        comment = Share Directories
        path = /samba/share
        valid users = manager,employee
        browseable = Yes
        read only = No

[managers]
        comment = Managers Directories
        path = /samba/managers
        valid users = manager
        browseable = Yes
        write list = manager

[employees]
        comment = Employees Directories
        path = /samba/employees
        valid users = manager,employee
        browseable = Yes
        write list = manager,employee

[root@localhost ~]# systemctl restart smb

打开防火墙

[root@localhost ~]# firewall-cmd –zone=public –add-port=137/udp –permanent

success

[root@localhost ~]# firewall-cmd –zone=public –add-port=138/udp –permanent

success

[root@localhost ~]# firewall-cmd –zone=public –add-port=139/tcp –permanent

success

[root@localhost ~]# firewall-cmd –zone=public –add-port=445/tcp –permanent

success

[root@localhost ~]# firewall-cmd –reload

success

访问文件系统：\ip地址

---

[root@topscience ~]# yum -y install samba-client

[root@topscience smb]# smbclient //localhost/share -U账号%密码

Try “help” to get a list of possible commands.
smb: >

---

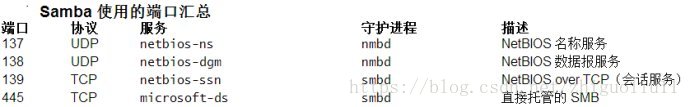

137、138 为 UDP 端口，通过网上邻居传输文件时使用的端口。139 通过这个端口进入的连接试图获得 NetBIOS/SMB 服务。NetBIOS 协议常被用于 Windows 文件、打印机共享和 Samba。

无法访问某些端口 阿里云默认屏蔽端口

现象：ECS 实例监听了对应端口，但这个端口在部分地区无法访问，而其它端口访问正常的情况。

分析：部分运营商判断端口 135、139、444、445、5800、5900 等为高危端口，默认被屏蔽。

解决：建议您修改敏感端口为其它非高危端口承载业务。
