1.View的绘制

主要指onMeasure(),onLayout(),onDraw()的过程。measure()确定View的测量宽高，layout()确定View的最终宽高和四个顶点的位置。draw()负责把View绘制到屏幕上。

1.1 Measure过程

1.1.1 View的Measure过程

View通过调用measure()方法来完成测量，但是measure()是一个final方法，这意味着他不能被重写，但是它内部会调用onMeasure(),看下这个方法的实现

 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
                getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
    }

setMeasuredDimension会设置View的宽高测量值，具体实现方法是getDefaultSize():

public static int getDefaultSize(int size, int measureSpec) {
        int result = size;
        int specMode = MeasureSpec.getMode(measureSpec);
        int specSize = MeasureSpec.getSize(measureSpec);

        switch (specMode) {
        case MeasureSpec.UNSPECIFIED:
            result = size;
            break;
        case MeasureSpec.AT_MOST:
        case MeasureSpec.EXACTLY:
            result = specSize;
            break;
        }
        return result;
    }

如果是specMode是UNSPECIFIED类型，那么宽高就都是传入的size，这个传入的size是通过getSuggestedMinimumHeight()计算出的，mMinHeight是在XML布局中设置的属性，mBackground是当前设置背景的Drawable对象，如果Drawable对象有初始值大小，那么就返回两者中大的，否则就返回mMinHeight，如果没有设置则默认是0。我们看一下源码：

protected int getSuggestedMinimumHeight() {
        return (mBackground == null) ? mMinHeight : max(mMinHeight, mBackground.getMinimumHeight());

    }

如果specMode是AT_MOST或者EXACTLY，返回的都是通过MeasureSpec.getSize()计算出的值。即View测量后的大小。

1.1.2 ViewGroup的Measure过程

ViewGroup是一个抽象类，没有重写onMeasure()，但是它有一个measureChildren()，在此除完成自己的measure过程外，还需要循环遍历子View的，并执行其measure()方法，源码如下：

protected void measureChildren(int widthMeasureSpec, int heightMeasureSpec) {
        final int size = mChildrenCount;
        final View[] children = mChildren;
        for (int i = 0; i < size; ++i) {
            final View child = children[i];
            if ((child.mViewFlags & VISIBILITY_MASK) != GONE) {
                measureChild(child, widthMeasureSpec, heightMeasureSpec);
            }
        }
    }
protected void measureChild(View child, int parentWidthMeasureSpec,
            int parentHeightMeasureSpec) {
        final LayoutParams lp = child.getLayoutParams();

        final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
                mPaddingLeft + mPaddingRight, lp.width);
        final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
                mPaddingTop + mPaddingBottom, lp.height);

        child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
    }

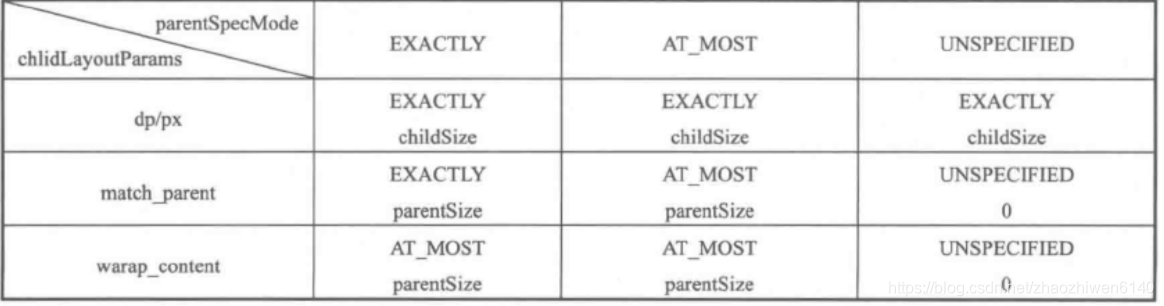

即获取了当前子View 的LayoutParams以及父View 的MeasureSpec还有父View的padding，根据下标原理计算出当前子View的MeasureSpec，然后调用View的measure()。

在这里插入图片描述

1.1.3 Measure案例：

如何在Activity启动的时候获取某个组件的宽高：

在Activity的onWindowFocusChanged()中获取，此方法的含义是View已经初始化完毕了。在该方法中调用view.getMeasureHeight()来获取高度。
View.post(Runnable)，当Looper调动此Runnable时，说明View也已经被初始化好了。
ViewTreeObserver的众多回调可以完成这个功能,具体使用如下:

@Override
    protected void onStart() {
        super.onStart();
        if (DEBUG) {
            Log.d(TAG, "onStart: ");
        }

        final View view = new View(this);
        ViewTreeObserver viewTreeObserver = view.getViewTreeObserver();
        viewTreeObserver.addOnGlobalLayoutListener(new ViewTreeObserver.OnGlobalLayoutListener() {
            @Override
            public void onGlobalLayout() {
                int width = view.getMeasuredWidth();
                int height = view.getMeasuredHeight();
            }
        });
    }

1.2 layout过程

layout的作用父View来确定子View的位置，当父View的位置被确定后，他会遍历调用所有子View的layout(),而layout()又会调用onLayout()。
源码如下：

public void layout(int l, int t, int r, int b) {
        if ((mPrivateFlags3 & PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT) != 0) {
            onMeasure(mOldWidthMeasureSpec, mOldHeightMeasureSpec);
            mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
        }

        int oldL = mLeft;
        int oldT = mTop;
        int oldB = mBottom;
        int oldR = mRight;

        boolean changed = isLayoutModeOptical(mParent) ?
                setOpticalFrame(l, t, r, b) : setFrame(l, t, r, b);

        if (changed || (mPrivateFlags & PFLAG_LAYOUT_REQUIRED) == PFLAG_LAYOUT_REQUIRED) {
            onLayout(changed, l, t, r, b);

            if (shouldDrawRoundScrollbar()) {
                if(mRoundScrollbarRenderer == null) {
                    mRoundScrollbarRenderer = new RoundScrollbarRenderer(this);
                }
            } else {
                mRoundScrollbarRenderer = null;
            }

            mPrivateFlags &= ~PFLAG_LAYOUT_REQUIRED;

            ListenerInfo li = mListenerInfo;
            if (li != null && li.mOnLayoutChangeListeners != null) {
                ArrayList<OnLayoutChangeListener> listenersCopy =
                        (ArrayList<OnLayoutChangeListener>)li.mOnLayoutChangeListeners.clone();
                int numListeners = listenersCopy.size();
                for (int i = 0; i < numListeners; ++i) {
                    listenersCopy.get(i).onLayoutChange(this, l, t, r, b, oldL, oldT, oldR, oldB);
                }
            }
        }

        final boolean wasLayoutValid = isLayoutValid();

        mPrivateFlags &= ~PFLAG_FORCE_LAYOUT;
        mPrivateFlags3 |= PFLAG3_IS_LAID_OUT;

        if (!wasLayoutValid && isFocused()) {
            mPrivateFlags &= ~PFLAG_WANTS_FOCUS;
            if (canTakeFocus()) {
                // We have a robust focus, so parents should no longer be wanting focus.
                clearParentsWantFocus();
            } else if (getViewRootImpl() == null || !getViewRootImpl().isInLayout()) {
                // This is a weird case. Most-likely the user, rather than ViewRootImpl, called
                // layout. In this case, there's no guarantee that parent layouts will be evaluated
                // and thus the safest action is to clear focus here.
                clearFocusInternal(null, /* propagate */ true, /* refocus */ false);
                clearParentsWantFocus();
            } else if (!hasParentWantsFocus()) {
                // original requestFocus was likely on this view directly, so just clear focus
                clearFocusInternal(null, /* propagate */ true, /* refocus */ false);
            }
            // otherwise, we let parents handle re-assigning focus during their layout passes.
        } else if ((mPrivateFlags & PFLAG_WANTS_FOCUS) != 0) {
            mPrivateFlags &= ~PFLAG_WANTS_FOCUS;
            View focused = findFocus();
            if (focused != null) {
                // Try to restore focus as close as possible to our starting focus.
                if (!restoreDefaultFocus() && !hasParentWantsFocus()) {
                    // Give up and clear focus once we've reached the top-most parent which wants
                    // focus.
                    focused.clearFocusInternal(null, /* propagate */ true, /* refocus */ false);
                }
            }
        }

        if ((mPrivateFlags3 & PFLAG3_NOTIFY_AUTOFILL_ENTER_ON_LAYOUT) != 0) {
            mPrivateFlags3 &= ~PFLAG3_NOTIFY_AUTOFILL_ENTER_ON_LAYOUT;
            notifyEnterOrExitForAutoFillIfNeeded(true);
        }
    }

通过setFrame()来设定View的四个顶点，顶点的位置确定，说明子View在父View中的位置确定。接着调用onLayout(),View与ViewGroup都没有真正的实现onLayout(),下面看一下实现onLayout()的LinearLayout 的该方法：

@Override
    protected void onLayout(boolean changed, int l, int t, int r, int b) {
        if (mOrientation == VERTICAL) {
            layoutVertical(l, t, r, b);
        } else {
            layoutHorizontal(l, t, r, b);
        }
    }
void layoutVertical(int left, int top, int right, int bottom) {
        final int paddingLeft = mPaddingLeft;

        int childTop;
        int childLeft;

        // Where right end of child should go
        final int width = right - left;
        int childRight = width - mPaddingRight;

        // Space available for child
        int childSpace = width - paddingLeft - mPaddingRight;

        final int count = getVirtualChildCount();

        final int majorGravity = mGravity & Gravity.VERTICAL_GRAVITY_MASK;
        final int minorGravity = mGravity & Gravity.RELATIVE_HORIZONTAL_GRAVITY_MASK;

        switch (majorGravity) {
           case Gravity.BOTTOM:
               // mTotalLength contains the padding already
               childTop = mPaddingTop + bottom - top - mTotalLength;
               break;

               // mTotalLength contains the padding already
           case Gravity.CENTER_VERTICAL:
               childTop = mPaddingTop + (bottom - top - mTotalLength) / 2;
               break;

           case Gravity.TOP:
           default:
               childTop = mPaddingTop;
               break;
        }

        for (int i = 0; i < count; i++) {
            final View child = getVirtualChildAt(i);
            if (child == null) {
                childTop += measureNullChild(i);
            } else if (child.getVisibility() != GONE) {
                final int childWidth = child.getMeasuredWidth();
                final int childHeight = child.getMeasuredHeight();

                final LinearLayout.LayoutParams lp =
                        (LinearLayout.LayoutParams) child.getLayoutParams();

                int gravity = lp.gravity;
                if (gravity < 0) {
                    gravity = minorGravity;
                }
                final int layoutDirection = getLayoutDirection();
                final int absoluteGravity = Gravity.getAbsoluteGravity(gravity, layoutDirection);
                switch (absoluteGravity & Gravity.HORIZONTAL_GRAVITY_MASK) {
                    case Gravity.CENTER_HORIZONTAL:
                        childLeft = paddingLeft + ((childSpace - childWidth) / 2)
                                + lp.leftMargin - lp.rightMargin;
                        break;

                    case Gravity.RIGHT:
                        childLeft = childRight - childWidth - lp.rightMargin;
                        break;

                    case Gravity.LEFT:
                    default:
                        childLeft = paddingLeft + lp.leftMargin;
                        break;
                }

                if (hasDividerBeforeChildAt(i)) {
                    childTop += mDividerHeight;
                }

                childTop += lp.topMargin;
                setChildFrame(child, childLeft, childTop + getLocationOffset(child),
                        childWidth, childHeight);
                childTop += childHeight + lp.bottomMargin + getNextLocationOffset(child);

                i += getChildrenSkipCount(child, i);
            }
        }
    }
