本文详细介绍了在Linux环境下安装和配置OpenStack Neutron网络服务的过程，包括使用YUM安装Neutron组件、编辑配置文件neutron.conf和linuxbridge_agent.ini、重启Nova计算服务、启用并启动Linux Bridge代理服务，以及通过命令验证网络代理和服务状态。

一安装与配置

[root@linux-node4 ~]# yum install openstack-neutron-linuxbridge ebtables ipset

[root@linux-node4 ~]# vim /etc/neutron/neutron.conf
auth_strategy = keystone -27
[keystone_authtoken] -794
auth_uri = http://10.0.0.17:5000
auth_url = http://10.0.0.17:35357
memcached_servers = 10.0.0.17:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = neutron

transport_url = rabbit://openstack:openstack@10.0.0.17 --553
lock_path = /var/lib/neutron/tmp --1136

[root@linux-node3 neutron]# scp /etc/neutron/plugins/ml2/linuxbridge_agent.ini 10.0.0.17:/etc/neutron/plugins/ml2/ 把控制节点的配置直接考过去一样的注意看下配置改没改，我考过来竟然是没改的。
[root@linux-node4 ml2]# vim /etc/nova/nova.conf
[neutron]
url = http://10.0.0.17:9696
auth_url = http://10.0.0.17:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = neutron

[root@linux-node4 ml2]# systemctl restart openstack-nova-compute.service
[root@linux-node4 ml2]# systemctl enable neutron-linuxbridge-agent.service
[root@linux-node4 ml2]# systemctl start neutron-linuxbridge-agent.service

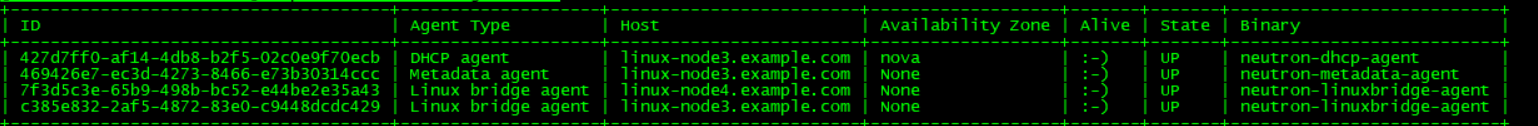

[root@linux-node3 neutron]# openstack network agent list 4笑脸成功
在这里插入图片描述

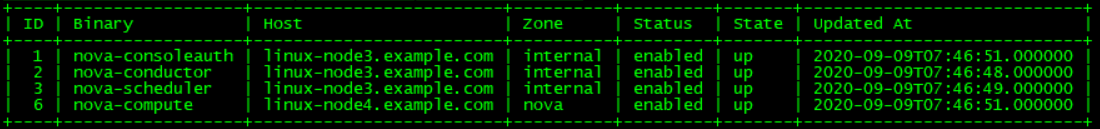

[root@linux-node3 neutron]# openstack compute service list

[root@linux-node3 neutron]# openstack image list
