varnish服务配置
服务端配置(172.25.41.1)
安装varnish
软件下载安装顺序
jemalloc-3.6.0-1.el7.x86_64.rpm
varnish-libs-4.0.5-1.el7.x86_64.rpm
varnish-4.0.5-1.el7.x86_64.rpm

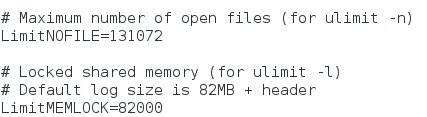

查看文件/usr/lib/systemd/system/varnished.service
文件最大限制数
LimitNOFILE=131072 最大打开文件数131072/2反向代理,连接占用/打开占用
最大缓存大小
LimitMEMLOCK=820000 最大
查看文件/etc/varnish/varnish.params
修改端口
VARNISH_LISTEN_PORT=80
查看/etc/security/limits.conf
修改本机限制
varnish - nofile 131072
varnish - memlock 82000
修改配置文件/etc/varnish/default.vcl
添加缓存对象
# 添加缓存对象
backend default {
.host = "172.25.41.2";
.port = "80";
}

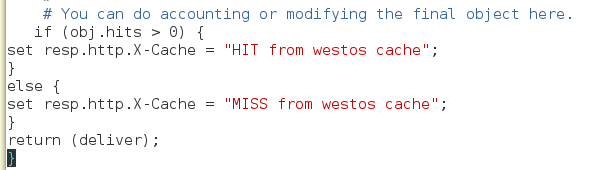

返回缓存命中结果
# 返回缓存命中结果
sub vcl_deliver {
if (obj.hits > 0) {
set resp.http.X-Cache = "HIT from westos cache";
}
else {
set resp.http.X-Cache = "MISS from westos cache";
}
return (deliver);
}
客户端配置(172.25.41.2)
安装apache
yum insatll -y httpd
编写index.html,内容为www.octopus.com

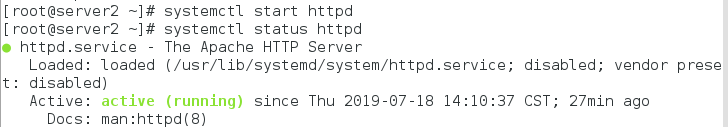

启动apache

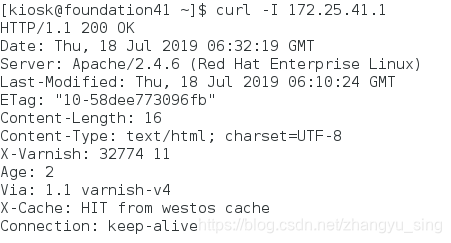

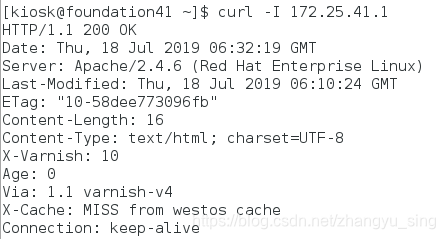

验证结果
主机访问CDN主机
第一次访问结果为MISS
第二次访问结果为HIT
手动清除缓存
varnishadm ban req.url "~" /

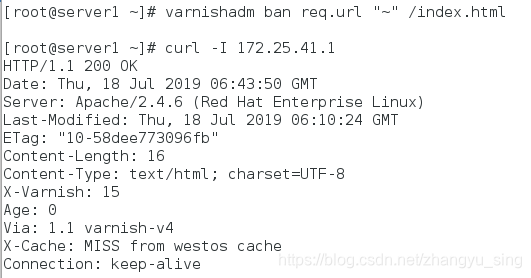

清除固定页面缓存
vanishadm ban req.url "~" /index.html
清除缓存后再次测试
Age时间到达之后也会自动刷新缓存
配置多后端缓存
添加新的客户端

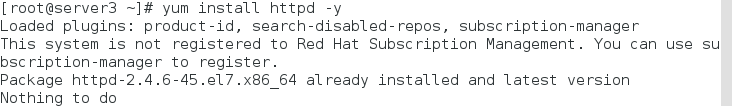

添加一个新的主机,安装apache服务
设置主页面为bbs.octopus.com

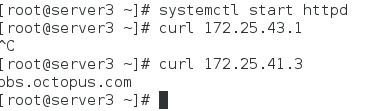

启动apache服务,测试访问
服务端
修改varnish服务端配置文件/etc/varnish/default.vcl
配置多后端文件
backend www {
.host = "172.25.41.2";
.port = "80";
}
# 添加一个新的apache服务器
backend bbs {
.host = "172.25.41.3";
.port = "80";
}
配置接收策略
sub vcl_recv {
# Happens before we check if we have this in cache already.
#
# Typically you clean up the request here, removing cookies you don't need,
# rewriting the request, etc.
if (req.http.host ~ "^(www.)?octopus.com") {
set req.http.host = "www.octopus.com";
set req.backend_hint = www;
} elsif (req.http.host ~ "^bbs.octopus.com") {
set req.backend_hint = bbs;
} else {
return (synth(405));
}
}
重启服务varnish
systemctl restart varnish
验证结果
配置访问主机的本地域名解析
验证结果
配置调度策略
服务器端配置
修改配置文件/etc/varnish/default.vcl
添加模块
import directors from "/usr/lib64/varnish/vmods/libvmod_directors.so";
设置调度器
sub vcl_init{
new lb = directors.round_robin();
lb.add_backend(www);
lb.add_backend(bbs);
}

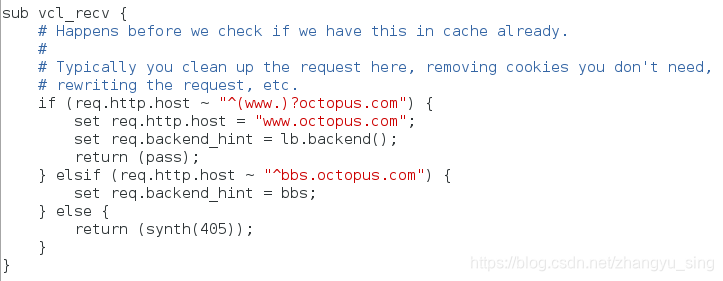

使用调度器
sub vcl_recv {
# Happens before we check if we have this in cache already.
#
# Typically you clean up the request here, removing cookies you don't need,
# rewriting the request, etc.
if (req.http.host ~ "^(www.)?octopus.com") {
set req.http.host = "www.octopus.com";
# 使用调度器
set req.backend_hint = lb.backend();
# 清除缓存,实际配置的时候不需要加
return (pass);
} elsif (req.http.host ~ "^bbs.octopus.com") {
set req.backend_hint = bbs;
} else {
return (synth(405));
}
}

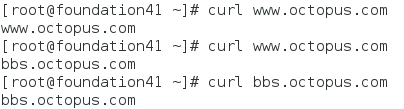

验证结果
访问www.octopus.com轮询不同的网站,访问bbs.octopus.com只返回一个网站
网页方式清除缓存
varnish服务端
修改配置文件/etc/varnish/default.vcl
添加可修改权限
acl octopus {
"127.0.0.1";
"172.25.41.0"/24;
}

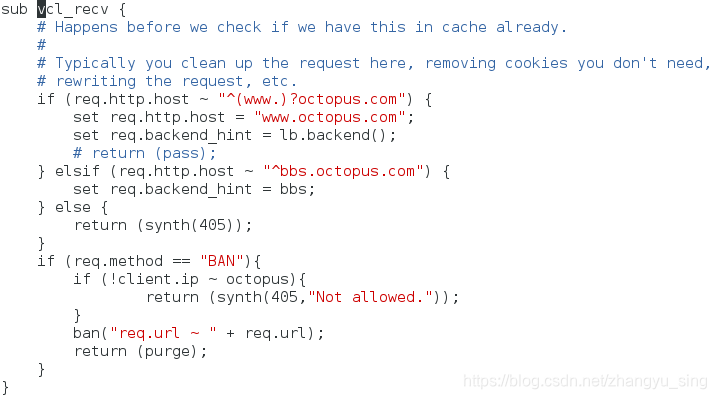

设置接收方式和返回值
if (req.method == "BAN"){
if (!client.ip ~ octopus){
return (synth(405,"Not allowed."));
}
ban("req.url ~ " + req.url);
return (purge);
}
安装apache,php,修改端口为8080
解压文件bansys,移动所有文件至网站发布目录/var/www/html

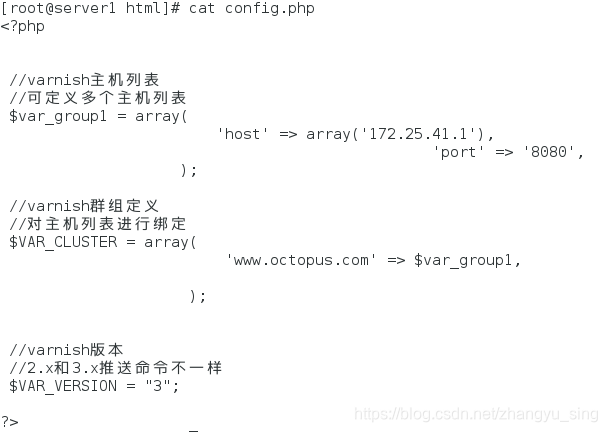

修改其中的config.php文件内容如下
<?php
//varnish主机列表
//可定义多个主机列表
$var_group1 = array(
//CDN主机
'host' => array('172.25.41.1'),
//端口
'port' => '8080',
);
//varnish群组定义
//对主机列表进行绑定
$VAR_CLUSTER = array(
# 设定主机列表
'www.octopus.com' => $var_group1,
);
//varnish版本
//2.x和3.x推送命令不一样
$VAR_VERSION = "3";
?>
启动apache
systemctl start httpd
验证结果

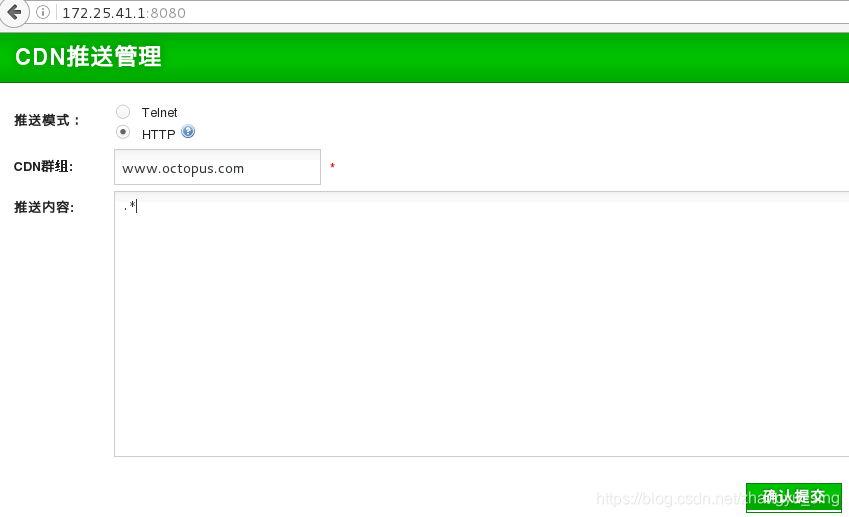

打开网页
发送清除缓存的内容,发现缓存刷新
