重发布实验

1.使用双点双向重发布

2.所有路由器进行最佳选路

3.存在备份路径，不得出现环路，和路由回馈

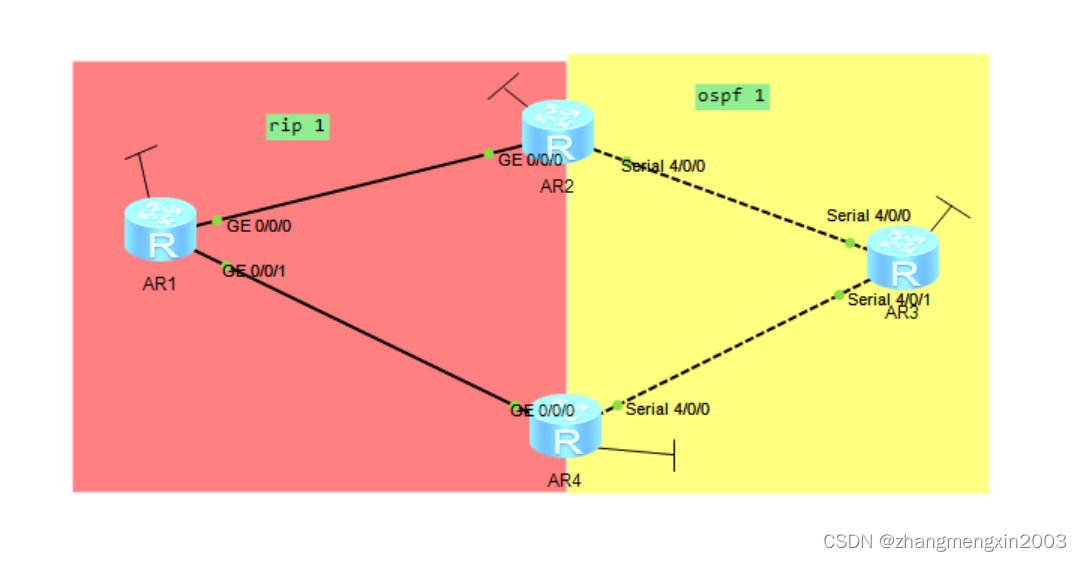

第一步：IP地址划分

设备	接口	地址
R1	GE0/0/0	12.1.1.1 24
	GE0/0/1	14.1.1.1 24
	Lookback0	1.1.1.1 24
R2	GE0/0/0	12.1.1.2 24
	S4/0/0	23.1.1.2 24
	Lookback0	2.2.2.2 24
R3	S4/0/0	23.1.1.3 24
	S4/0/1	34.1.1.3 24
	Lookback0	3.3.3.3 24
R4	GE0/0/0	14.1.1.4 24
	S4/0/0	34.1.1.4 24
	Lookback0	4.4.4.4 24

第二步：配IP

[r1-LoopBack0]ip address 1.1.1.1 24

[r1-GigabitEthernet0/0/0]ip address 12.1.1.1 24

[r1-GigabitEthernet0/0/1]ip address 14.1.1.1 24

[r2-LoopBack0]ip address 2.2.2.2 24

[r2-GigabitEthernet0/0/0]ip address 12.1.1.2 24

[r2-Serial4/0/0]ip address 23.1.1.2 24

[r3-LoopBack0]ip address 3.3.3.3 24

[r3-Serial4/0/0]ip address 23.1.1.3 24

[r3-Serial4/0/1]ip address 34.1.1.3 24

[r4-GigabitEthernet0/0/0]ip address 14.1.1.4 24

[r4-LoopBack0]ip address 4.4.4.4 24

[r4-Serial4/0/0]ip address 34.1.1.4 24

第三步：宣告

[r1]rip 1

[r1-rip-1]ve

[r1-rip-1]version 2

[r1-rip-1]ne

[r1-rip-1]network 12.0.0.0

[r1-rip-1]ne

[r1-rip-1]network 14.0.0.0

[r1-rip-1]ne

[r1-rip-1]network 1.0.0.0

[r2]rip 1

[r2-rip-1]ve

[r2-rip-1]verify-source

[r2-rip-1]version 2

[r2-rip-1]ne

[r2-rip-1]network 12.0.0.0

[r2-rip-1]network 2.0.0.0

[r2-ospf-1-area-0.0.0.0]network 23.1.1.0 0.0.0.255

[r3]ospf 1

[r3-ospf-1]ar

[r3-ospf-1]arp-ping

[r3-ospf-1]area 0

[r3-ospf-1-area-0.0.0.0]ne

[r3-ospf-1-area-0.0.0.0]network 3.3.3.0 0.0.0.255

[r3-ospf-1-area-0.0.0.0]ne

[r3-ospf-1-area-0.0.0.0]network 23.1.1.0 0.0.0.255

[r3-ospf-1-area-0.0.0.0]network 34.1.1.0 0.0.0.255

[r4]rip 1

[r4-rip-1]ve

[r4-rip-1]verify-source

[r4-rip-1]version 2

[r4-rip-1]ne

[r4-rip-1]network 14.0.0.0

[r4]ospf 1

[r4-ospf-1]ar

[r4-ospf-1]arp-ping

[r4-ospf-1]area 0

[r4-ospf-1-area-0.0.0.0]ne

[r4-ospf-1-area-0.0.0.0]network 4.4.4.0 0.0.0.255

[r4-ospf-1-area-0.0.0.0]ne

[r4-ospf-1-area-0.0.0.0]network 34.1.1.0 0.0.0.255

第三步：进行重发布

R2 和R4使用双点双向重发布

[r2]rip 1

[r2-rip-1]im

[r2-rip-1]import-route os

[r2-rip-1]import-route ospf 1

[r2-rip-1]q

[r2]os

[r2]ospf 1

[r2-ospf-1]im

[r2-ospf-1]import-route r

[r2-ospf-1]import-route rip 1

[r4-ospf-1]im

[r4-ospf-1]import-route r

[r4-ospf-1]import-route rip 1

[r4-ospf-1]q

[r4]rip 1

[r4-rip-1]im

[r4-rip-1]import-route os

[r4-rip-1]import-route ospf 1

第四步：所有路由器进行最佳选路

更换接口类型

[r4-LoopBack0]ospf network-type broadcast

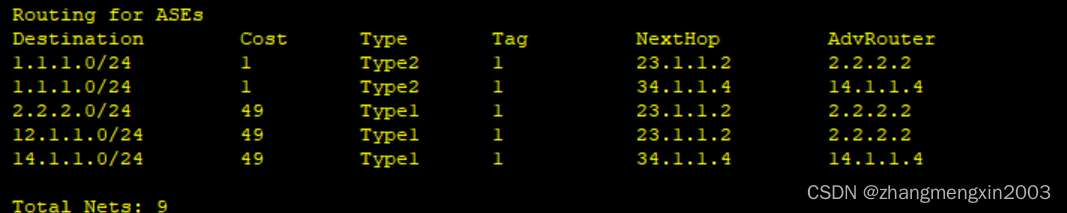

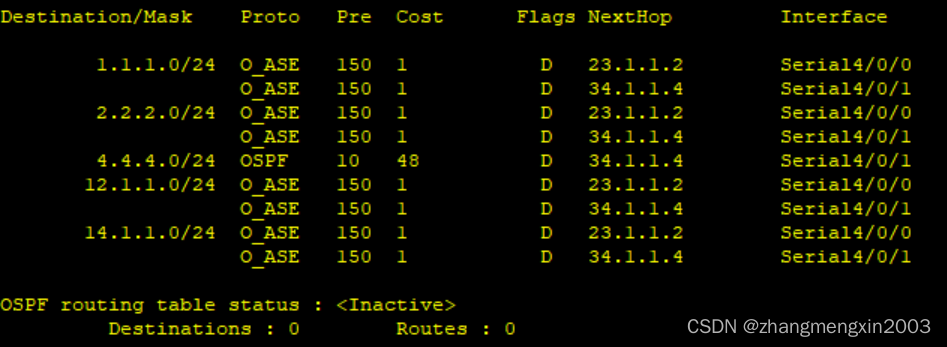

R3

2.2.2.0 24应过23.1.1.2网段

12.1.1.0 24应过23.1.1.2 网段

14.1.1.0 24 应过34.1.1.4网段

2.2.2.0 24应过23.1.1.2网段

[r2]ip ip-prefix 1 permit 2.2.2.0 24

[r2]route-policy 1 permit node 10

[r2-route-policy]if-match ip-prefix 1

[r2-route-policy]apply cost-type type-1

[r2]route-policy 1 permit node 50

[r2-ospf-1]import-route rip route-policy 1

[r4]route-policy 1 permit node 50

[r4-ospf-1]import-route rip 1 route-policy 1

12.1.1.0 24应过23.1.1.2 网段

[r2]ip ip-prefix 2 permit 12.1.1.0 24

[r2]route-policy 1 permit node 15

[r2-route-policy]if-match ip-prefix 2

[r2-route-policy]apply cost-type type-1

14.1.1.0 24 应过34.1.1.4网段

[r4]ip ip-prefix 4 permit 14.1.1.0 24

[r4]route-policy 1 permit node 15

[r4-route-policy]if-match ip-prefix 4

[r4-route-policy]apply cost-type type-1

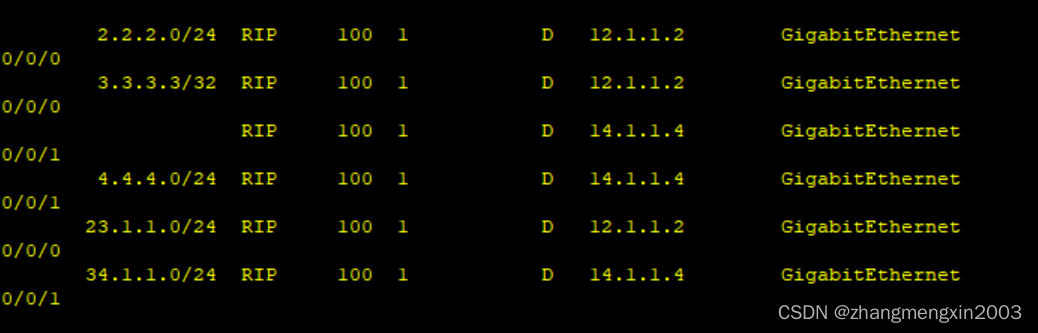

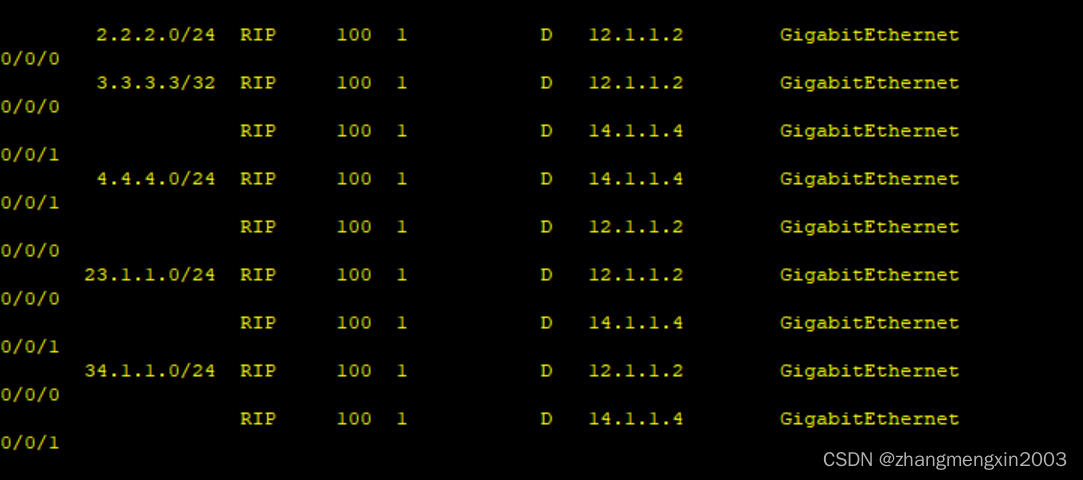

R1

4.4.4.0 24应过14.1.1.4

23.1.1.0 24 应过12.1.1.2

34.1.1.0 24应过14.1.1.4

4.4.4.0 24应过14.1.1.4

[r1]ip ip-prefix 44 permit 4.4.4.0 24

[r1-GigabitEthernet0/0/0]rip metricin ip-prefix 44 2

23.1.1.0 24 应过12.1.1.2

[r1]ip ip-prefix 23 permit 23.1.1.0 24

[r1-GigabitEthernet0/0/1]rip metricin ip-prefix 23 2

34.1.1.0 24应过14.1.1.4

[r1]ip ip-prefix 34 permit 34.1.1.0 24

[r1-GigabitEthernet0/0/0]rip metricin ip-prefix 34 2

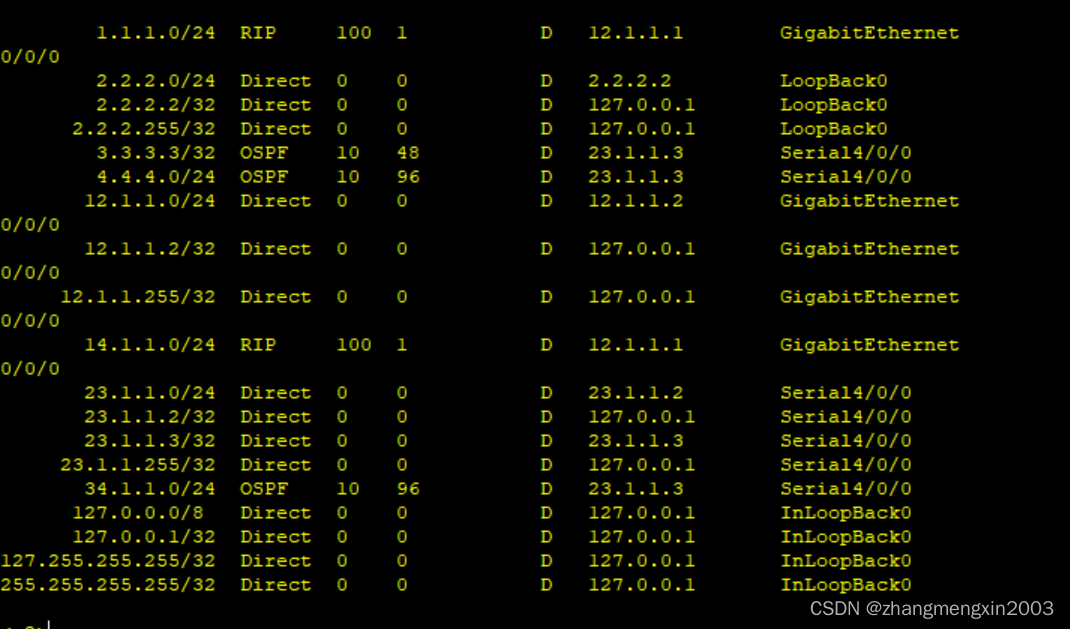

R2

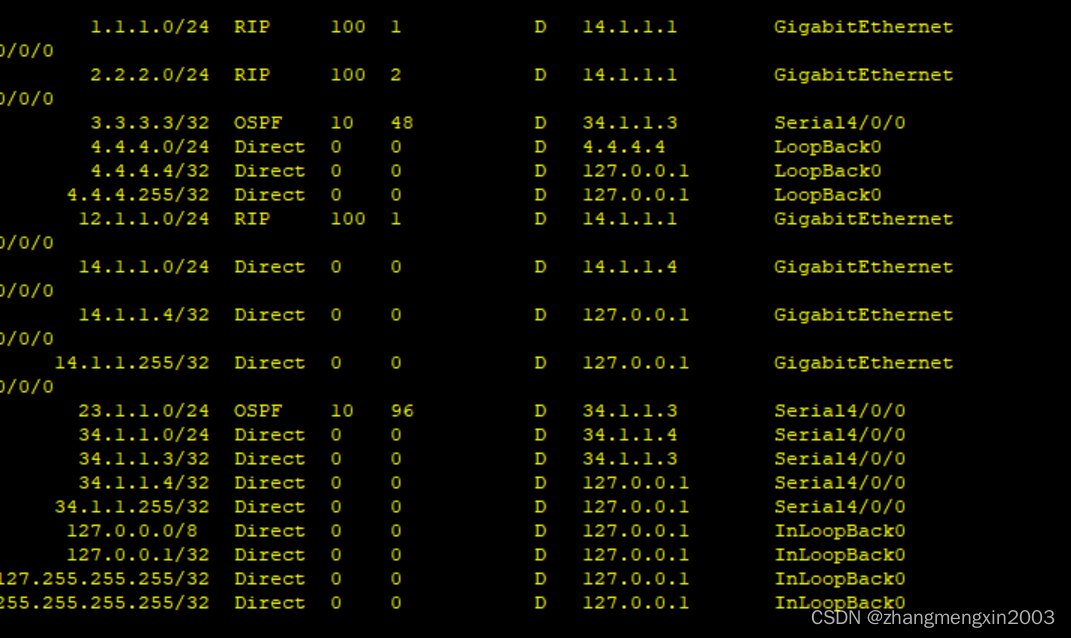

R4
