AliOS-Things+STM32 (六) 堆内存管理（下）

在上一篇中分析了RHINO_CONFIG_MM_BLK/RHINO_CONFIG_MM_TLF_BLK_SIZE没有打开的情况下,堆内存的初始化，和分配释放，现在再了解一下开启这两个宏后的情况，注意，这里RHINO_CONFIG_MM_TLF_BLK_SIZE我设定的是1024。
还是从krhino_init_mm_head开始（略去上一篇分析过的部分）：

kstat_t krhino_init_mm_head(k_mm_head **ppmmhead, void *addr, size_t len )
{
/*执行init_mm_region，k_mm_free(pmmhead, nextblk->mbinfo.buffer);等
pmmhead内存分配已经可用
*/
...

#if (RHINO_CONFIG_MM_BLK > 0)
    /* note: stats_addsize inside */
    /* 直接malloc一块RHINO_CONFIG_MM_TLF_BLK_SIZE + sizeof(mblk_pool_t)的内存大小作为内存池*/
    mmblk_pool = k_mm_alloc(pmmhead, RHINO_CONFIG_MM_TLF_BLK_SIZE + MM_ALIGN_UP(sizeof(mblk_pool_t)));
    if (mmblk_pool) {
    	/*申请成功后初始化内存池*/
        stat = krhino_mblk_pool_init(mmblk_pool, "fixed_mm_blk",
                                     (void *)((size_t)mmblk_pool + MM_ALIGN_UP(sizeof(mblk_pool_t))),
                                     RHINO_CONFIG_MM_BLK_SIZE, RHINO_CONFIG_MM_TLF_BLK_SIZE);
        if (stat == RHINO_SUCCESS) {
        	/* 初始化成功后， 将mmblk_pool内存池给pmmhead统一管理*/
            pmmhead->fix_pool = mmblk_pool;
#if (K_MM_STATISTIC > 0)
            stats_removesize(pmmhead, RHINO_CONFIG_MM_TLF_BLK_SIZE);
#endif
        } else {
        	/*初始化内存池失败的话，释放掉之前申请的内存*/
            /* note: stats_removesize inside */
            k_mm_free(pmmhead, mmblk_pool);
        }
#if (K_MM_STATISTIC > 0)
        pmmhead->maxused_size = pmmhead->used_size;
#endif
    }
#endif

    return RHINO_SUCCESS;
}

接下来就是分析初始化内存池krhino_mblk_pool_init，为了更好了解分配过程，标出各个部分对象实际值 ：

/* pool=0x200018B0, pool_start=0x200018D8, blk_size=0x20, pool_size=400 */
kstat_t krhino_mblk_pool_init(mblk_pool_t *pool, const name_t *name,
                              void *pool_start,
                              size_t blk_size, size_t pool_size)
{
    uint32_t  blks;            /* max blocks mem pool offers */
    uint8_t  *blk_cur;         /* block pointer for traversing */
    uint8_t  *blk_next;        /* next block pointe for traversing */
    uint8_t  *pool_end;        /* mem pool end */
    uint8_t   addr_align_mask; /* address alignment */

    NULL_PARA_CHK(pool);
    NULL_PARA_CHK(name);
    NULL_PARA_CHK(pool_start);

    /* over one block at least */
    if (pool_size < (blk_size << 1u)) {
        return RHINO_BLK_POOL_SIZE_ERR;
    }

    /* check address & size alignment */
    /*addr_align_mask = 0x3*/
    addr_align_mask = sizeof(void *) - 1u;

    if (((size_t)pool_start & addr_align_mask) > 0u) {
        return RHINO_INV_ALIGN;
    }

    if ((blk_size & addr_align_mask) > 0u) {
        return RHINO_INV_ALIGN;
    }

    if ((pool_size & addr_align_mask) > 0u) {
        return RHINO_INV_ALIGN;
    }

    krhino_spin_lock_init(&pool->blk_lock);

	/*poll_end=0x20001CD8, blk_cur=0x200018D8, blk_next=0x200018F8*/
    pool_end = (uint8_t *)pool_start + pool_size;
    blks     = 0u;
    blk_cur  = (uint8_t *)pool_start;
    blk_next = blk_cur + blk_size;

    while (blk_next < pool_end) {
        blks++;
        /* use initial 4 byte point to next block */
        *(uint8_t **)blk_cur = blk_next;
        blk_cur              = blk_next;
        blk_next             = blk_cur + blk_size;
    }

    if (blk_next == pool_end) {
        blks++;
    }

    /* the last one */
    *((uint8_t **)blk_cur) = NULL;

    pool->pool_name  = name;
    pool->pool_start = pool_start;
    pool->pool_end   = pool_end;
    pool->blk_whole  = blks;
    pool->blk_avail  = blks;
    pool->blk_size   = blk_size;
    pool->avail_list = (uint8_t *)pool_start;

	/*这句代码没有实现*/
    TRACE_MBLK_POOL_CREATE(krhino_cur_task_get(), pool);

    return RHINO_SUCCESS;
}

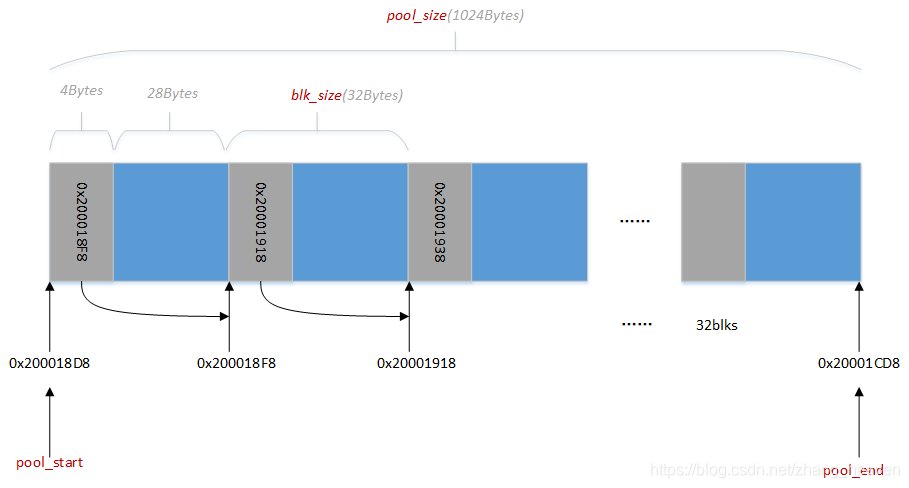

while (blk_next < pool_end) 开始的这段，将整个memory pool开始以blk_size开始分段，示意图如下：

初始化完pool后，调用stats_removesize将这部分空间重新加到mmhead->free_size里，因为这部分空间还是算作可用空间。

然后我们同样，再做一次malloc(1)，来看看空间怎么分配的。
调用过程还是和之前一样：用户态调用malloc(size）-> aos_malloc(size) -> krhino_mm_alloc(size) -> k_mm_alloc(g_kmm_head, size);这个过程中size始终为1， 我们直接分析k_mm_alloc(g_kmm_head, 1)：

void *k_mm_alloc(k_mm_head *mmhead, size_t size)
{
    void        *retptr;
    k_mm_list_t *get_b, *new_b, *next_b;
    int32_t      level;
    size_t       left_size;
    size_t       req_size = size;
#if (RHINO_CONFIG_MM_BLK > 0)
    mblk_pool_t *mm_pool;
#endif
    cpu_cpsr_t flags_cpsr;
    (void)flags_cpsr;

    (void)req_size;

    if (!mmhead) {
        return NULL;
    }

    if (size == 0) {
        return NULL;
    }

    MM_CRITICAL_ENTER(mmhead, flags_cpsr);

#if (RHINO_CONFIG_MM_BLK > 0)
    /* little blk, try to get from mm_pool */
    if (mmhead->fix_pool != NULL) {
        mm_pool = (mblk_pool_t *)mmhead->fix_pool;
        if (size <= RHINO_CONFIG_MM_BLK_SIZE && mm_pool->blk_avail > 0) {
            retptr =  k_mm_smallblk_alloc(mmhead, size);
            if (retptr) {
                MM_CRITICAL_EXIT(mmhead, flags_cpsr);
                return retptr;
            }
        }
    }
#endif
	...
	/*下面这部分不会调用到，不分析*/
}

static void *k_mm_smallblk_alloc(k_mm_head *mmhead, size_t size)
{
    kstat_t sta;
    void   *tmp;

    if (!mmhead) {
        return NULL;
    }

    sta = krhino_mblk_alloc((mblk_pool_t *)mmhead->fix_pool, &tmp);
    if (sta != RHINO_SUCCESS) {
        return NULL;
    }
	//stats_addsize和stats_
    stats_addsize(mmhead, RHINO_CONFIG_MM_BLK_SIZE, 0);

    return tmp;
}

kstat_t krhino_mblk_alloc(mblk_pool_t *pool, void **blk)
{
    kstat_t  status;
    uint8_t *avail_blk;
    cpu_cpsr_t flags_cpsr;

    NULL_PARA_CHK(pool);
    NULL_PARA_CHK(blk);

    krhino_spin_lock_irq_save(&pool->blk_lock, flags_cpsr);

    if (pool->blk_avail > 0u) {
        avail_blk          = pool->avail_list;
        /* 当前blk地址作为内容放到blk对象中传出去*/
        *((uint8_t **)blk) = avail_blk;
        /* the first 4 byte is the pointer for next block */
        /*pool->avail_list指向了自身地址上内容作为地址的地方，也就是下一个blk*/
        pool->avail_list   = *(uint8_t **)(avail_blk);
        /*pool中可用块减一*/
        pool->blk_avail--;
        status = RHINO_SUCCESS;
    } else {
        *((uint8_t **)blk) = NULL;
        status = RHINO_NO_MEM;
    }

    krhino_spin_unlock_irq_restore(&pool->blk_lock, flags_cpsr);

    return status;
}

由于我们申请的size=1< RHINO_CONFIG_MM_BLK_SIZE，所以会调用到memory pool中的分配，而不会像上篇那样， 再给我们切出一个blk分配。可以看到，调用的关键在krhino_mblk_alloc里，将pool->avail_list当前的内存地址放到了**blk中传出去，将pool->avail_list指向下一个空闲blk的地址。分配就完成了，给出去的地址包含一个32bytes的空闲区域，肯定满足申请size需要。

我们再来看下free掉这个malloc(1)时候的情况：
free()->aos_free()-> krhino_mm_free(mem)->k_mm_free(g_kmm_head, ptr)->

void  k_mm_free(k_mm_head *mmhead, void *ptr)
{
    k_mm_list_t *free_b, *next_b, *prev_b;
    cpu_cpsr_t flags_cpsr;
    (void)flags_cpsr;

    if (!ptr || !mmhead) {
        return;
    }

    MM_CRITICAL_ENTER(mmhead, flags_cpsr);

#if (RHINO_CONFIG_MM_BLK > 0)
    /* fix blk, free to mm_pool */
    if (krhino_mblk_check(mmhead->fix_pool, ptr)) {
        /*it's fixed size memory block*/
        k_mm_smallblk_free(mmhead, ptr);
        MM_CRITICAL_EXIT(mmhead, flags_cpsr);
        return;
    }
#endif
	...
	/*下面这部分不会调用到，不分析*/
}

#define krhino_mblk_check(pool, blk)                             \
        ((pool) != NULL                                          \
        && ((void *)(blk) >= ((mblk_pool_t*)(pool))->pool_start) \
        && ((void *)(blk) <  ((mblk_pool_t*)(pool))->pool_end))

在krhino_mblk_check中，判断释放内存的起始地址是不是在memory pool申请的地址返回内，是的话，执行pool的释放操作k_mm_smallblk_free。

static void k_mm_smallblk_free(k_mm_head *mmhead, void *ptr)
{
    kstat_t sta;

    if (!mmhead || !ptr) {
        return;
    }

    sta = krhino_mblk_free((mblk_pool_t *)mmhead->fix_pool, ptr);
    if (sta != RHINO_SUCCESS) {
        k_err_proc(RHINO_SYS_FATAL_ERR);
    }

    stats_removesize(mmhead, RHINO_CONFIG_MM_BLK_SIZE);
}
kstat_t krhino_mblk_free(mblk_pool_t *pool, void *blk)
{
    cpu_cpsr_t flags_cpsr;
    NULL_PARA_CHK(pool);
    NULL_PARA_CHK(blk);

    krhino_spin_lock_irq_save(&pool->blk_lock, flags_cpsr);

    /* use the first 4 byte of the free block point to head of avail list */
    *((uint8_t **)blk) = pool->avail_list;
    pool->avail_list   = blk;
    pool->blk_avail++;

    krhino_spin_unlock_irq_restore(&pool->blk_lock, flags_cpsr);

    return RHINO_SUCCESS;
}

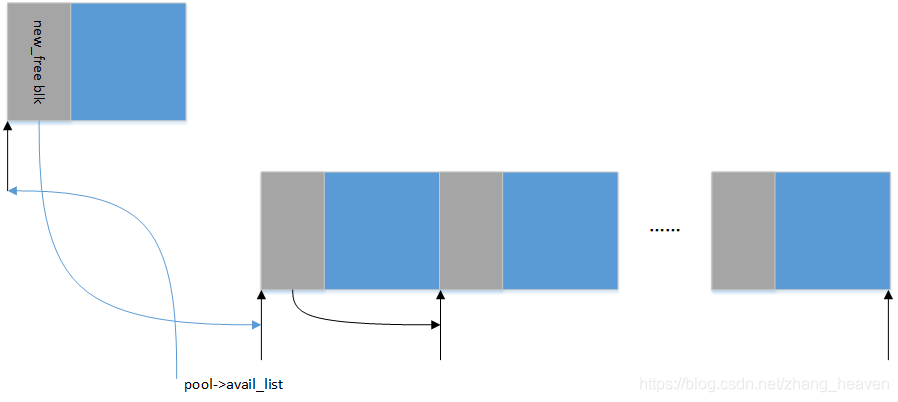

最后执行到krhino_mblk_free，操作很简单，将要释放的blk内容中的第一个地址指向pool->avail_list， 再讲pool->avail_list直接指向要释放的blk，pool->blk_avail++，这样就完成了释放这个blk动作，也就是说，新释放的blk放到了memory pool的首个位置。而整个申请和释放pool中blk的过程中， mmhead->fix_pool中的pool_start，pool_end是不会变的，变的只是avail_list（指向空闲首个blk），blk_avail（可用空闲blk）。

对比上一篇malloc(1)耗费40bytes,虽然只节省了8bytes，但如果在频繁申请不同大小内存的情况下，还能够避免一定程度上的内存碎片的产生，申请过程也更简单。
