gantt-elastic甘特图（增加连接线箭头指向）

原创 于 2024-11-08 16:30:03 发布 · 418 阅读 · 6 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#甘特图

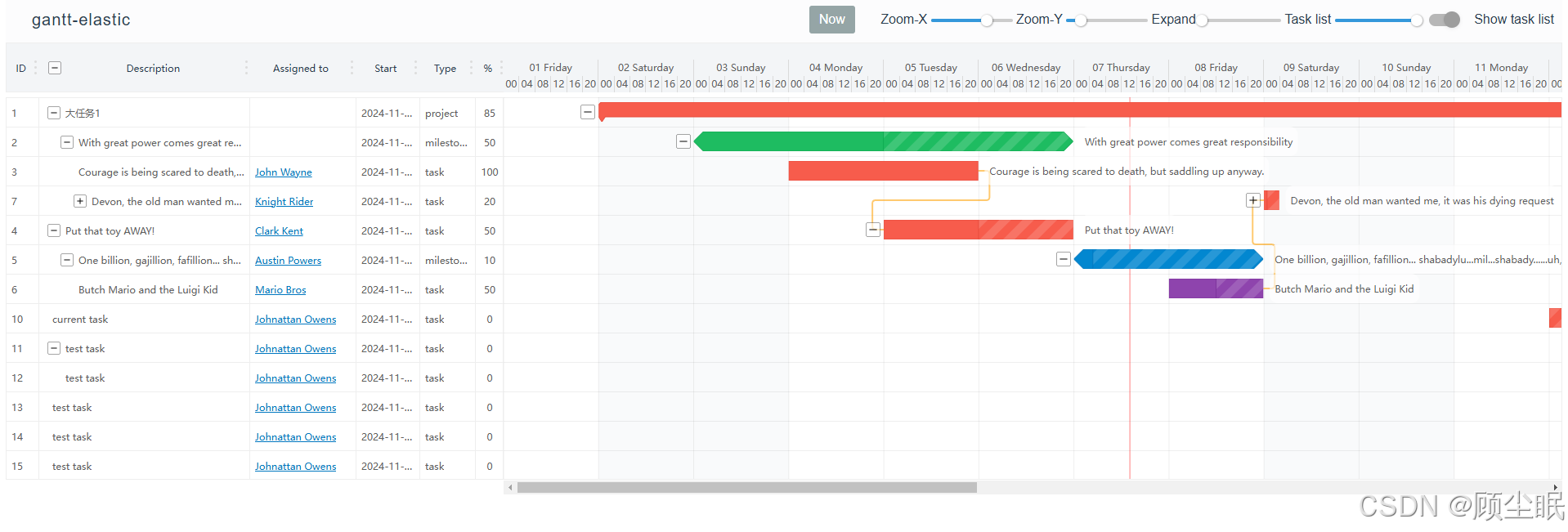

gantt-elastic正常甘特图连接线

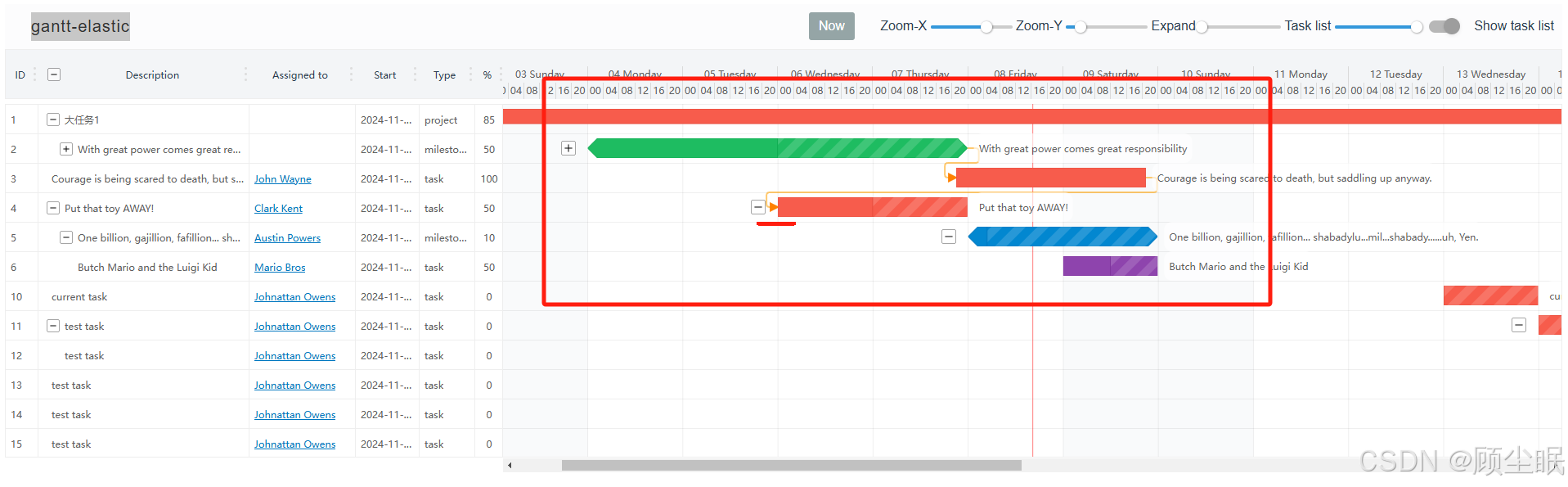

优化后甘特图连接线

由于甘特图连接线不带箭头指向样式，所以手动修改node包文件

包的这个文件（node_modules\gantt-elastic\src\components\Chart\DependencyLines.vue）

（懒得标注修改哪了，直接整个文件替换就好）

<!--
/**
 * @fileoverview DependencyLines component
 * @license MIT
 * @author Rafal Pospiech <neuronet.io@gmail.com>
 * @package GanttElastic
 */
-->
<template>
  <svg
    x="0"
    y="0"
    width="100%"
    height="100%"
    class="gantt-elastic__chart-dependency-lines-container"
    :style="{ ...root.style['chart-dependency-lines-container'] }"
  >
    <g v-for="task in dependencyTasks" :key="task.id" :task="task">
      <defs>
        <marker id="markerArrow" markerWidth="8" markerHeight="8" refX="7" refY="5" orient="auto">
          <path d="M2,2 L2,8 L8,5 L2,2" style="fill: rgb(255 129 0)" />
        </marker>
      </defs>
      <path
        class="gantt-elastic__chart-dependency-lines-path"
        style=" marker-end: url(#markerArrow)"
        :style="{
          ...root.style['chart-dependency-lines-path'],
          ...task.style['chart-dependency-lines-path'],
          ...task.style['chart-dependency-lines-path-' + dependencyLine.task_id],
        }"
        v-for="dependencyLine in task.dependencyLines"
        :key="dependencyLine.id"
        :task="task"
        :d="dependencyLine.points"
      ></path>
    </g>
  </svg>
</template>

<script>
export default {
  name: 'DependencyLines',
  inject: ['root'],
  props: ['tasks'],
  data() {
    return {};
  },
  methods: {
    /**
     * Get path points
     *
     * @param {any} fromTaskId
     * @param {any} toTaskId
     * @returns {string}
     */
    getPoints(fromTaskId, toTaskId) {
      const fromTask = this.root.getTask(fromTaskId);
      const toTask = this.root.getTask(toTaskId);
      if (
        fromTask === null ||
        toTask === null ||
        !this.root.isTaskVisible(toTask) ||
        !this.root.isTaskVisible(fromTask)
      ) {
        return null;
      }
      const startX = fromTask.x + fromTask.width;
      const startY = fromTask.y + fromTask.height / 2;
      const stopX = toTask.x;
      const stopY = toTask.y + toTask.height / 2;
      const distanceX = stopX - startX;
      let distanceY;
      let yMultiplier = 1;
      if (stopY >= startY) {
        distanceY = stopY - startY;
      } else {
        distanceY = startY - stopY;
        yMultiplier = -1;
      }
      const offset = 10;
      const roundness = 4;
      const isBefore = distanceX <= offset + roundness;
      let points = `M ${startX} ${startY}
          L ${startX + offset},${startY} `;
      if (isBefore) {
        points += `Q ${startX + offset + roundness},${startY} ${startX + offset + roundness},${
          startY + roundness * yMultiplier
        }
            L ${startX + offset + roundness},${startY + (distanceY * yMultiplier) / 2 - roundness * yMultiplier}
            Q ${startX + offset + roundness},${startY + (distanceY * yMultiplier) / 2} ${startX + offset},${
          startY + (distanceY * yMultiplier) / 2
        }
            L ${startX - offset + distanceX},${startY + (distanceY * yMultiplier) / 2}
            Q ${startX - offset + distanceX - roundness},${startY + (distanceY * yMultiplier) / 2} ${
          startX - offset + distanceX - roundness
        },${startY + (distanceY * yMultiplier) / 2 + roundness * yMultiplier}
            L ${startX - offset + distanceX - roundness},${stopY - roundness * yMultiplier}
            Q ${startX - offset + distanceX - roundness},${stopY} ${startX - offset + distanceX},${stopY}
            L ${stopX},${stopY}`;
      } else {
        points += `L ${startX + distanceX / 2 - roundness},${startY}
            Q ${startX + distanceX / 2},${startY} ${startX + distanceX / 2},${startY + roundness * yMultiplier}
            L ${startX + distanceX / 2},${stopY - roundness * yMultiplier}
            Q ${startX + distanceX / 2},${stopY} ${startX + distanceX / 2 + roundness},${stopY}
            L ${stopX},${stopY}`;
      }
      return points;
    },
  },
  computed: {
    /**
     * Get tasks which are dependent on other tasks
     *
     * @returns {array}
     */
    dependencyTasks() {
      return this.tasks
        .filter((task) => typeof task.dependentOn !== 'undefined')
        .map((task) => {
          task.dependencyLines = task.dependentOn.map((id) => {
            return { points: this.getPoints(id, task.id), task_id: id };
          });
          return task;
        })
        .filter((task) => task.dependencyLines.points !== null);
    },
  },
};
</script>

包的这个文件（node_modules\gantt-elastic\src\components\Chart\Row\Milestone.vue）

<!--
/**
 * @fileoverview Milestone component
 * @license MIT
 * @author Rafal Pospiech <neuronet.io@gmail.com>
 * @package GanttElastic
 */
-->
<template>
  <g
    class="gantt-elastic__chart-row-bar-wrapper gantt-elastic__chart-row-milestone-wrapper"
    :style="{
      ...root.style['chart-row-bar-wrapper'],
      ...root.style['chart-row-milestone-wrapper'],
      ...task.style['chart-row-bar-wrapper']
    }"
  >
    <foreignObject
      class="gantt-elastic__chart-expander gantt-elastic__chart-expander--milestone"
      :style="{
        ...root.style['chart-expander'],
        ...root.style['chart-expander--milestone'],
        ...task.style['chart-expander']
      }"
      :x="(task.x - root.state.options.chart.expander.offset - root.state.options.chart.expander.size)-11"
      :y="task.y + (root.state.options.row.height - root.state.options.chart.expander.size) / 2"
      :width="root.state.options.chart.expander.size"
      :height="root.state.options.chart.expander.size"
      v-if="displayExpander"
    >
      <expander :tasks="[task]" :options="root.state.options.chart.expander" type="chart"></expander>
    </foreignObject>
    <svg
      class="gantt-elastic__chart-row-bar gantt-elastic__chart-row-milestone"
      :style="{ ...root.style['chart-row-bar'], ...root.style['chart-row-milestone'], ...task.style['chart-row-bar'] }"
      :x="task.x"
      :y="task.y"
      :width="task.width"
      :height="task.height"
      :viewBox="`0 0 ${task.width} ${task.height}`"
      @click="emitEvent('click', $event)"
      @mouseenter="emitEvent('mouseenter', $event)"
      @mouseover="emitEvent('mouseover', $event)"
      @mouseout="emitEvent('mouseout', $event)"
      @mousemove="emitEvent('mousemove', $event)"
      @mousedown="emitEvent('mousedown', $event)"
      @mouseup="emitEvent('mouseup', $event)"
      @mousewheel="emitEvent('mousewheel', $event)"
      @touchstart="emitEvent('touchstart', $event)"
      @touchmove="emitEvent('touchmove', $event)"
      @touchend="emitEvent('touchend', $event)"
      xmlns="http://www.w3.org/2000/svg"
    >
      <defs>
        <clipPath :id="clipPathId">
          <polygon :points="getPoints"></polygon>
        </clipPath>
      </defs>
      <polygon
        class="gantt-elastic__chart-row-bar-polygon gantt-elastic__chart-row-milestone-polygon"
        :style="{
          ...root.style['chart-row-bar-polygon'],
          ...root.style['chart-row-milestone-polygon'],
          ...task.style['base'],
          ...task.style['chart-row-bar-polygon']
        }"
        :points="getPoints"
      ></polygon>
      <progress-bar :task="task" :clip-path="'url(#' + clipPathId + ')'"></progress-bar>
    </svg>
    <chart-text :task="task" v-if="root.state.options.chart.text.display"></chart-text>
  </g>
</template>

<script>
import ChartText from '../Text.vue';
import ProgressBar from '../ProgressBar.vue';
import Expander from '../../Expander.vue';
import taskMixin from './Task.mixin.js';
export default {
  name: 'Milestone',
  components: {
    ChartText,
    ProgressBar,
    Expander
  },
  inject: ['root'],
  props: ['task'],
  mixins: [taskMixin],
  data() {
    return {};
  },
  computed: {
    /**
     * Get clip path id
     *
     * @returns {string}
     */
    clipPathId() {
      return 'gantt-elastic__milestone-clip-path-' + this.task.id;
    },

    /**
     * Get points
     *
     * @returns {string}
     */
    getPoints() {
      const task = this.task;
      const fifty = task.height / 2;
      let offset = fifty;
      if (task.width / 2 - offset < 0) {
        offset = task.width / 2;
      }
      return `0,${fifty}
        ${offset},0
        ${task.width - offset},0
        ${task.width},${fifty}
        ${task.width - offset},${task.height}
        ${offset},${task.height}`;
    }
  }
};
</script>

包的这个文件（node_modules\gantt-elastic\src\components\Chart\Row\Project.vue）

<!--
/**
 * @fileoverview Project component
 * @license MIT
 * @author Rafal Pospiech <neuronet.io@gmail.com>
 * @package GanttElastic
 */
-->
<template>
  <g
    class="gantt-elastic__chart-row-bar-wrapper gantt-elastic__chart-row-project-wrapper"
    :style="{
      ...root.style['chart-row-bar-wrapper'],
      ...root.style['chart-row-project-wrapper'],
      ...task.style['chart-row-bar-wrapper']
    }"
  >
    <foreignObject
      class="gantt-elastic__chart-expander gantt-elastic__chart-expander--project"
      :style="{
        ...root.style['chart-expander'],
        ...root.style['chart-expander--project'],
        ...task.style['chart-expander']
      }"
      :x="(task.x - root.state.options.chart.expander.offset - root.state.options.chart.expander.size)-11"
      :y="task.y + (root.state.options.row.height - root.state.options.chart.expander.size) / 2"
      :width="root.state.options.chart.expander.size"
      :height="root.state.options.chart.expander.size"
      v-if="displayExpander"
    >
      <expander :tasks="[task]" :options="root.state.options.chart.expander" type="chart"></expander>
    </foreignObject>
    <svg
      class="gantt-elastic__chart-row-bar gantt-elastic__chart-row-project"
      :style="{ ...root.style['chart-row-bar'], ...root.style['chart-row-project'], ...task.style['chart-row-bar'] }"
      :x="task.x"
      :y="task.y"
      :width="task.width"
      :height="task.height"
      :viewBox="`0 0 ${task.width} ${task.height}`"
      @click="emitEvent('click', $event)"
      @mouseenter="emitEvent('mouseenter', $event)"
      @mouseover="emitEvent('mouseover', $event)"
      @mouseout="emitEvent('mouseout', $event)"
      @mousemove="emitEvent('mousemove', $event)"
      @mousedown="emitEvent('mousedown', $event)"
      @mouseup="emitEvent('mouseup', $event)"
      @mousewheel="emitEvent('mousewheel', $event)"
      @touchstart="emitEvent('touchstart', $event)"
      @touchmove="emitEvent('touchmove', $event)"
      @touchend="emitEvent('touchend', $event)"
      xmlns="http://www.w3.org/2000/svg"
    >
      <defs>
        <clipPath :id="clipPathId">
          <path :d="getPoints"></path>
        </clipPath>
      </defs>
      <path
        class="gantt-elastic__chart-row-bar-polygon gantt-elastic__chart-row-project-polygon"
        :style="{
          ...root.style['chart-row-bar-polygon'],
          ...root.style['chart-row-project-polygon'],
          ...task.style['base'],
          ...task.style['chart-row-bar-polygon']
        }"
        :d="getPoints"
      ></path>
      <progress-bar :task="task" :clip-path="'url(#' + clipPathId + ')'"></progress-bar>
    </svg>
    <chart-text :task="task" v-if="root.state.options.chart.text.display"></chart-text>
  </g>
</template>

<script>
import ChartText from '../Text.vue';
import ProgressBar from '../ProgressBar.vue';
import Expander from '../../Expander.vue';
import taskMixin from './Task.mixin.js';
export default {
  name: 'Project',
  components: {
    ChartText,
    ProgressBar,
    Expander
  },
  inject: ['root'],
  props: ['task'],
  mixins: [taskMixin],
  data() {
    return {};
  },
  computed: {
    /**
     * Get clip path id
     *
     * @returns {string}
     */
    clipPathId() {
      return 'gantt-elastic__project-clip-path-' + this.task.id;
    },

    /**
     * Get points
     *
     * @returns {string}
     */
    getPoints() {
      const task = this.task;
      const bottom = task.height - task.height / 4;
      const corner = task.height / 6;
      const smallCorner = task.height / 8;
      return `M ${smallCorner},0
                L ${task.width - smallCorner} 0
                L ${task.width} ${smallCorner}
                L ${task.width} ${bottom}
                L ${task.width - corner} ${task.height}
                L ${task.width - corner * 2} ${bottom}
                L ${corner * 2} ${bottom}
                L ${corner} ${task.height}
                L 0 ${bottom}
                L 0 ${smallCorner}
                Z
        `;
    },

    /**
     * Should we display expander?
     *
     * @returns {boolean}
     */
    displayExpander() {
      const expander = this.root.state.options.chart.expander;
      return expander.display || (expander.displayIfTaskListHidden && !this.root.state.options.taskList.display);
    }
  }
};
</script>

包的这个文件（node_modules\gantt-elastic\src\components\Chart\Row\Task.vue）

<!--
/**
 * @fileoverview Task component
 * @license MIT
 * @author Rafal Pospiech <neuronet.io@gmail.com>
 * @package GanttElastic
 */
-->
<template>
  <g
    class="gantt-elastic__chart-row-bar-wrapper gantt-elastic__chart-row-task-wrapper"
    :style="{
      ...root.style['chart-row-bar-wrapper'],
      ...root.style['chart-row-task-wrapper'],
      ...task.style['chart-row-bar-wrapper']
    }"
  >
    <foreignObject
      class="gantt-elastic__chart-expander gantt-elastic__chart-expander--task"
      :style="{
        ...root.style['chart-expander'],
        ...root.style['chart-expander--task'],
        ...task.style['chart-expander']
      }"
      :x="(task.x - root.state.options.chart.expander.offset - root.state.options.chart.expander.size)-11"
      :y="task.y + (root.state.options.row.height - root.state.options.chart.expander.size) / 2"
      :width="root.state.options.chart.expander.size"
      :height="root.state.options.chart.expander.size"
      v-if="displayExpander"
    >
      <expander :tasks="[task]" :options="root.state.options.chart.expander" type="chart"></expander>
    </foreignObject>
    <svg
      class="gantt-elastic__chart-row-bar gantt-elastic__chart-row-task"
      :style="{ ...root.style['chart-row-bar'], ...root.style['chart-row-task'], ...task.style['chart-row-bar'] }"
      :x="task.x"
      :y="task.y"
      :width="task.width"
      :height="task.height"
      :viewBox="`0 0 ${task.width} ${task.height}`"
      @click="emitEvent('click', $event)"
      @mouseenter="emitEvent('mouseenter', $event)"
      @mouseover="emitEvent('mouseover', $event)"
      @mouseout="emitEvent('mouseout', $event)"
      @mousemove="emitEvent('mousemove', $event)"
      @mousedown="emitEvent('mousedown', $event)"
      @mouseup="emitEvent('mouseup', $event)"
      @mousewheel="emitEvent('mousewheel', $event)"
      @touchstart="emitEvent('touchstart', $event)"
      @touchmove="emitEvent('touchmove', $event)"
      @touchend="emitEvent('touchend', $event)"
      xmlns="http://www.w3.org/2000/svg"
    >
      <defs>
        <clipPath :id="clipPathId">
          <polygon :points="getPoints"></polygon>
        </clipPath>
      </defs>
      <polygon
        class="gantt-elastic__chart-row-bar-polygon gantt-elastic__chart-row-task-polygon"
        :style="{
          ...root.style['chart-row-bar-polygon'],
          ...root.style['chart-row-task-polygon'],
          ...task.style['base'],
          ...task.style['chart-row-bar-polygon']
        }"
        :points="getPoints"
      ></polygon>
      <progress-bar :task="task" :clip-path="'url(#' + clipPathId + ')'"></progress-bar>
    </svg>
    <chart-text :task="task" v-if="root.state.options.chart.text.display"></chart-text>
  </g>
</template>

<script>
import ChartText from '../Text.vue';
import ProgressBar from '../ProgressBar.vue';
import Expander from '../../Expander.vue';
import taskMixin from './Task.mixin.js';
export default {
  name: 'Task',
  components: {
    ChartText,
    ProgressBar,
    Expander
  },
  inject: ['root'],
  props: ['task'],
  mixins: [taskMixin],
  data() {
    return {};
  },
  computed: {
    /**
     * Get clip path id
     *
     * @returns {string}
     */
    clipPathId() {
      return 'gantt-elastic__task-clip-path-' + this.task.id;
    },

    /**
     * Get points
     *
     * @returns {string}
     */
    getPoints() {
      const task = this.task;
      return `0,0 ${task.width},0 ${task.width},${task.height} 0,${task.height}`;
    }
  }
};
</script>

替换完记得重启项目

顾尘眠
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
